studies:score_mip:b3_w2

Band 3: 2.04 micron CO2 band, Window 2

Model settings and results

Disort calculations (scalar)

Model settings:

  • DISORT2 solver by Stammnes et al., 1998
  • 2nd order intensity correction (modified by R. Buras, 2009)
  • 32 streams

Plots

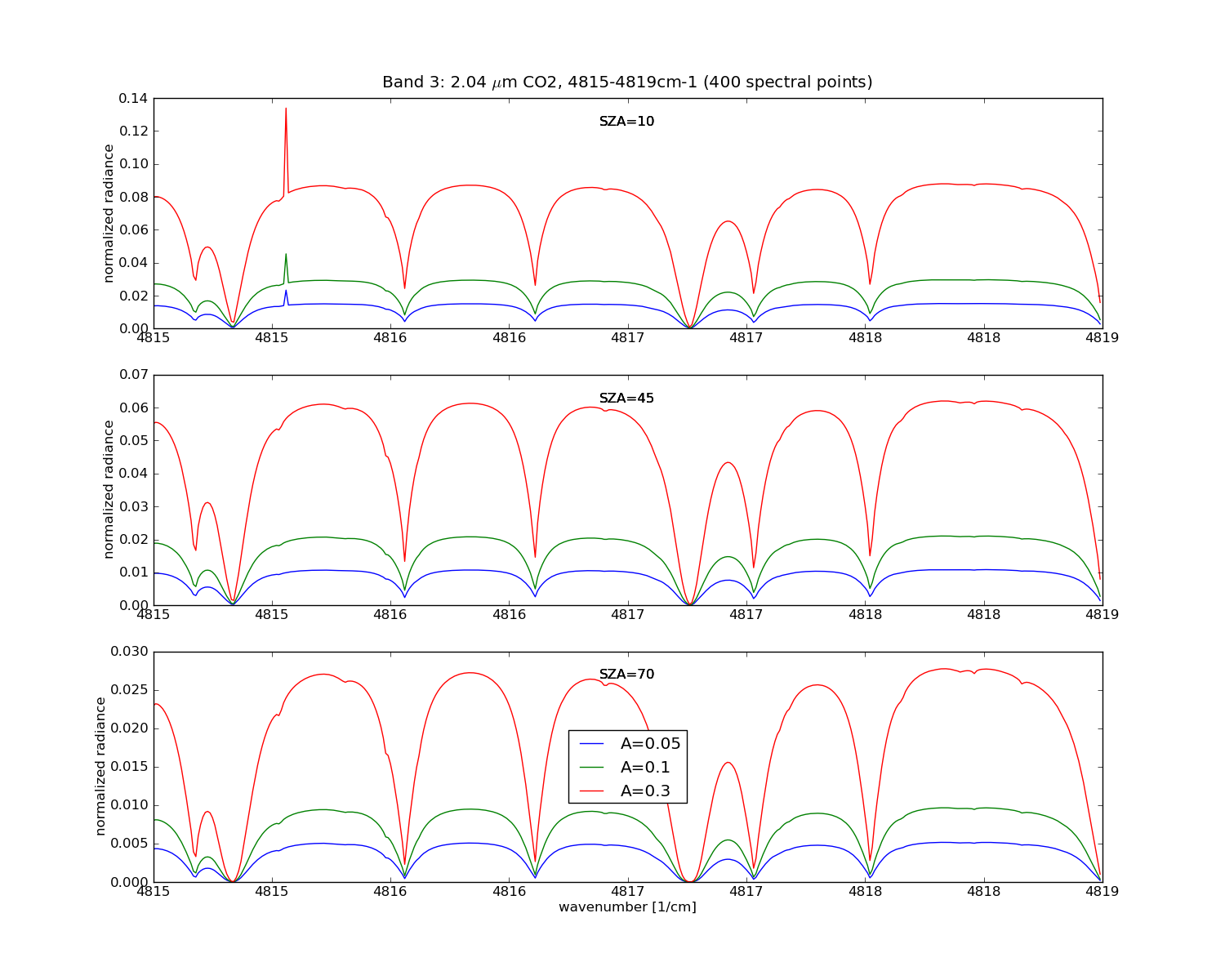

Case A, Low aerosol loading (AOD ~ 0.05): Results of disort 2 calculations.

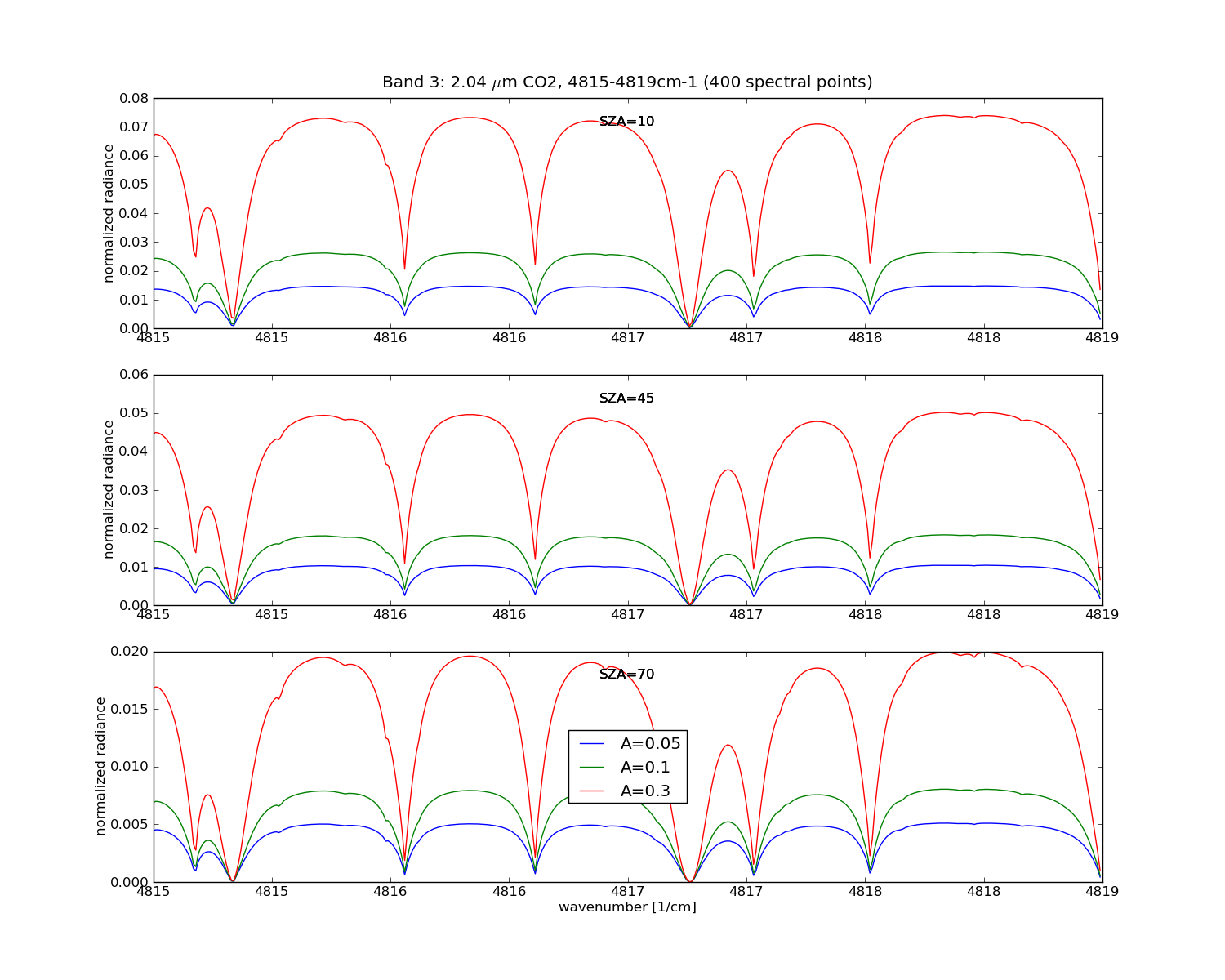

Case B, Low aerosol loading (AOD ~ 0.05) with cirrus cloud: Results of disort 2 calculations.

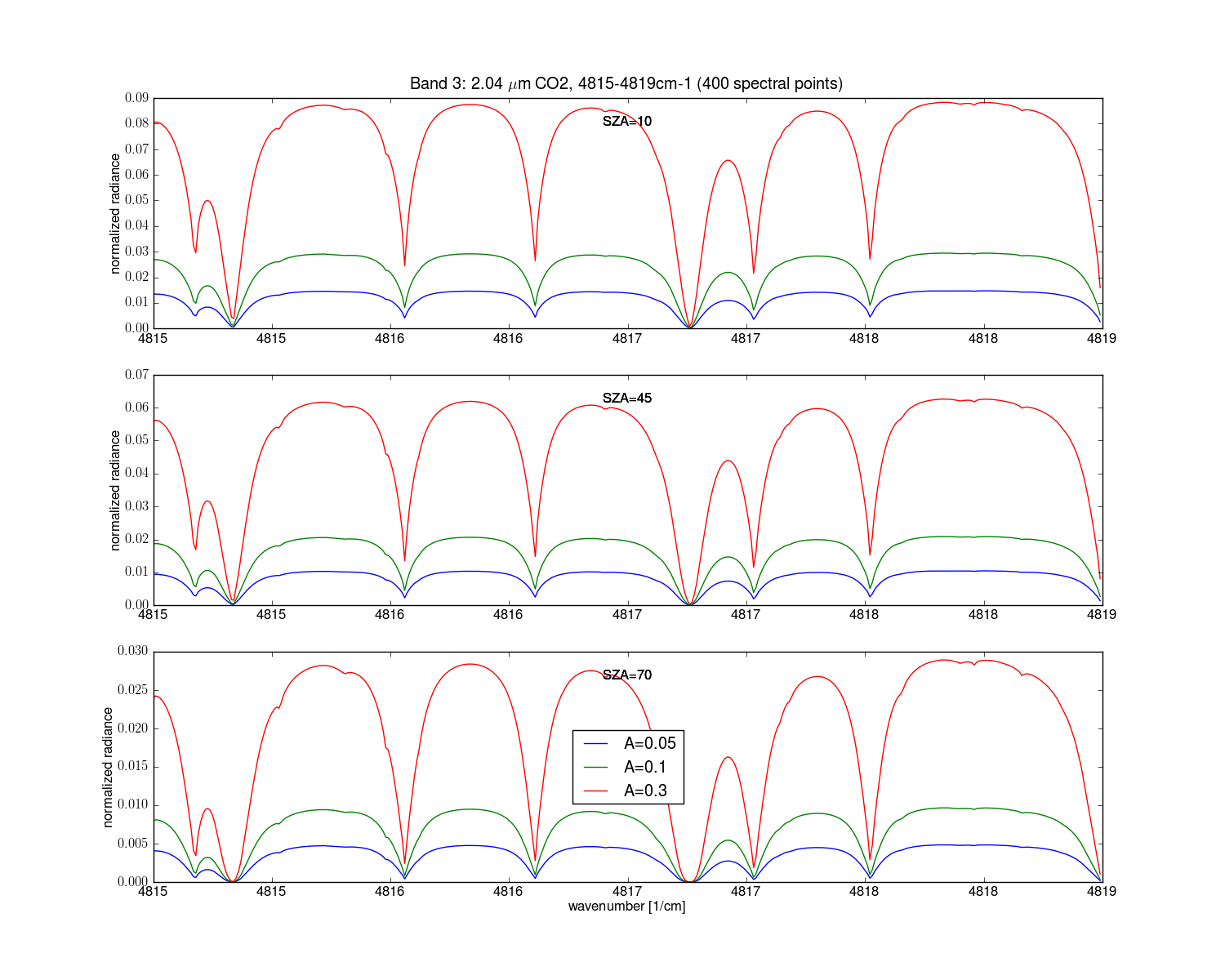

Case C, High aerosol loading (AOD ~ 0.3): Results of disort 2 calculations.disort2 instability at SZA=10° for wavenumber 4815.560cm-1

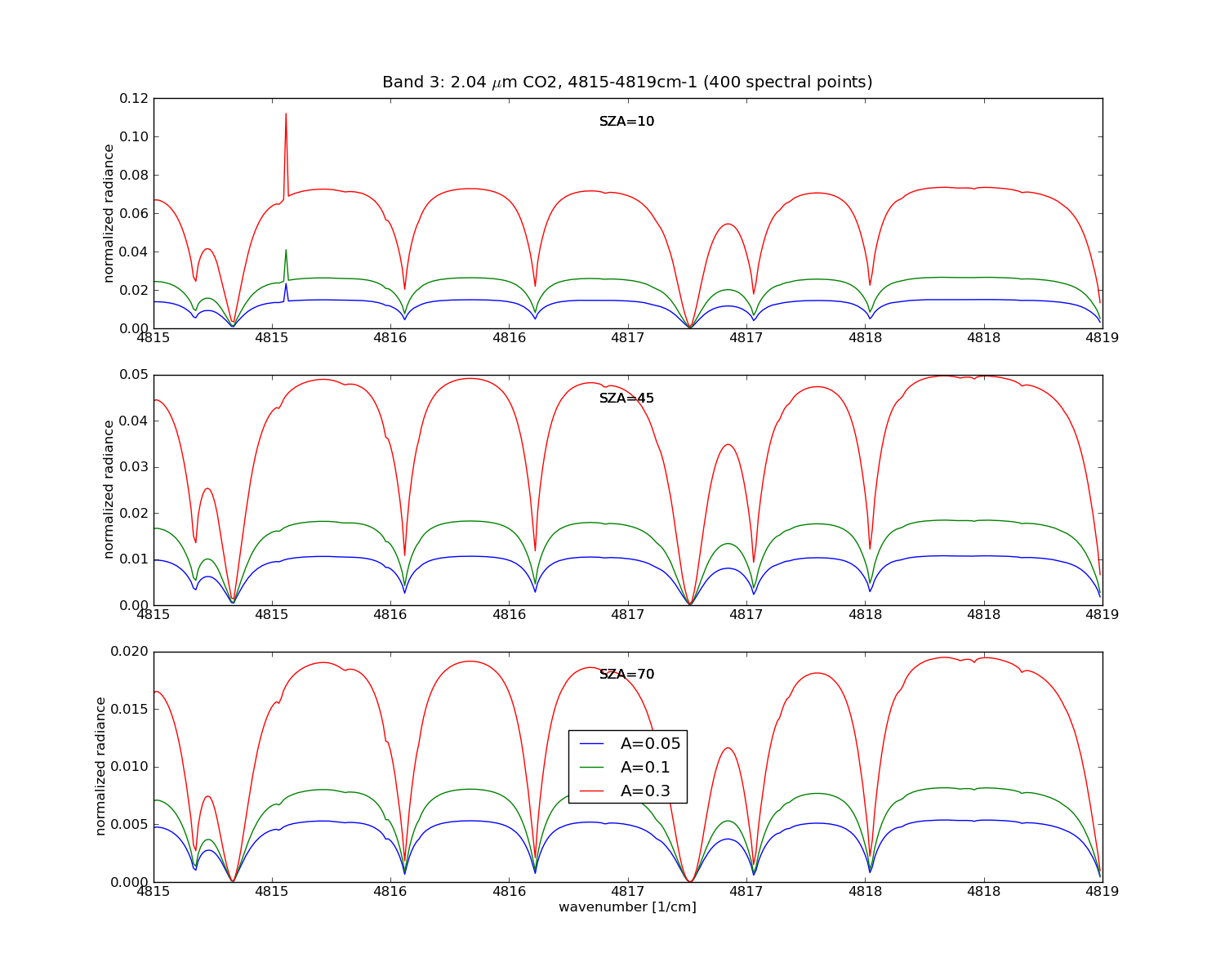

Case D, High aerosol loading (AOD ~ 0.3) with cirrus cloud: Results of disort 2 calculations.

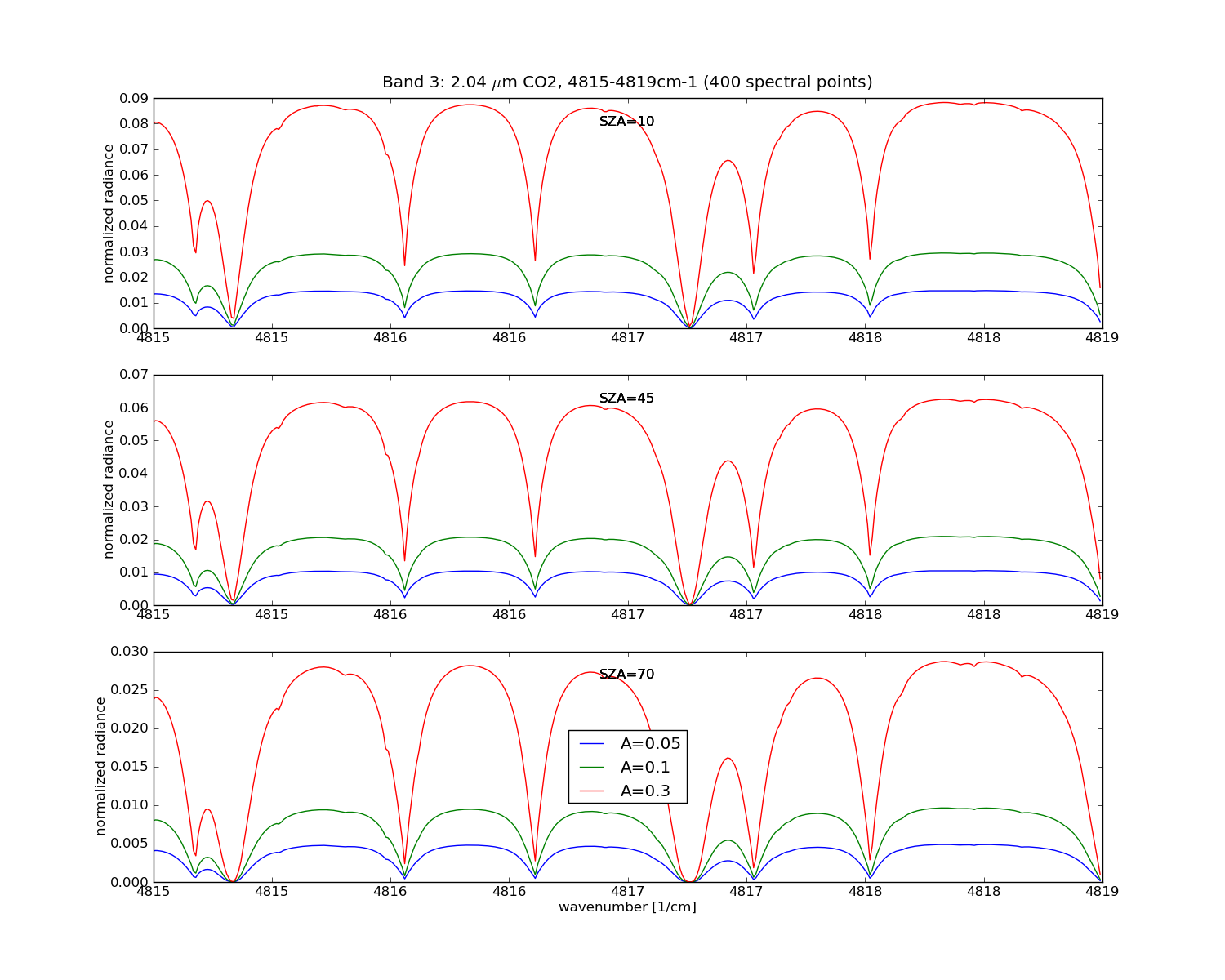

Case E, Case E: Pure Rayleigh atmosphere: Results of disort 2 calculations.
