Tropical Cyclone Oswald Jan 2013

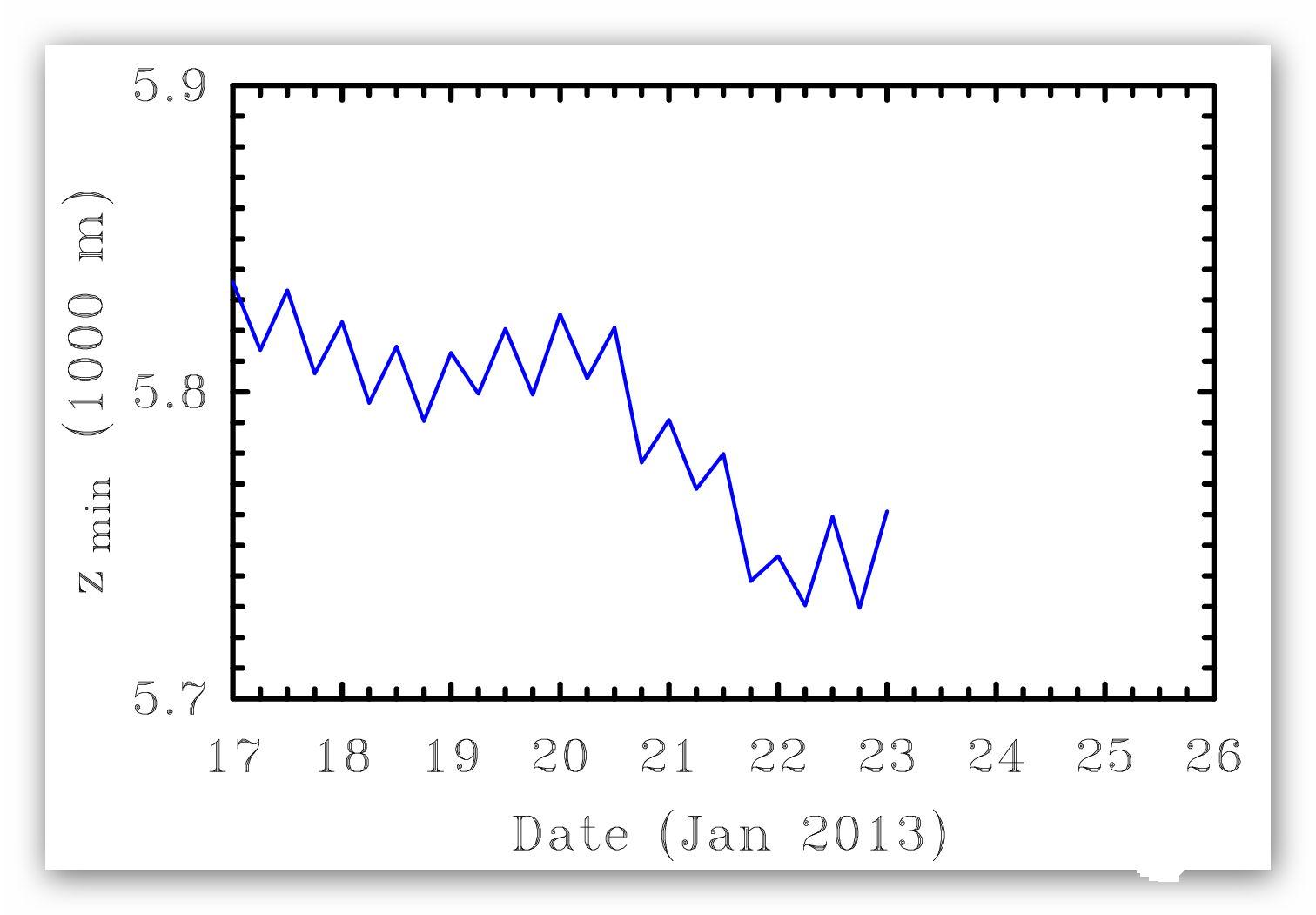

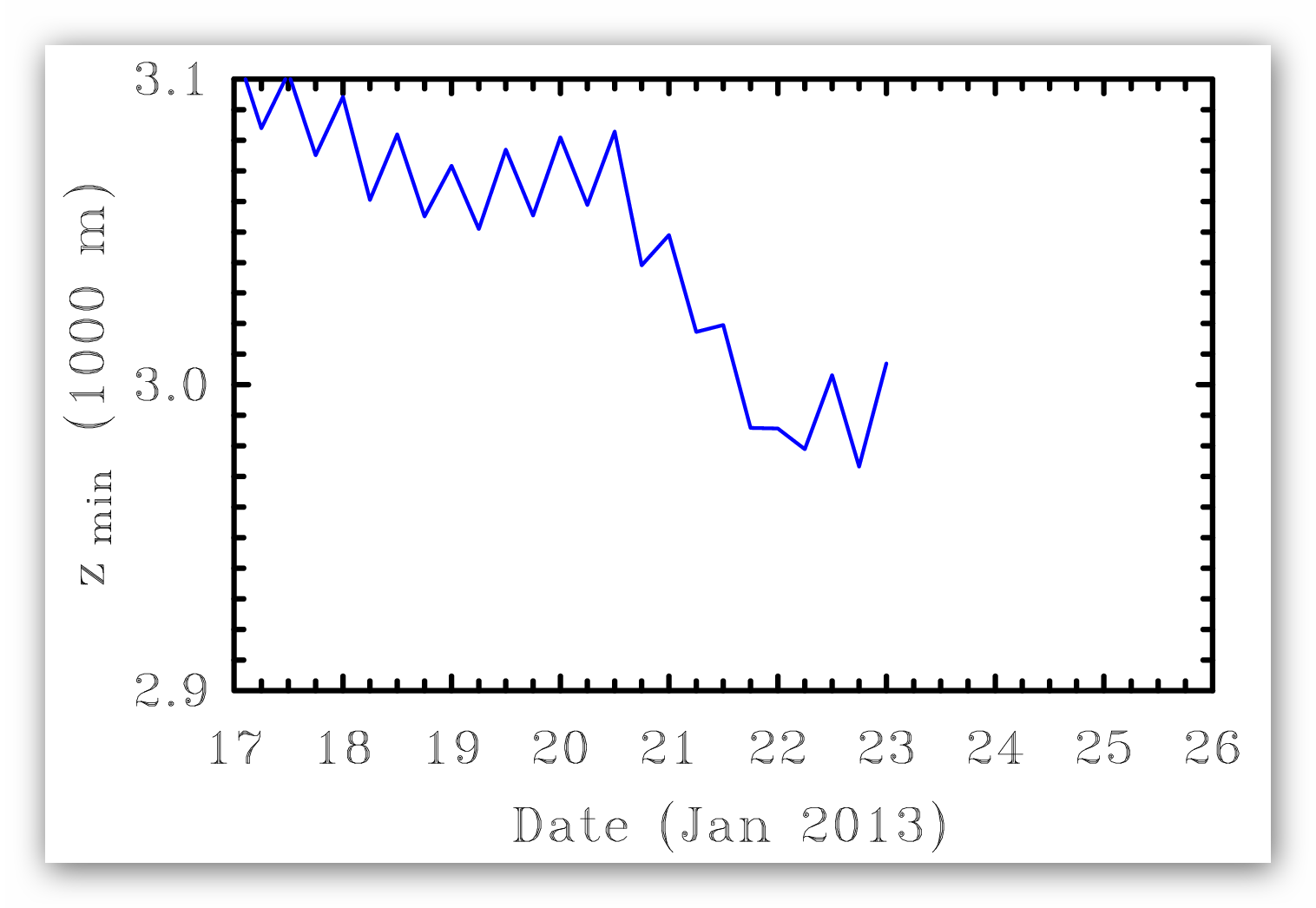

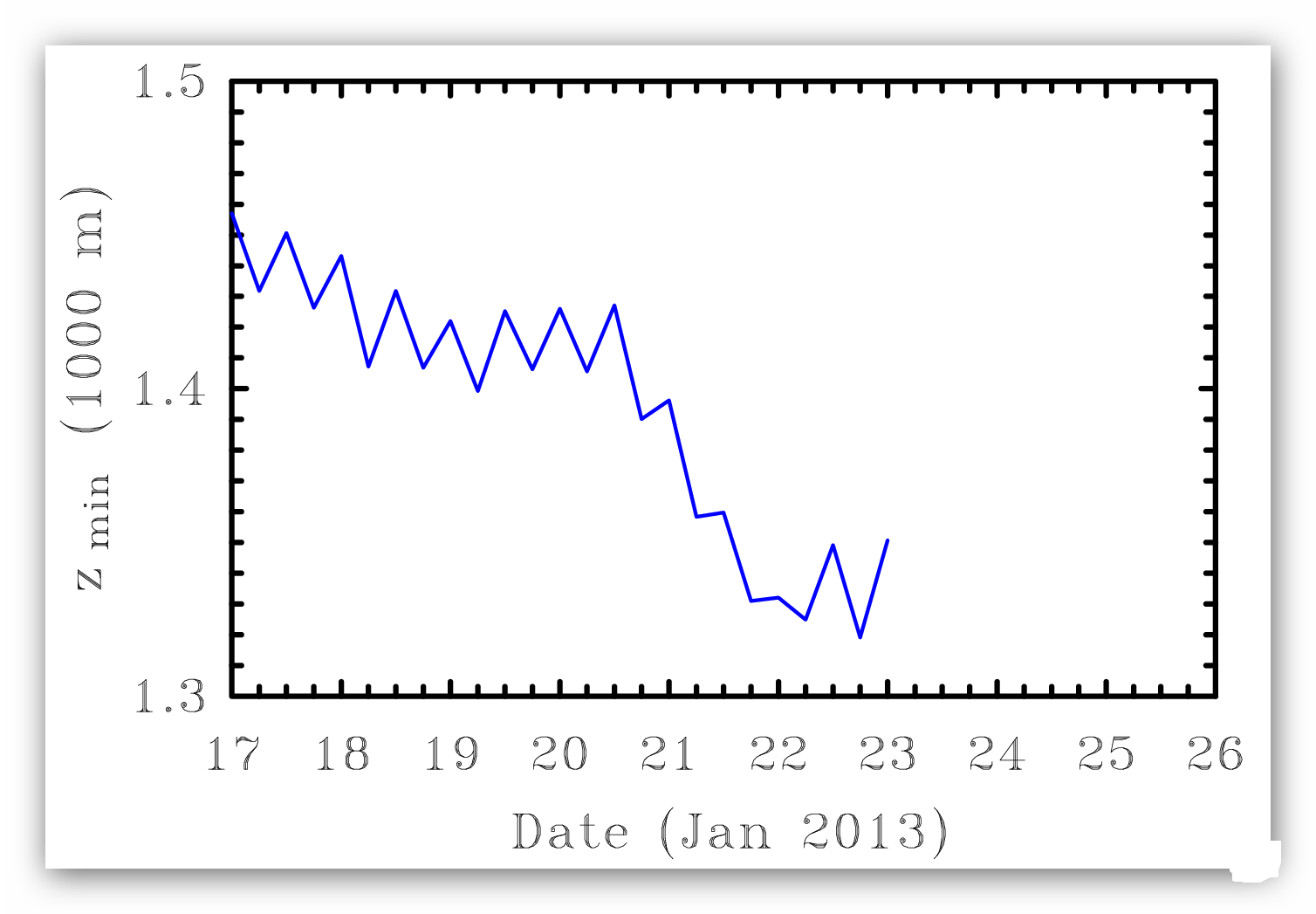

Track (min geopotential at selected heights)

Intensity 850 mb

Intensity 700 mb

Intensity 500 mb

Vertical velocity, vertical vorticity and geopotential height at 850 mb

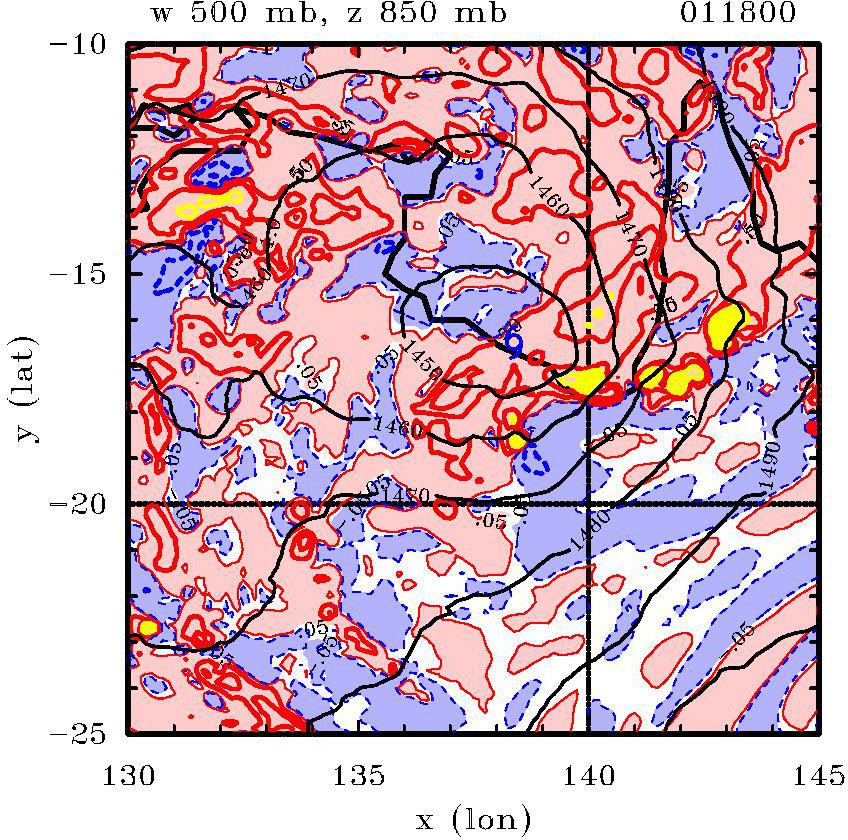

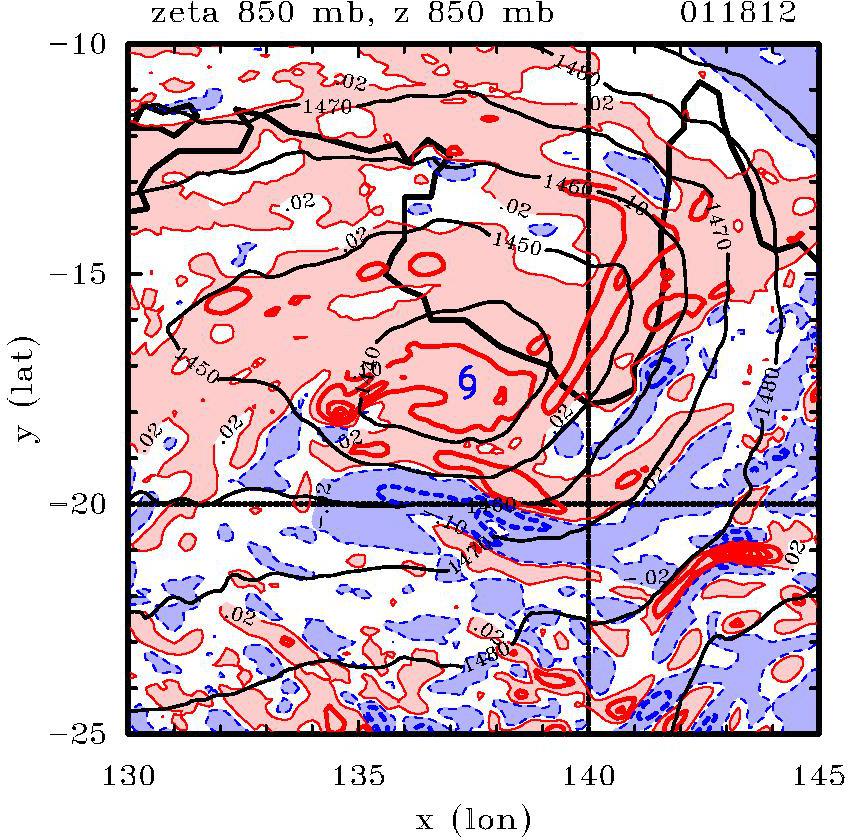

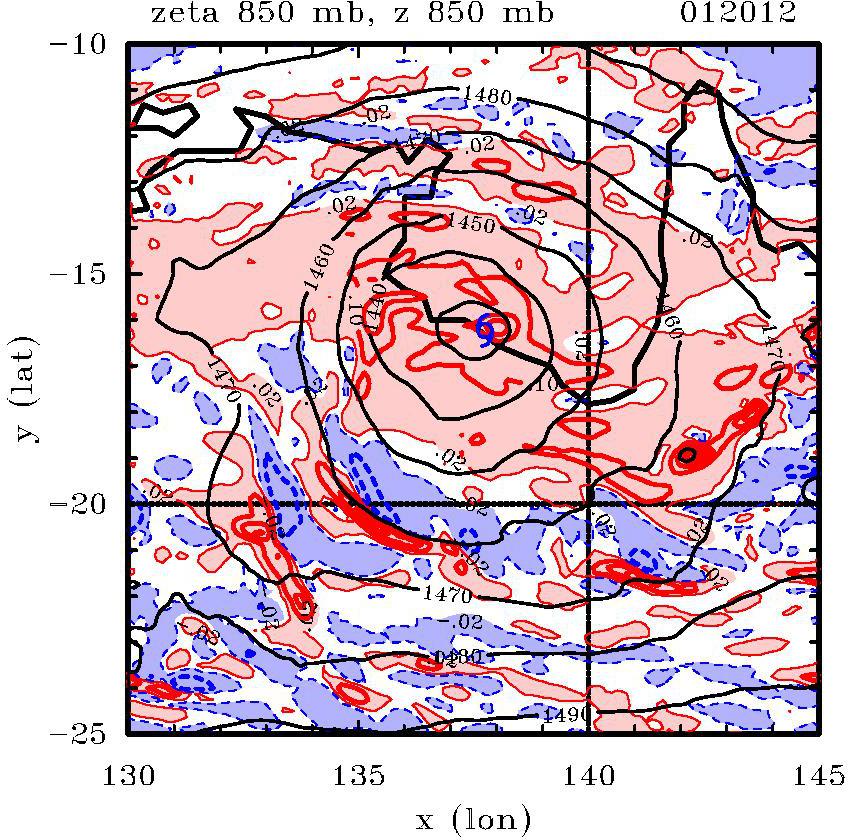

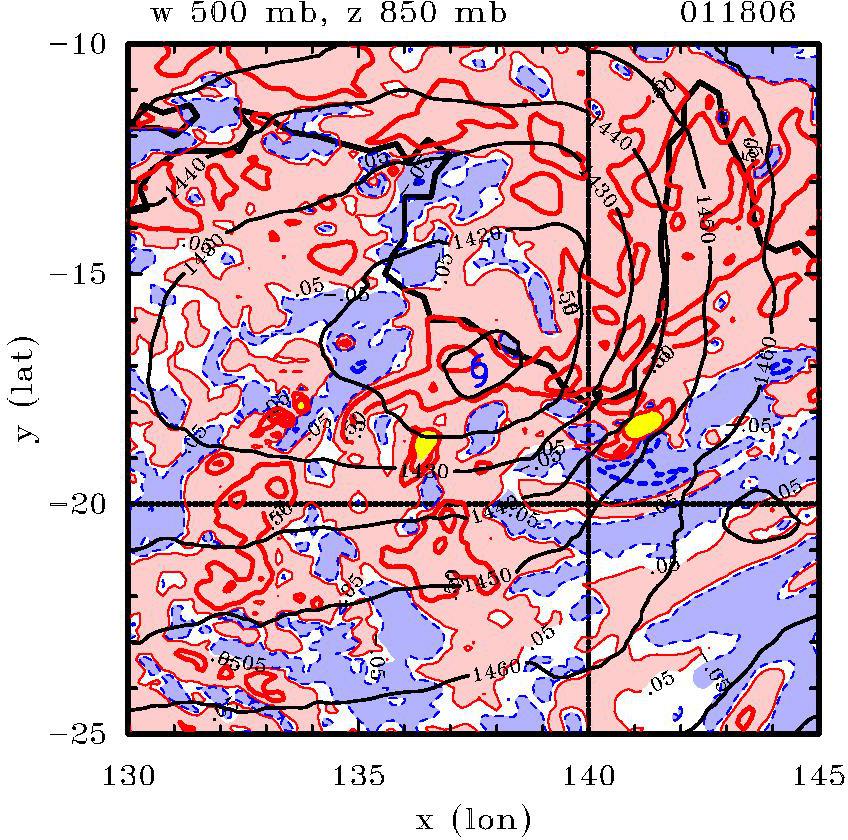

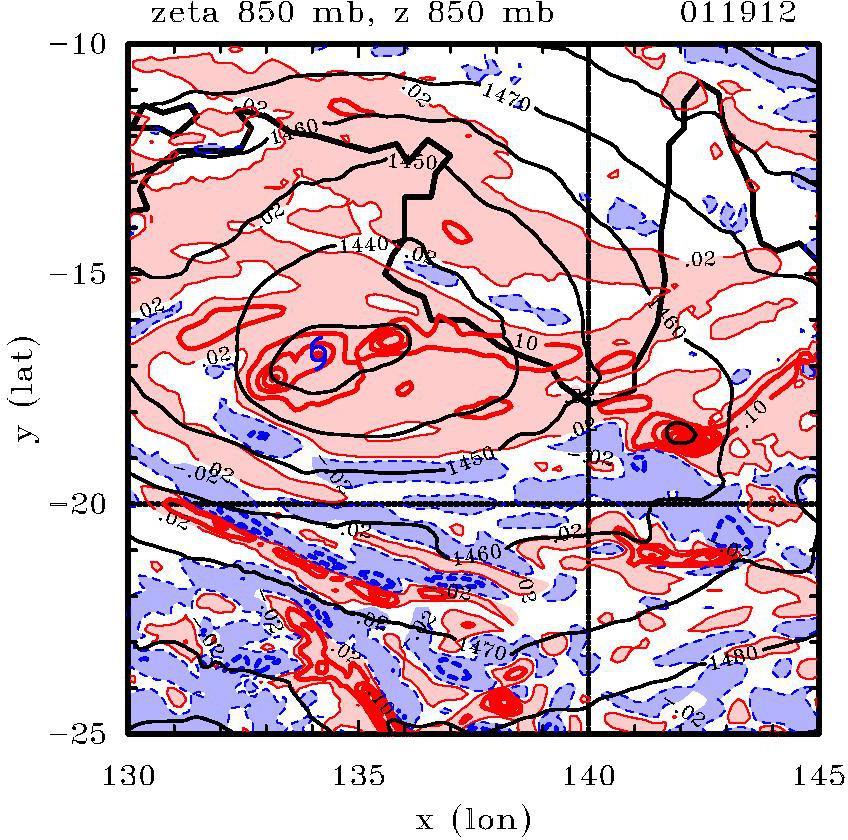

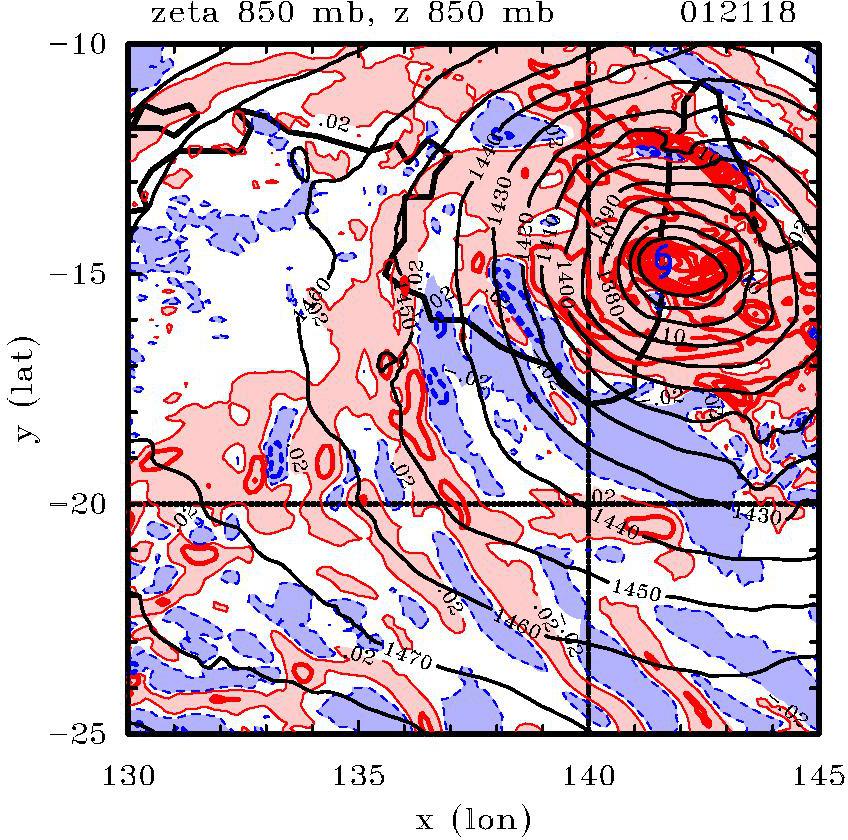

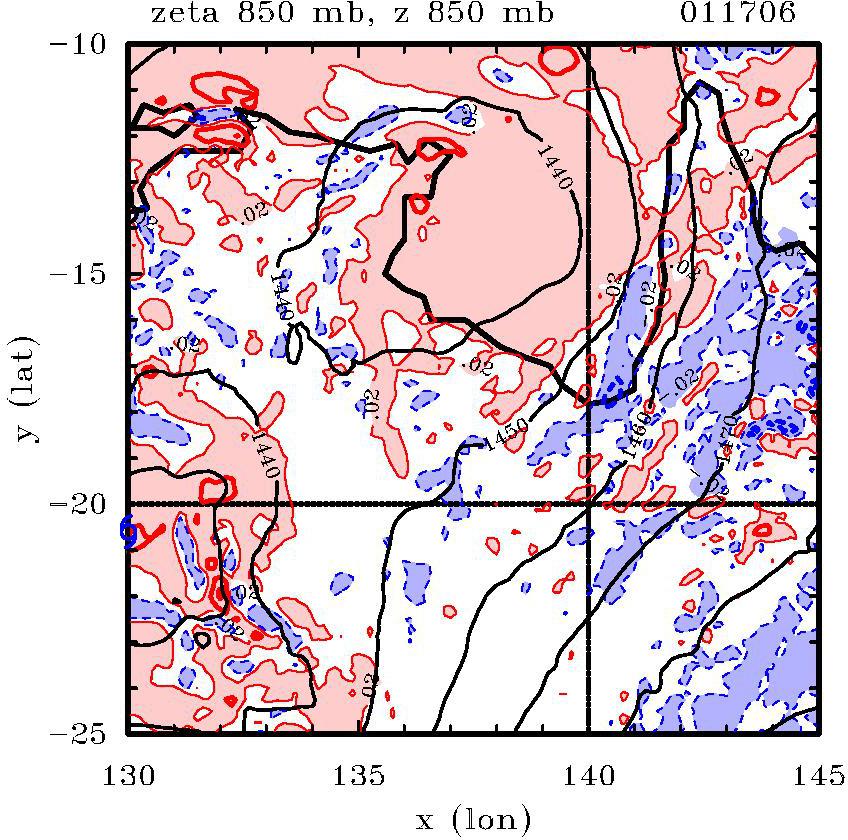

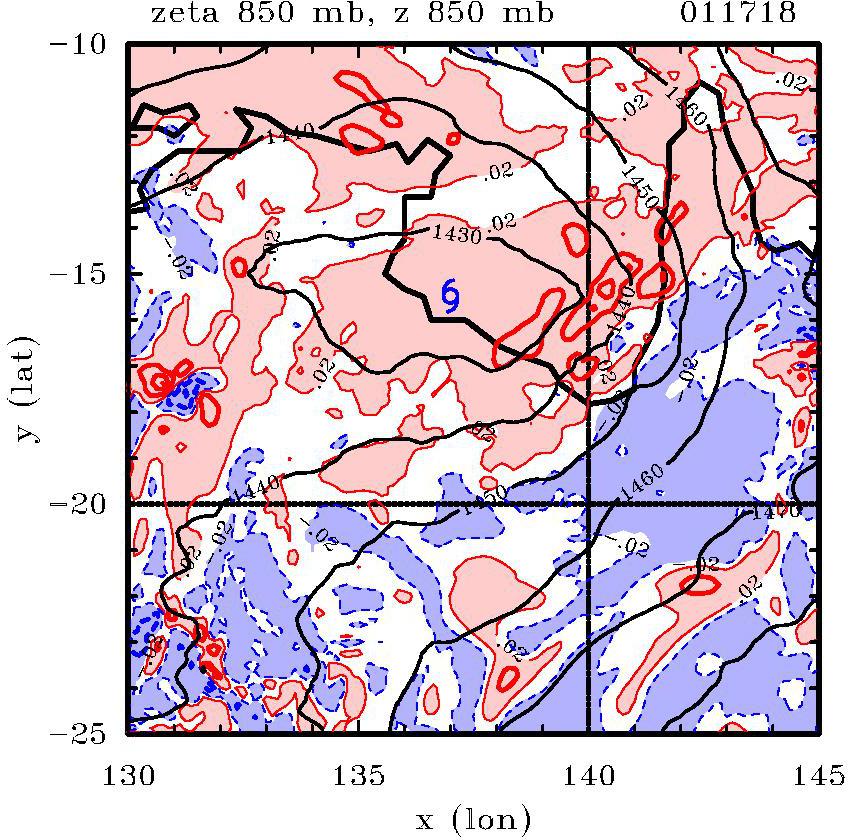

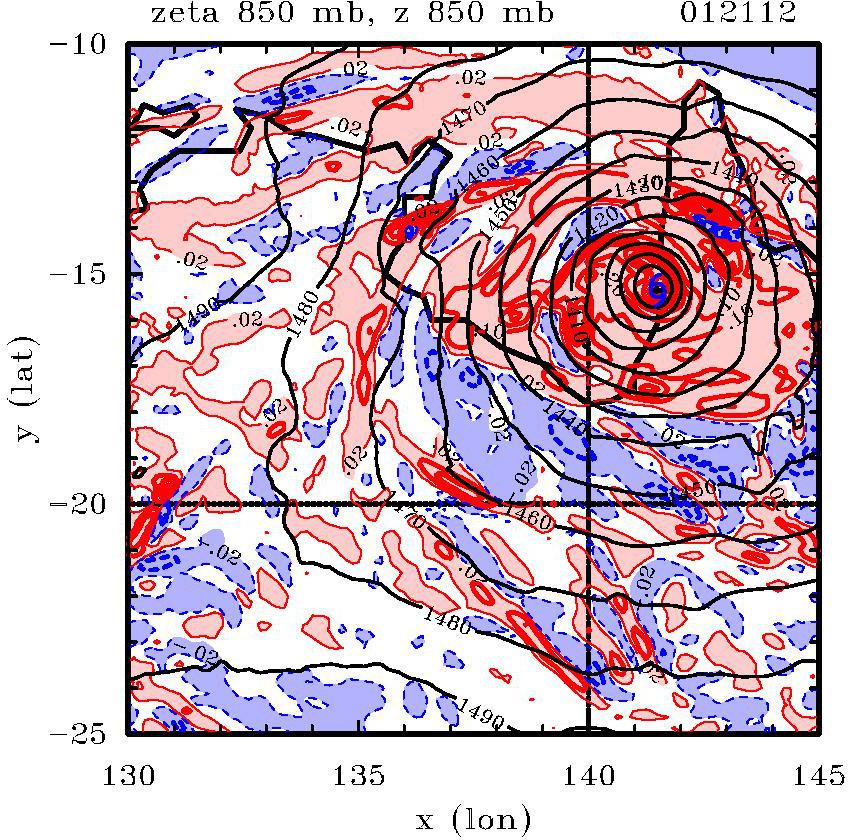

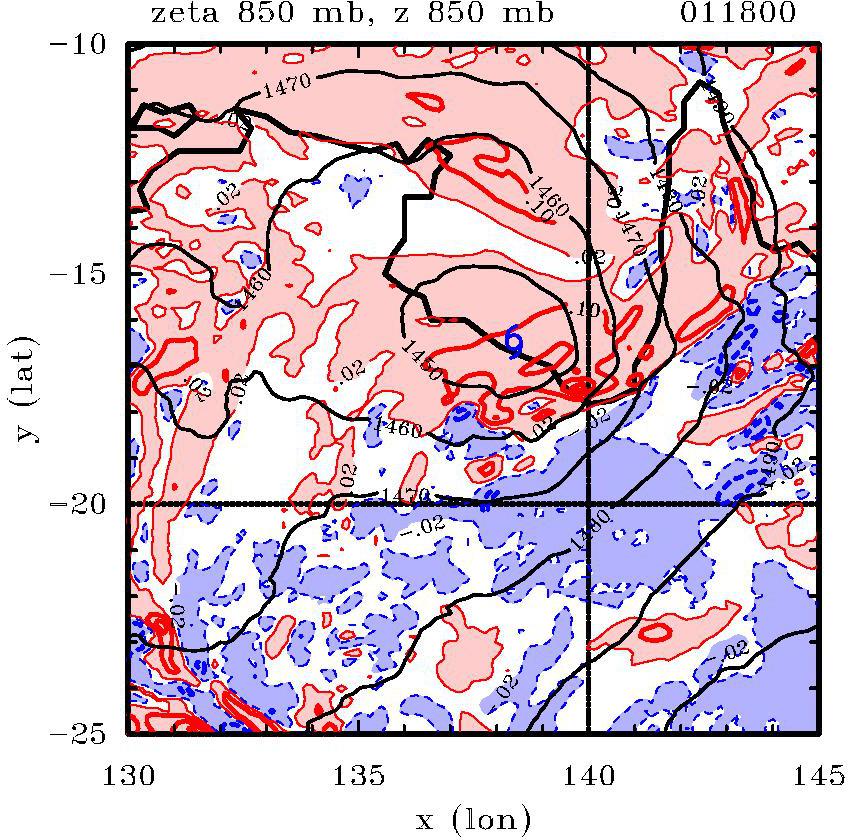

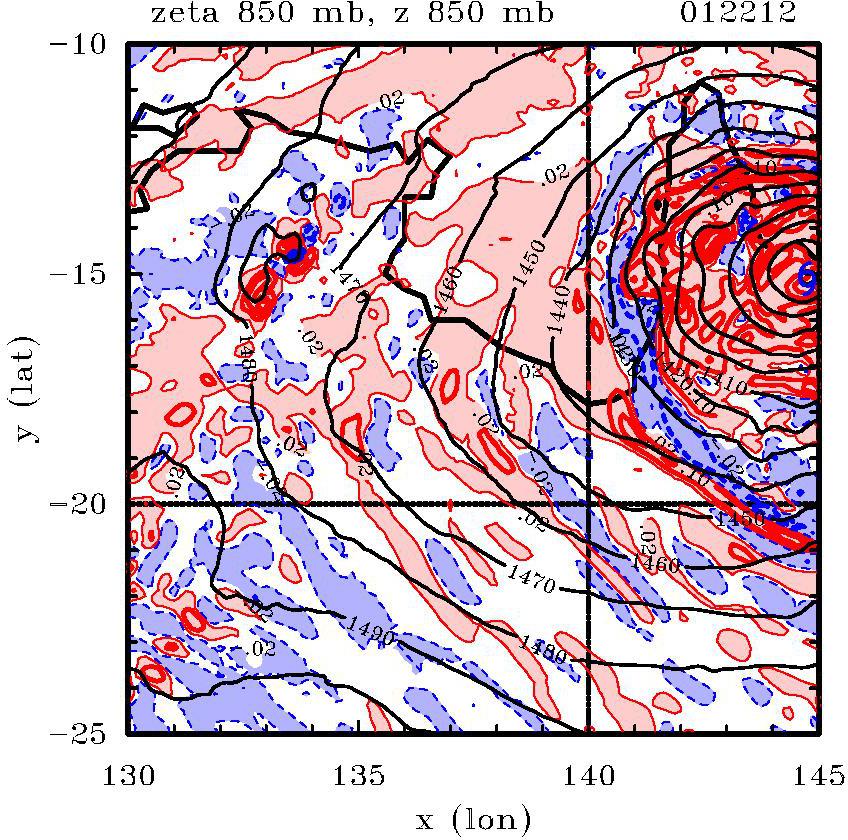

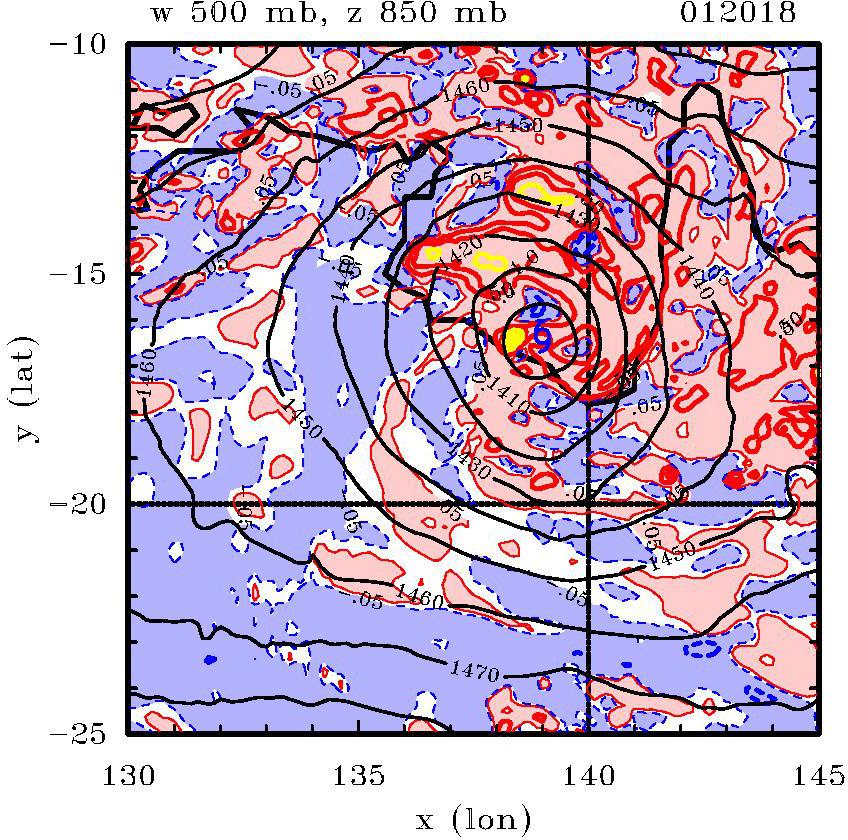

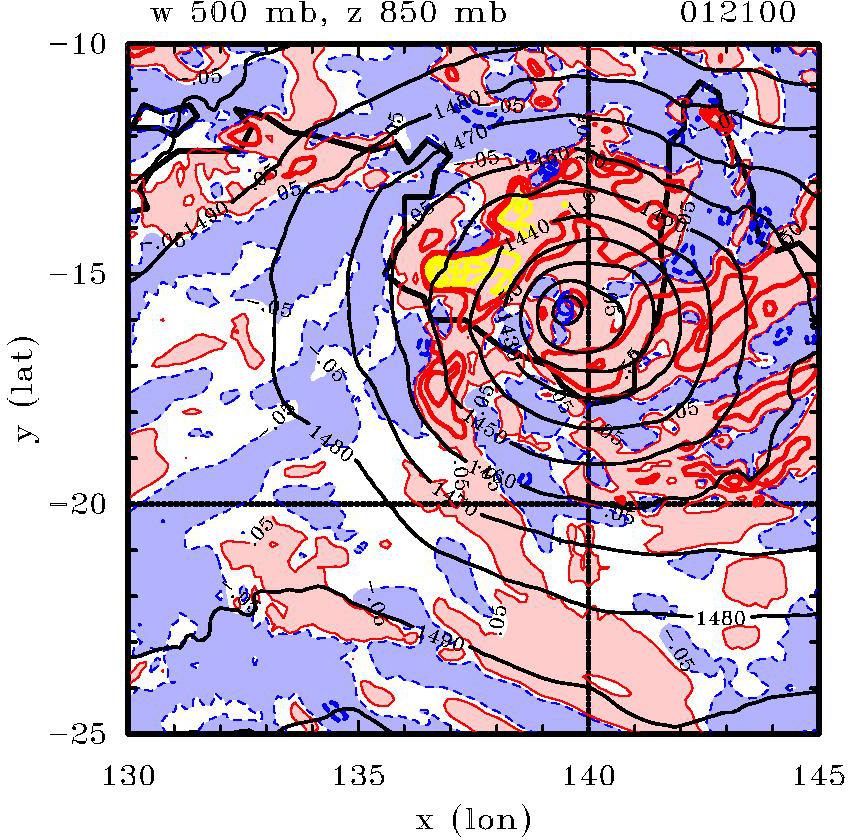

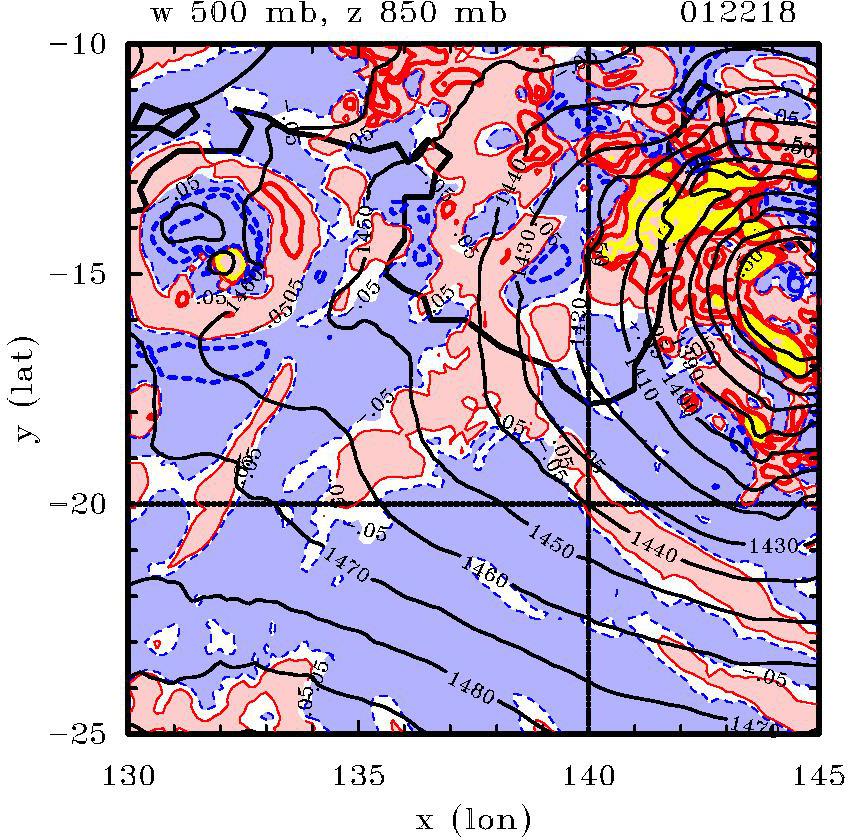

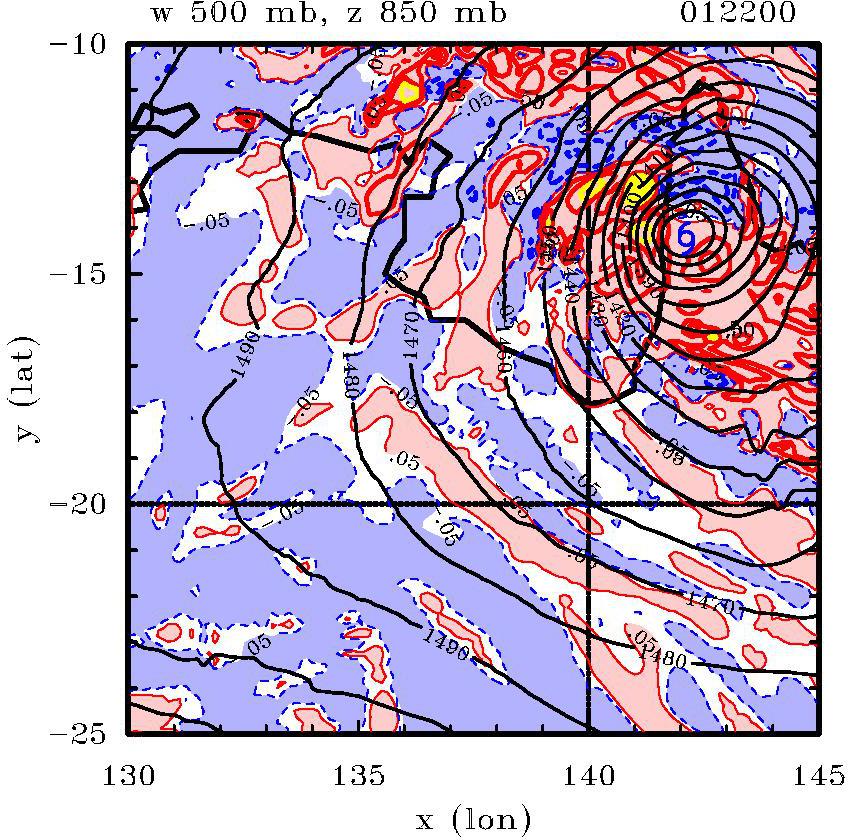

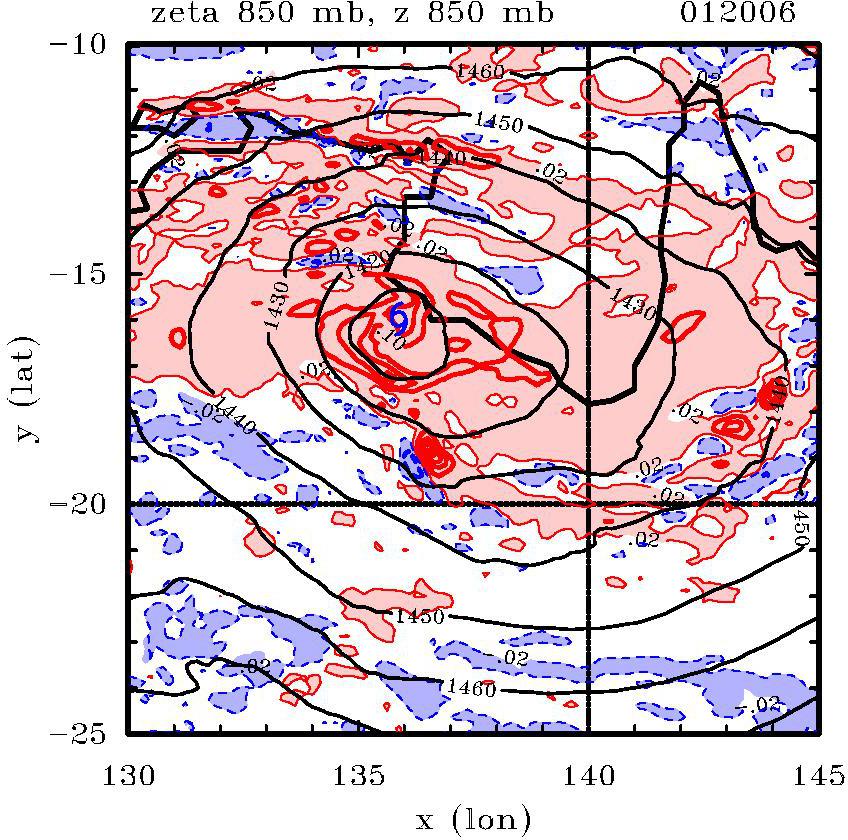

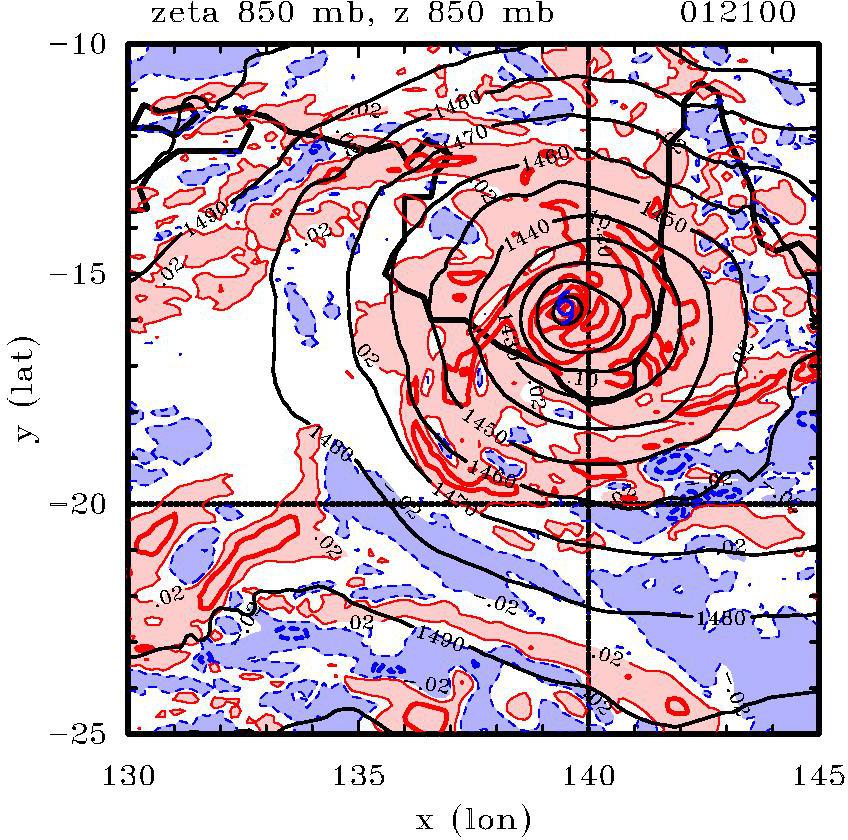

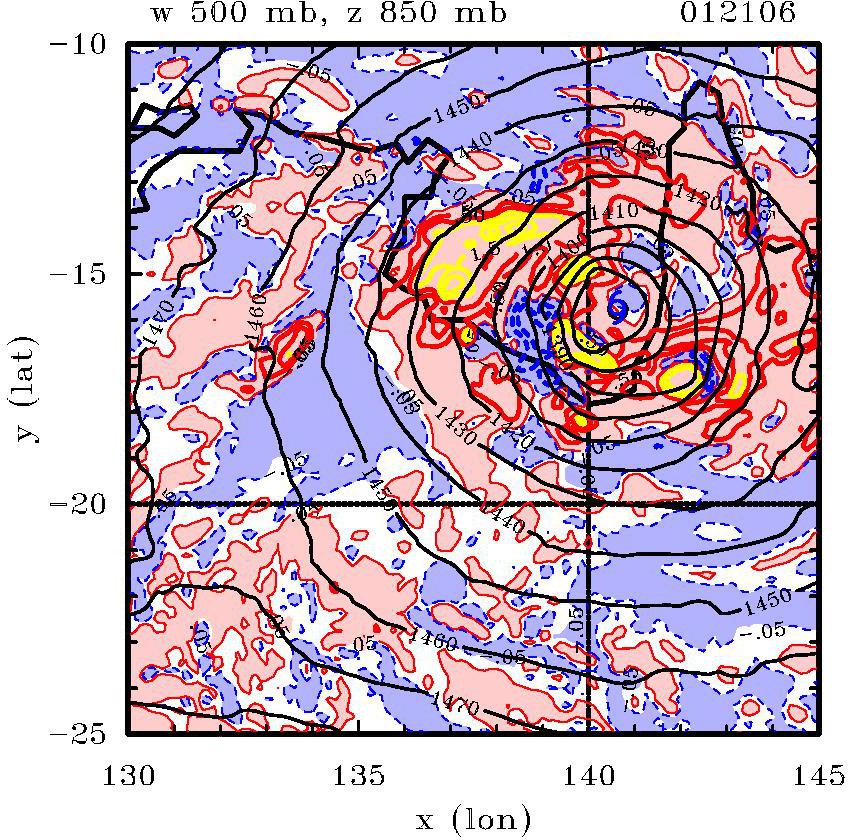

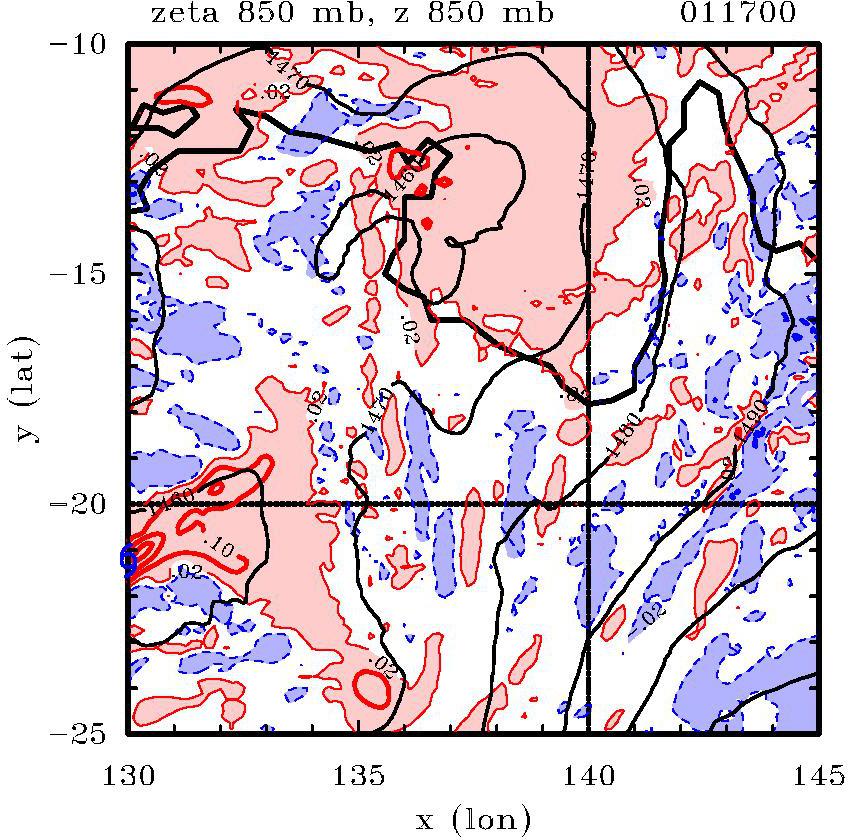

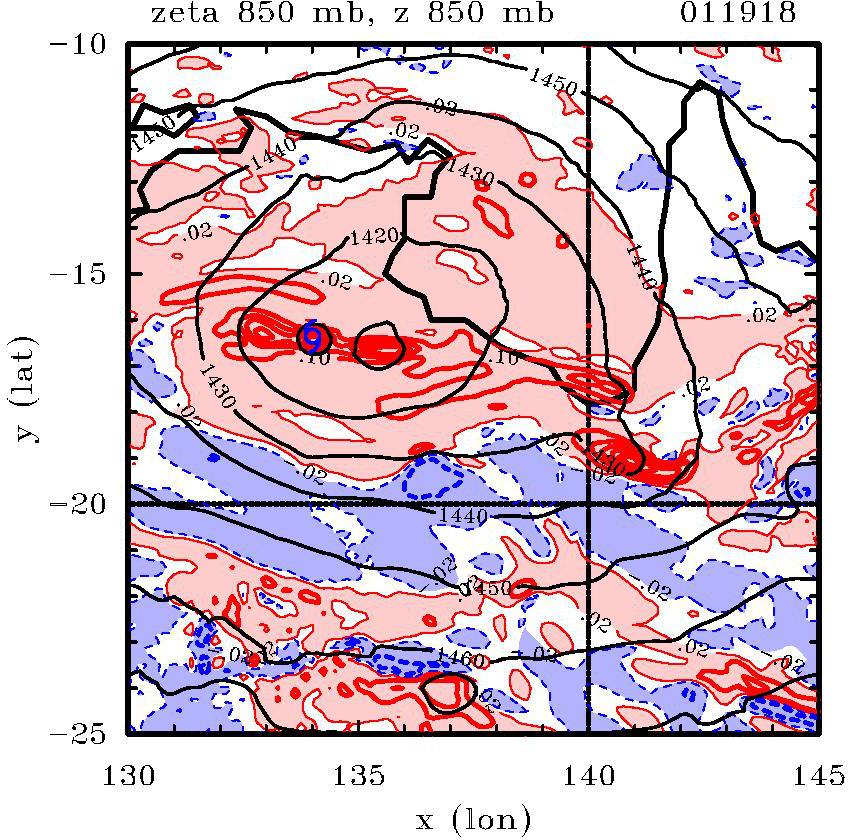

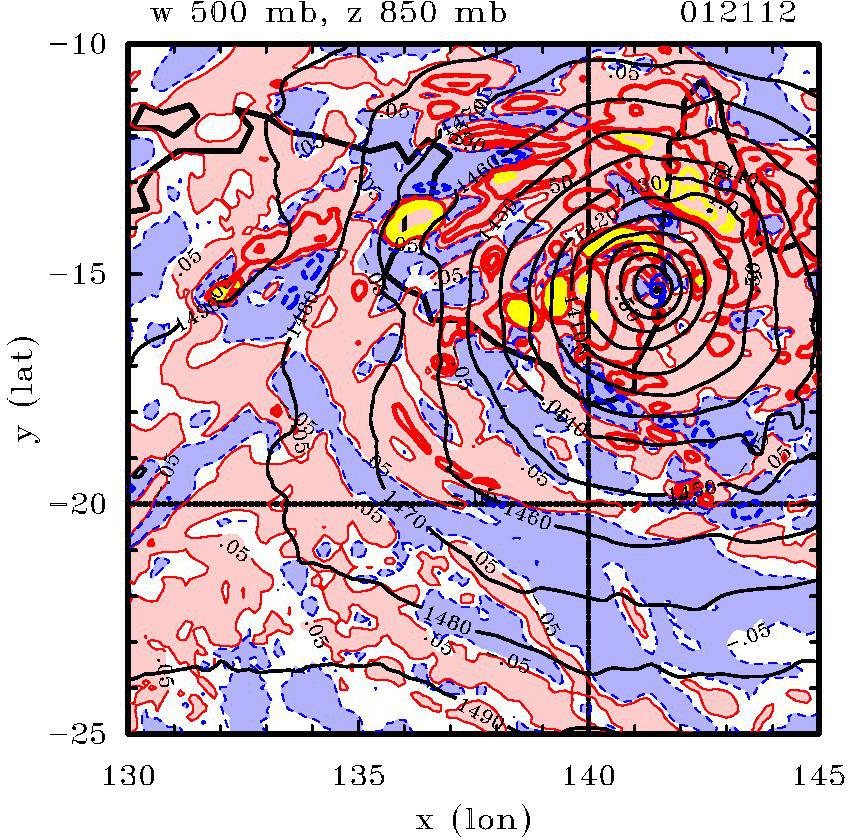

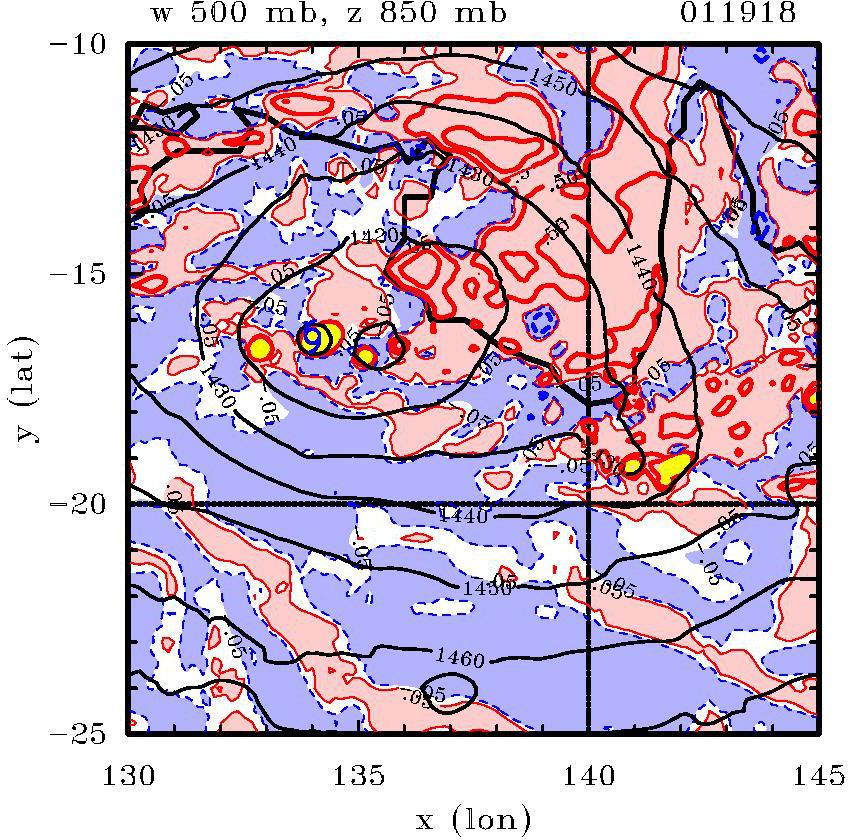

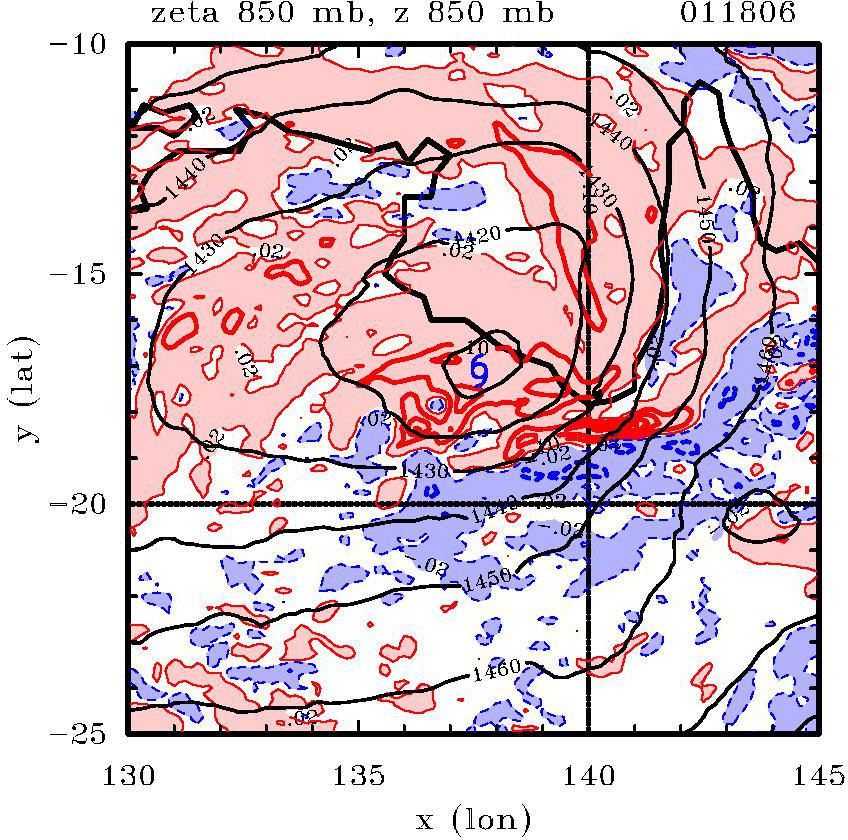

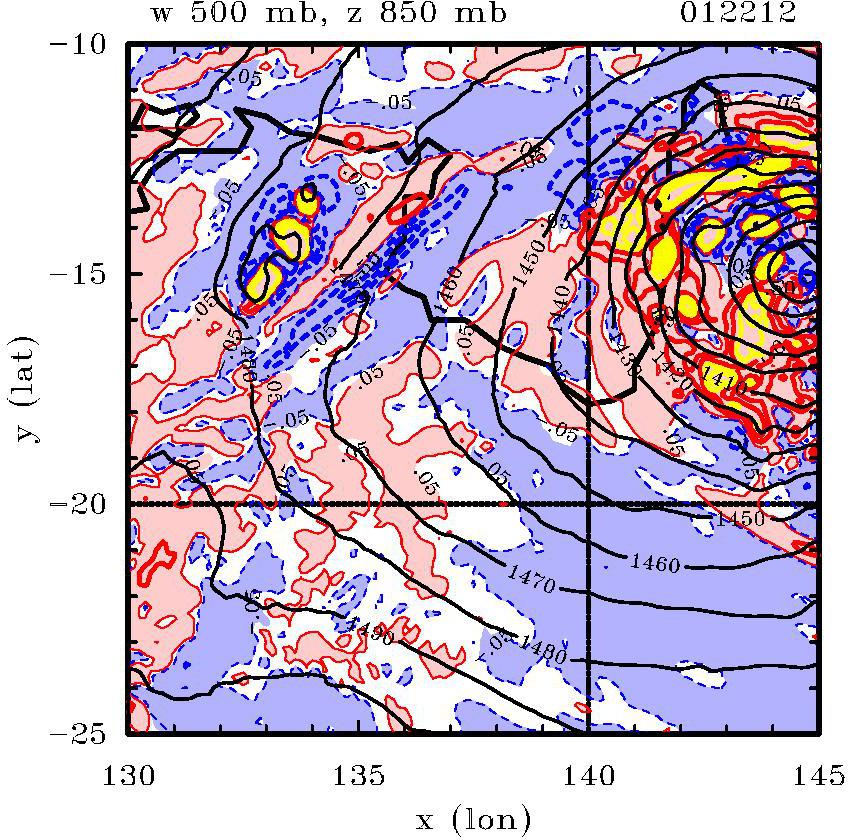

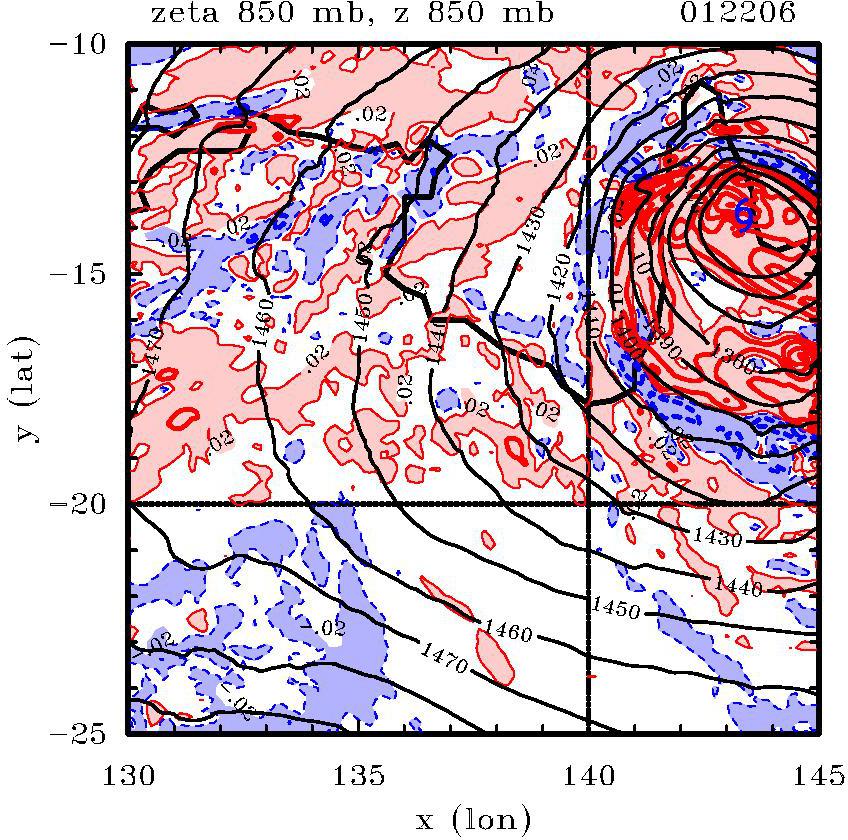

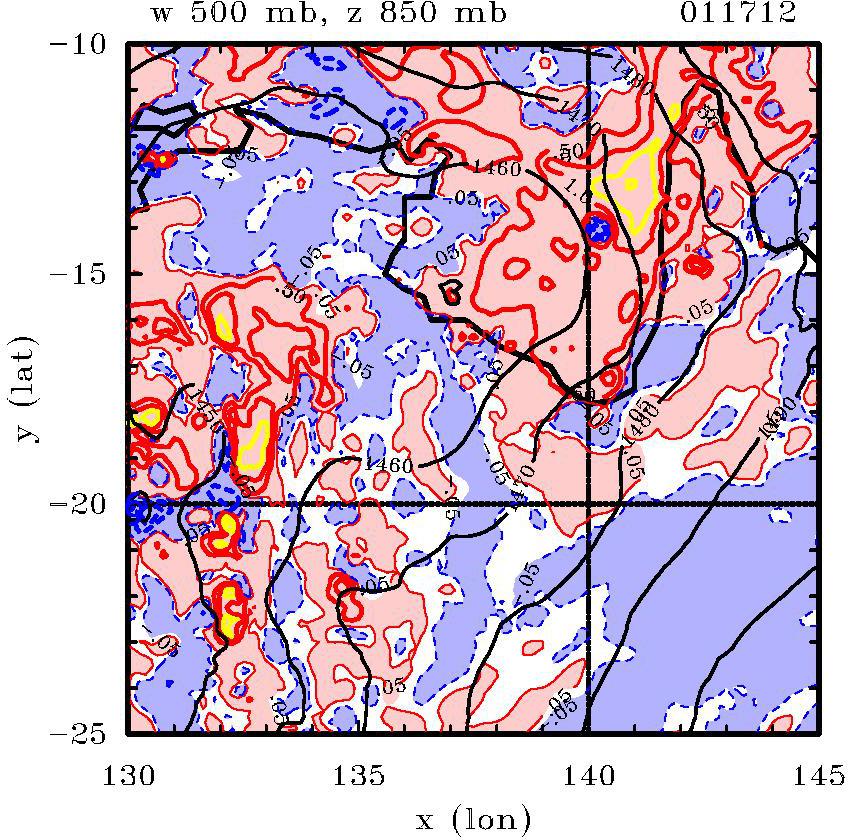

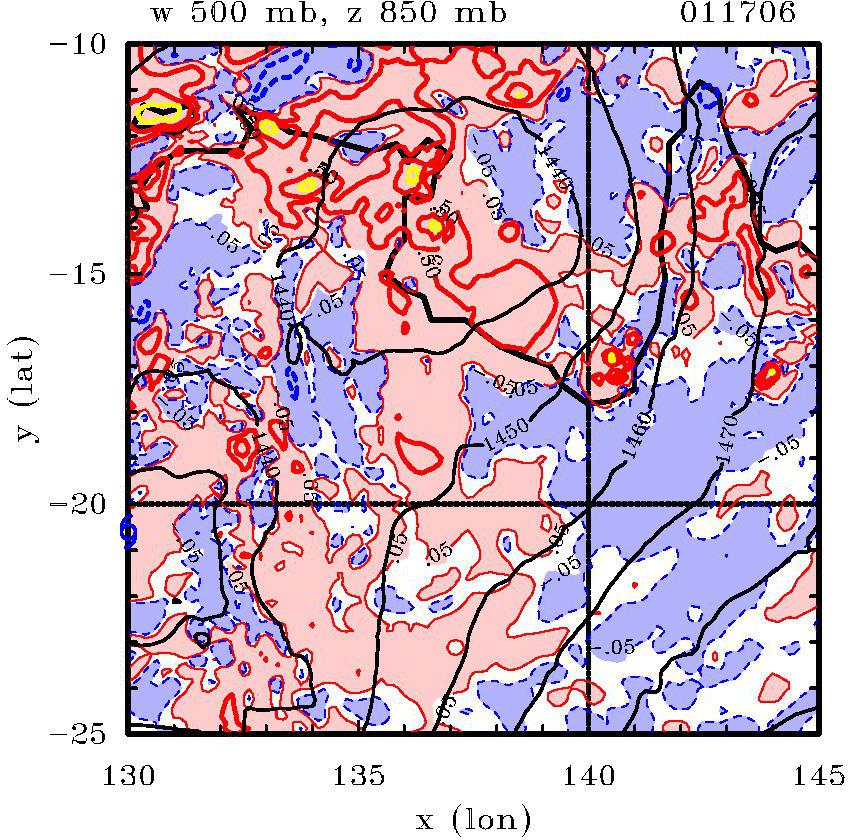

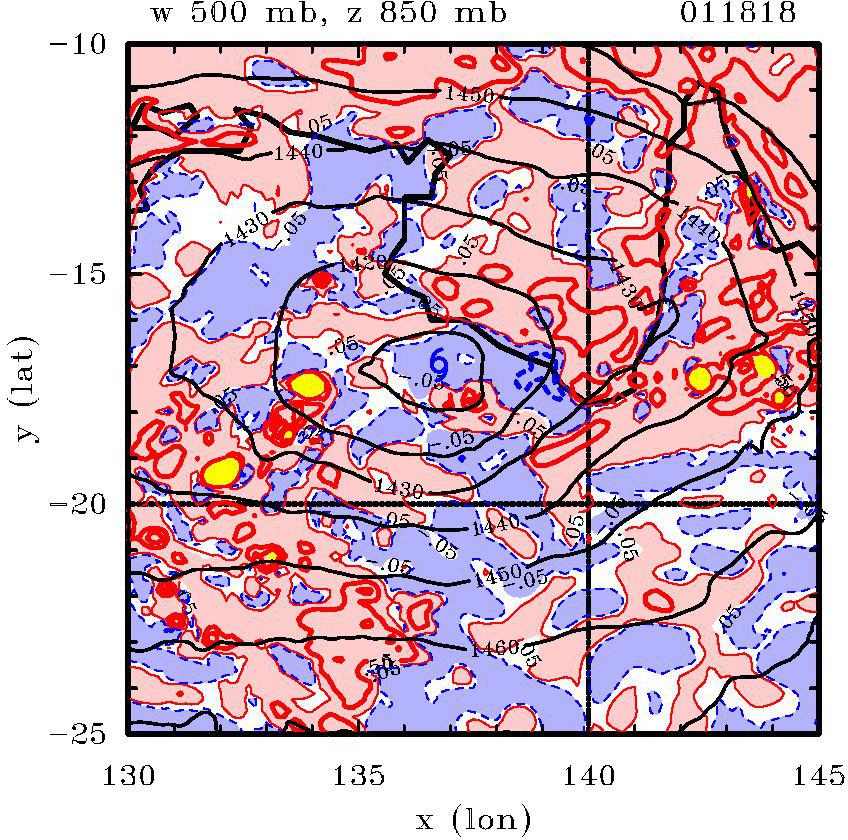

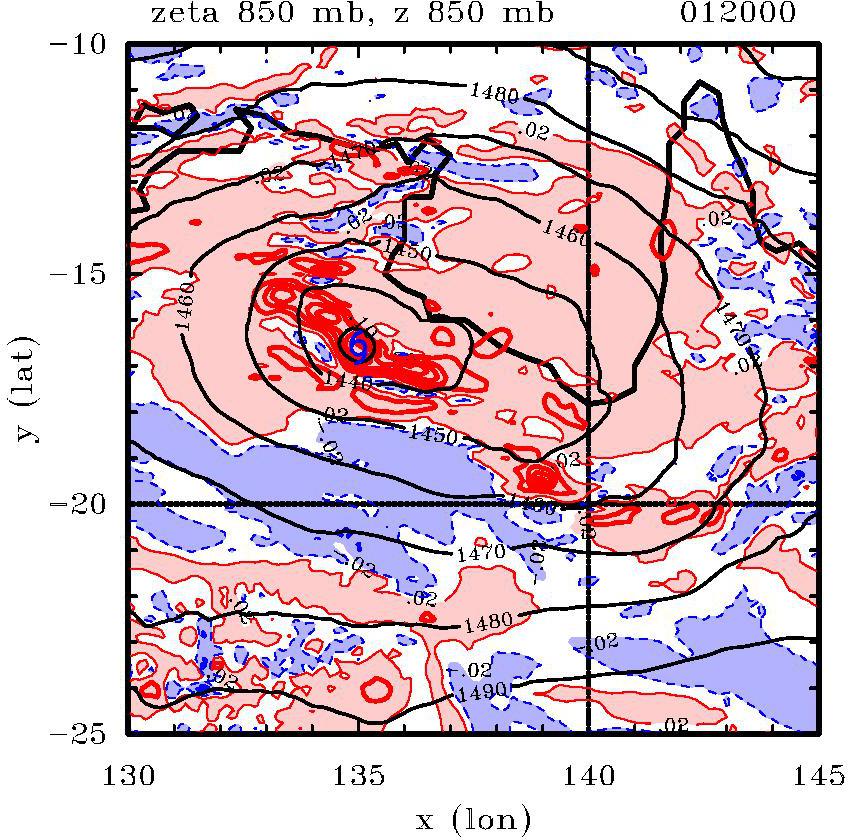

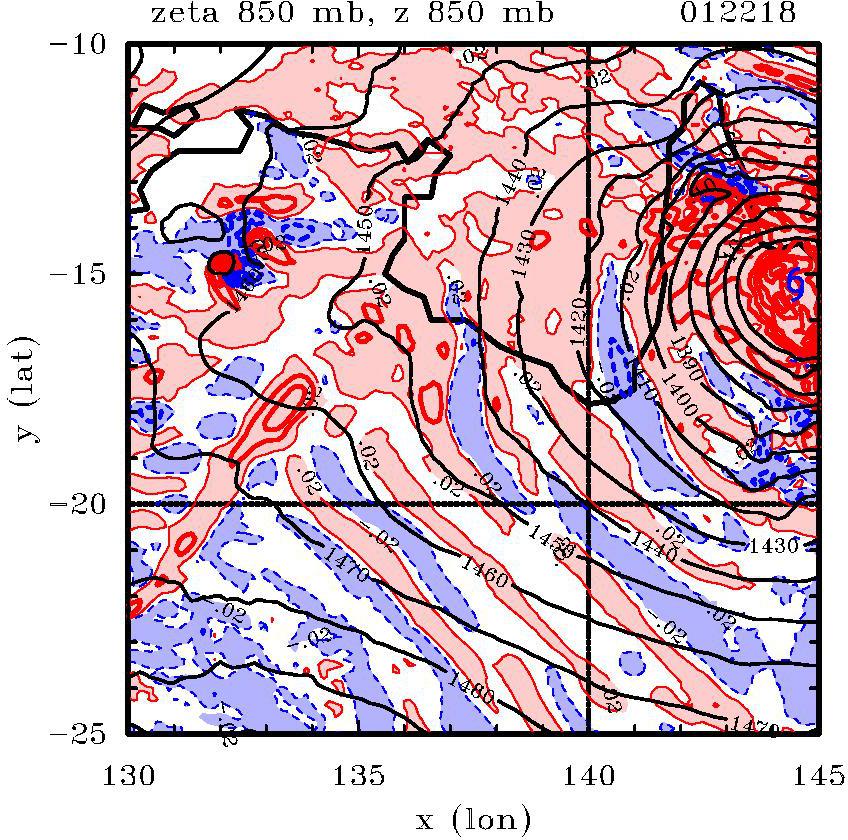

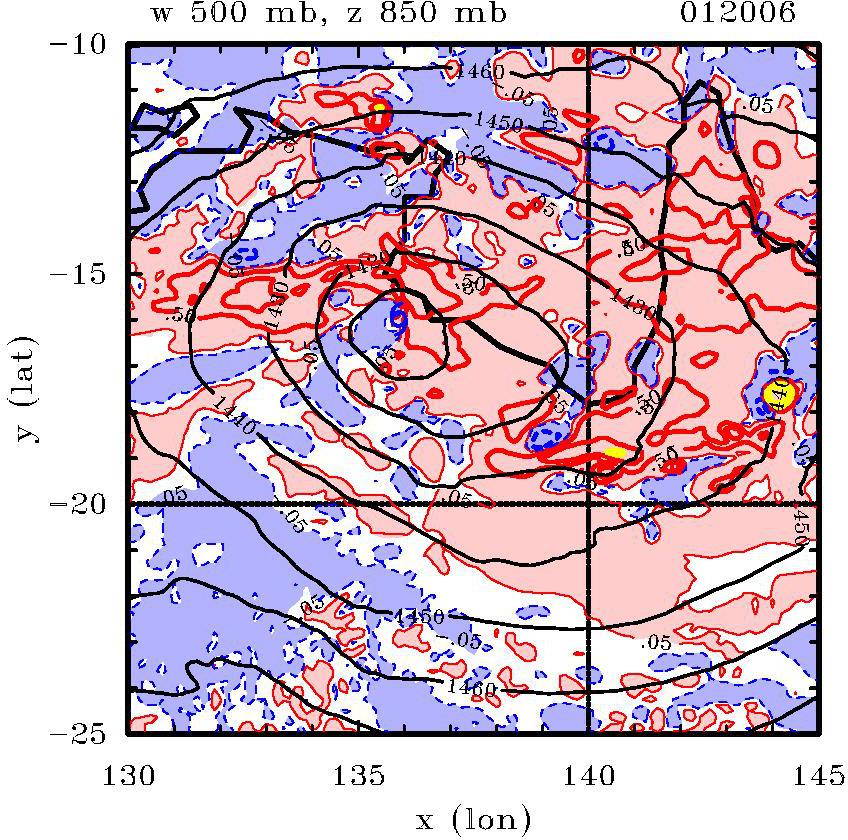

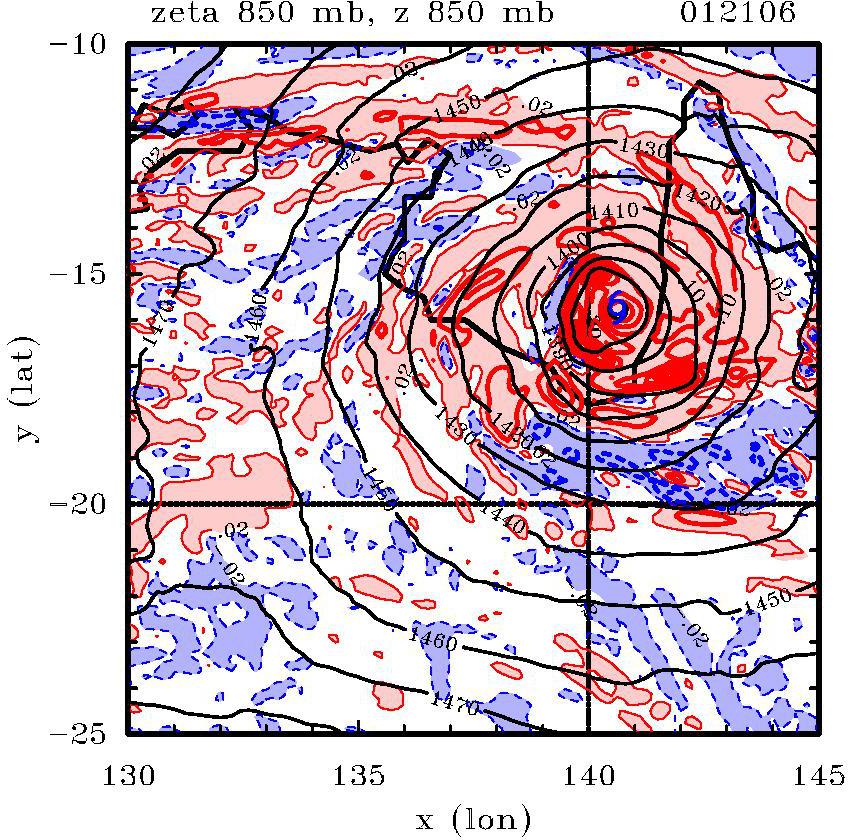

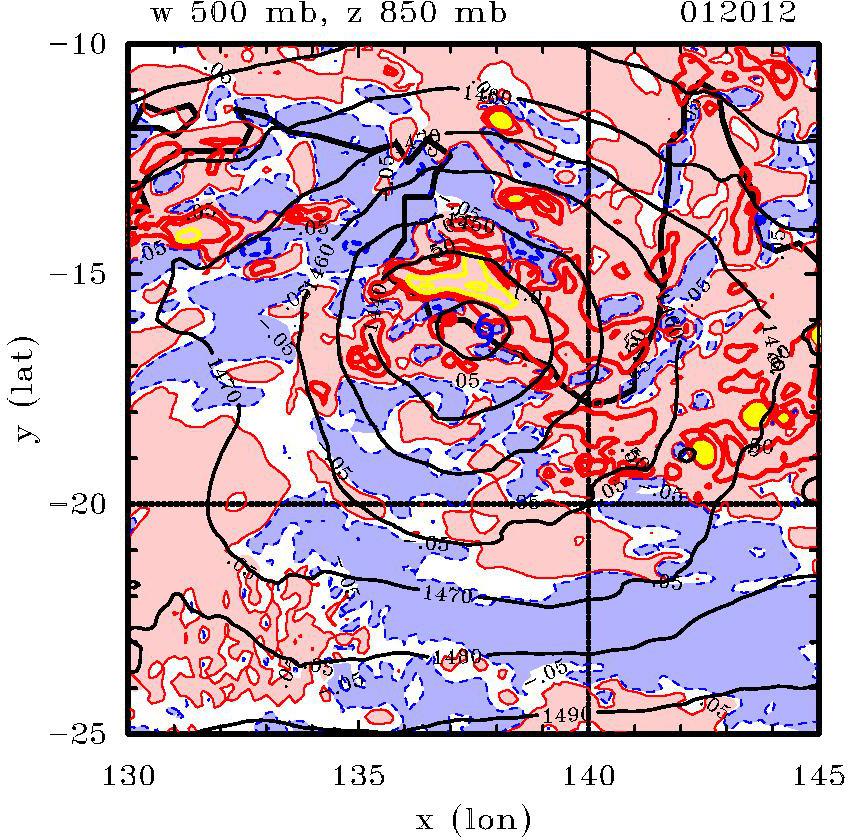

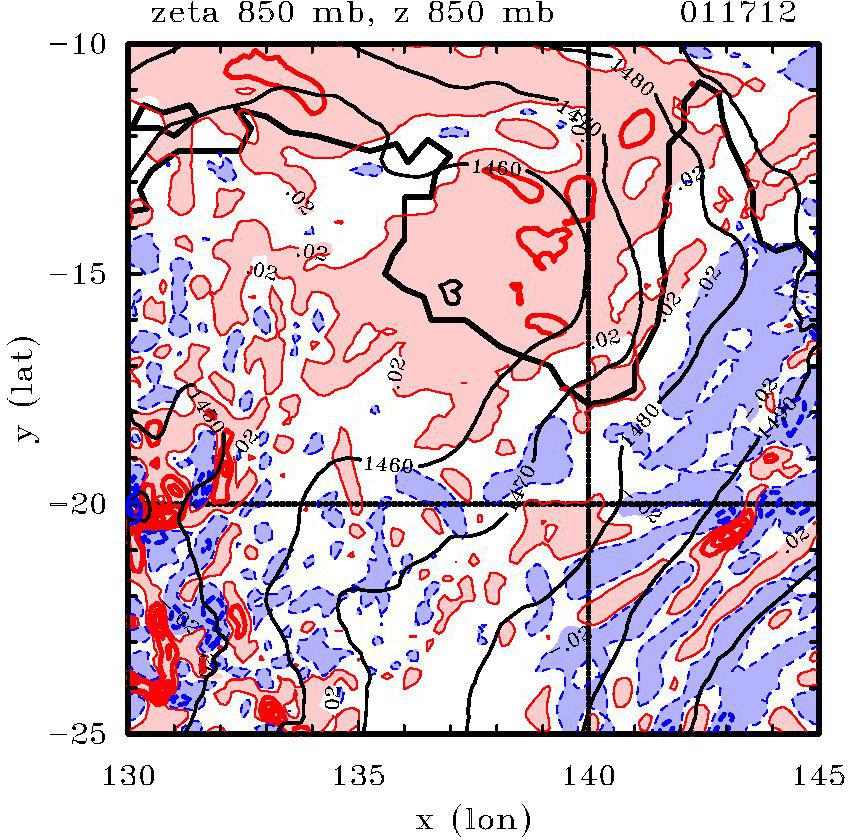

The following plots show contours of vertical velocity (left column) and vertical vorticity (right column) during the genesis and mature stage of the disturbances. In each plot, the contours of geopotential are shown, as is the location of the minimum geopotential (denoted by the cyclone symbol). Contour levels for vertical velocity are: thick red contours 0.5 and 1.0 m s-1; thick yellow contours 1.5 - 5.0 m s-1 in steps of 0.5 m s-1; thick blue contours -1.0 and -0.5 m s-1; thin countours 5 cm s-1 - 45 cm s-1 in steps of 5 cm s-1. Negative contours blue/dashed. Regions of ascent > 5 cm s-1 are shaded pink; regions of subsidence < -5 cm s-1 shaded light blue. Contour levels for vertical vorticity are: thick contours 10-4 s-1 s-1; thin contours 2*10-5 s-1; Negative contours blue/dashed. Regions of cyclonic > 2*10-5 s-1 are shaded pink; regions of anticyclonic vorticity < -2*10-5 s-1 shaded light blue.

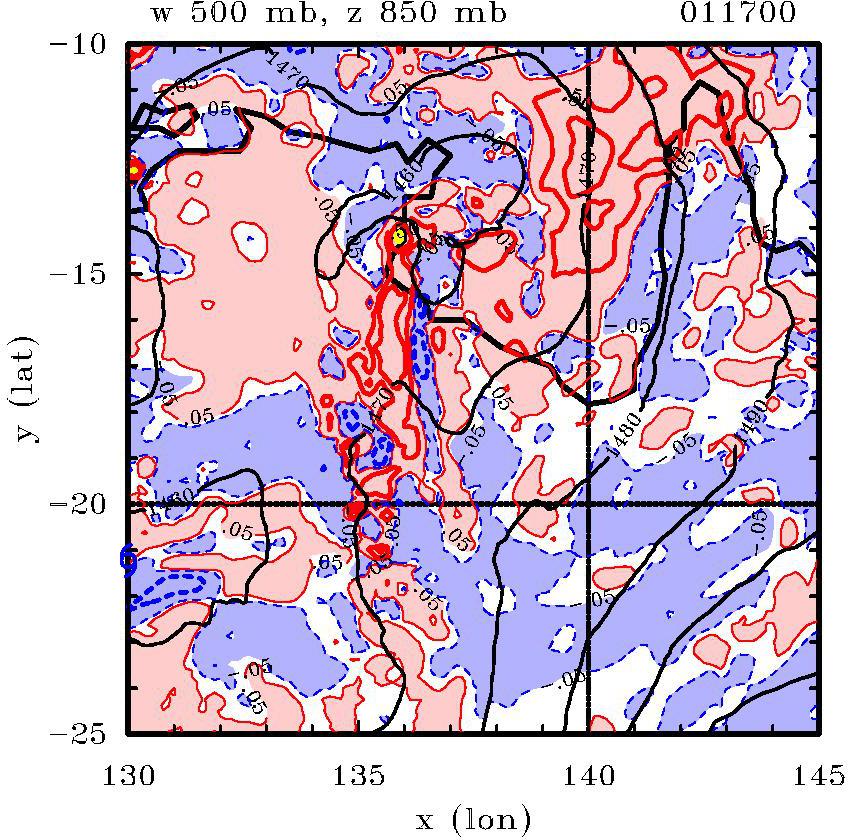

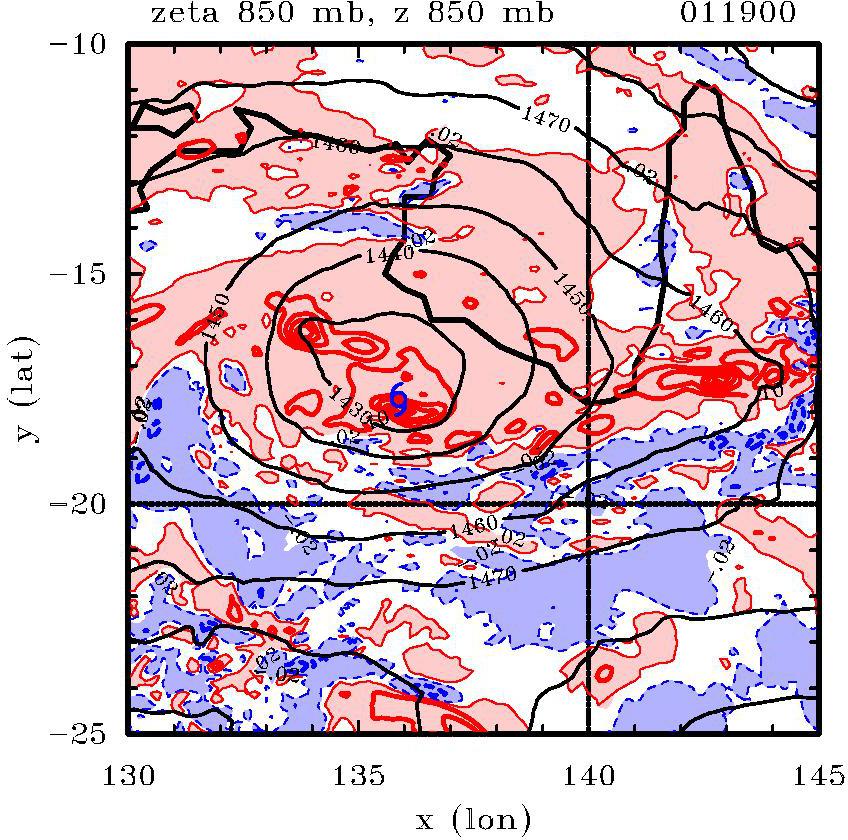

17 Jan 00Z

17 Jan 00Z

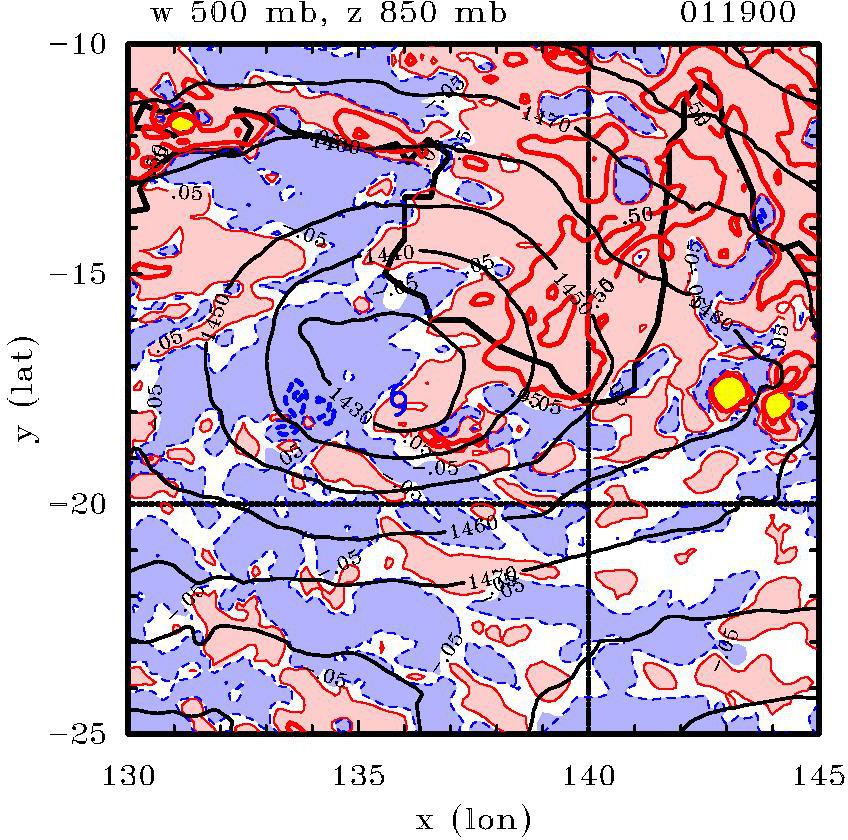

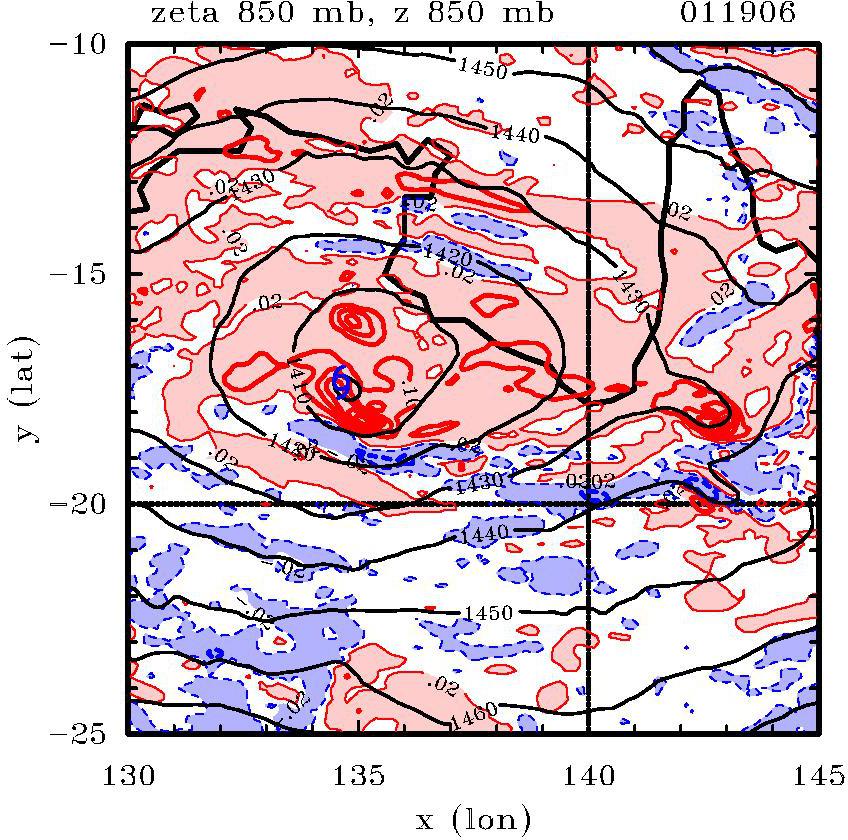

17 Jan 06Z

17 Jan 06Z

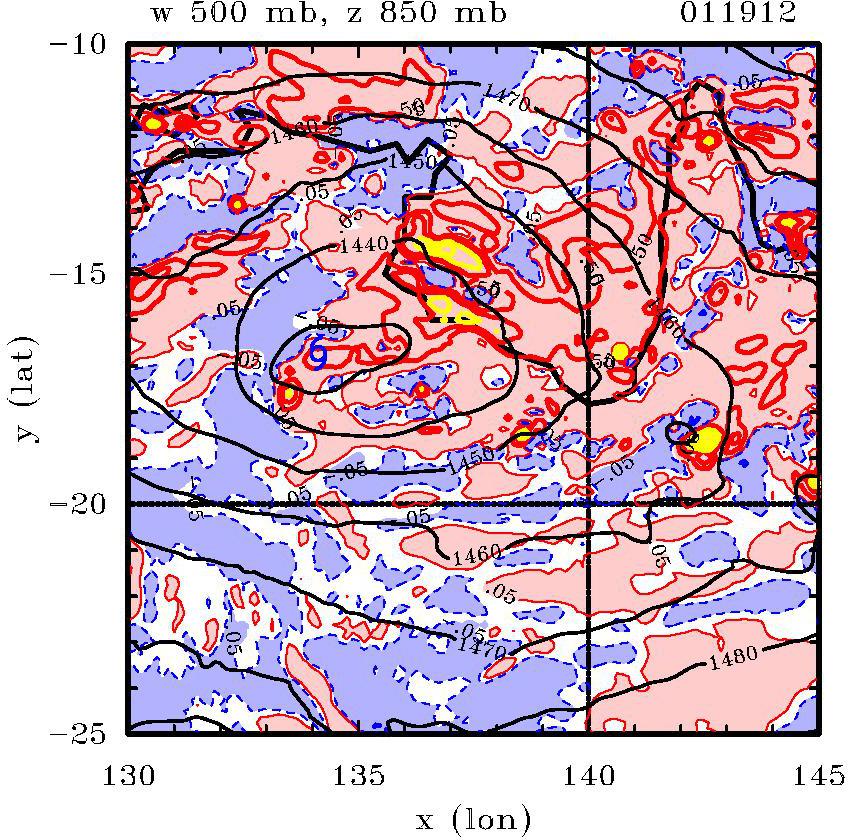

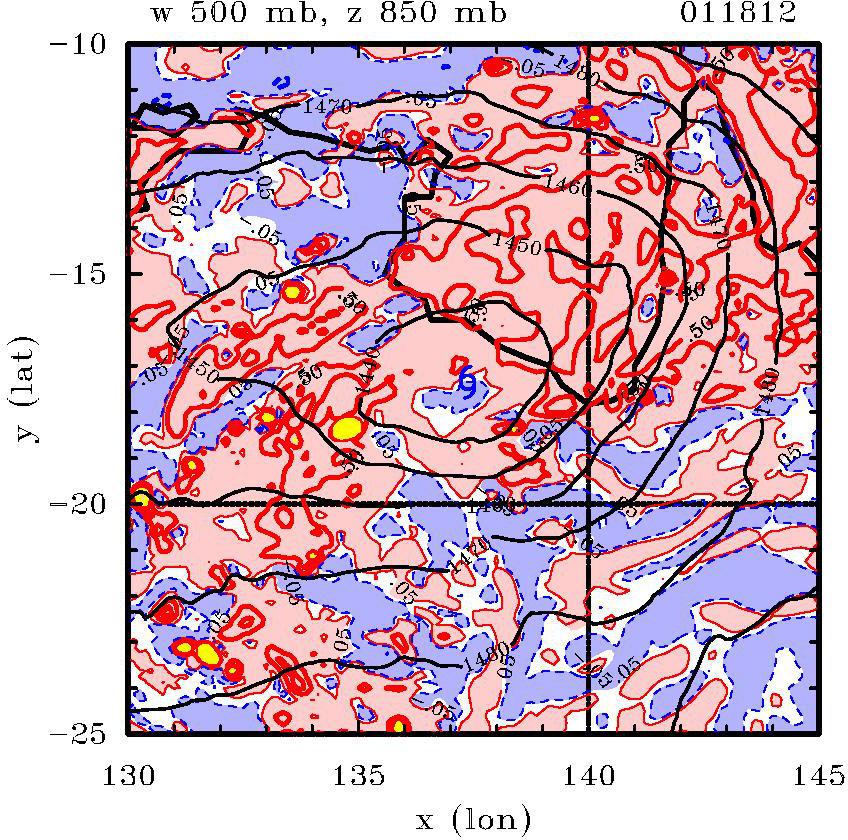

17 Jan 12Z

17 Jan 12Z

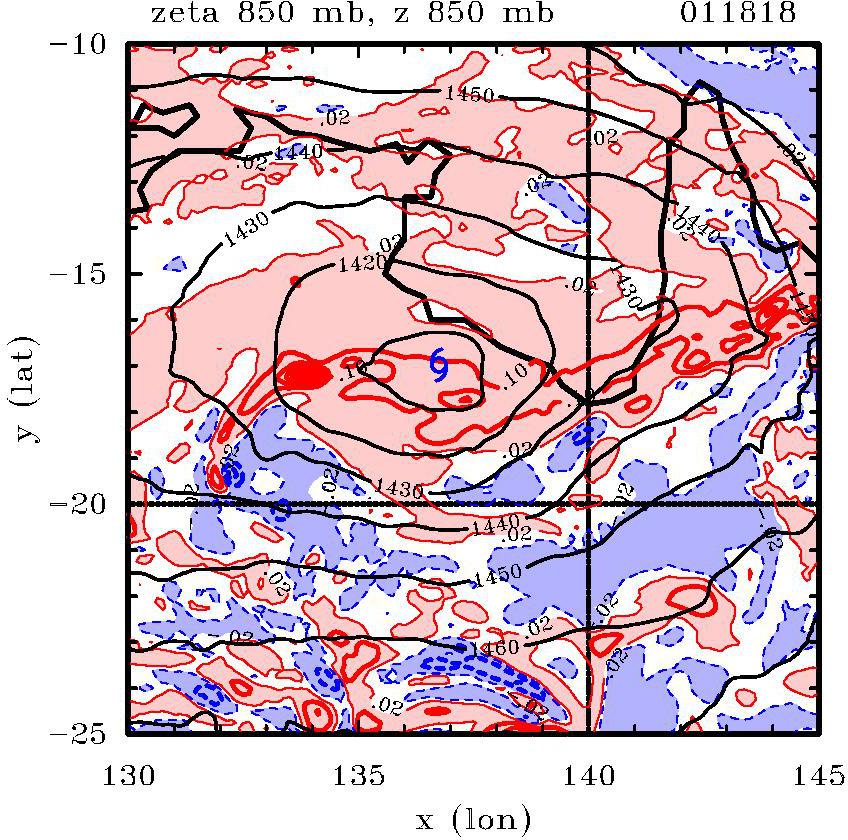

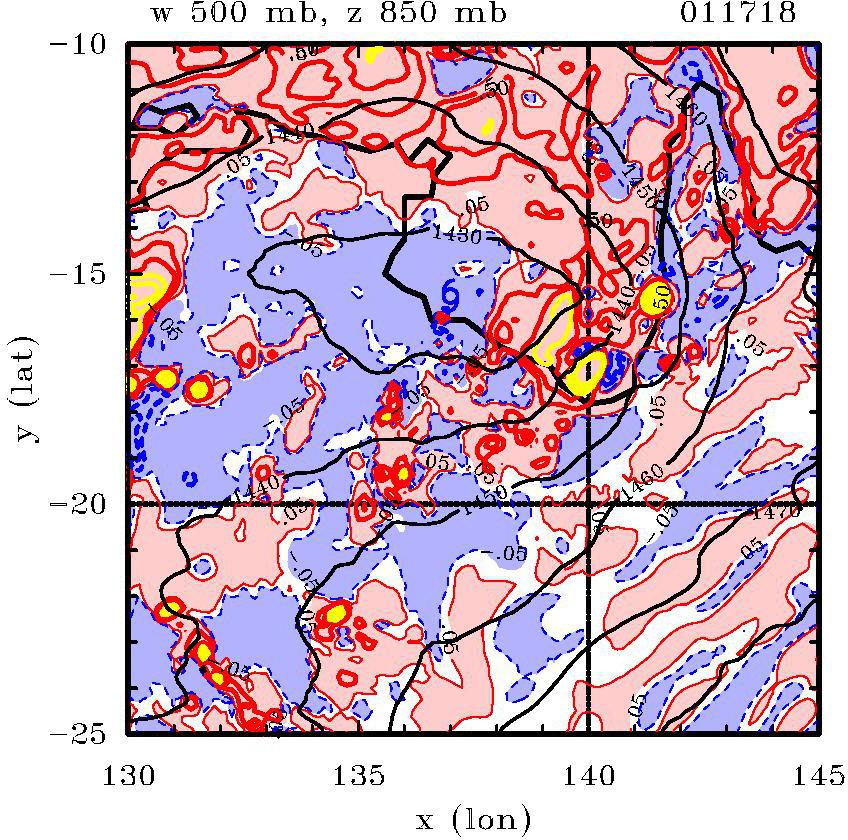

17 Jan 18Z

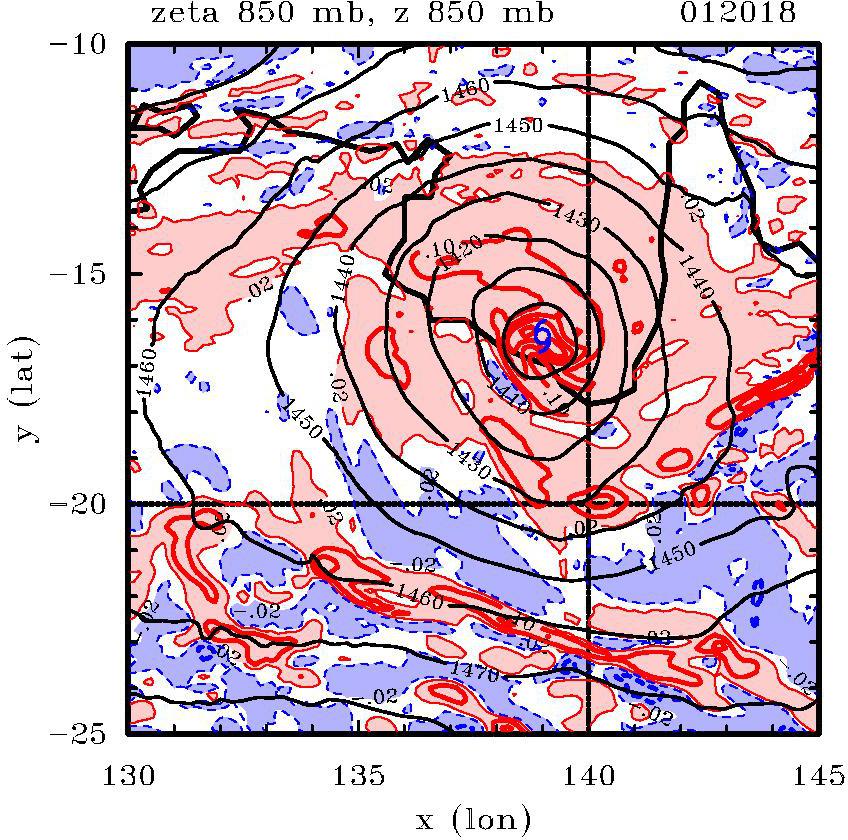

17 Jan 18Z

18 Jan 00Z

18 Jan 00Z

18 Jan 06Z

18 Jan 06Z

18 Jan 12Z

18 Jan 12Z

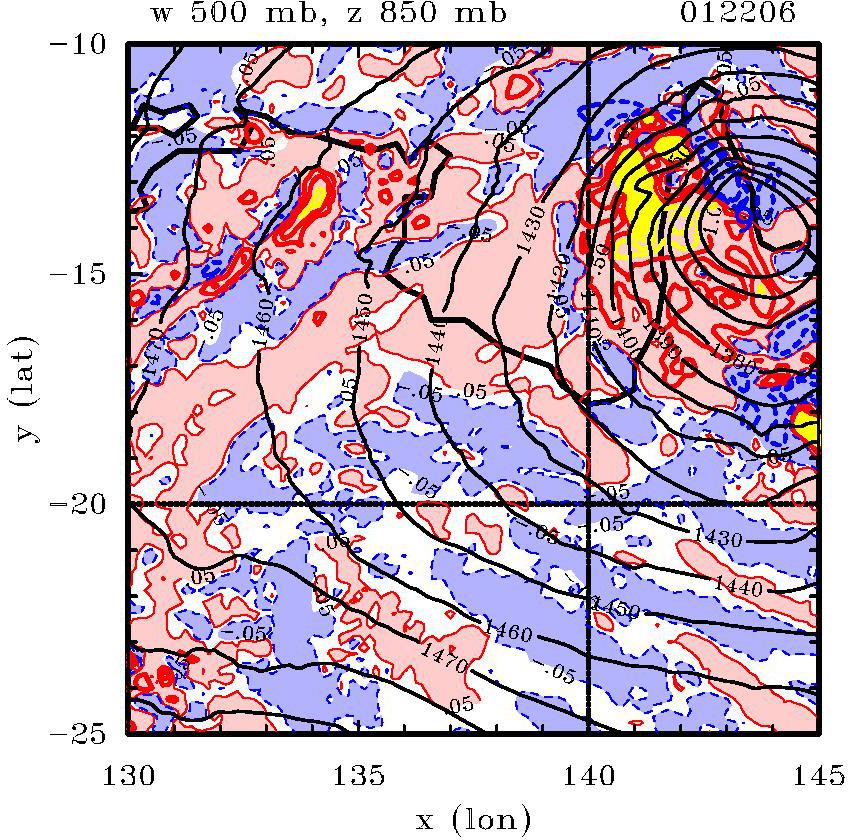

18 Jan 18Z

18 Jan 18Z

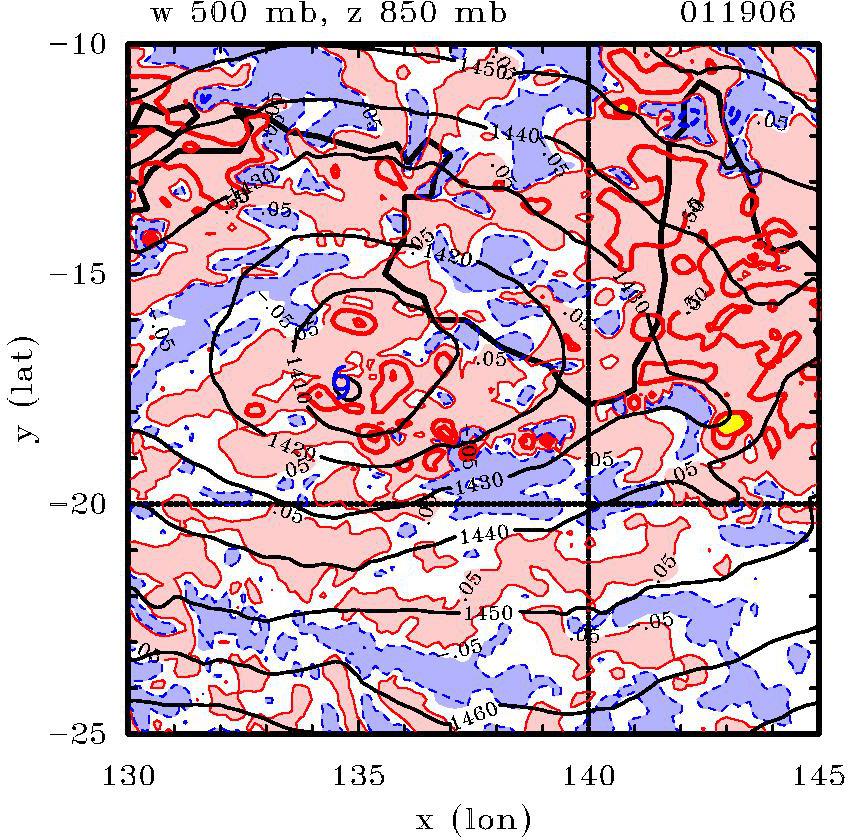

19 Jan 00Z

19 Jan 00Z

19 Jan 06Z

19 Jan 06Z

19 Jan 12Z

19 Jan 12Z

19 Jan 18Z

19 Jan 18Z

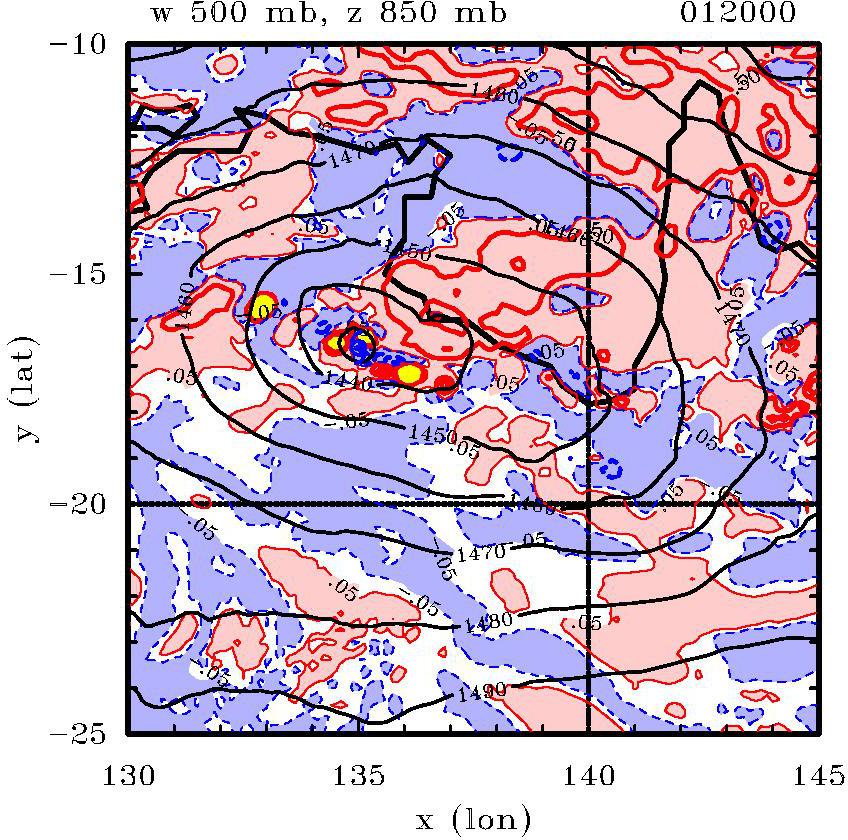

20 Jan 00Z

20 Jan 00Z

20 Jan 06Z

20 Jan 06Z

20 Jan 12Z

20 Jan 12Z

20 Jan 18Z

20 Jan 18Z

21 Jan 00Z

21 Jan 00Z

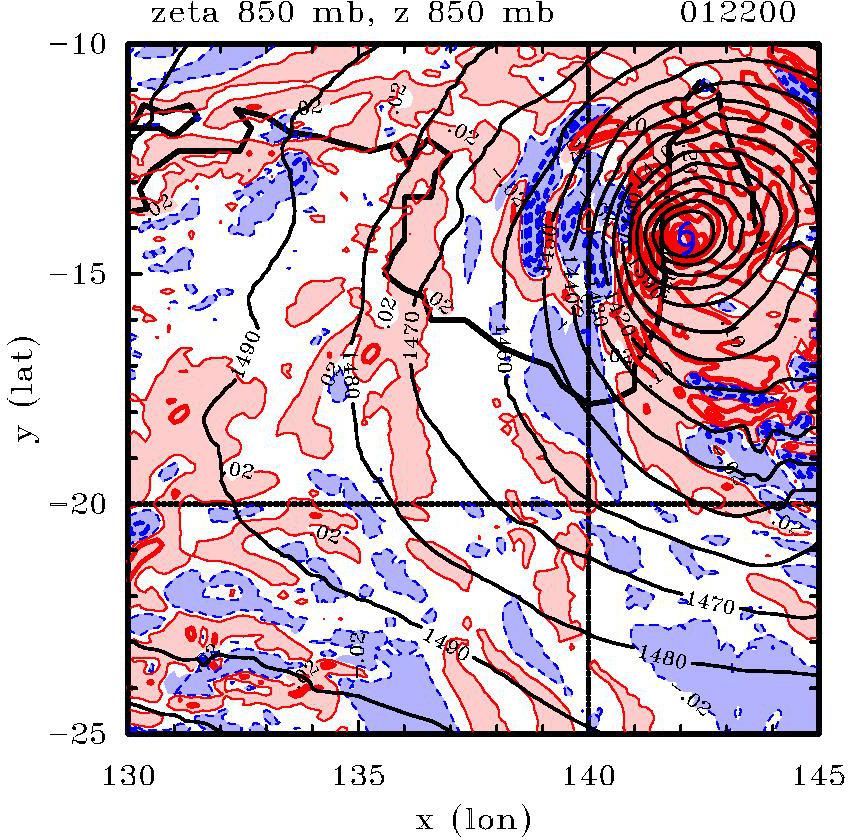

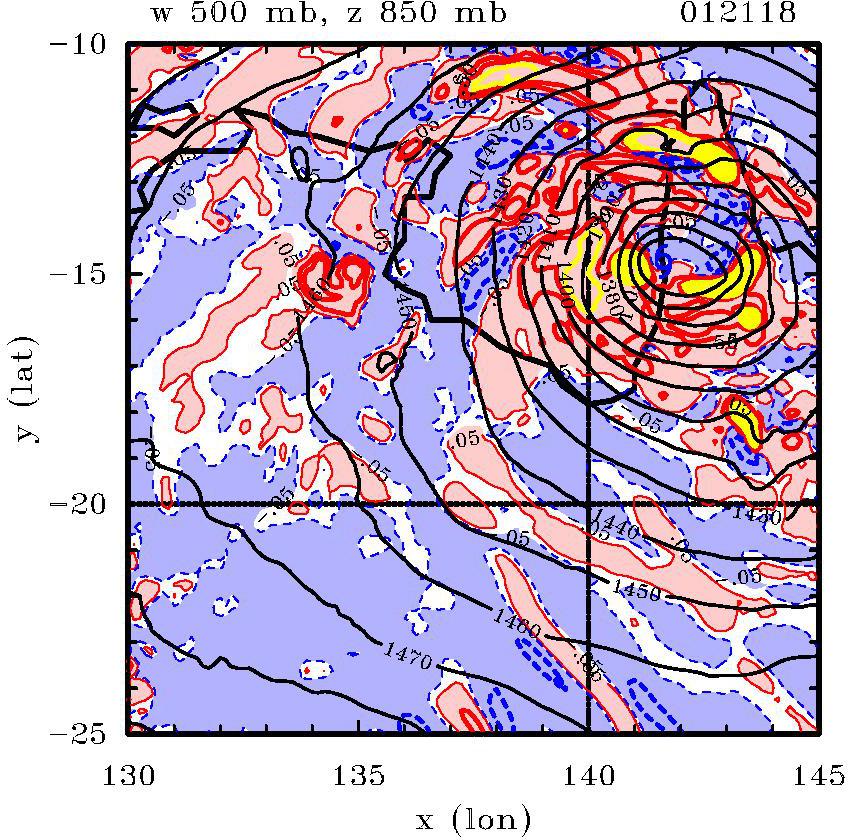

21 Jan 06Z

21 Jan 06Z

21 Jan 12Z

21 Jan 12Z

22 Jan 18Z

22 Jan 18Z

22 Jan 00Z

22 Jan 00Z

22 Jan 06Z

22 Jan 06Z

22 Jan 12Z

22 Jan 12Z

23 Jan 18Z

23 Jan 18Z
