Tropical Storm Matthew Sep 2010

Track of Matthew

Notation is: L = low, D = depression, S = tropical storm.

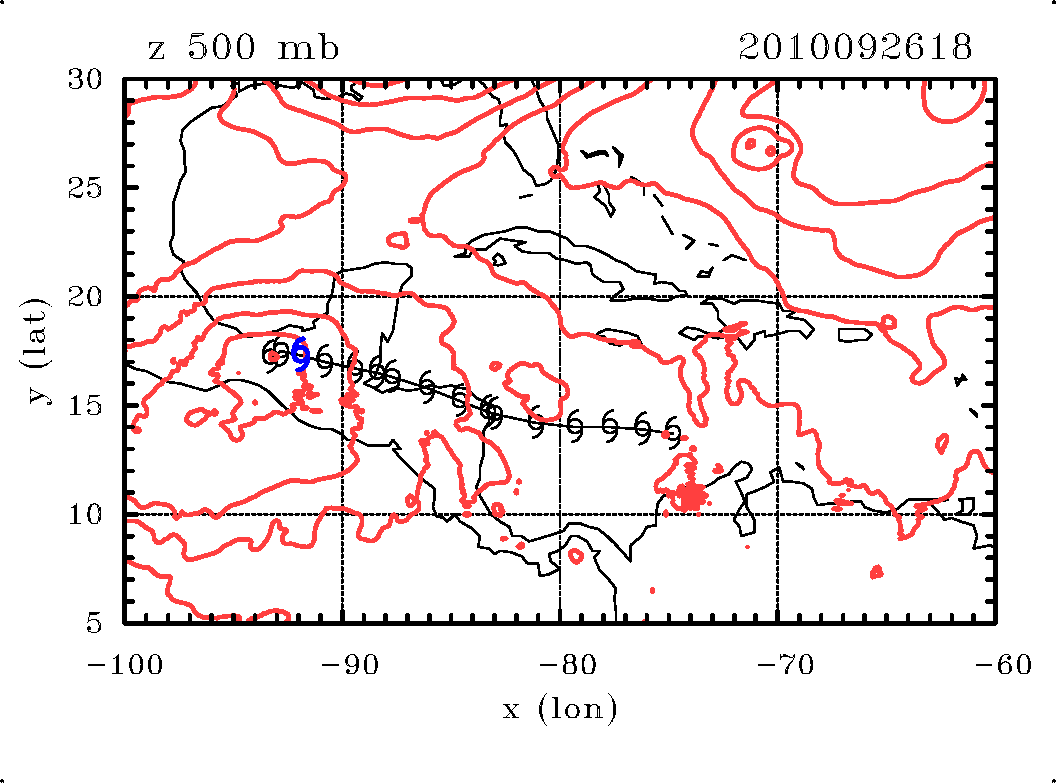

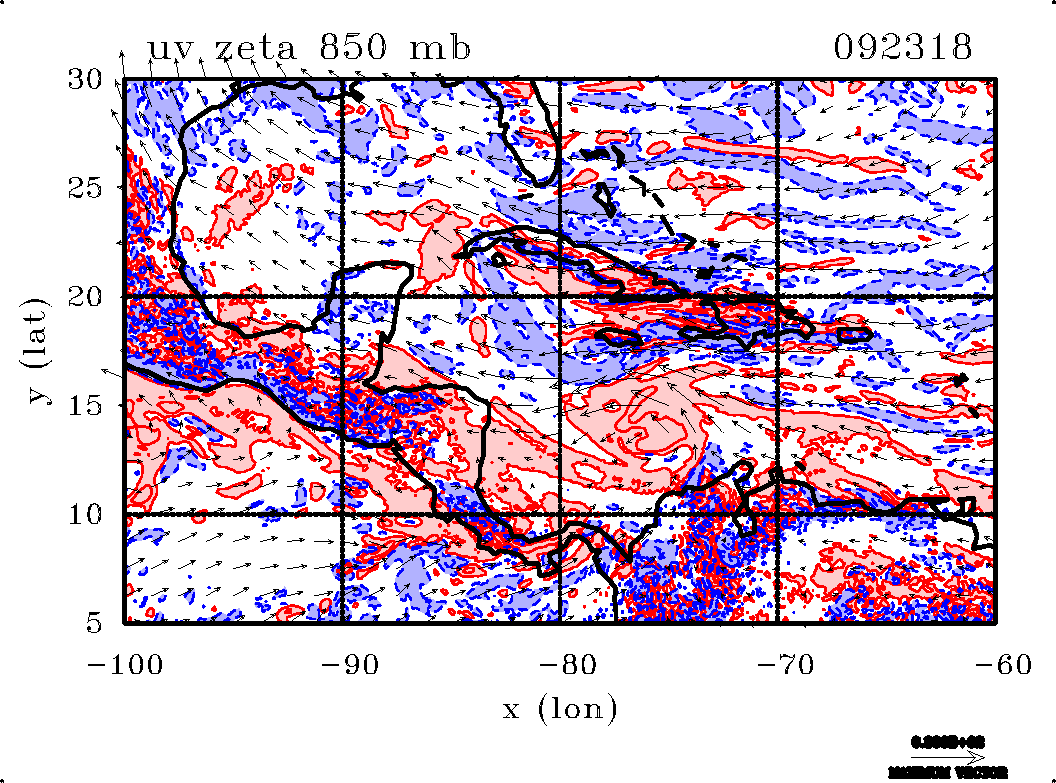

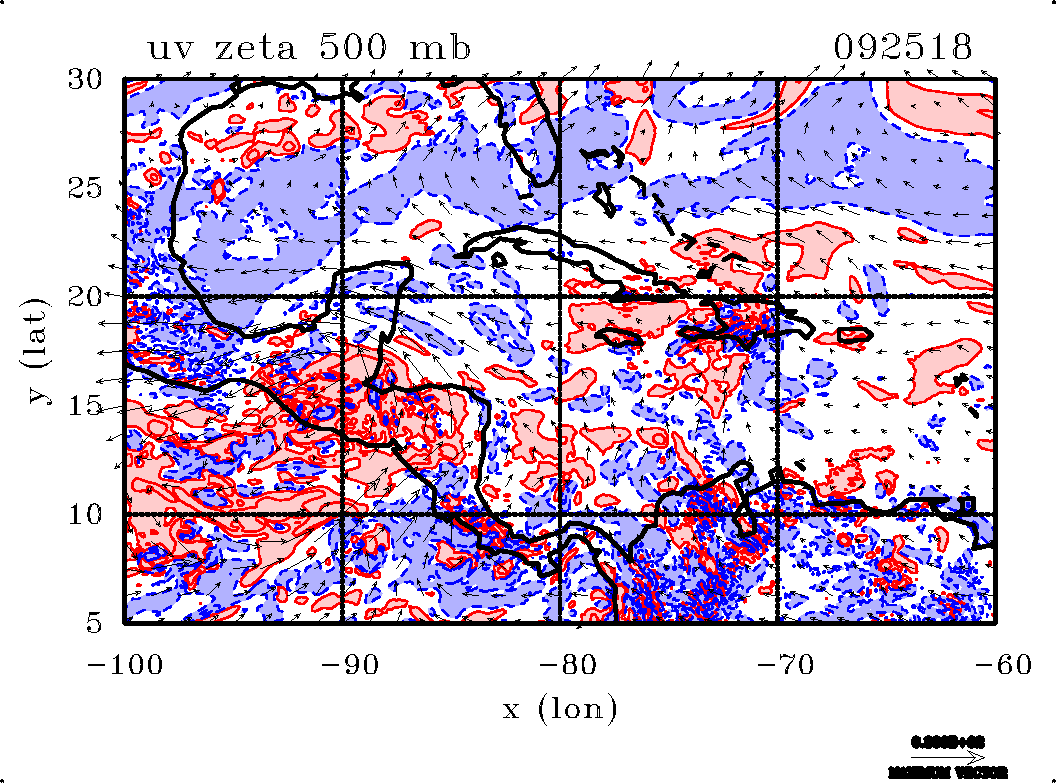

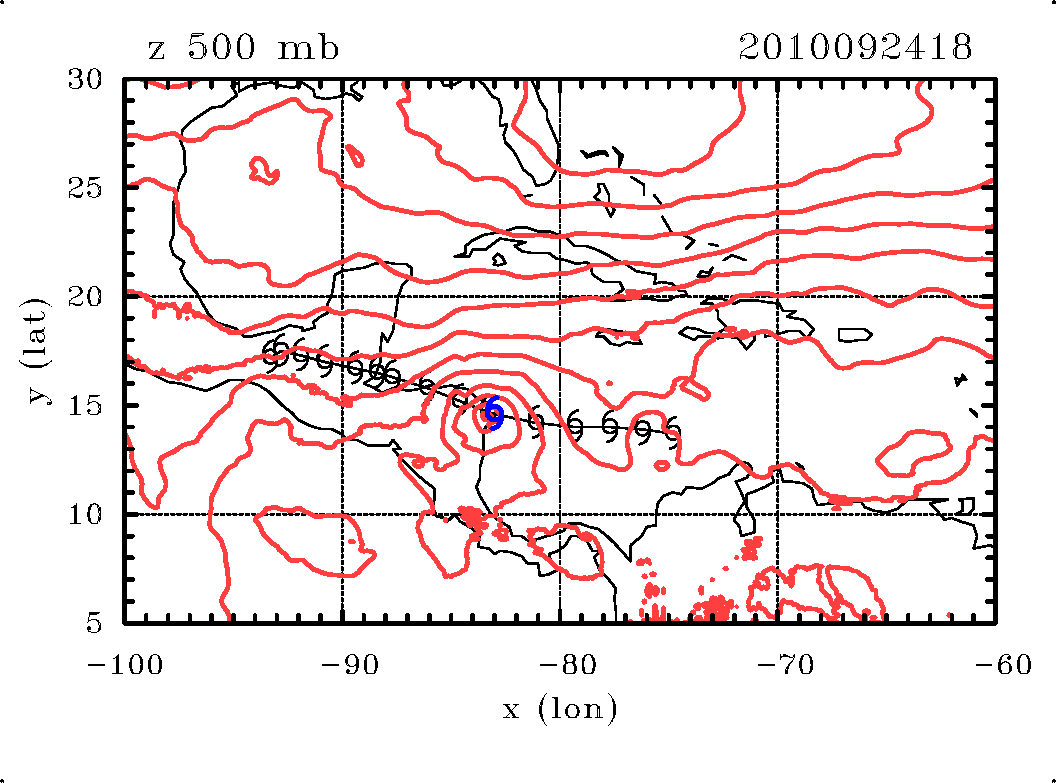

Wind vectors and contours of the vertical component of relatiove vorticity and geopotential height at selected pressure levels

TO FIX: The following plots show wind vectors and contours of the zonal velocity component during the genesis and mature stage of the disturbance. Contour levels for the zonal wind are 5 m s-1 up to 500 mb and 10 m s-1 at 200 mb. Regions of westerly zonal wind speed > 5 m s-1 are shaded pink; regions of easterly zonal wind speed < -5 m s-1 shaded light blue. Negative contours blue/dashed.
