Simulations for Low Earth Orbit (LEO)
General settings:
- Wavelength range: O2A-band
- Layer AMF calculated at 758nm
- US-standard atmosphere, REPTRAN parameterization
- clouds from ICON simulation (wc mie, ic baum_v36 ghm)
Results for case 0
Settings: albedo 0.05 sza 20 saa 13 vza 0 vaa 109.5

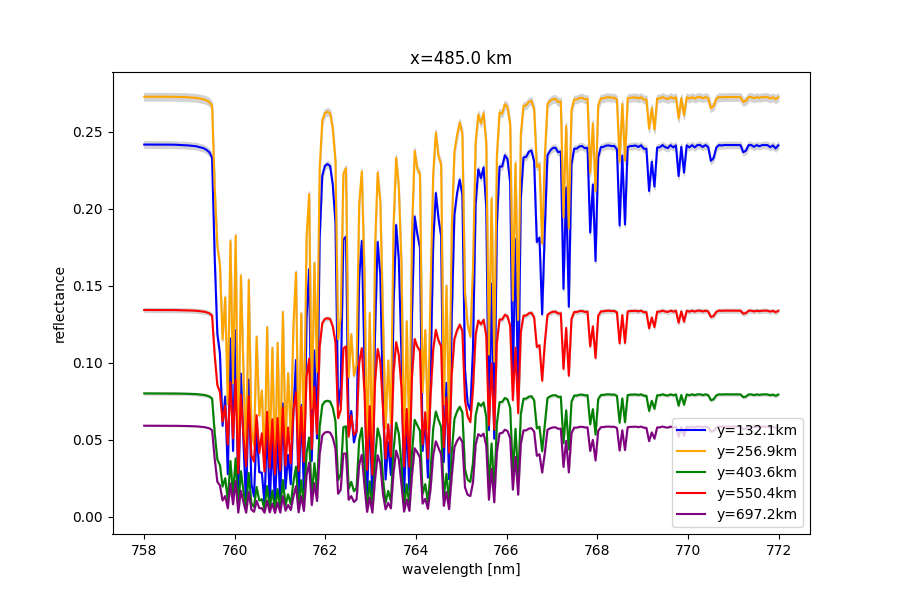

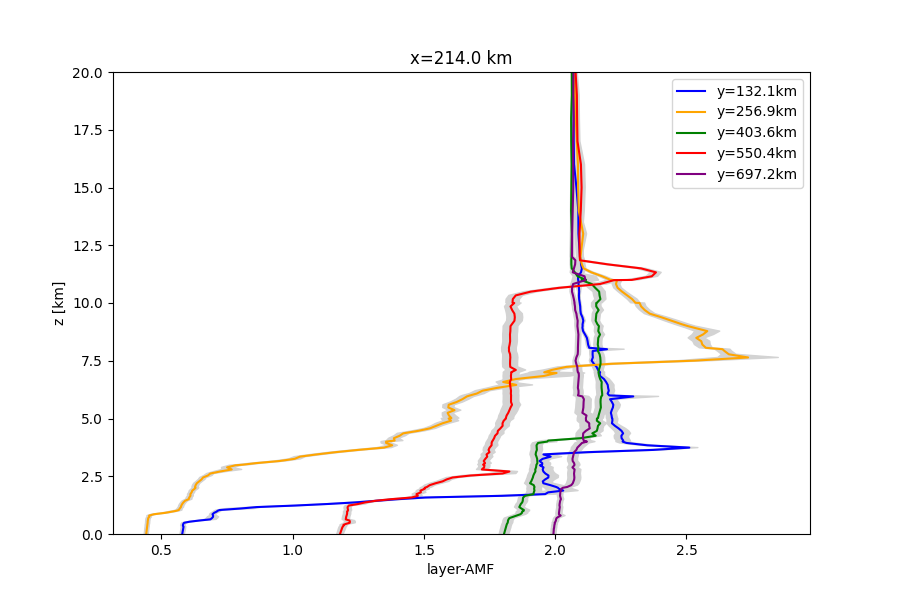

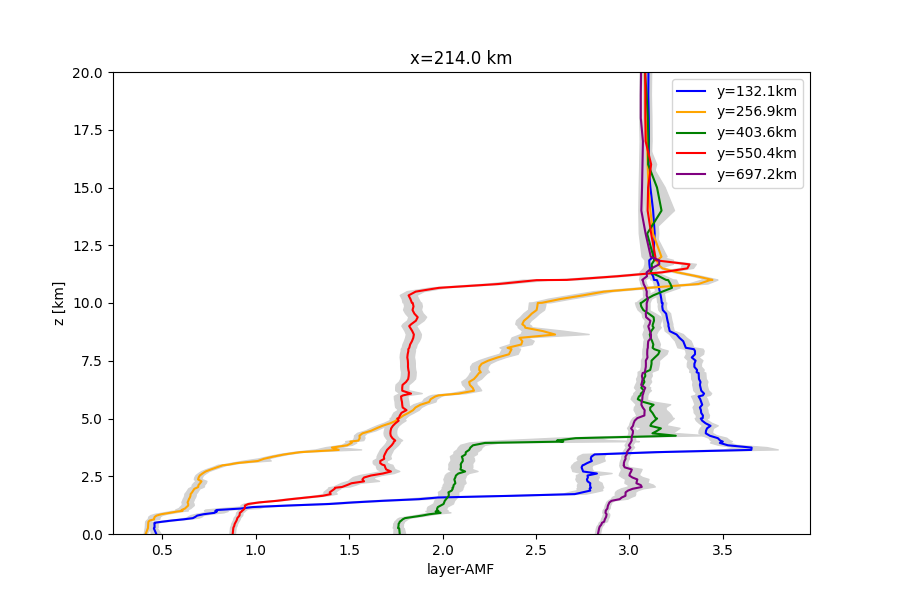

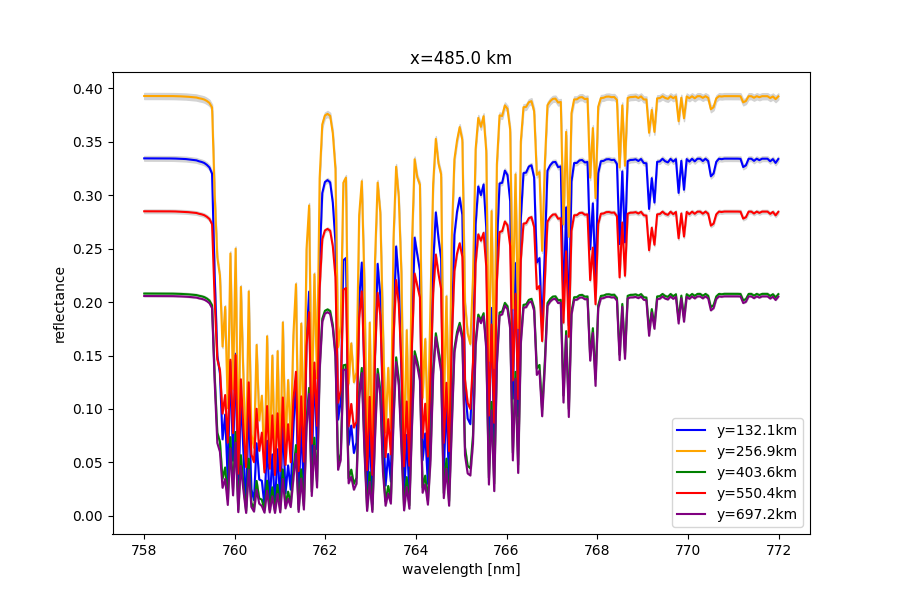

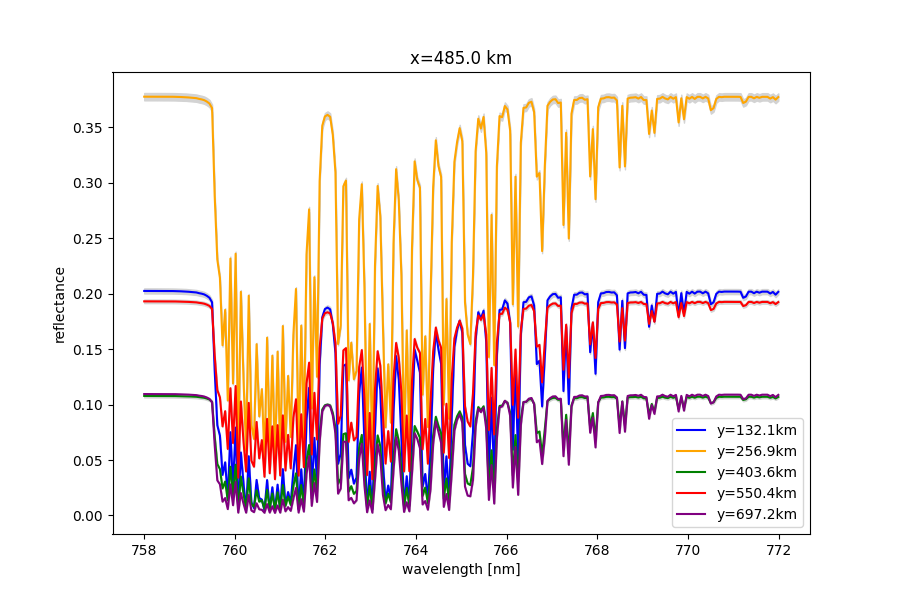

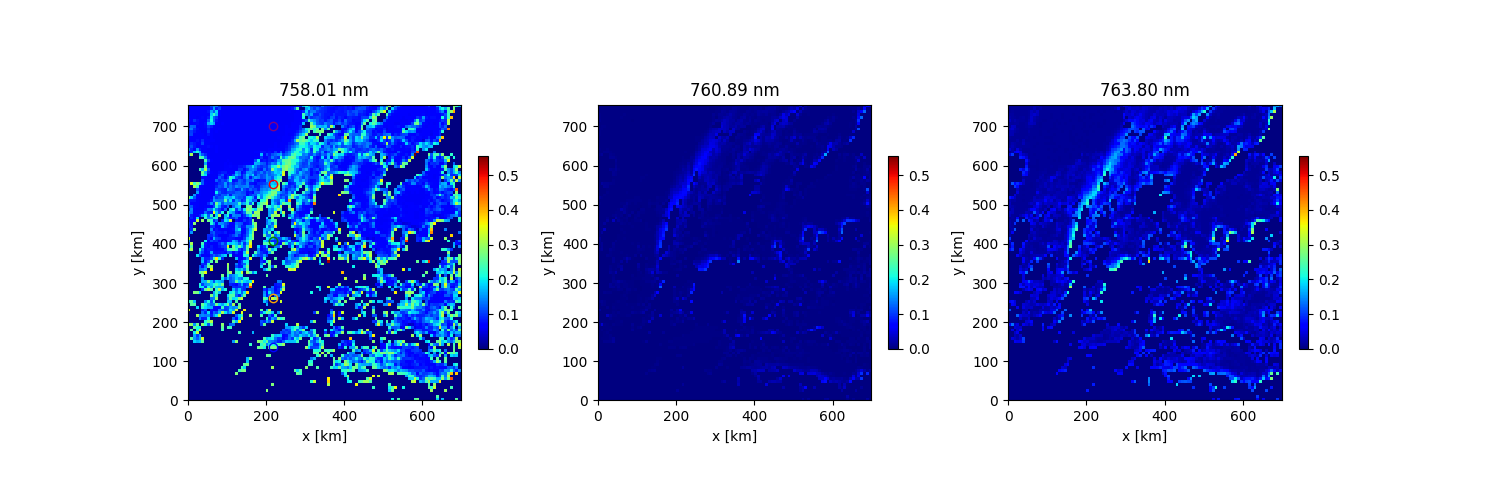

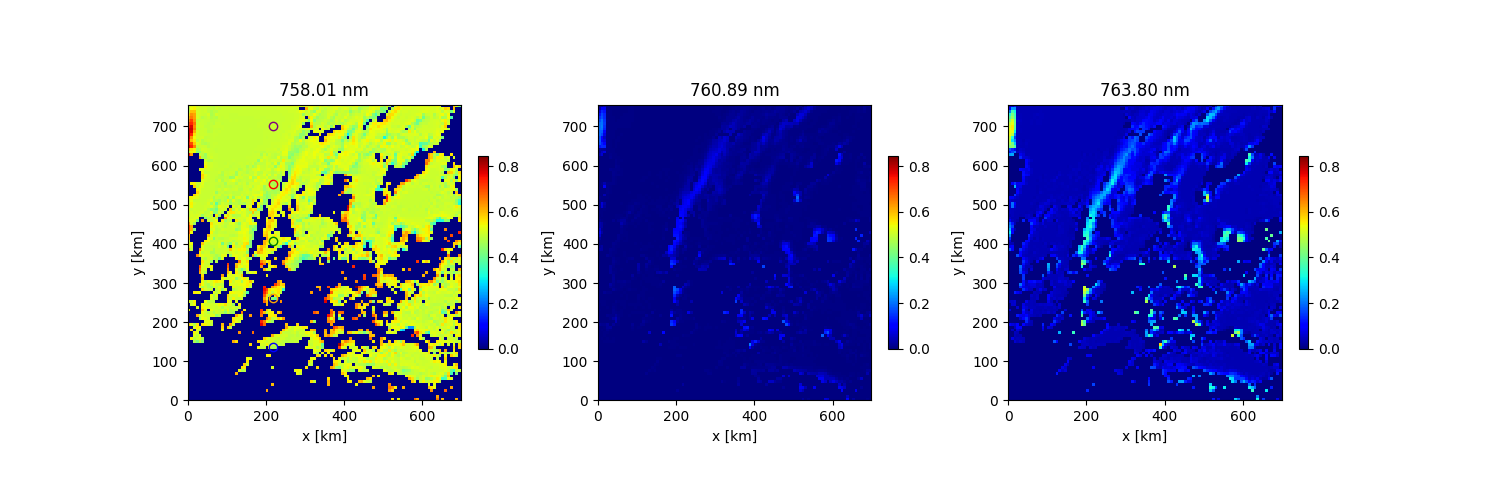

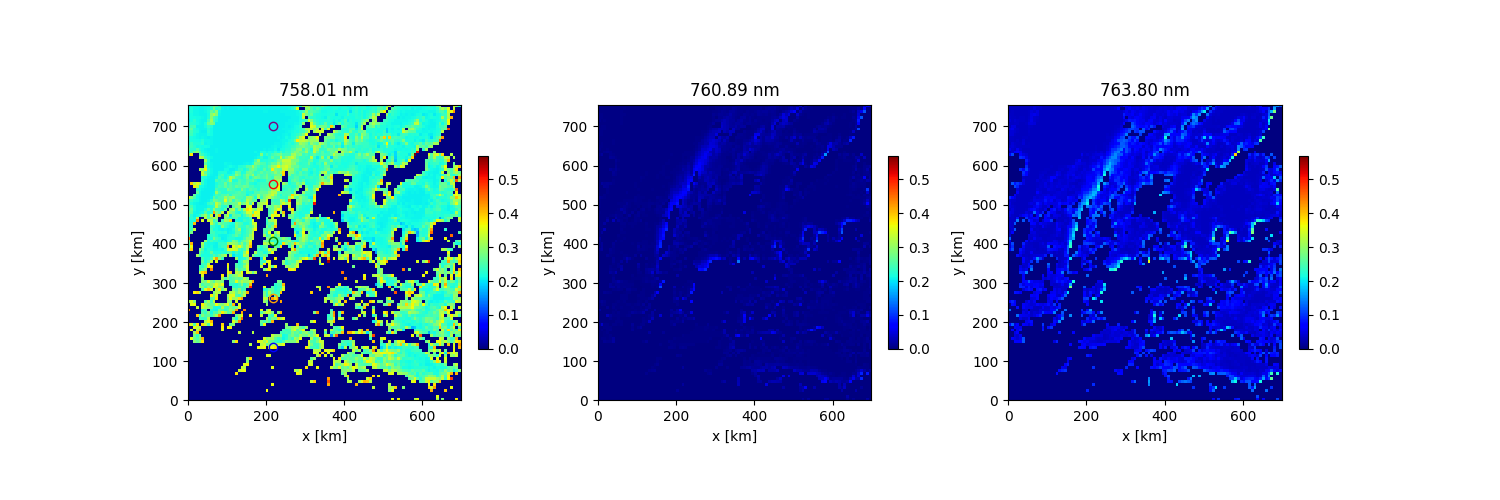

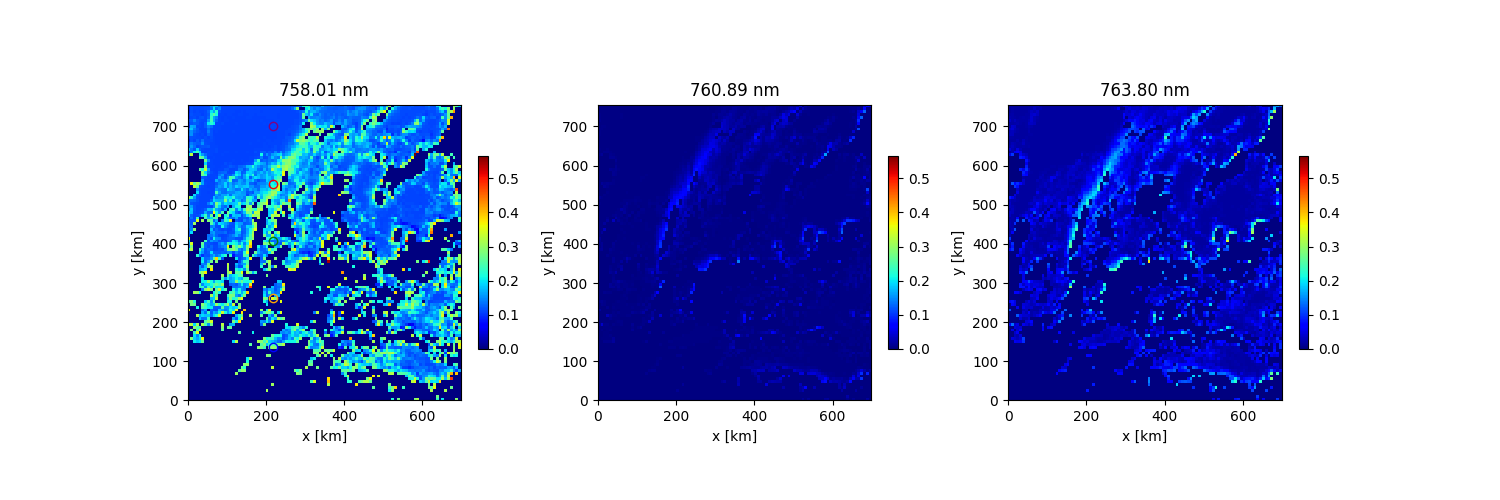

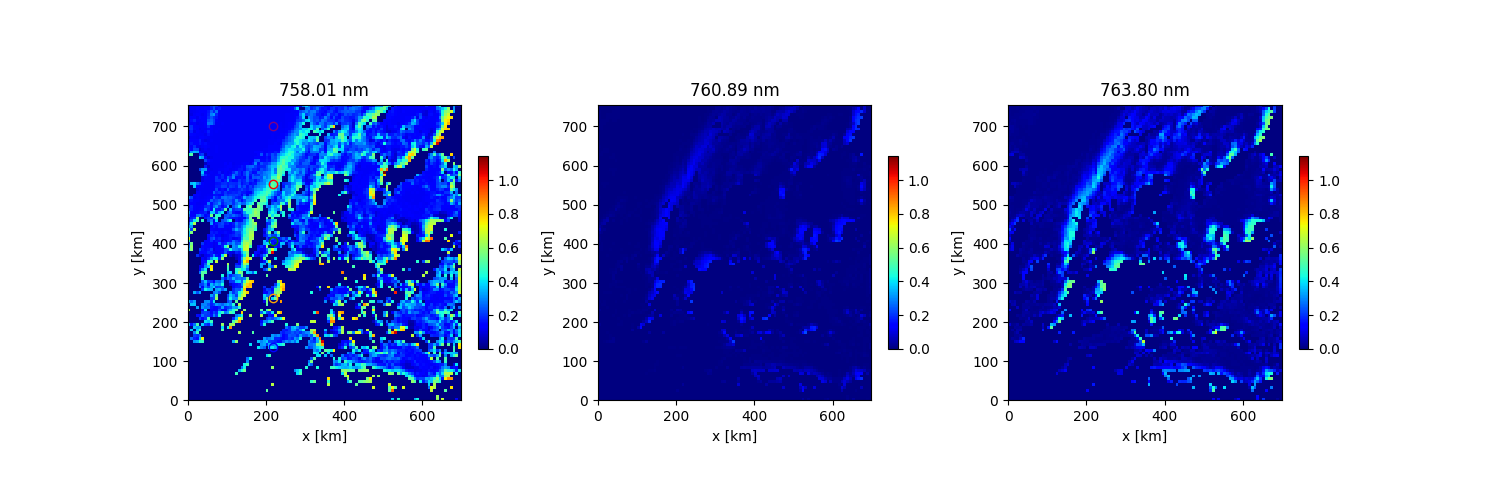

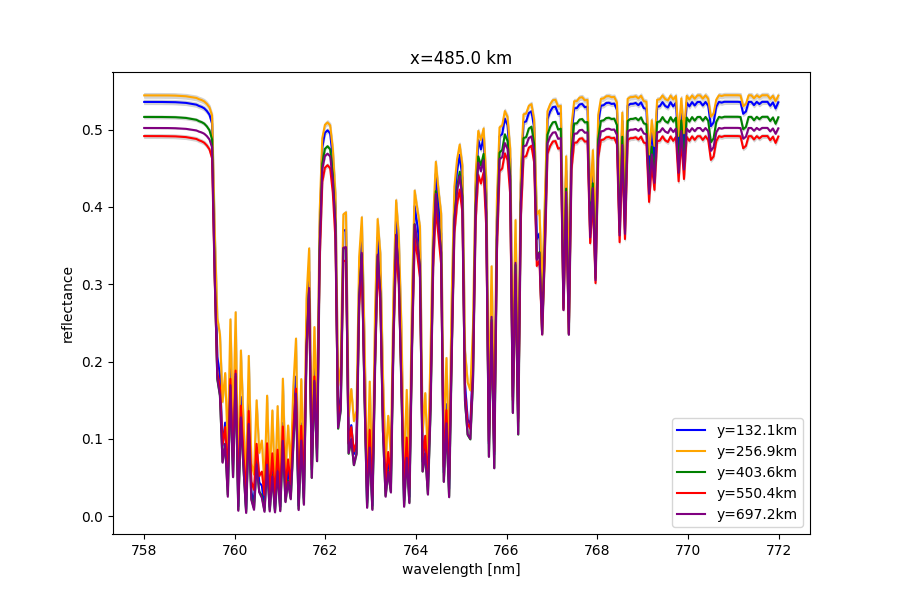

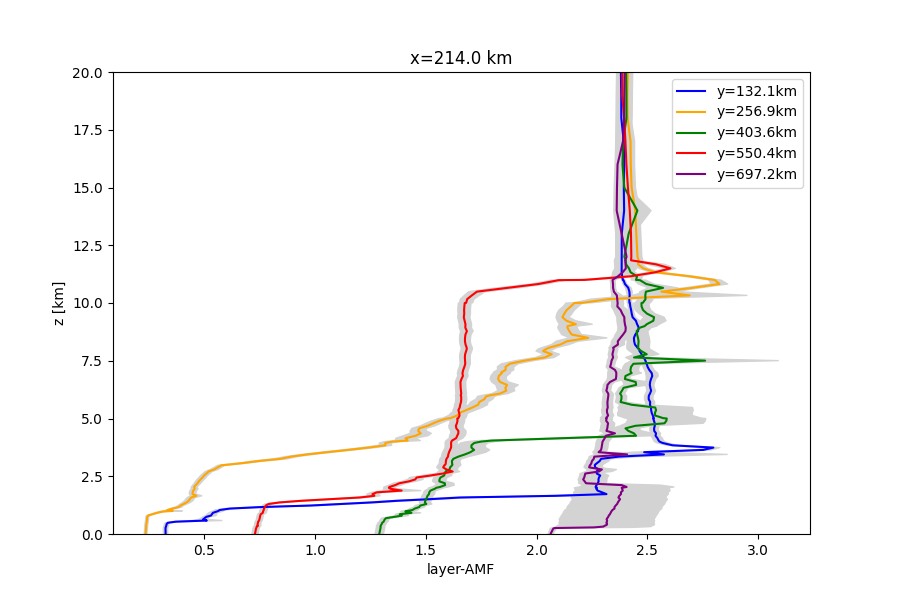

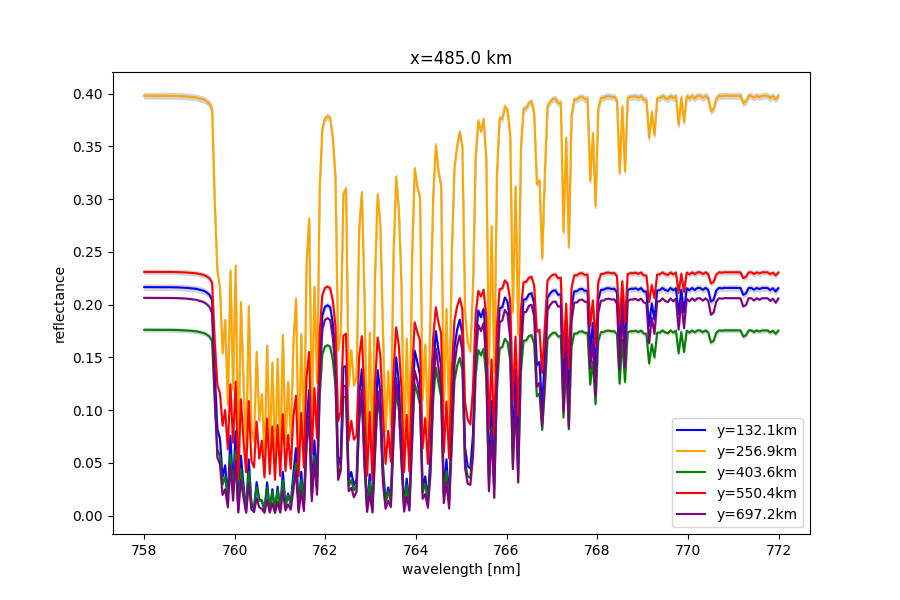

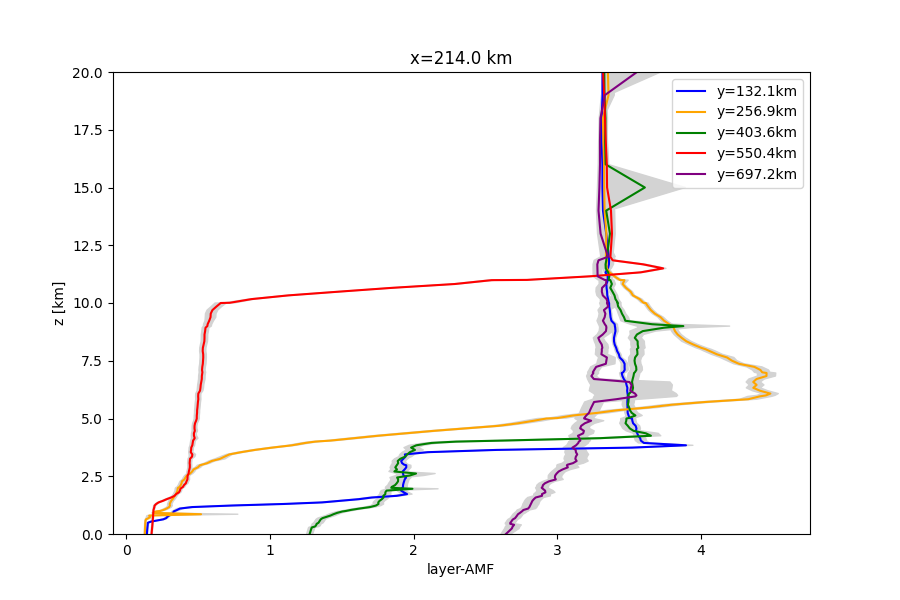

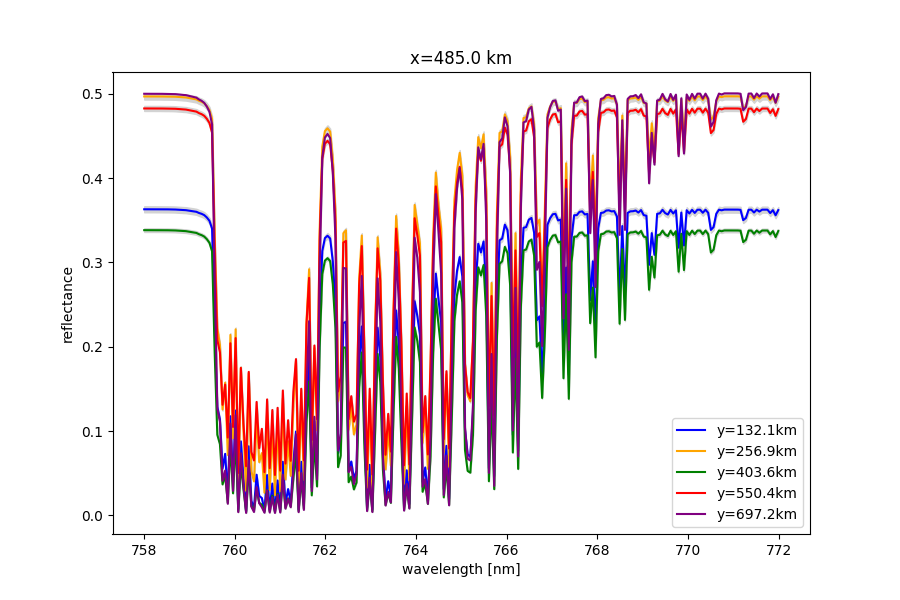

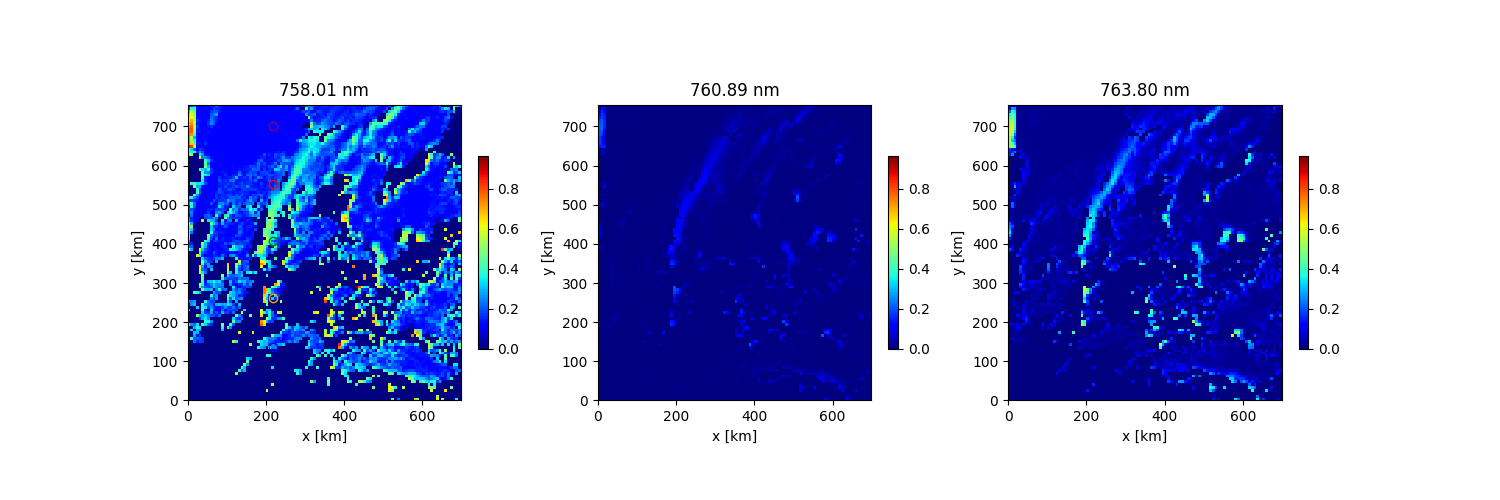

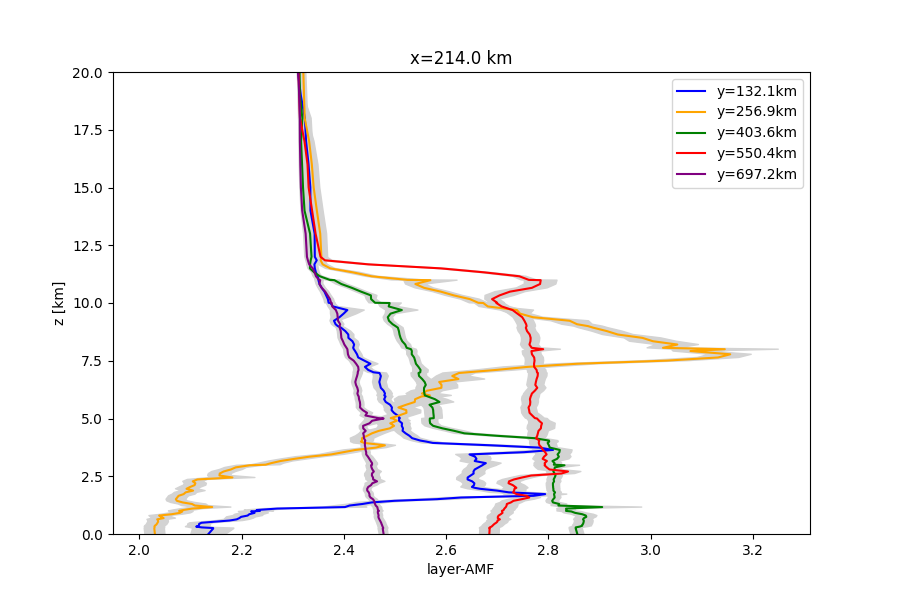

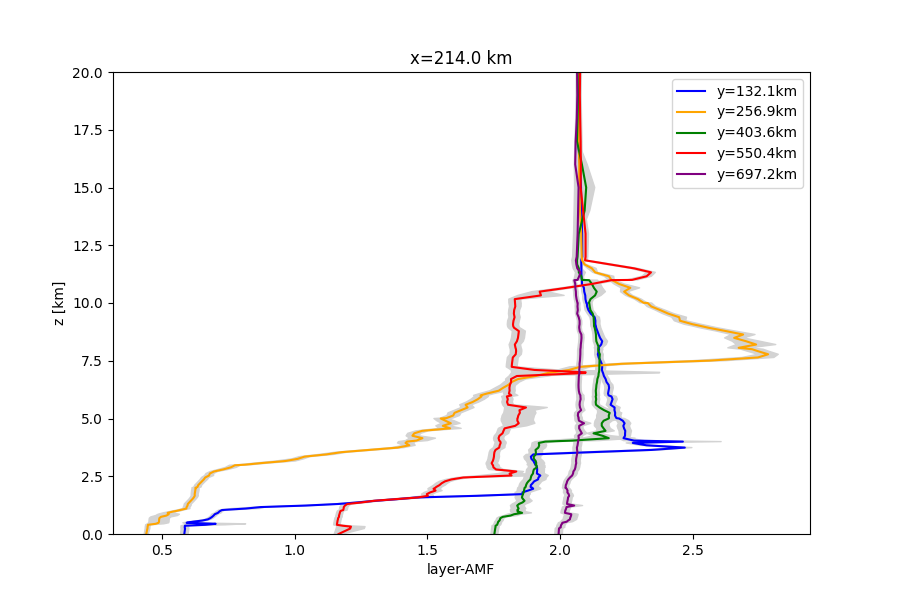

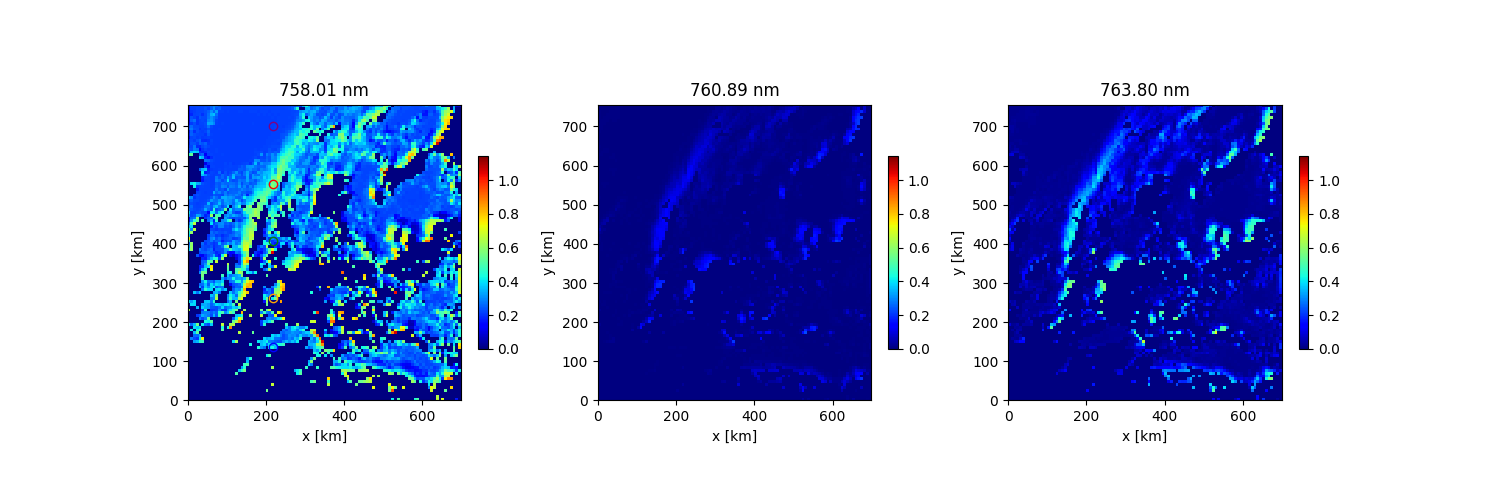

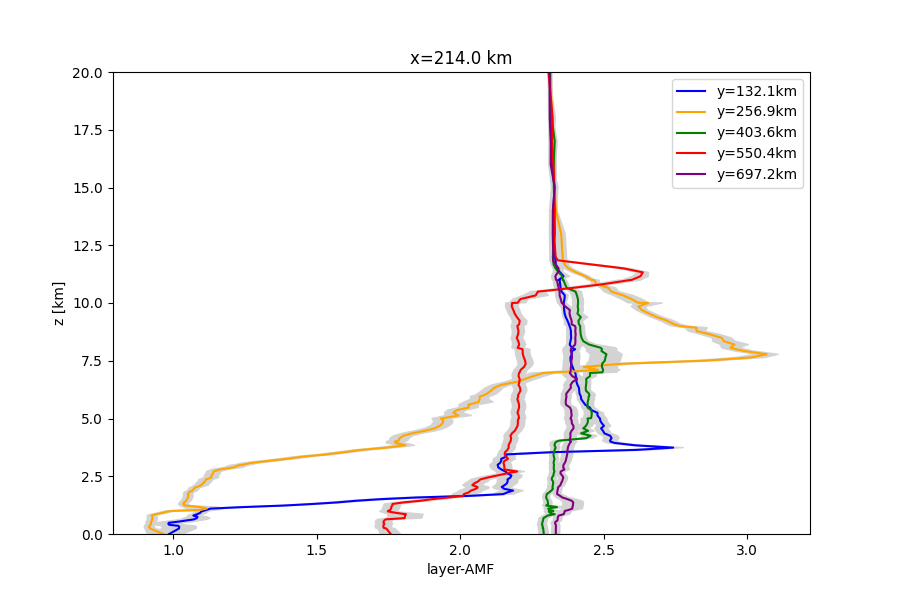

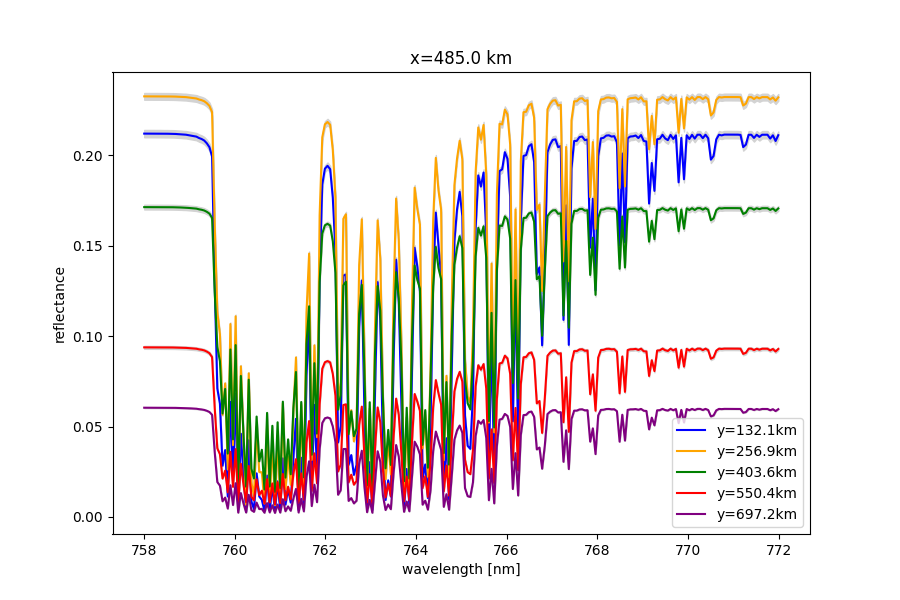

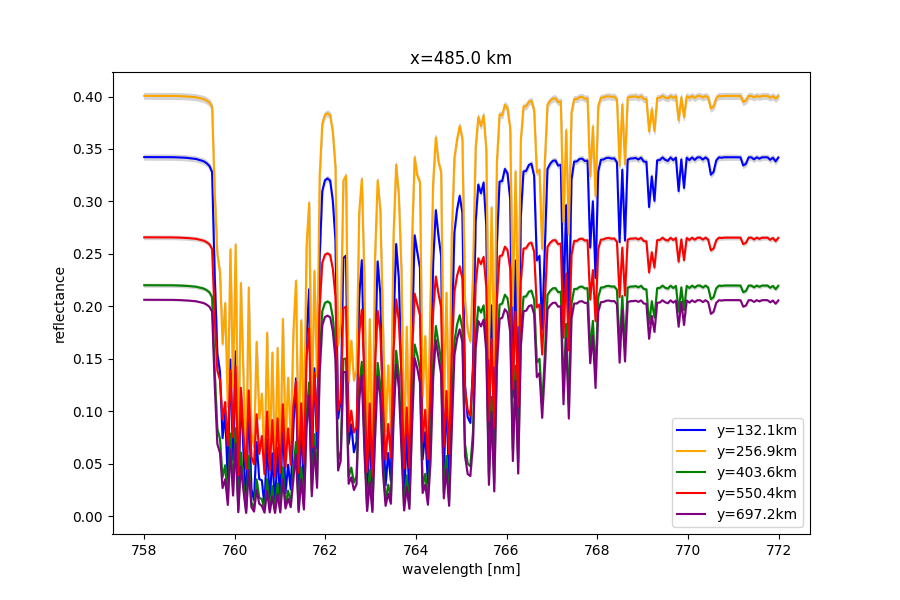

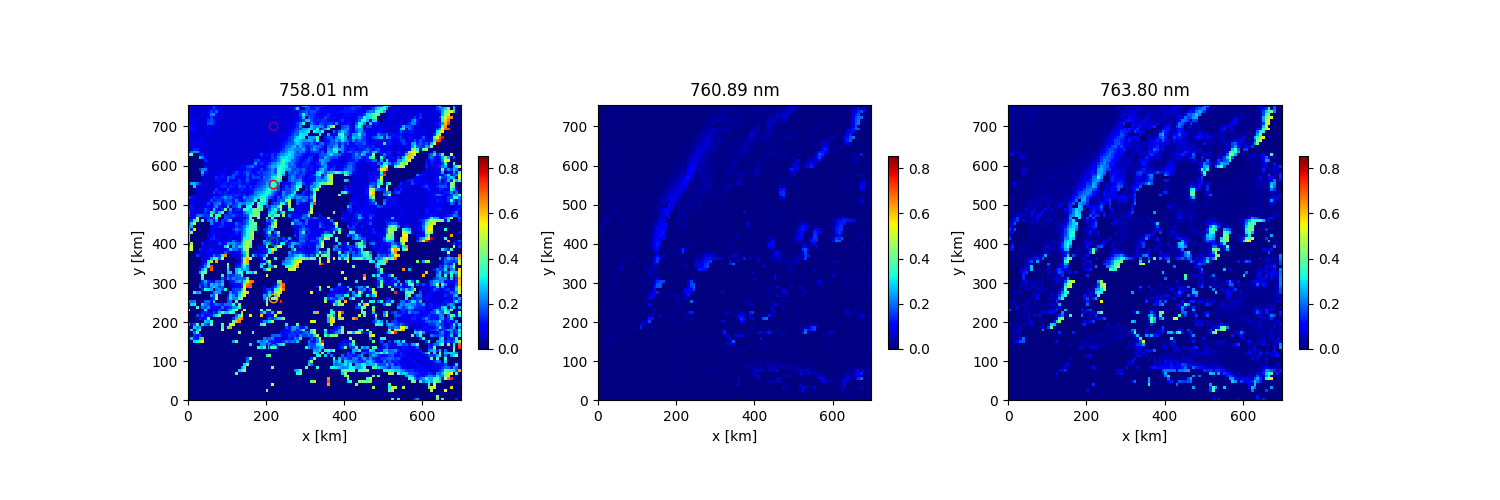

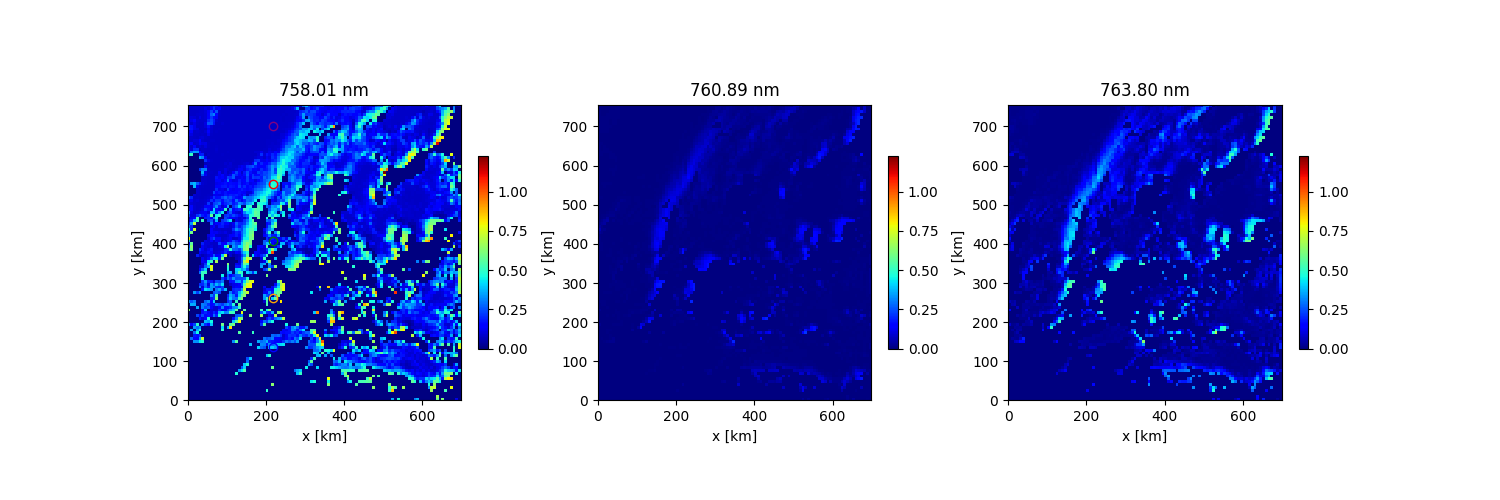

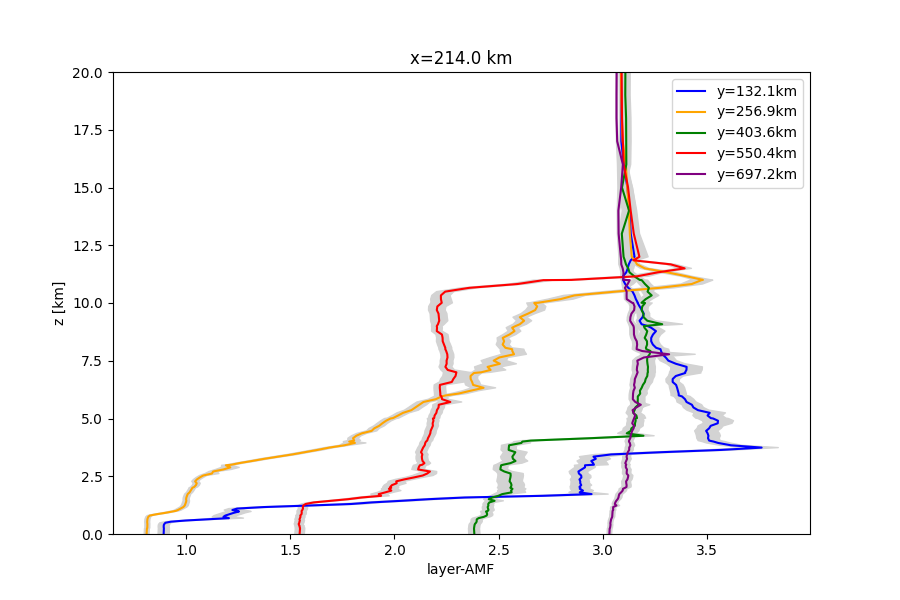

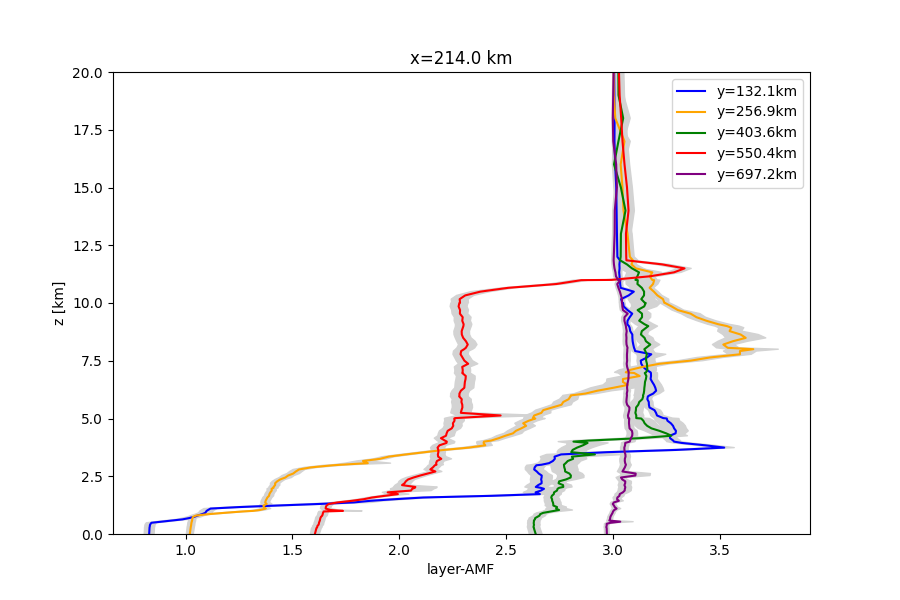

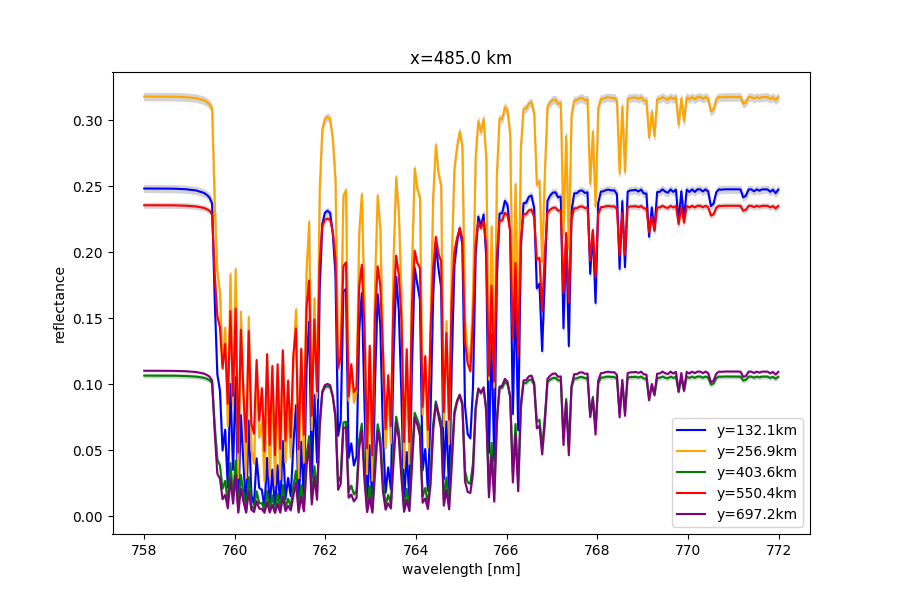

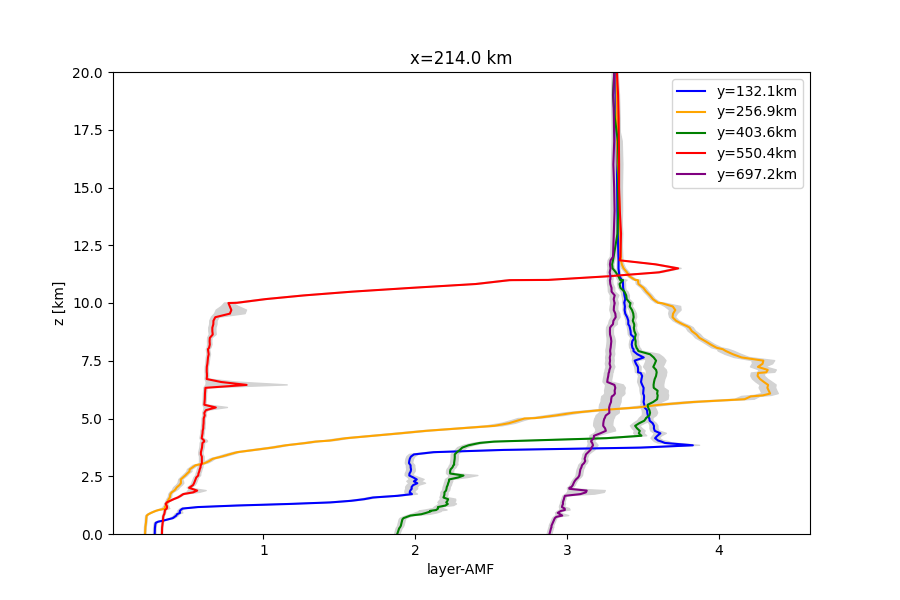

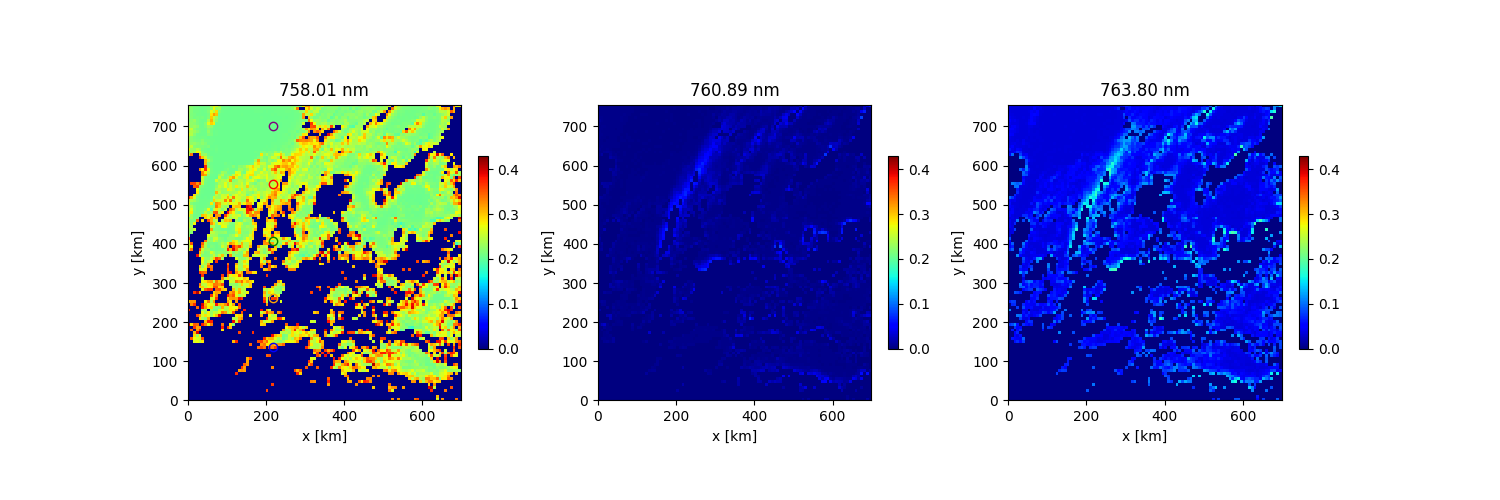

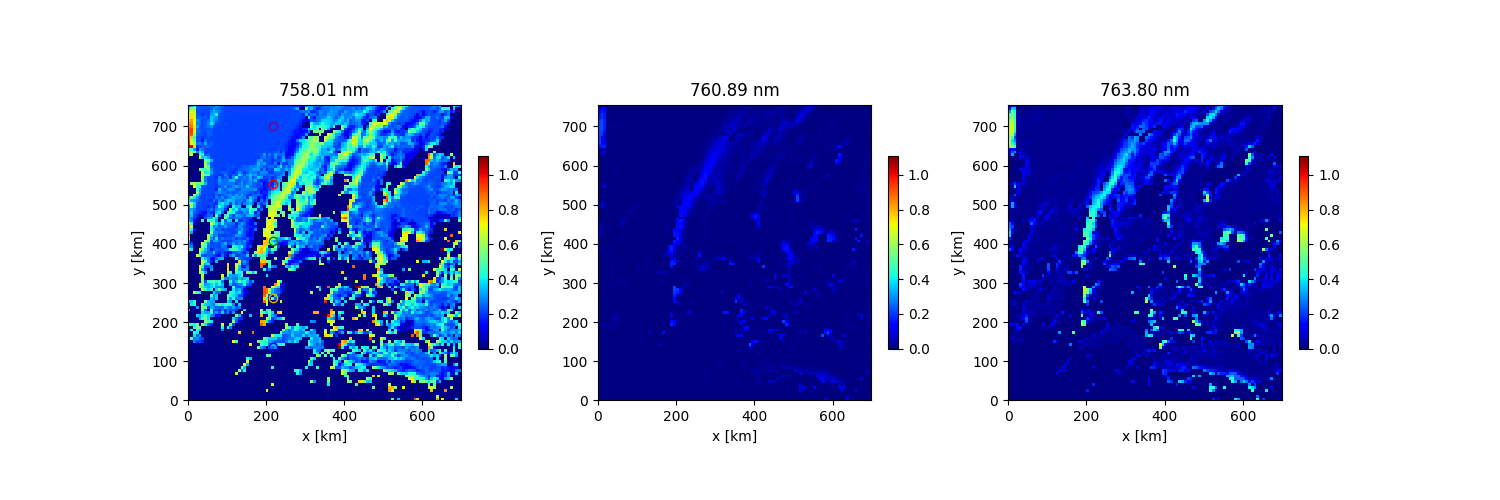

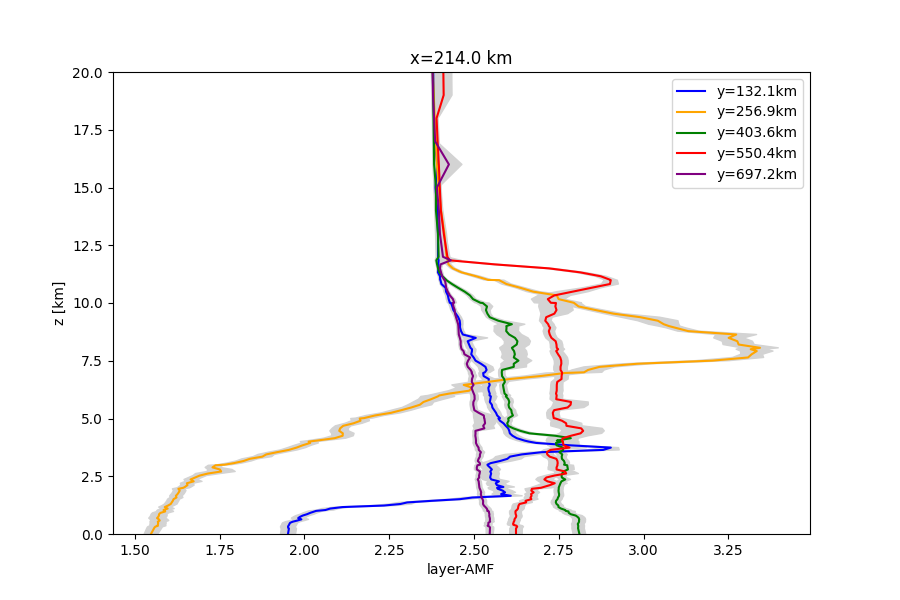

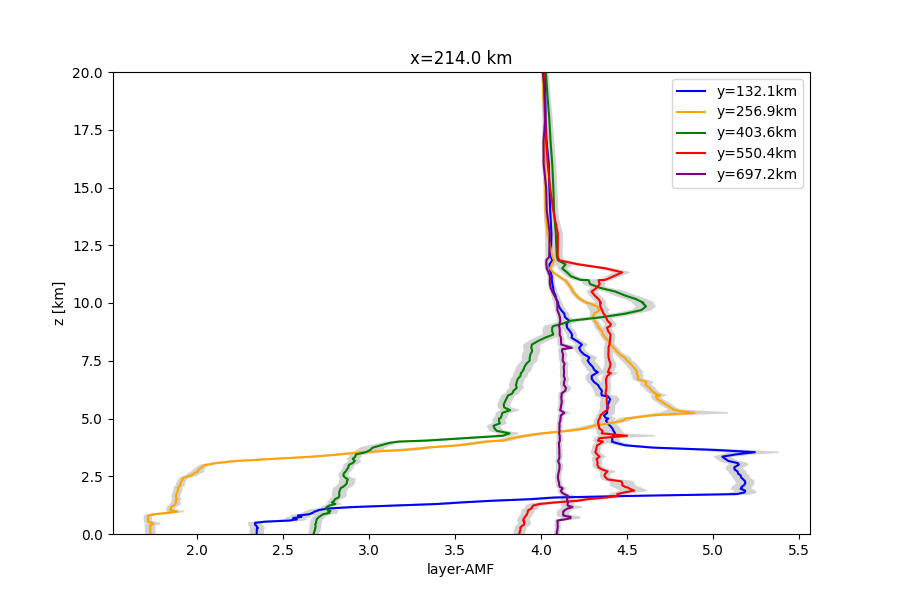

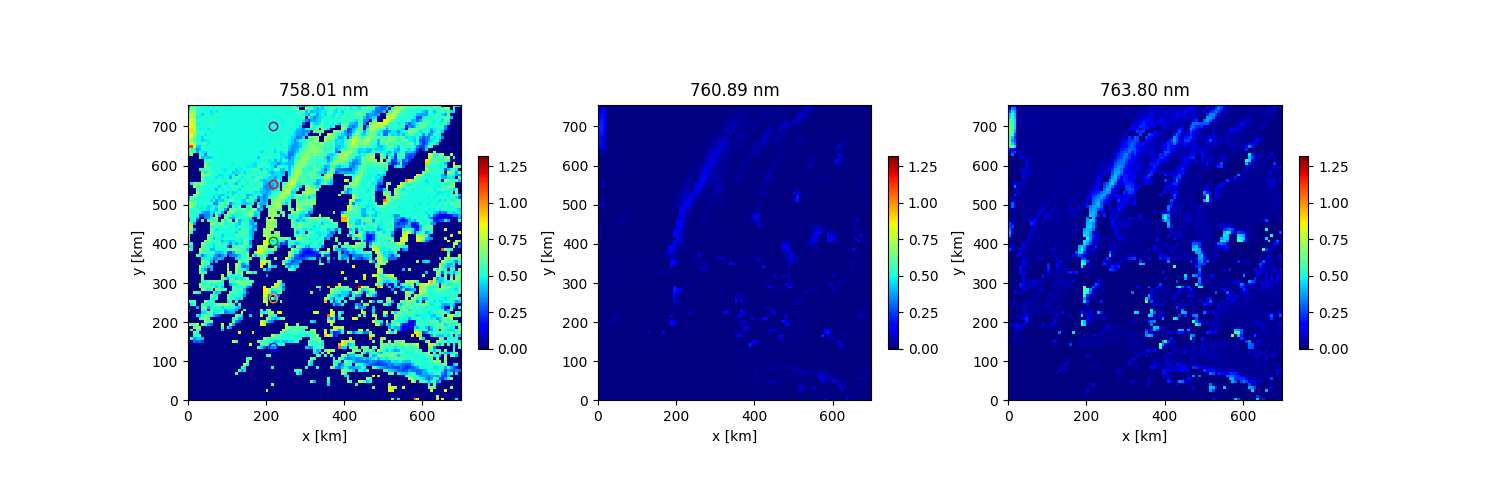

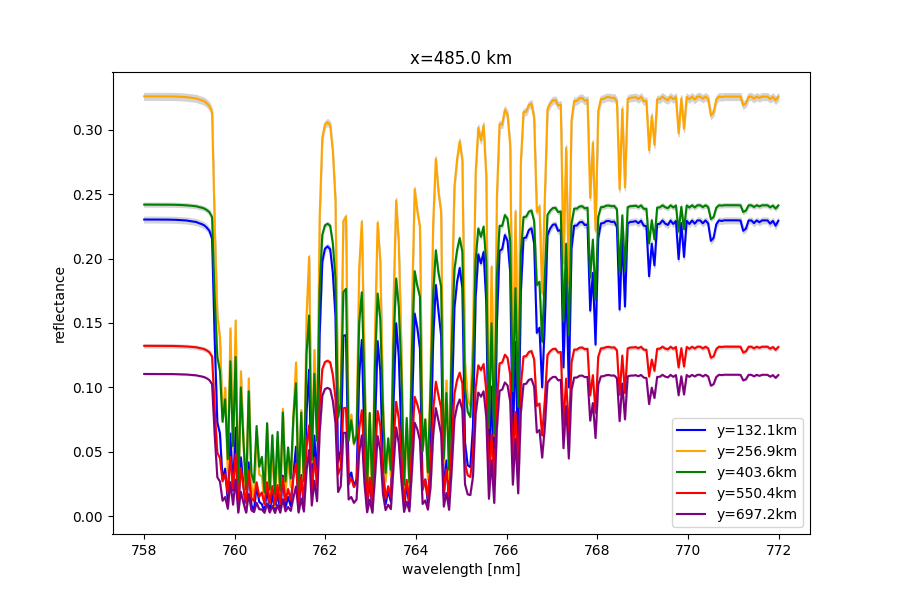

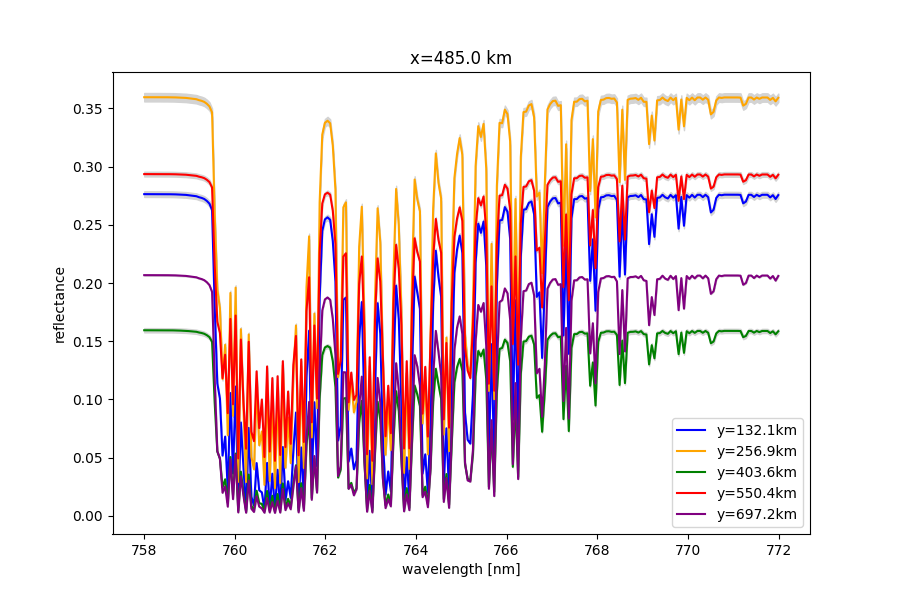

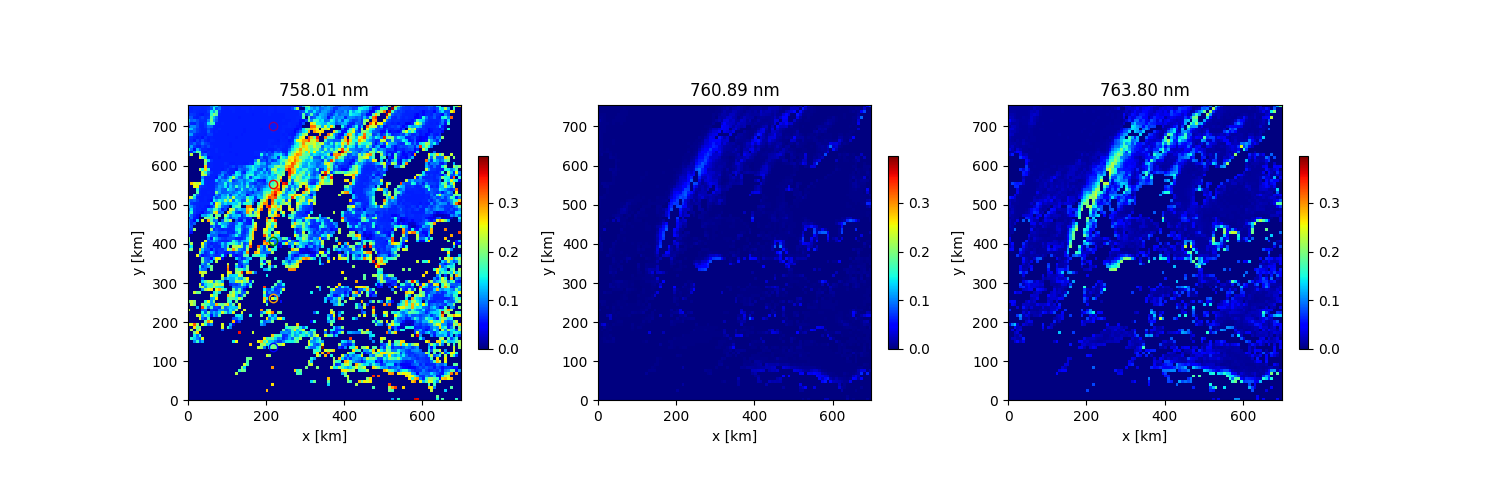

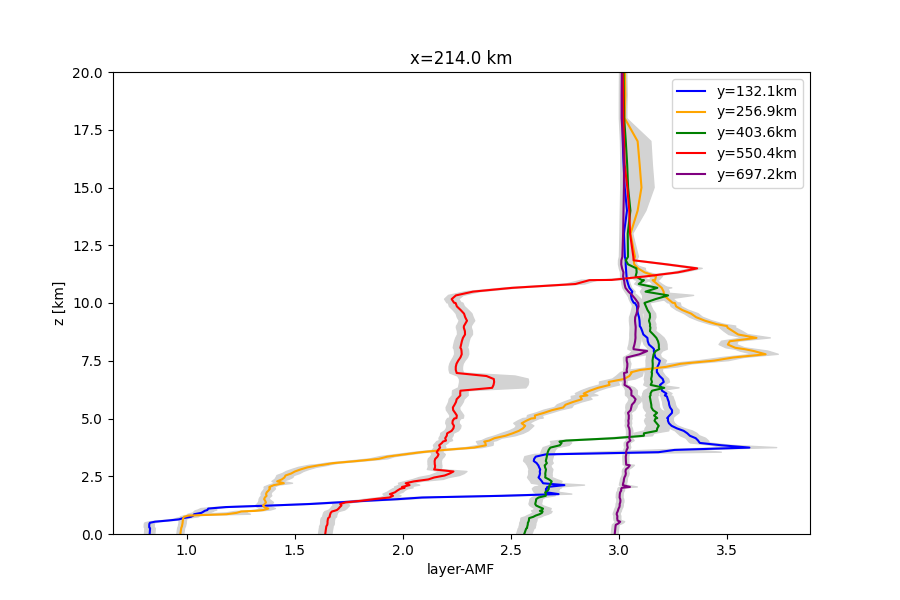

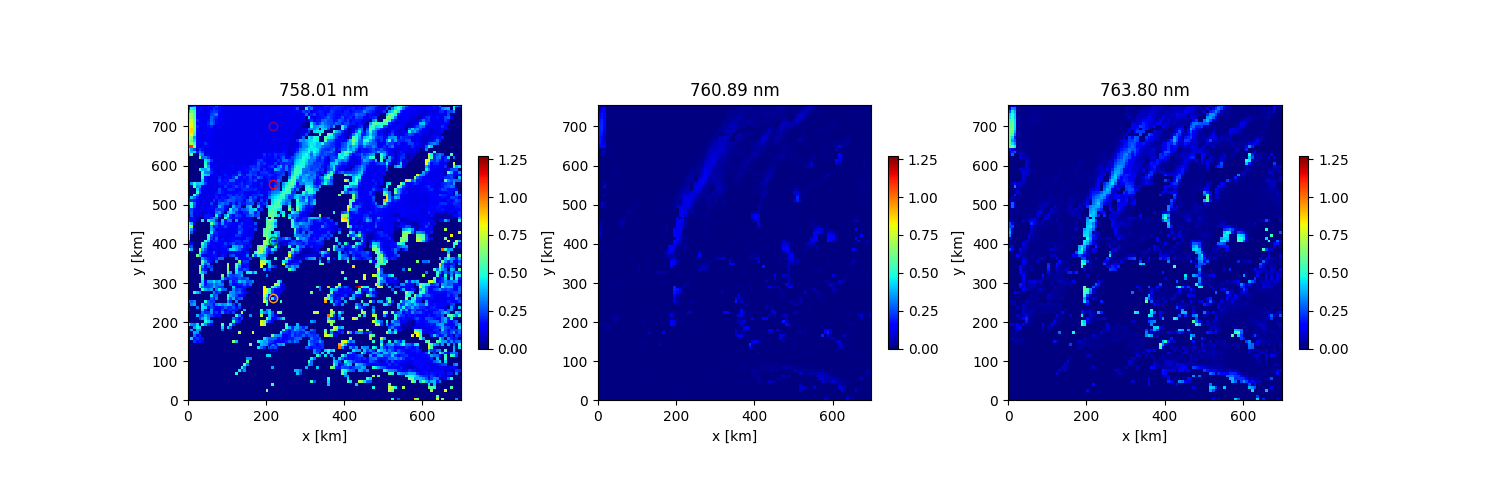

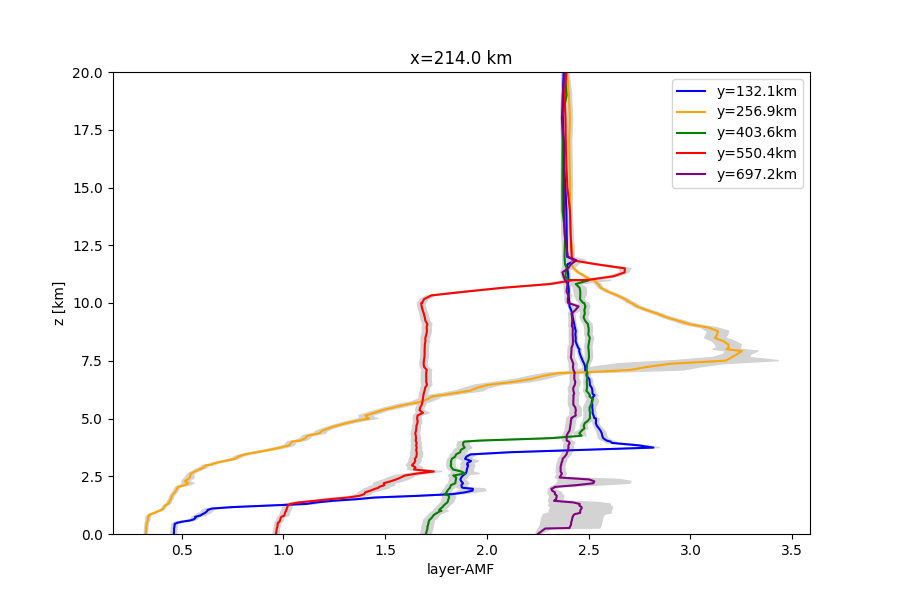

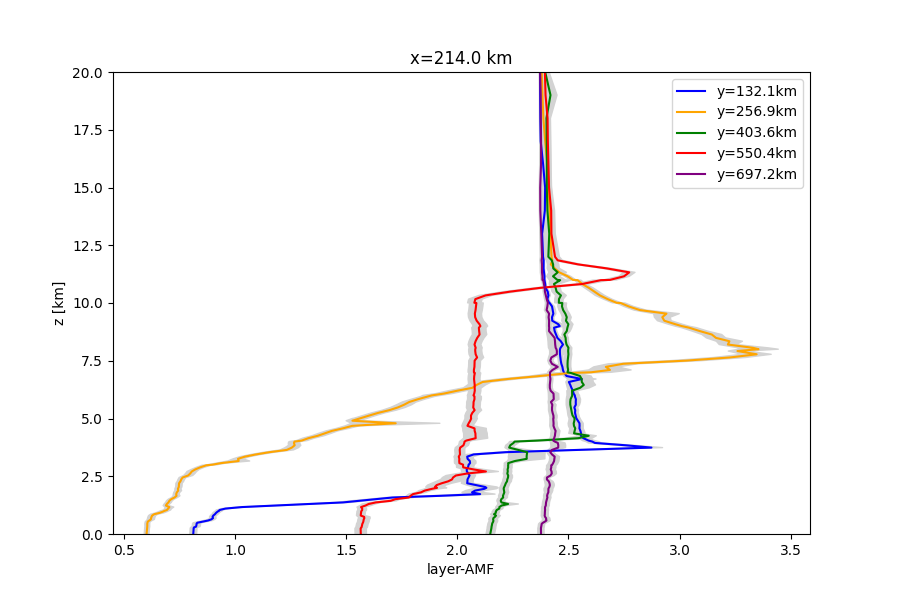

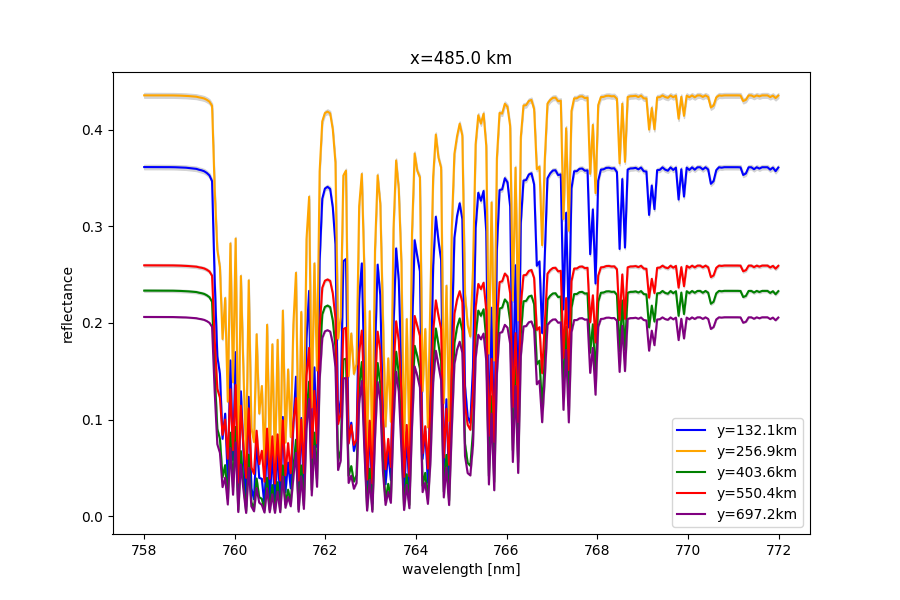

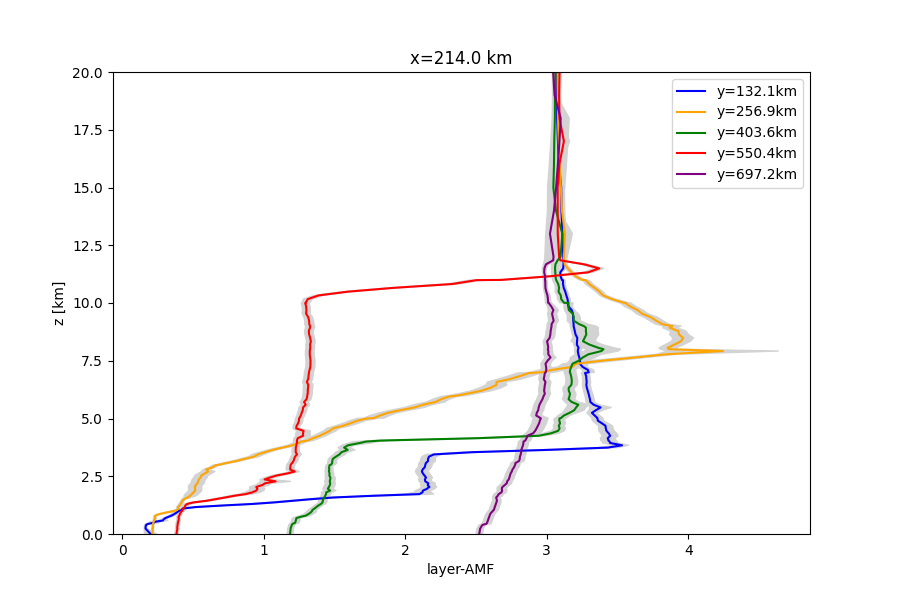

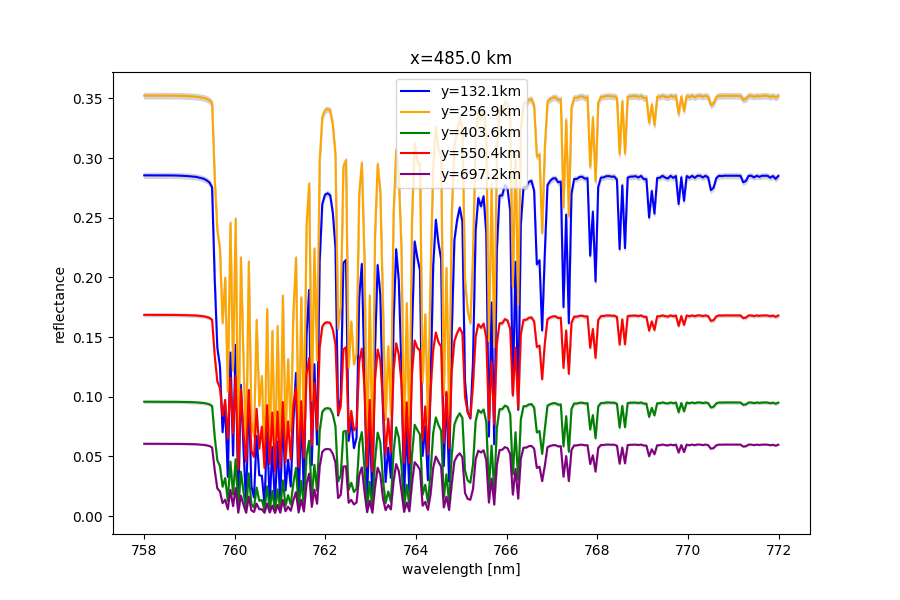

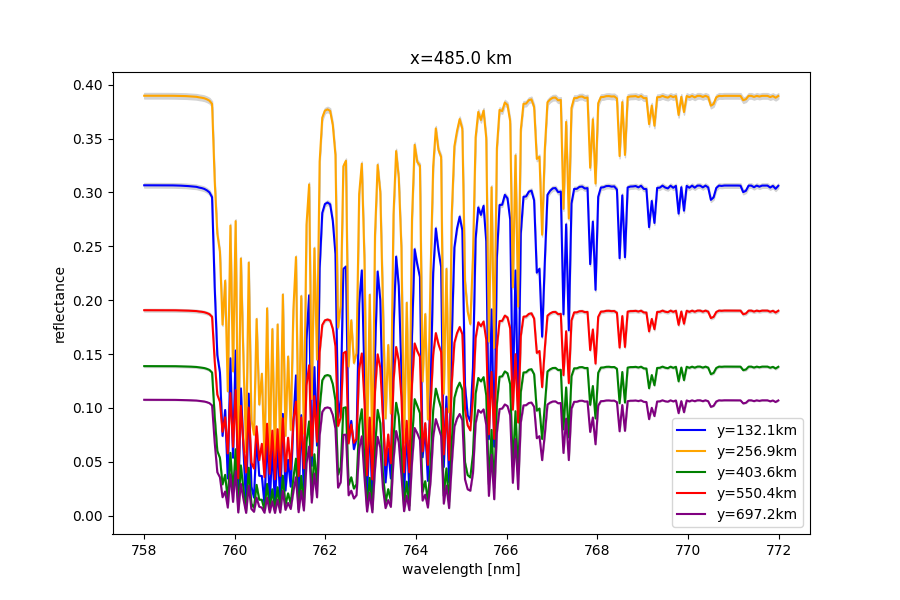

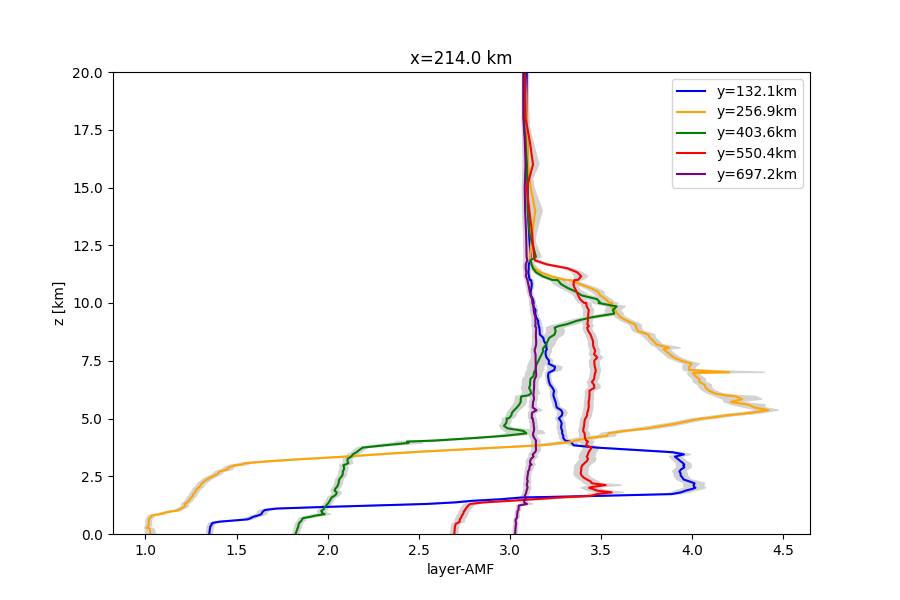

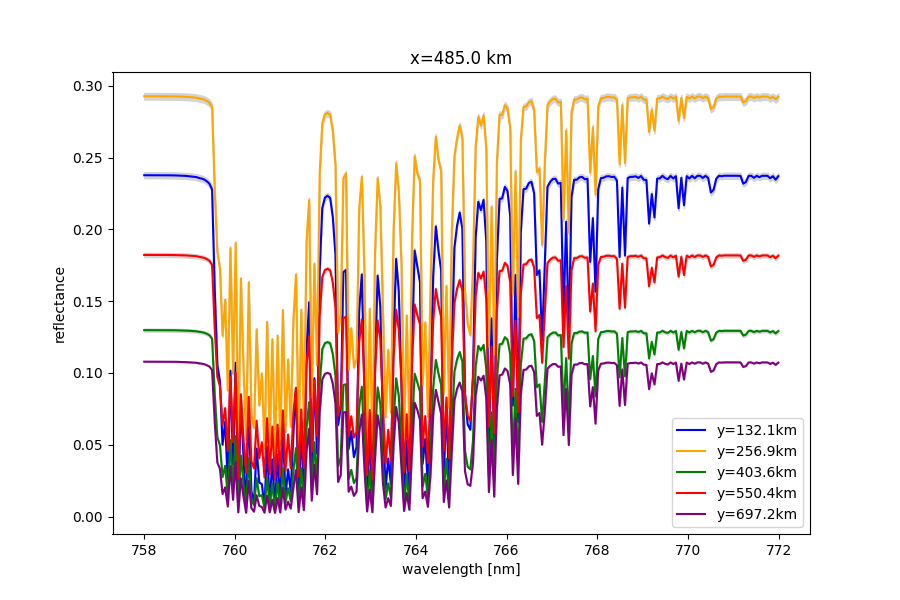

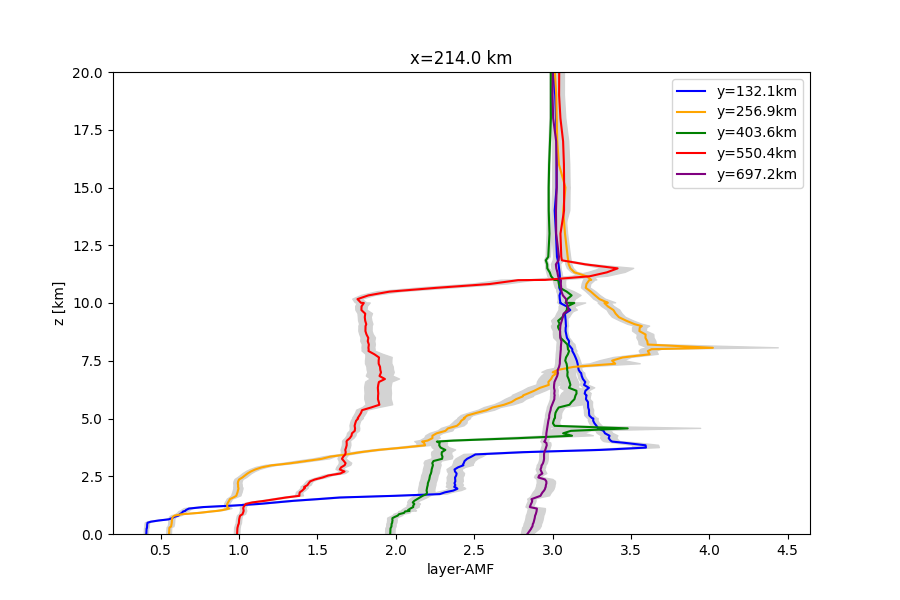

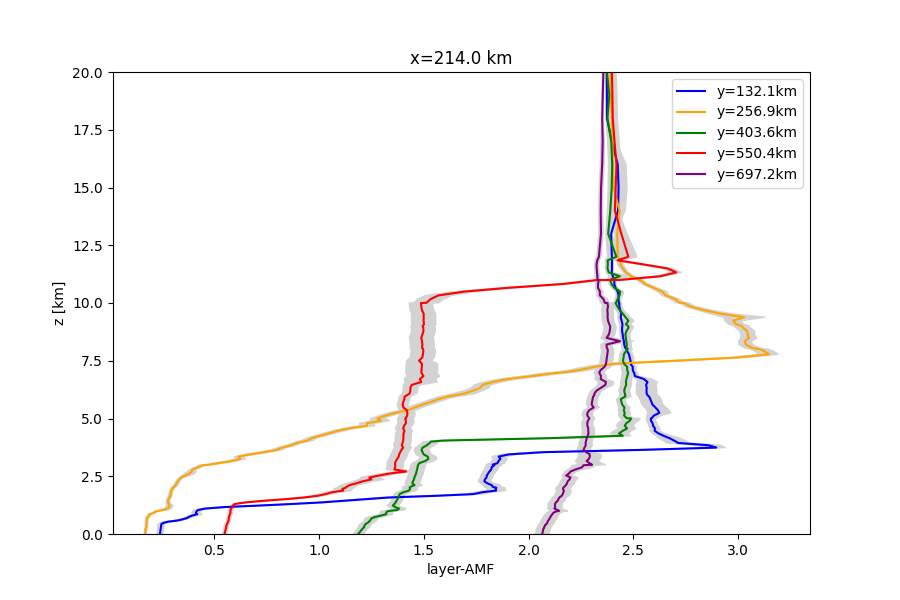

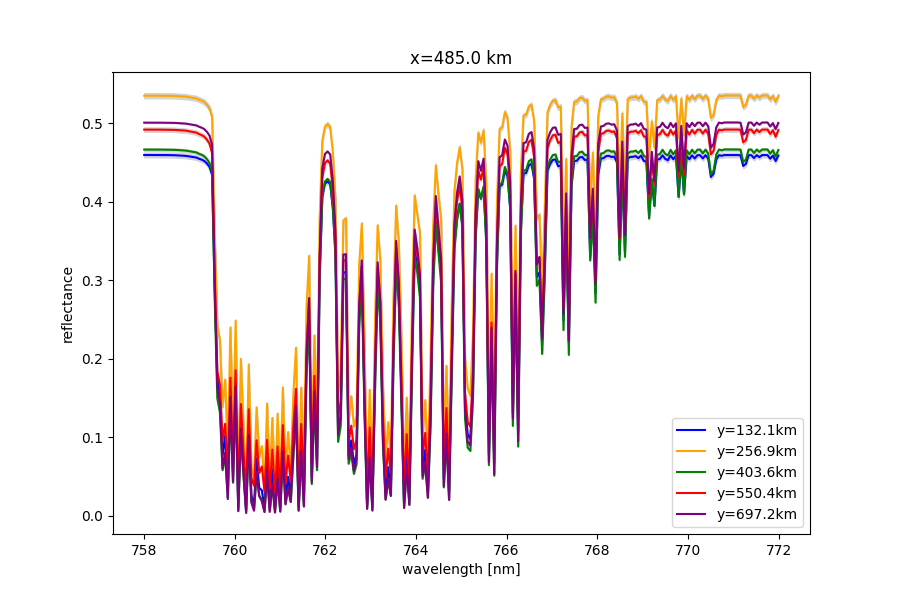

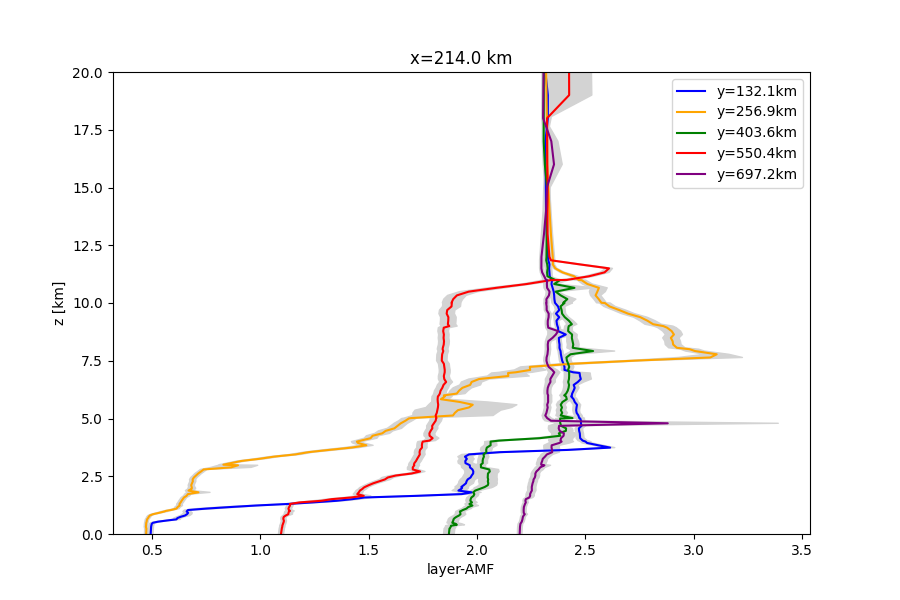

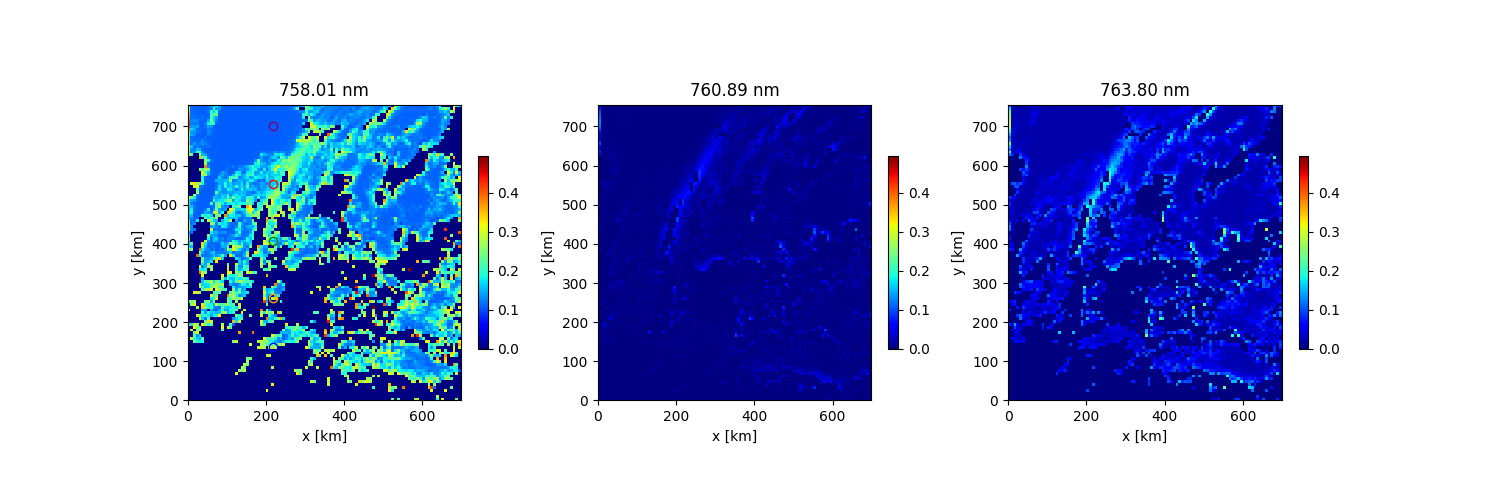

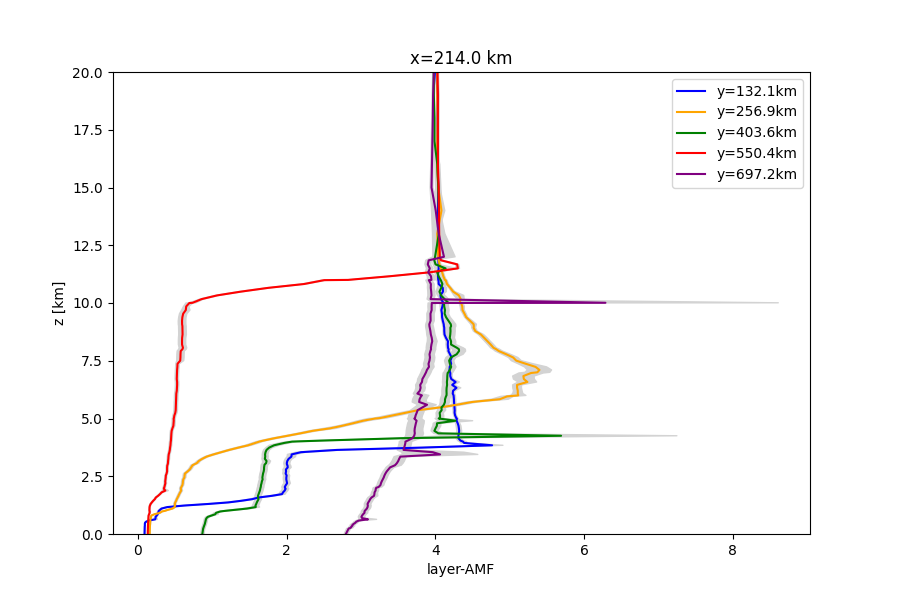

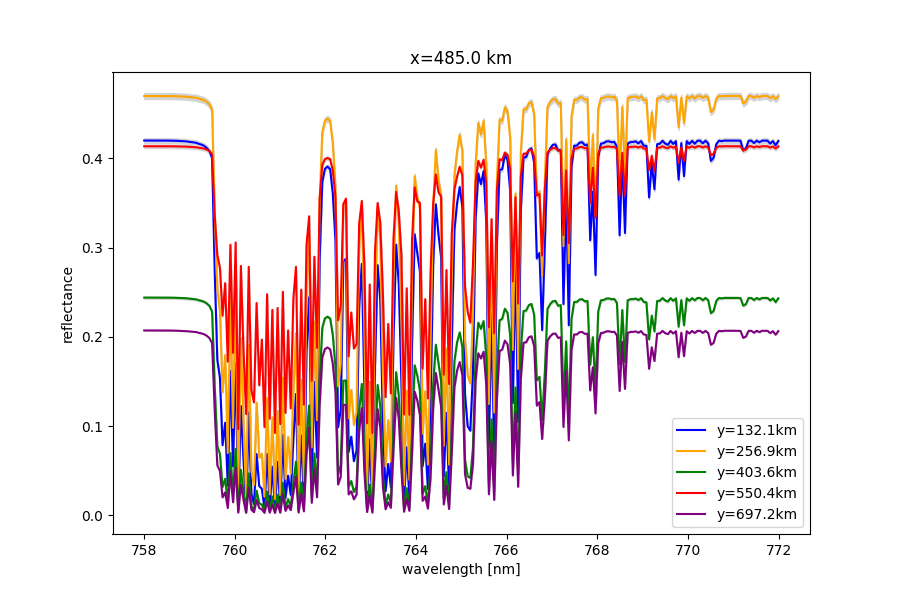

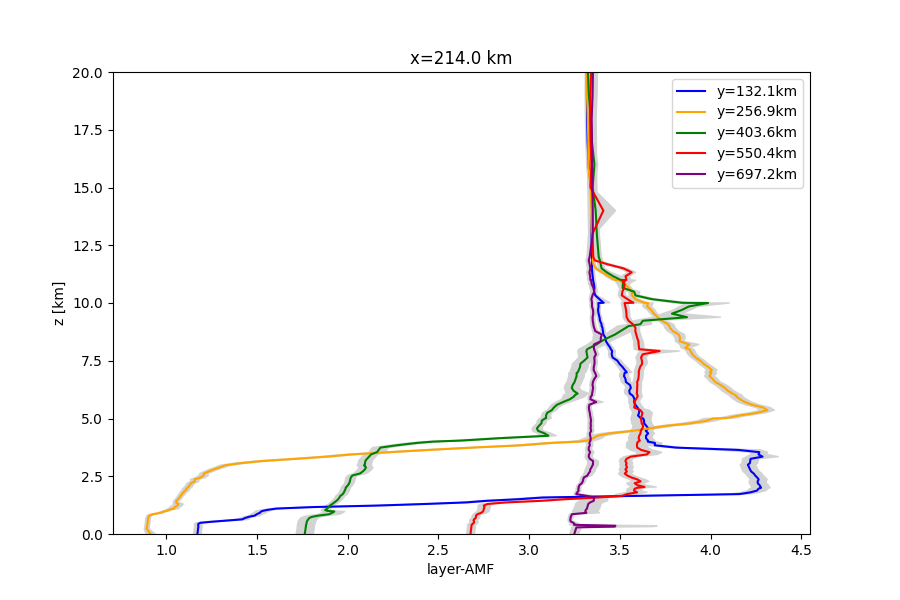

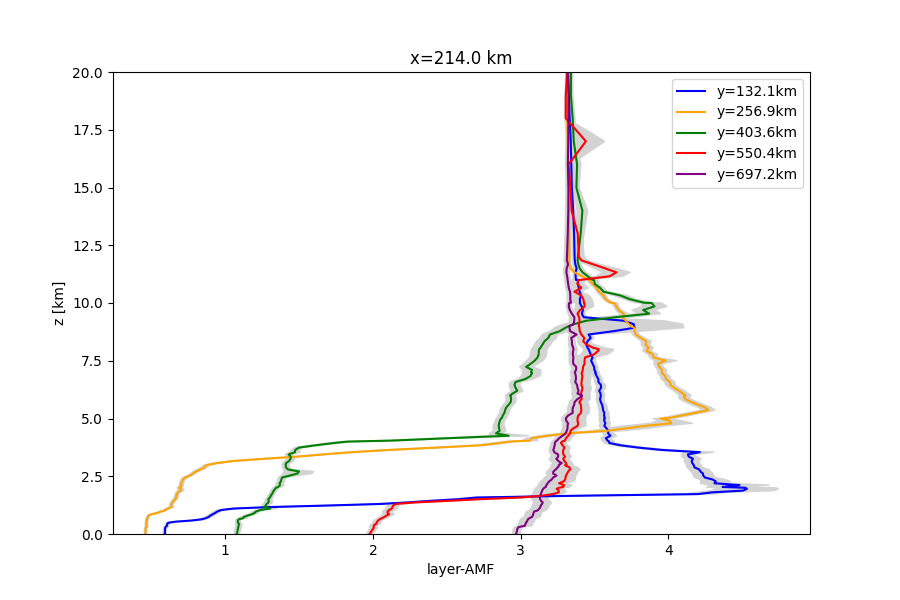

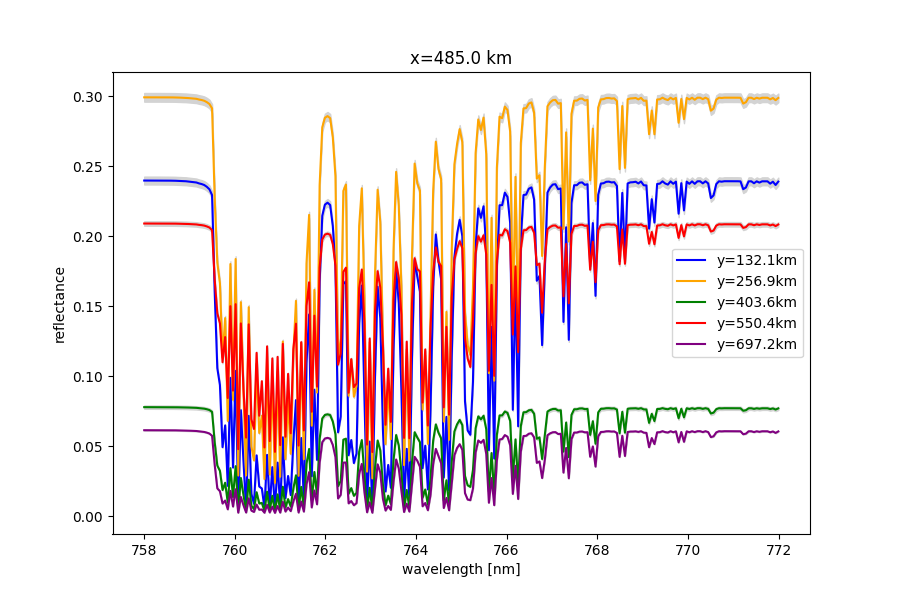

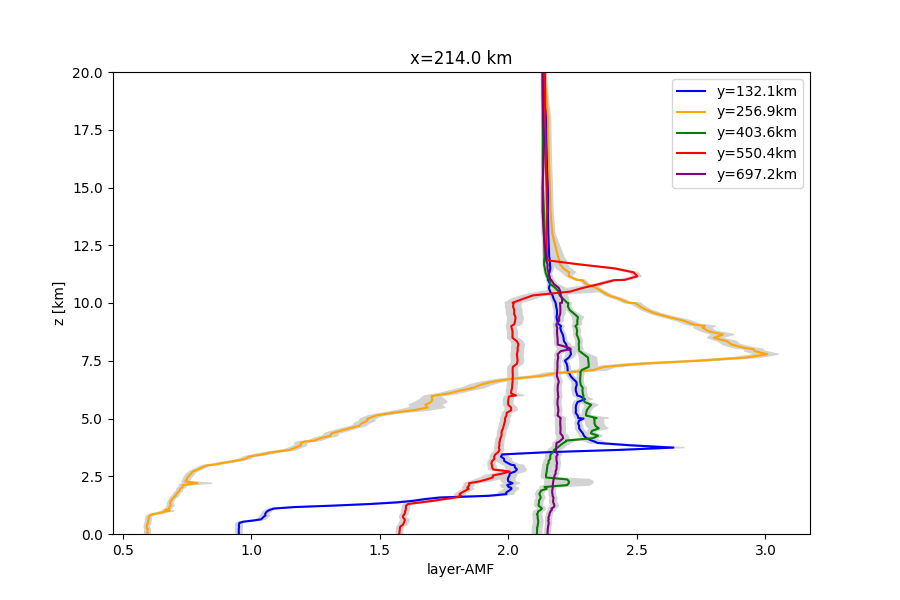

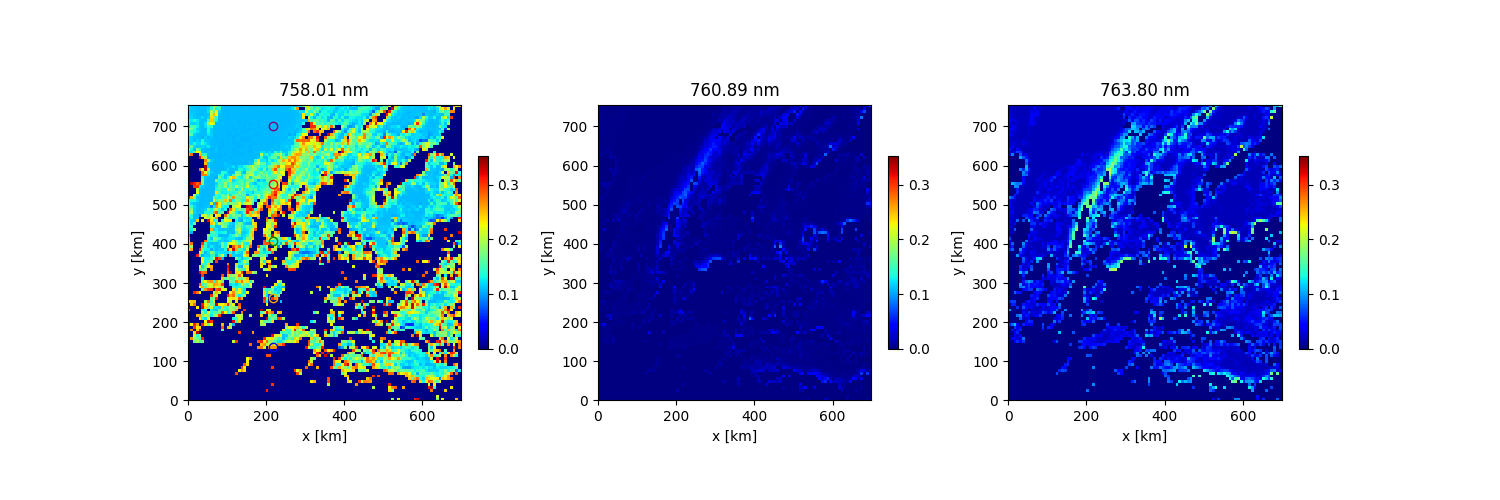

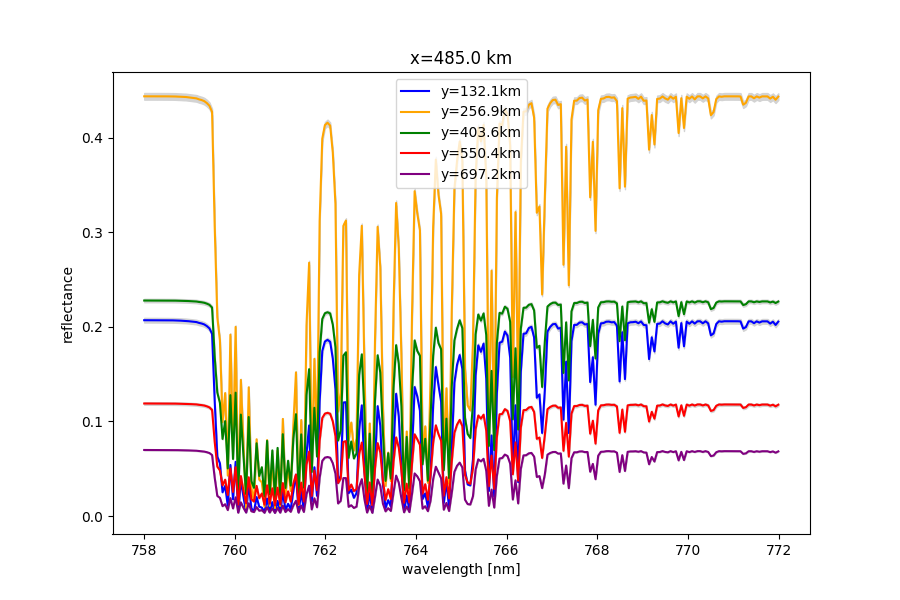

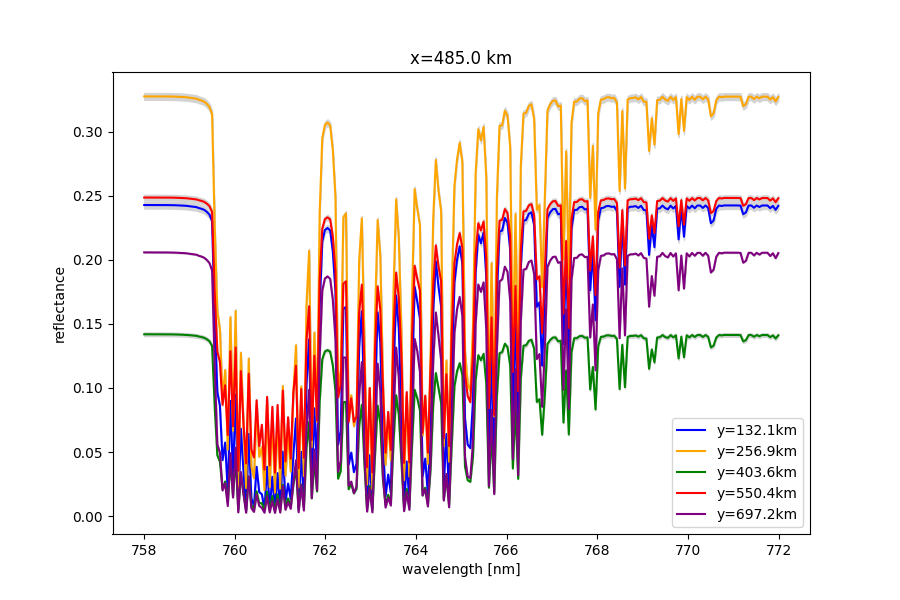

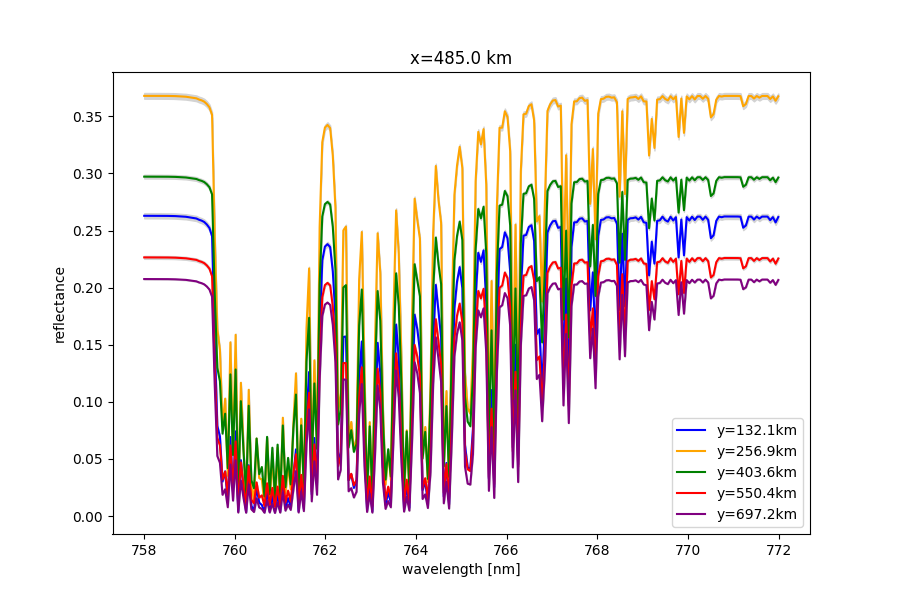

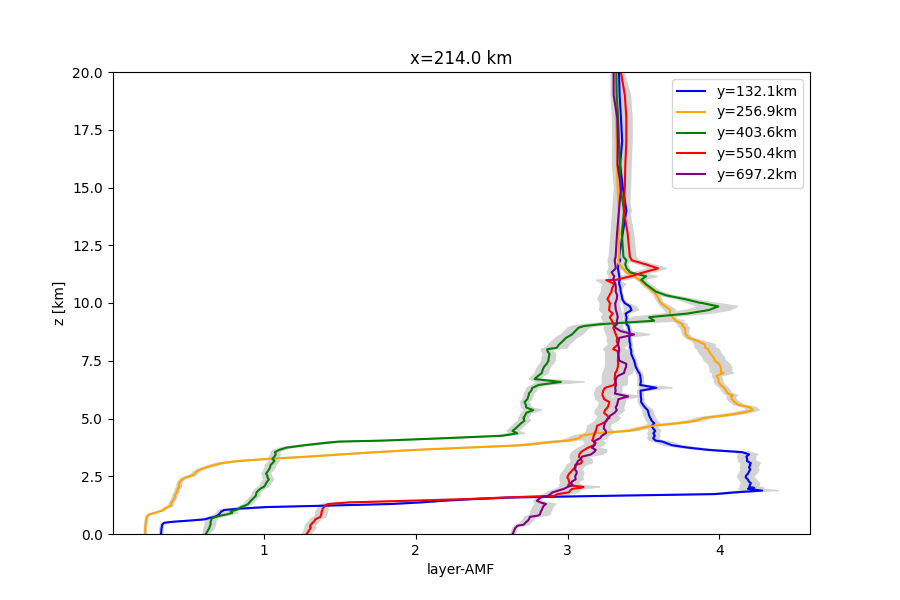

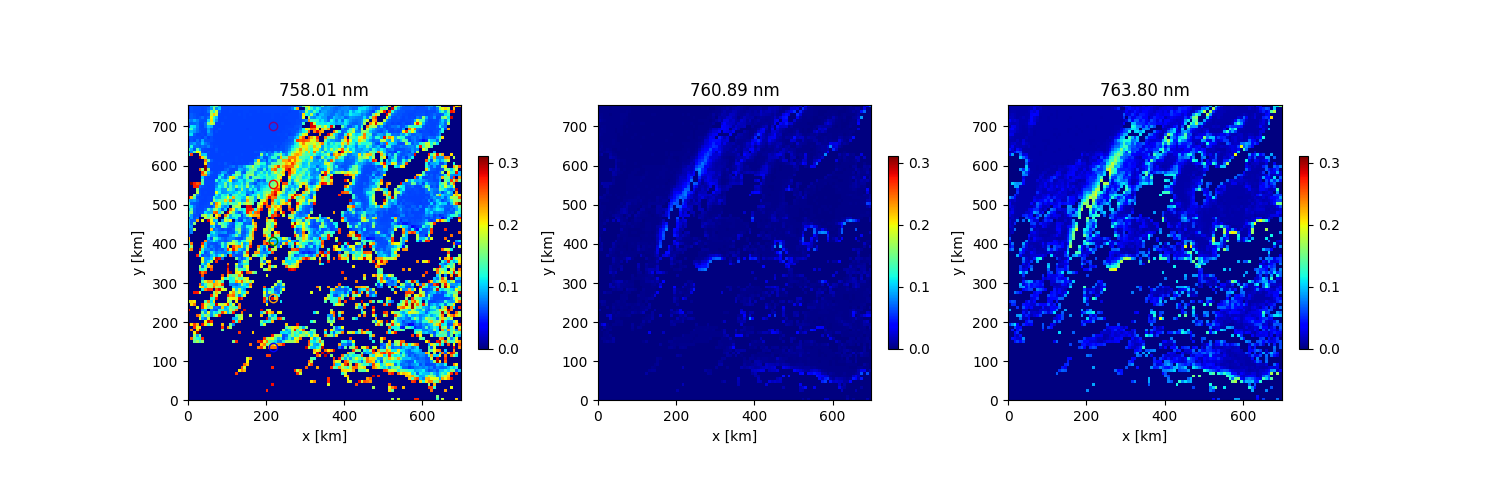

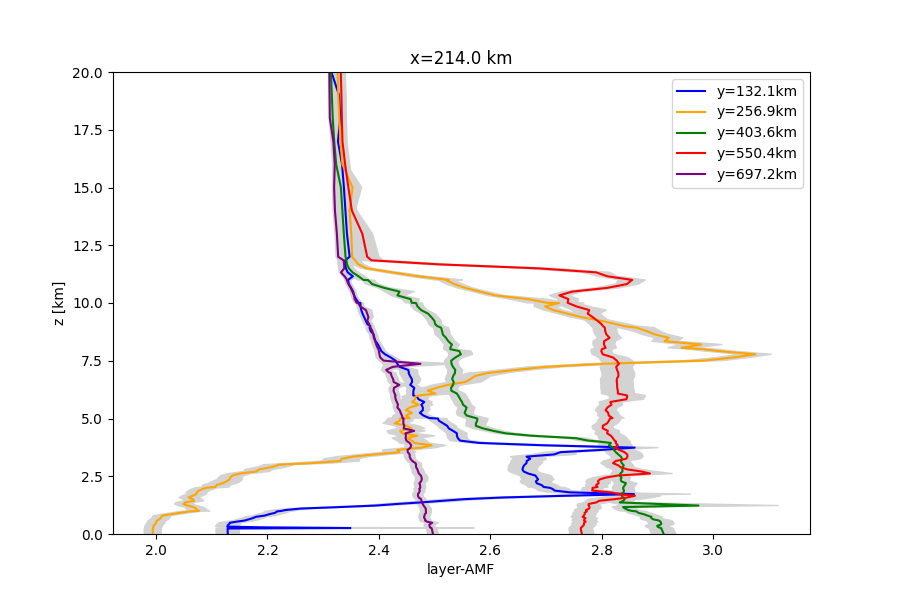

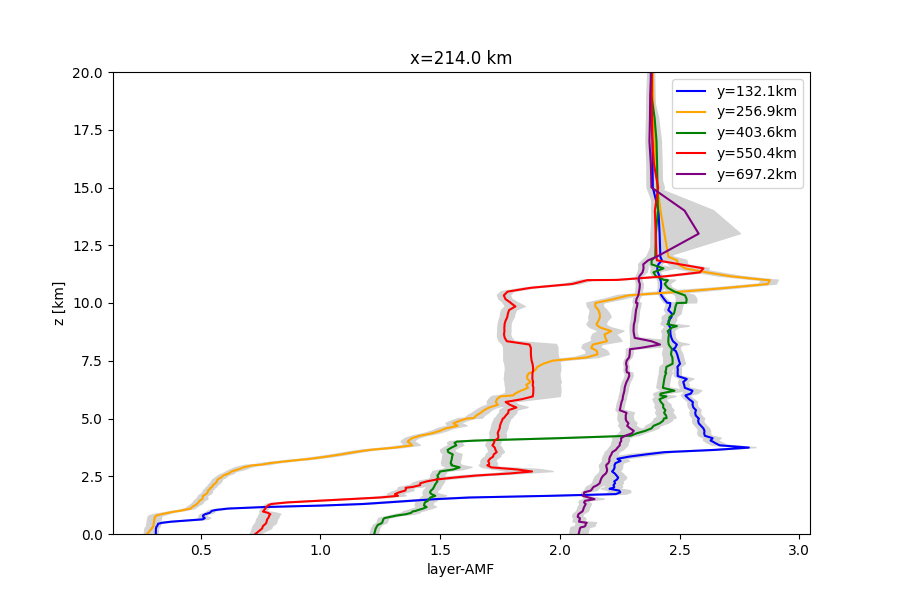

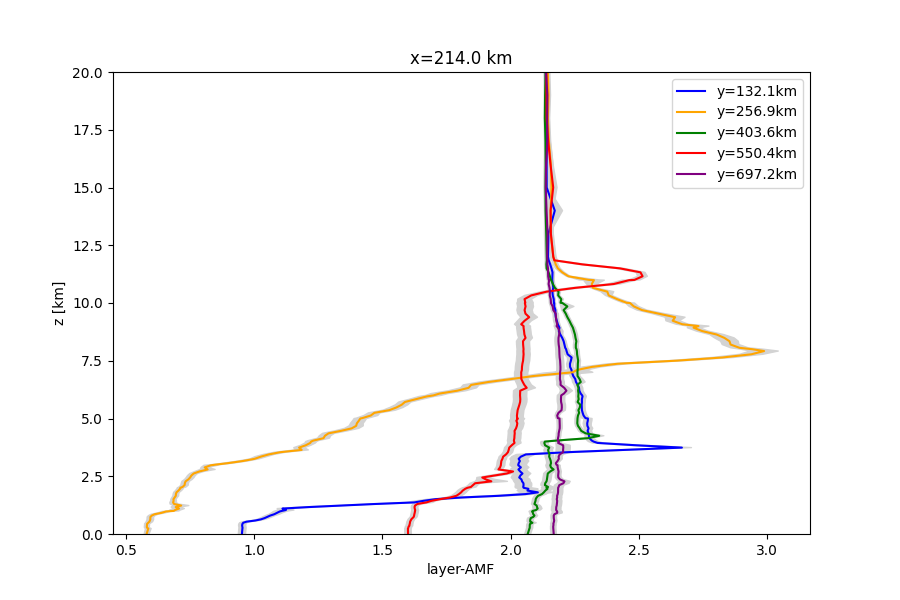

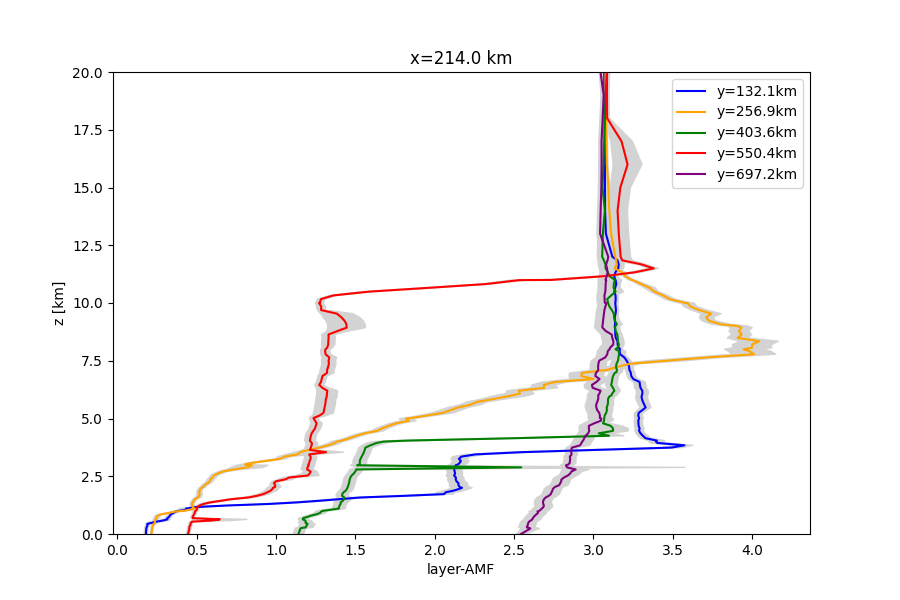

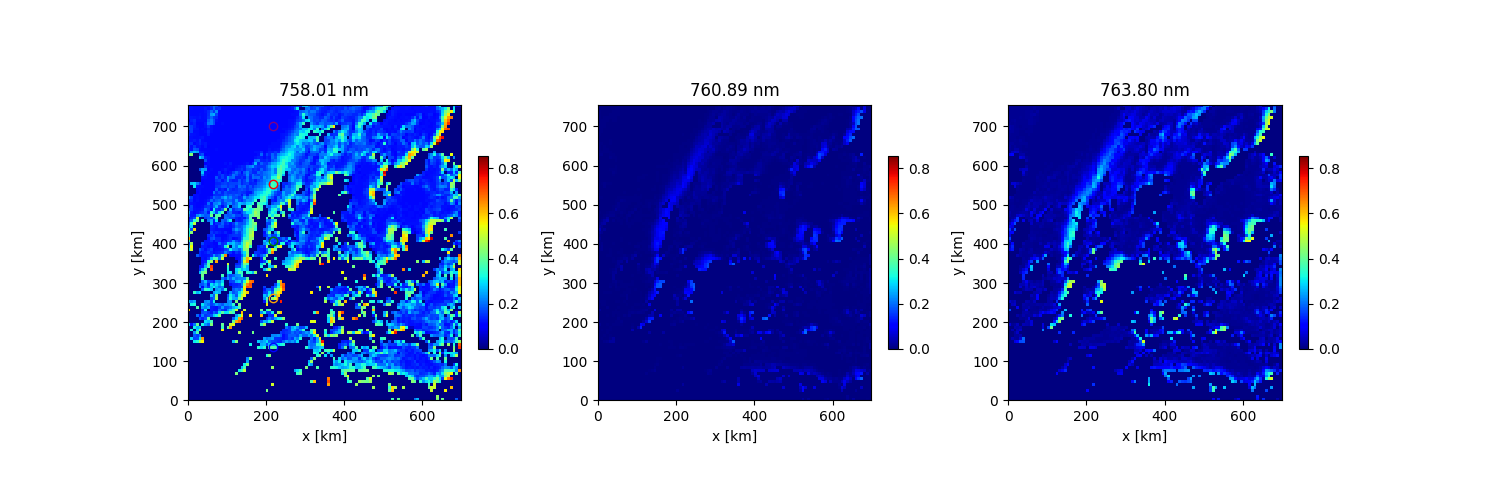

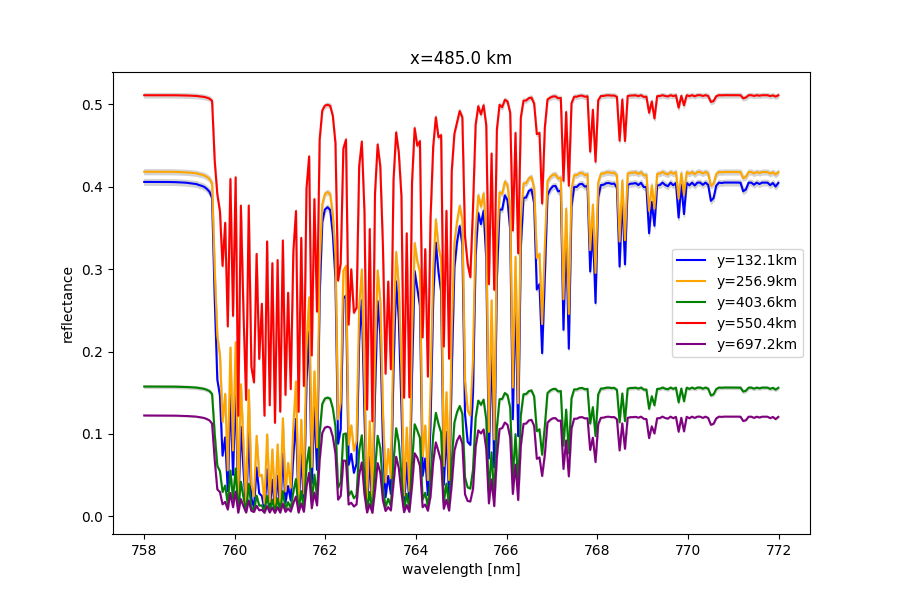

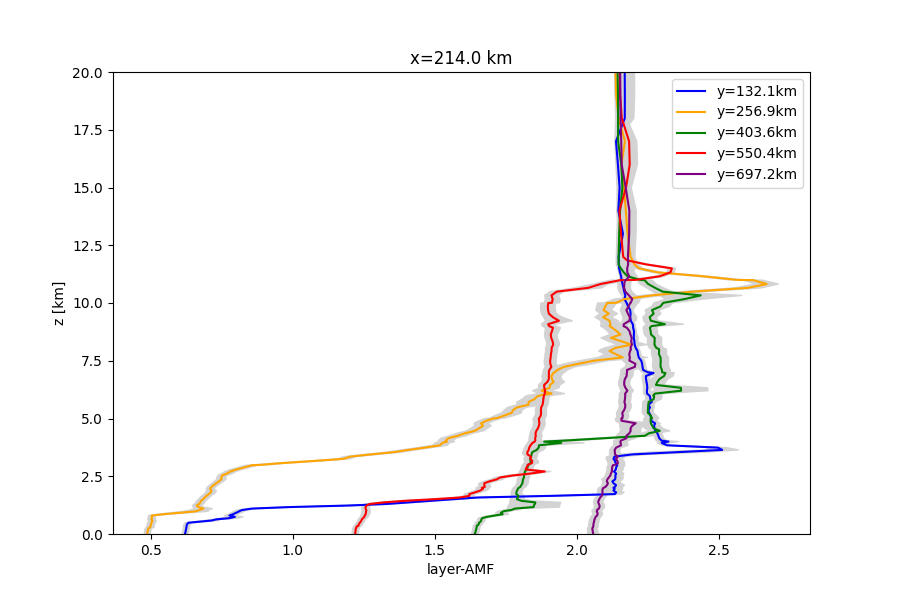

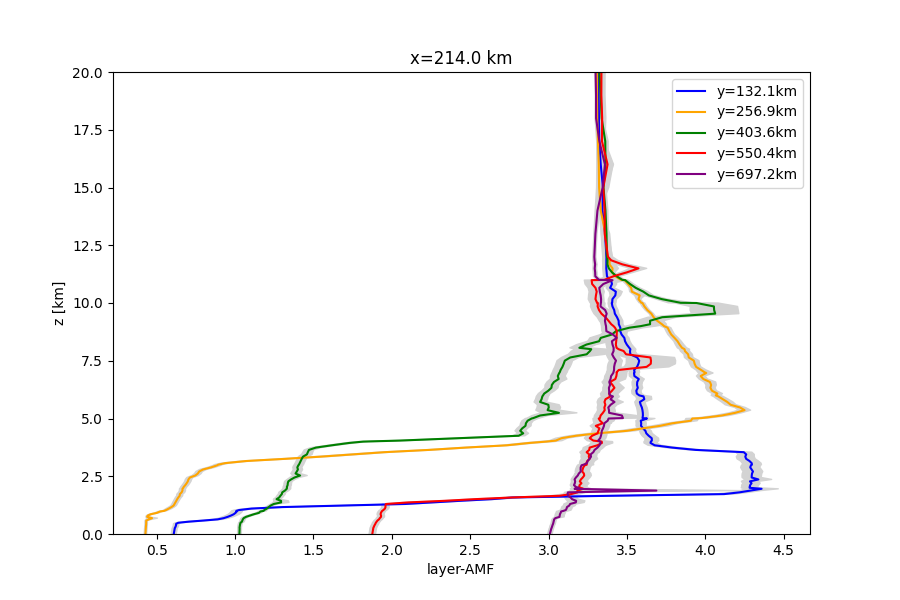

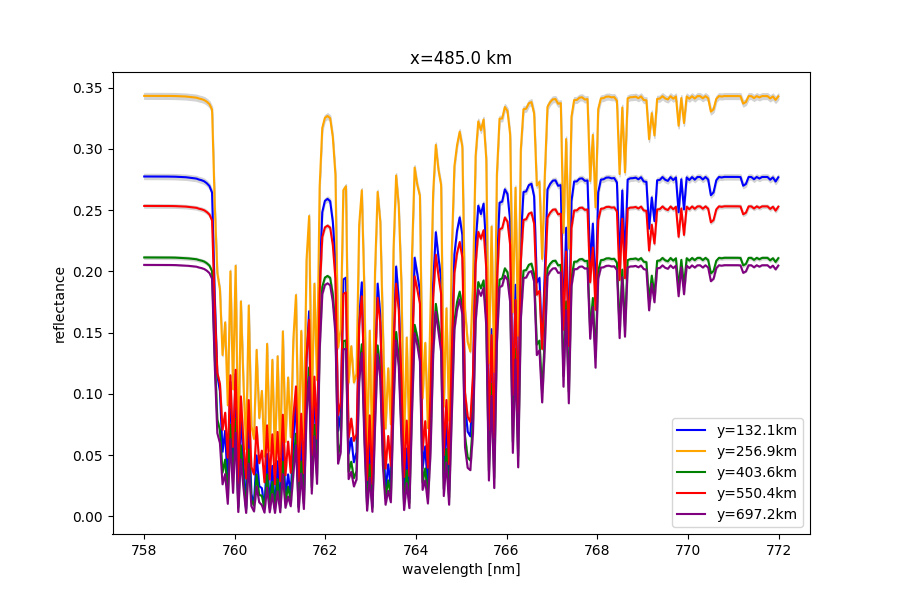

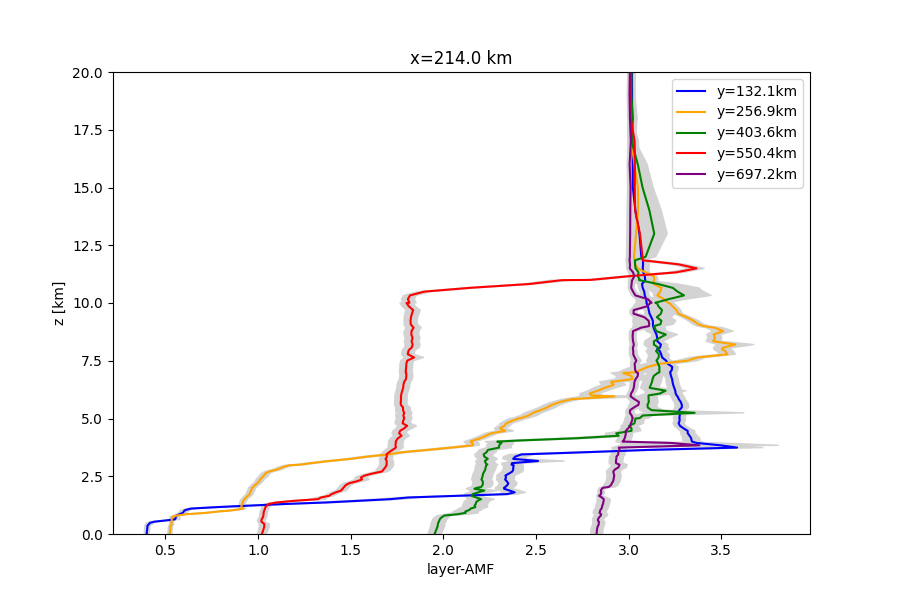

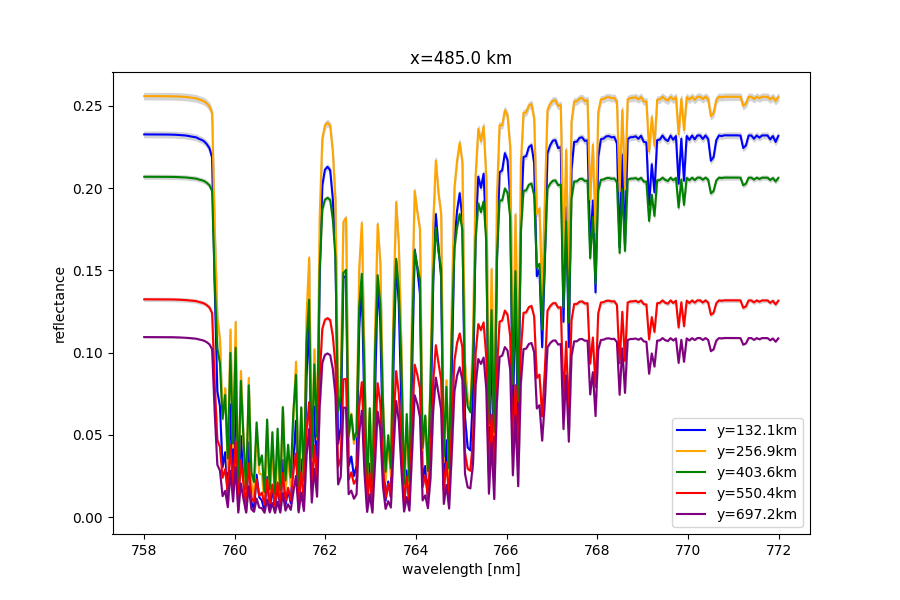

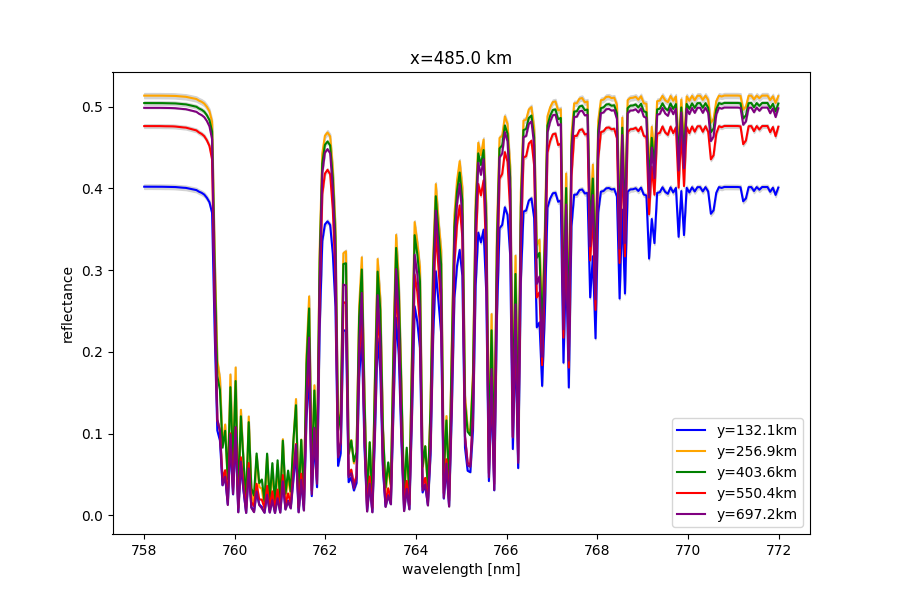

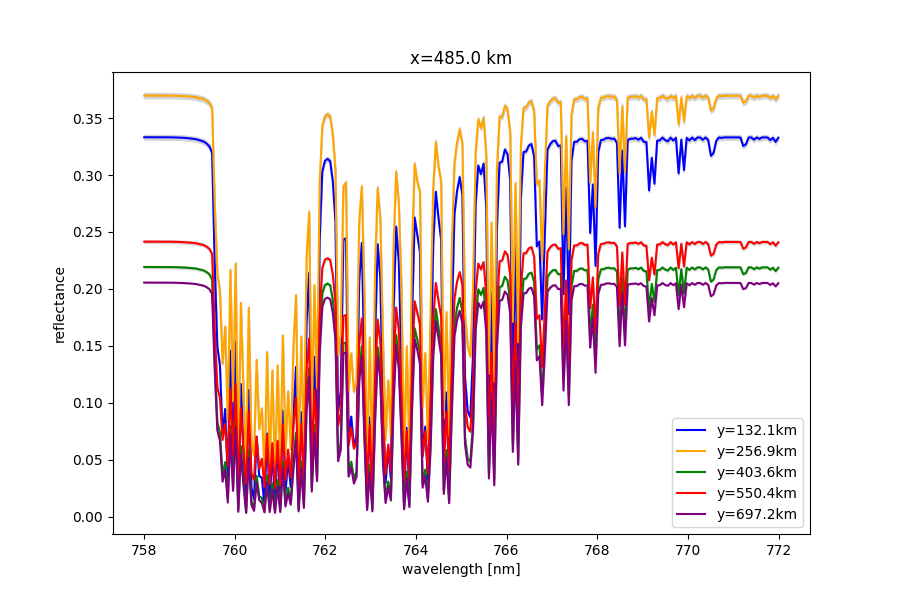

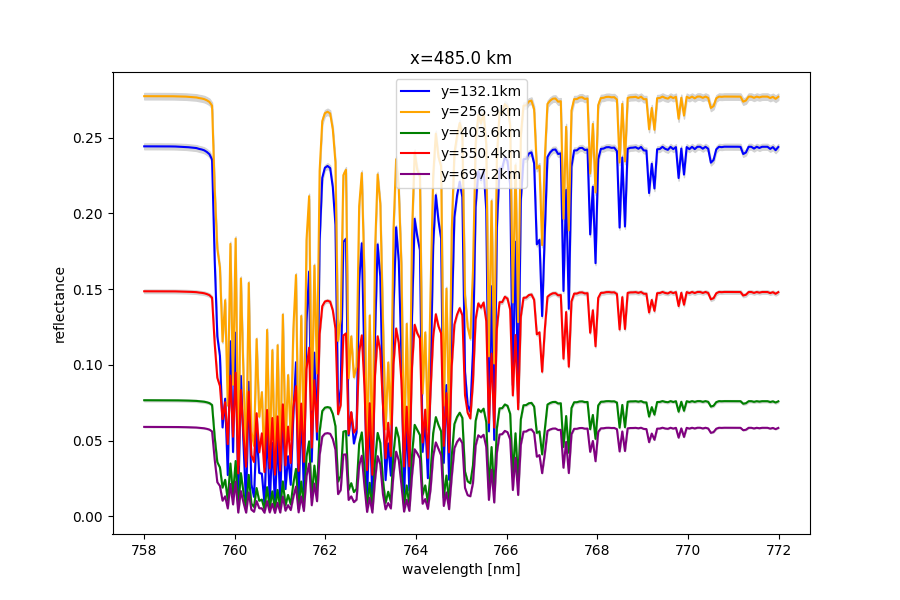

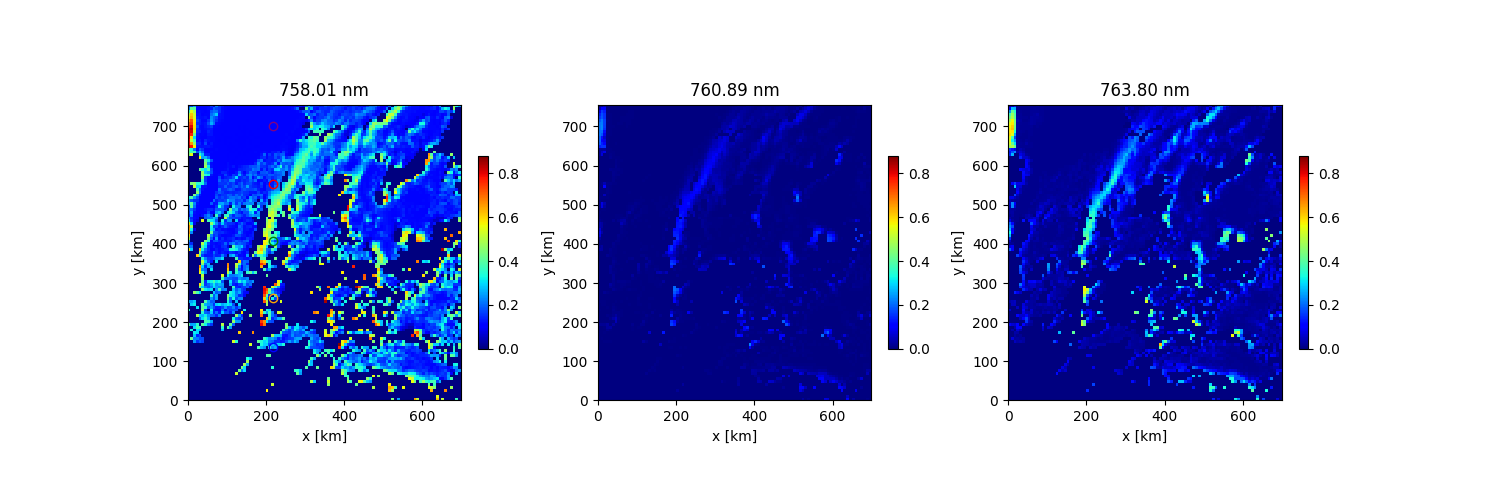

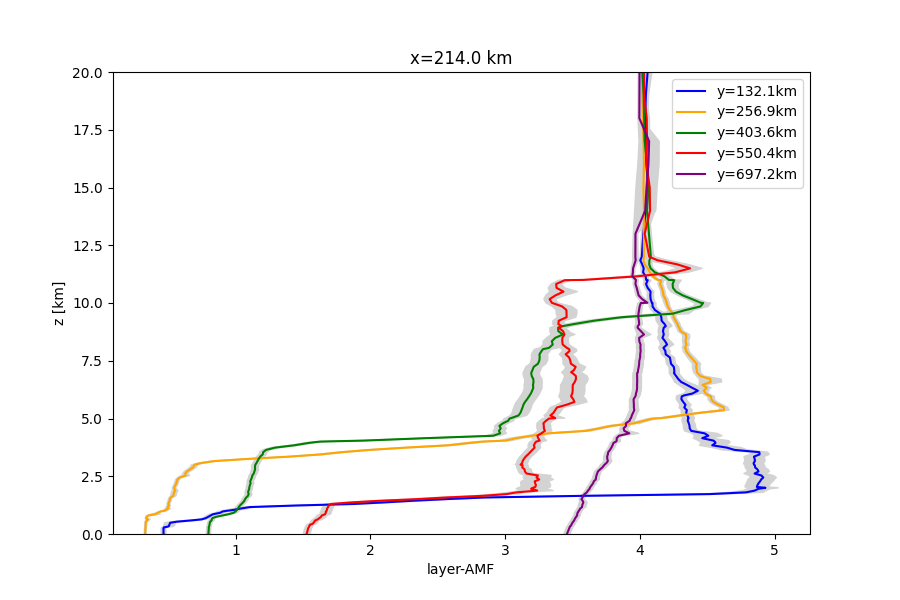

MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 1
Settings: albedo 0.05 sza 20 saa 13 vza 0 vaa 281.7

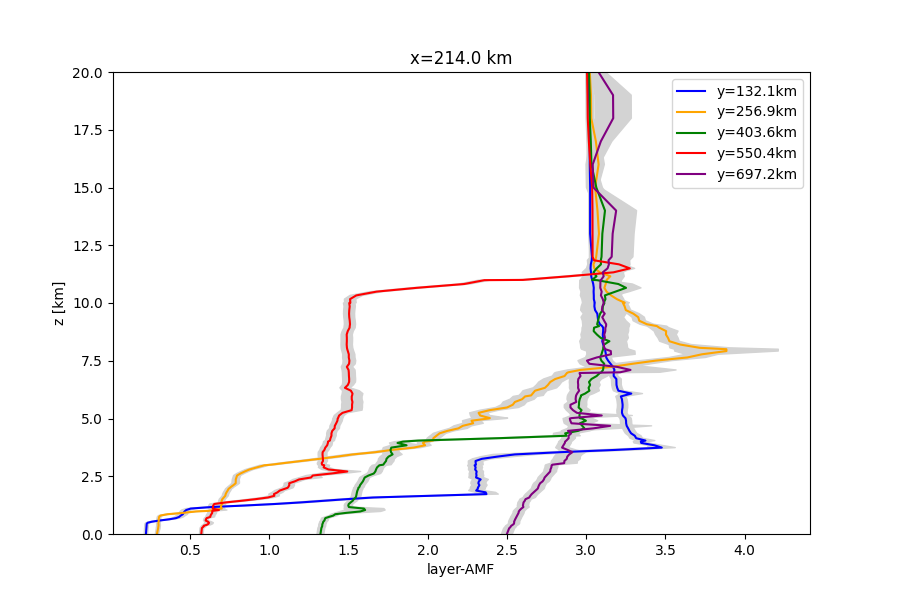

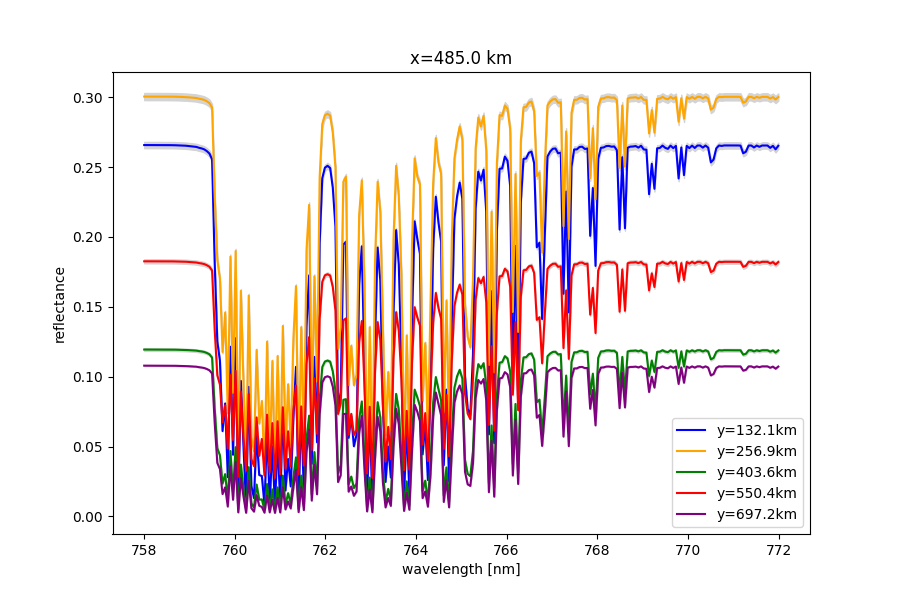

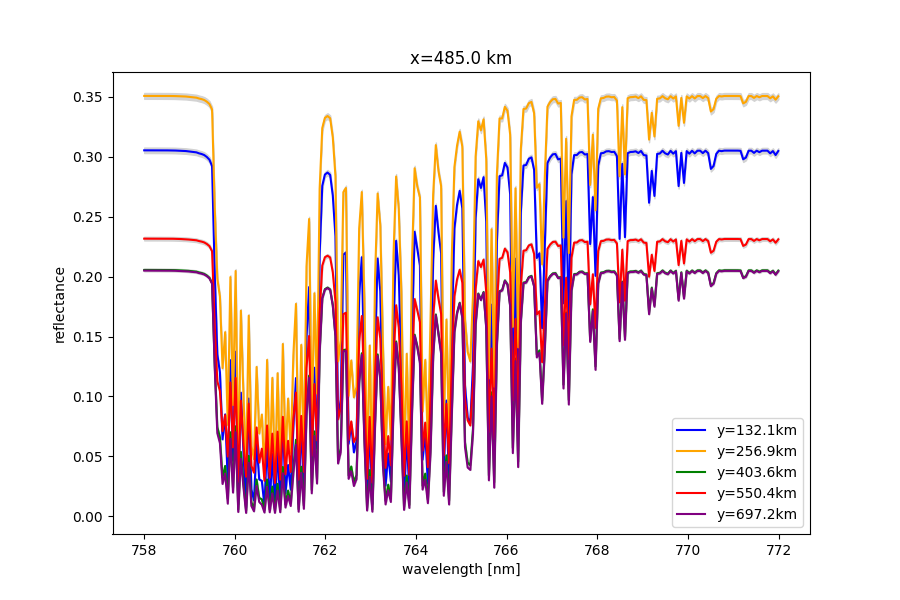

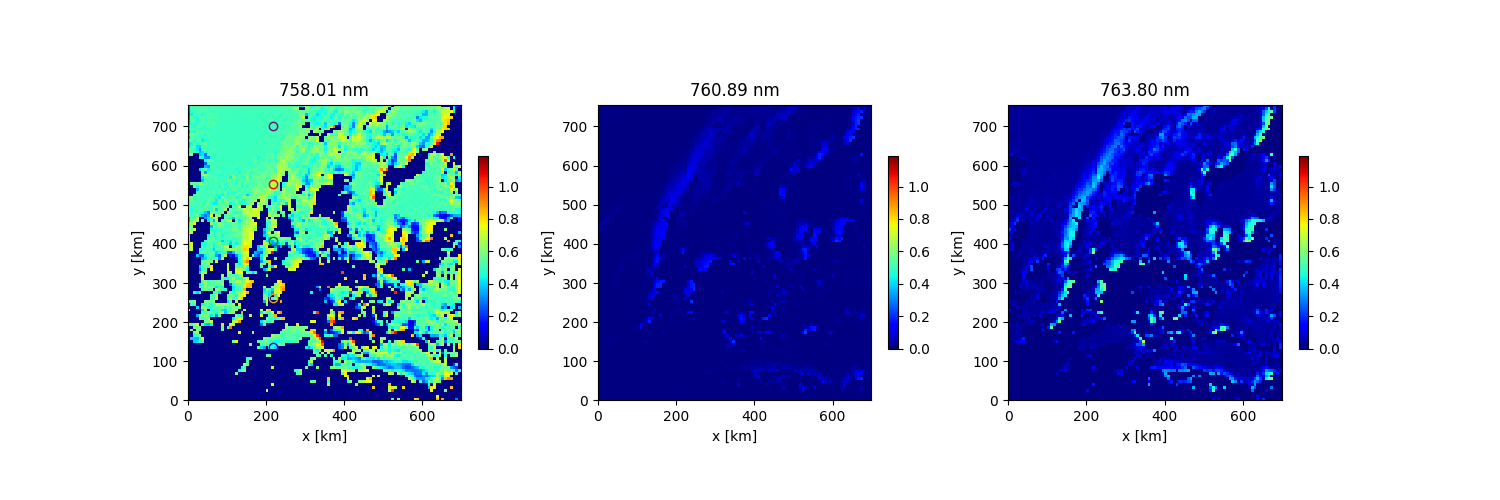

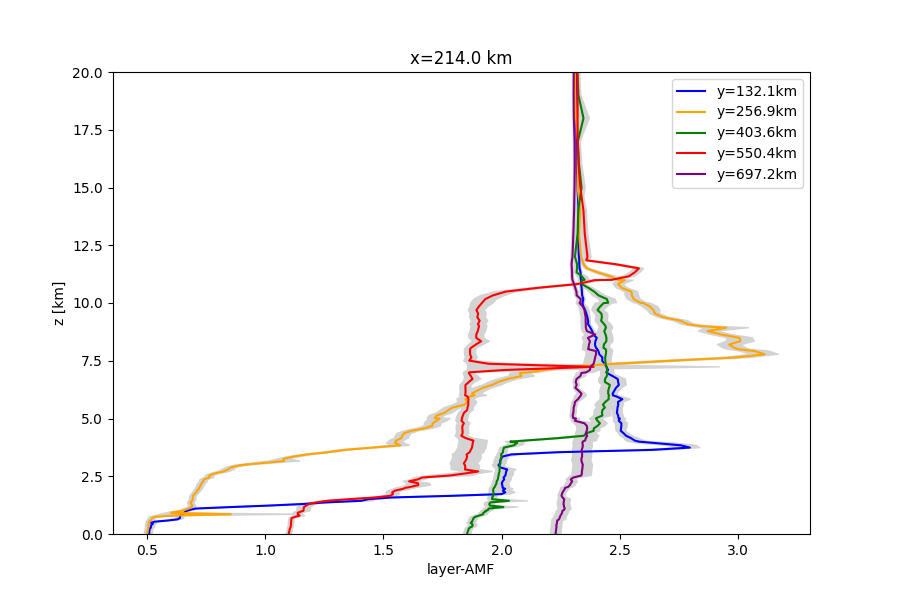

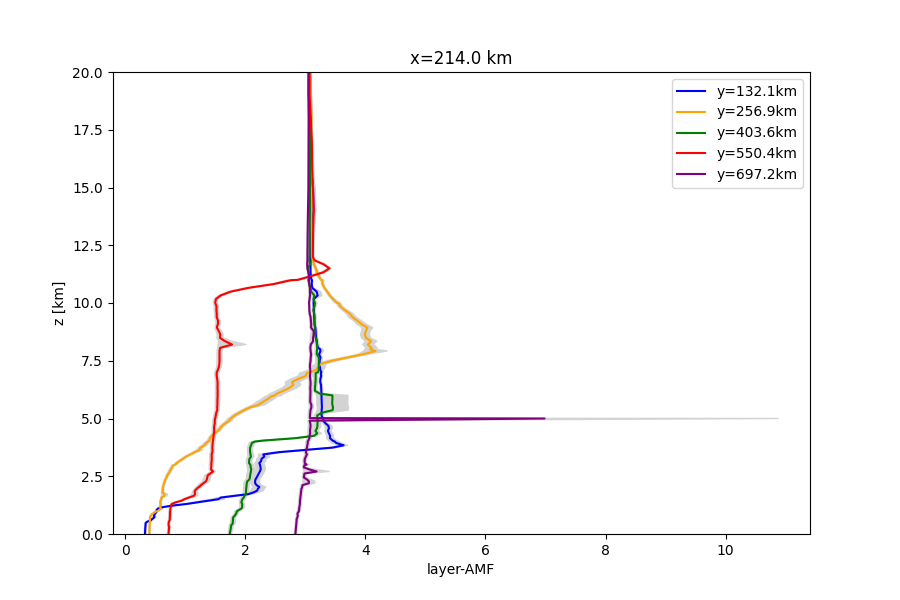

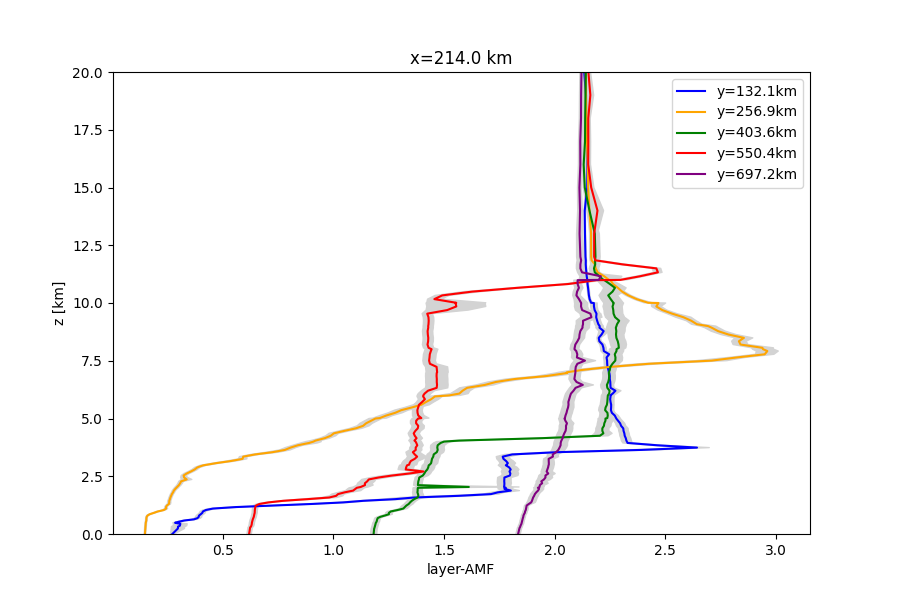

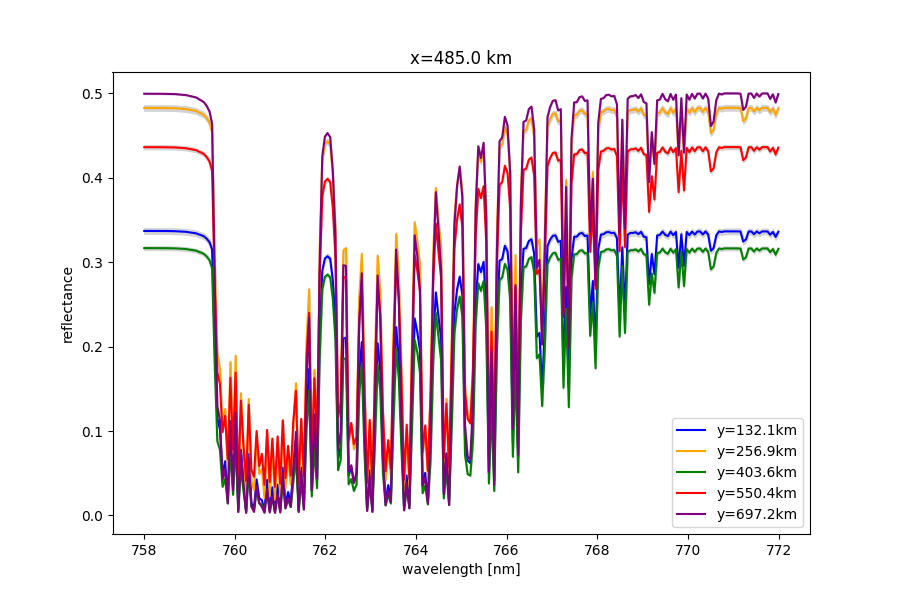

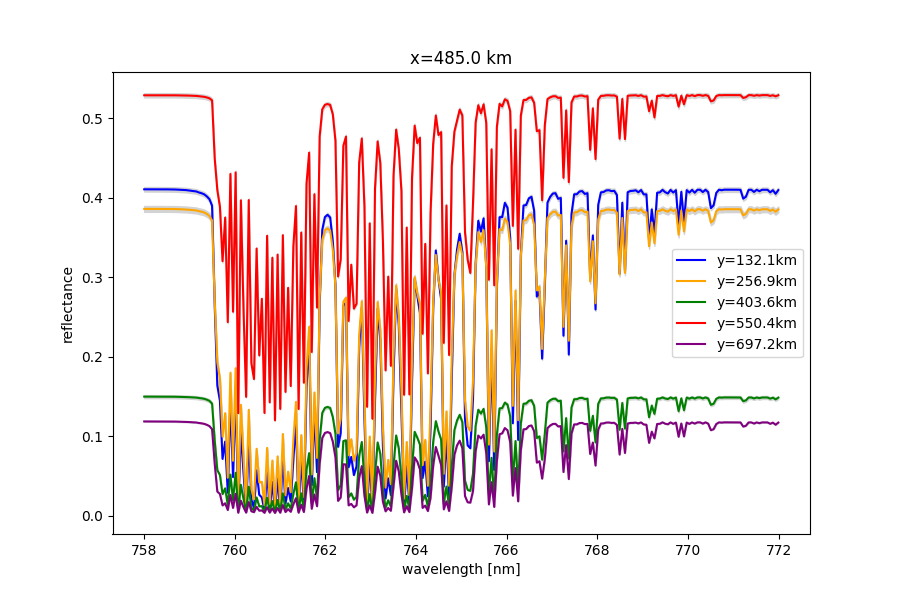

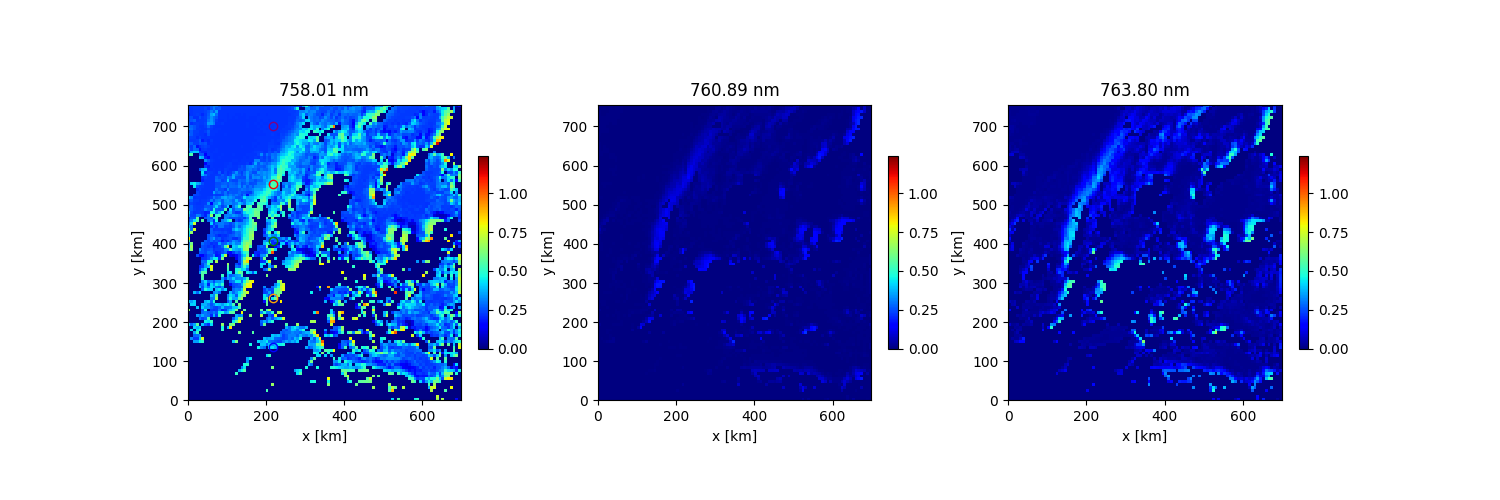

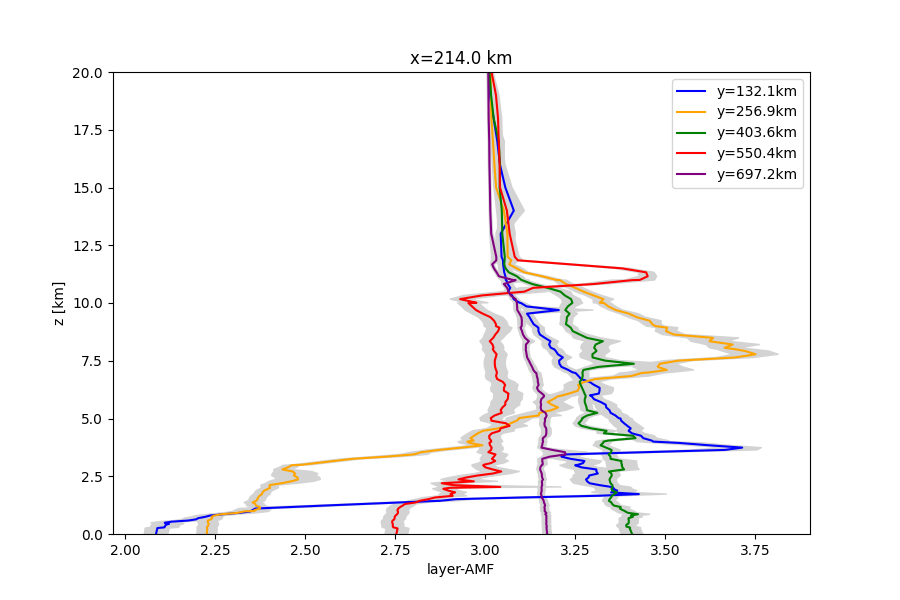

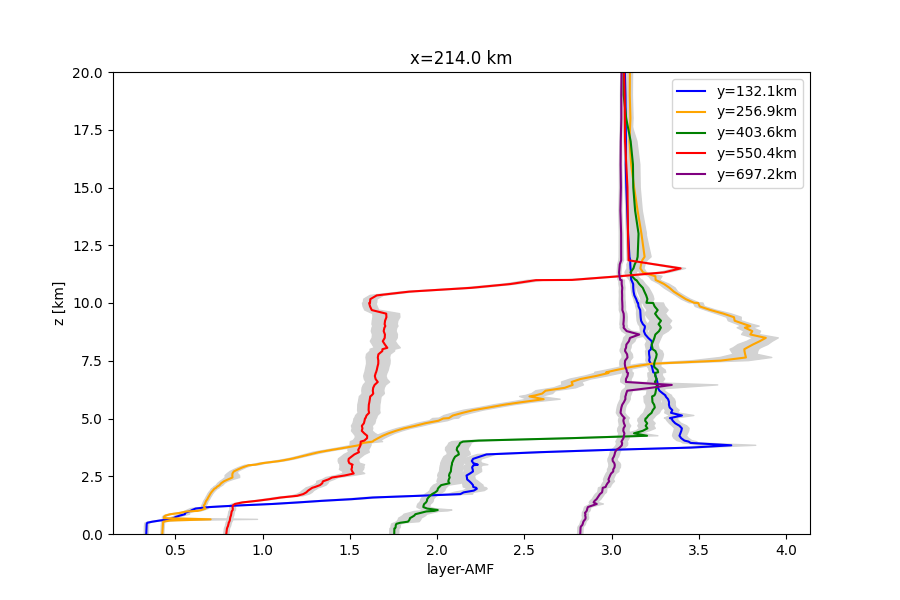

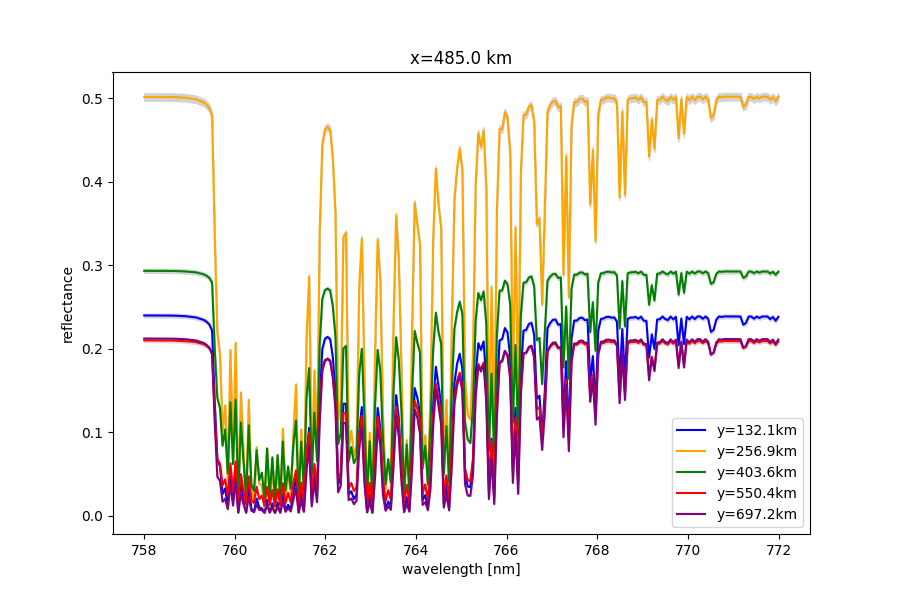

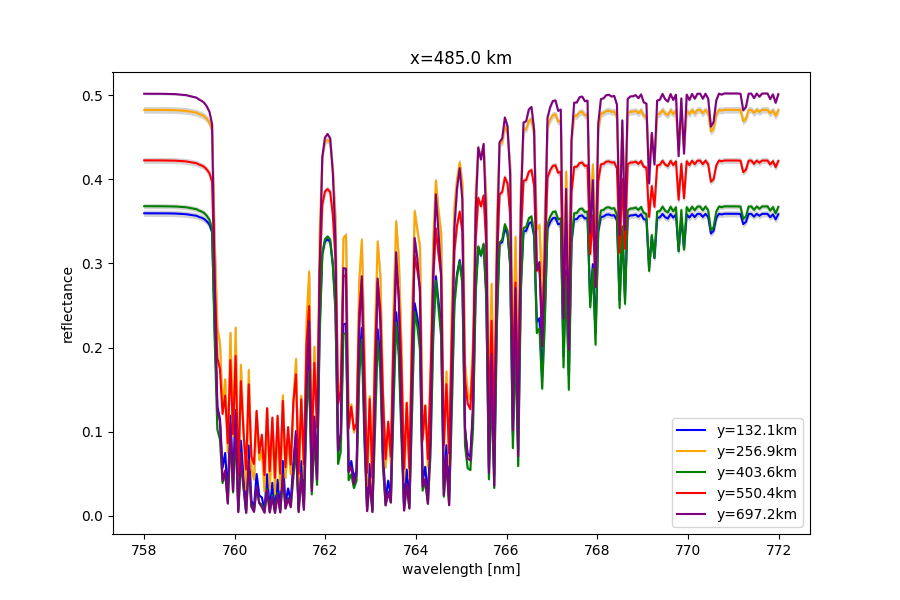

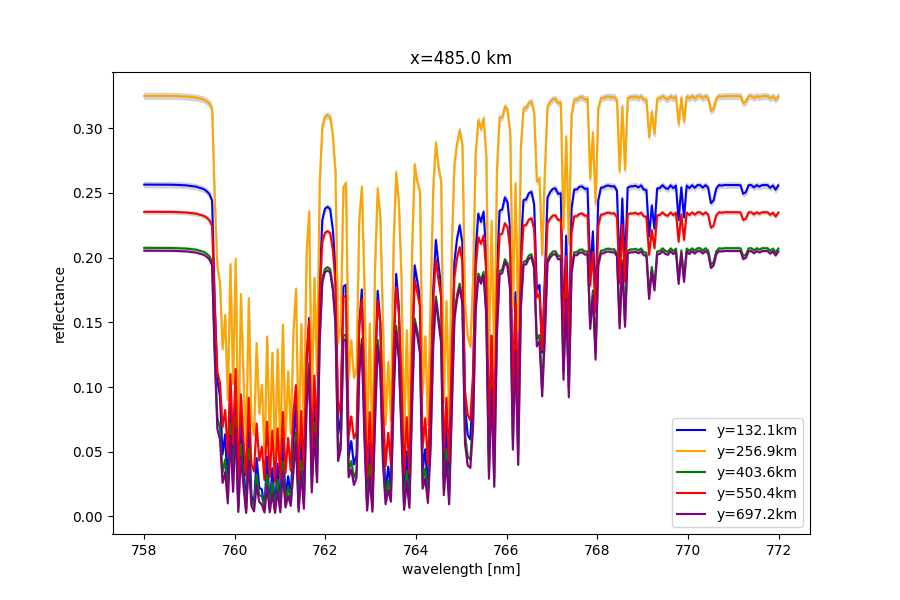

MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 2
Settings: albedo 0.05 sza 20 saa 13 vza 20 vaa 109.5

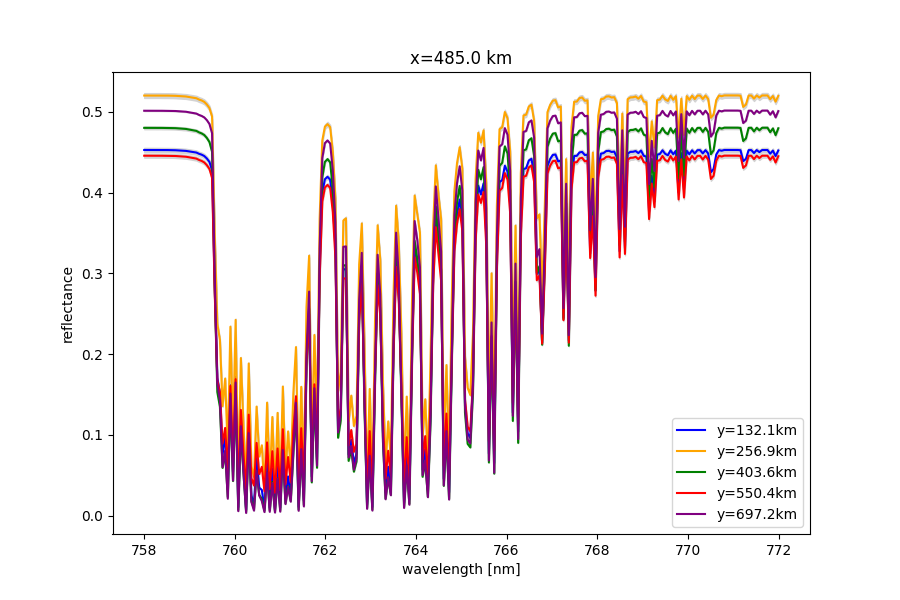

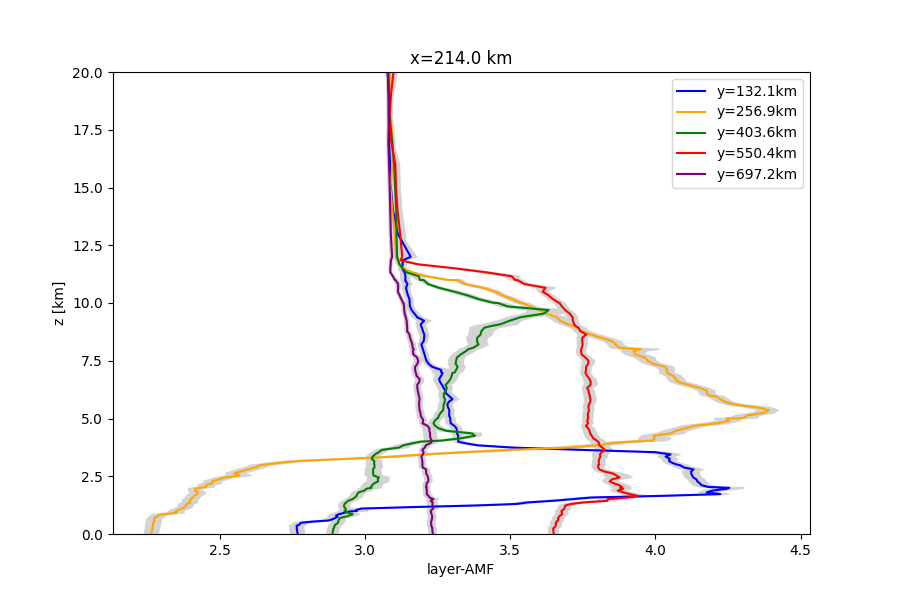

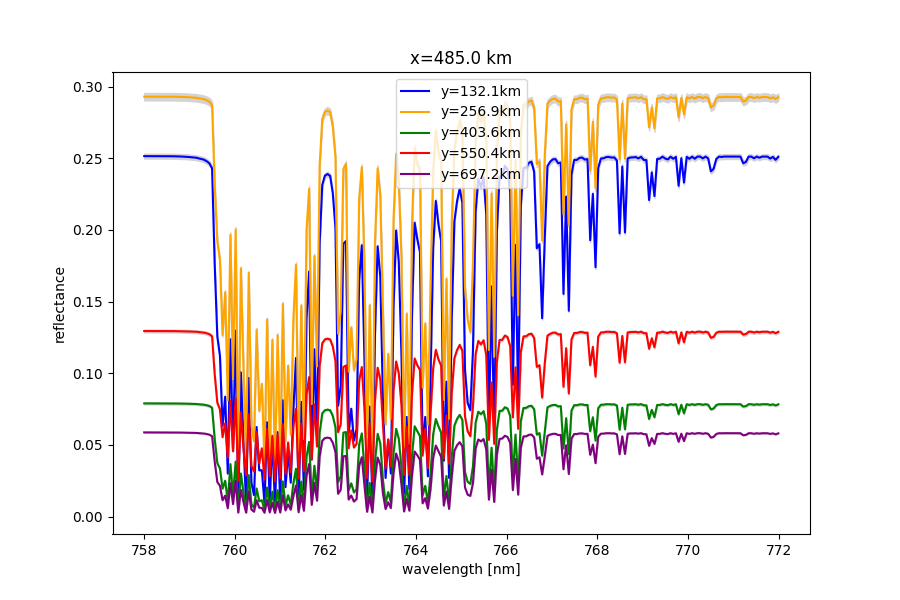

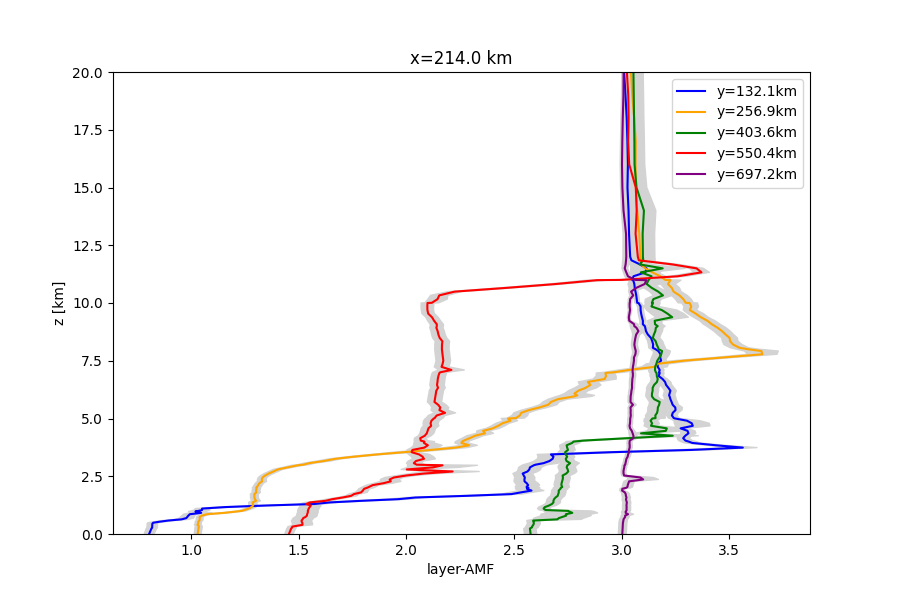

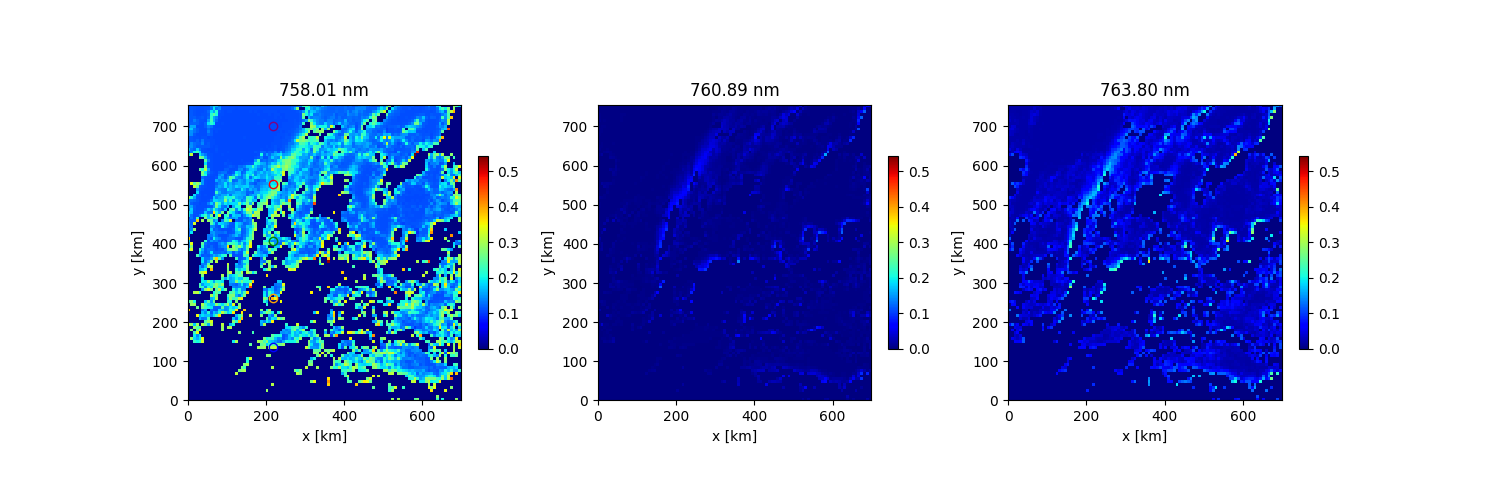

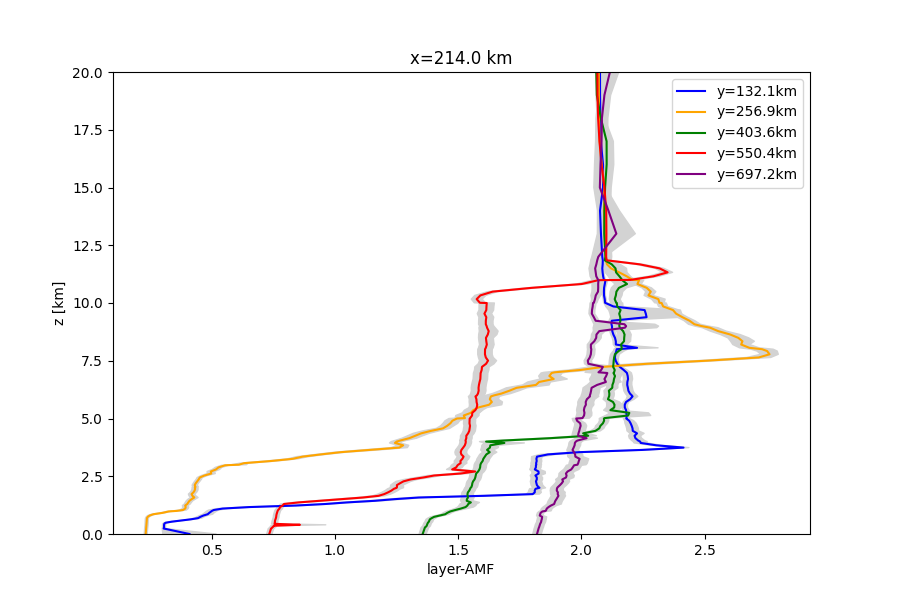

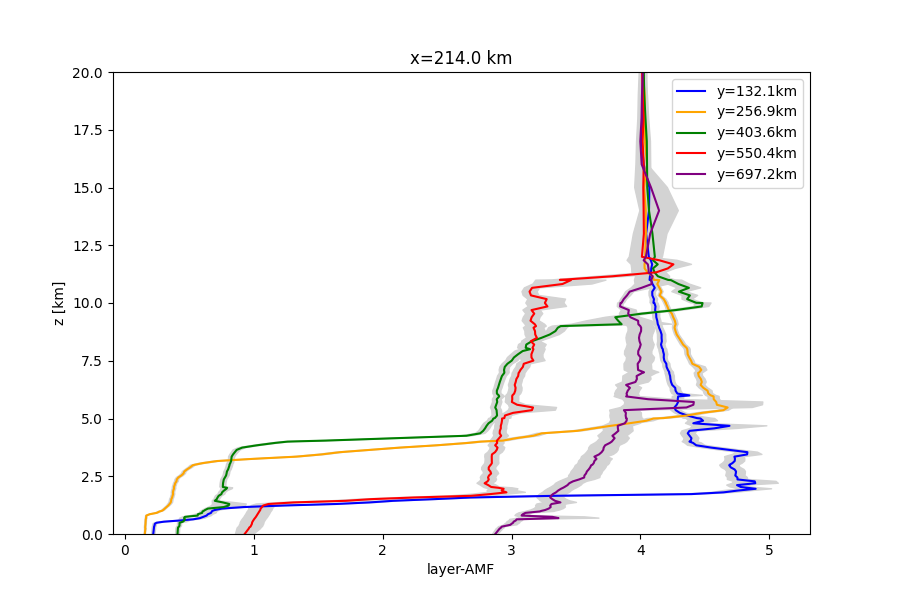

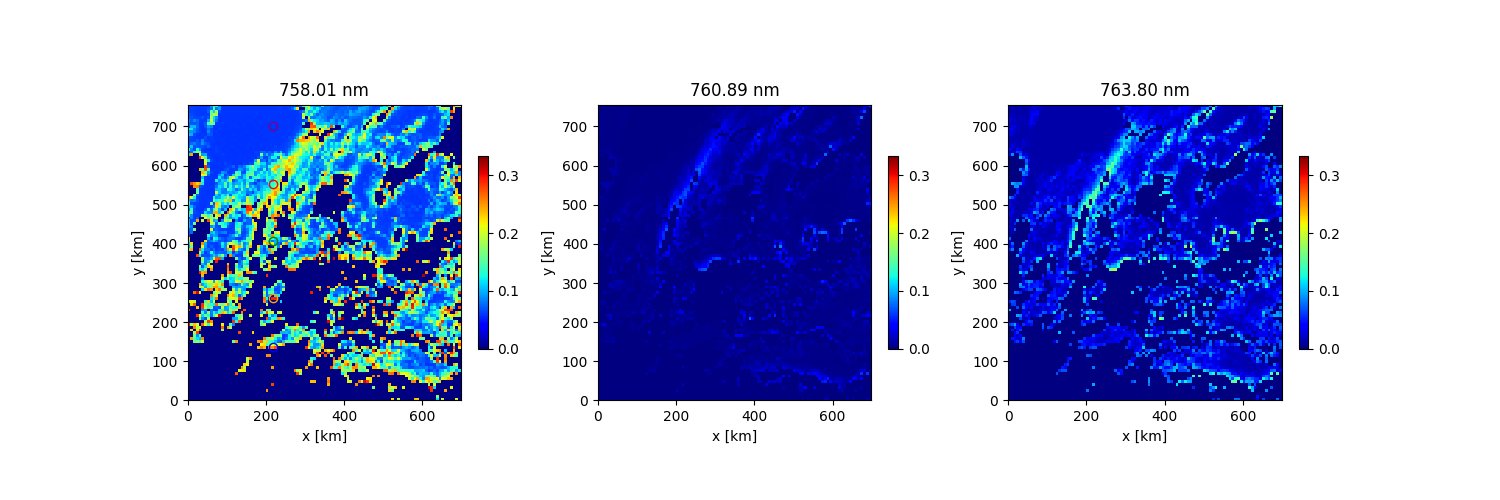

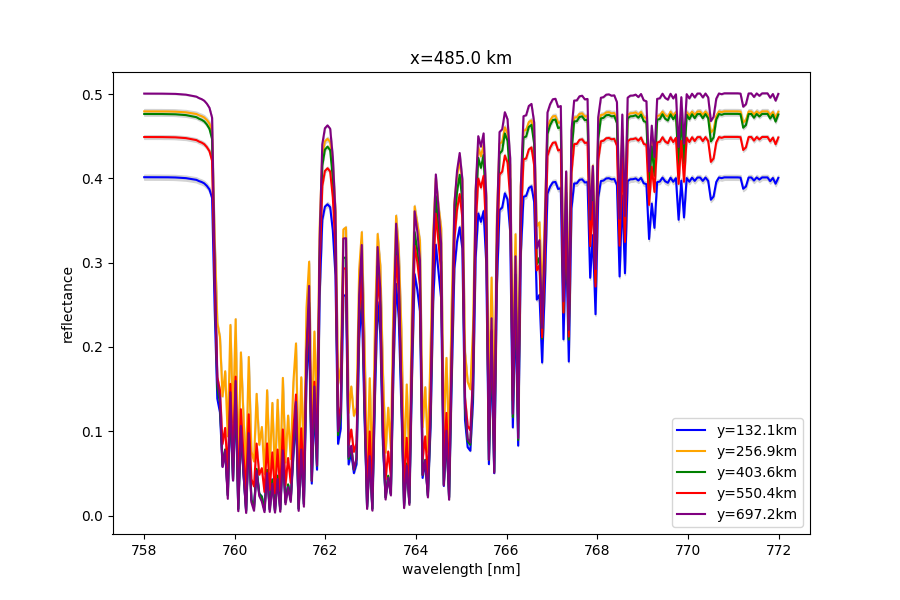

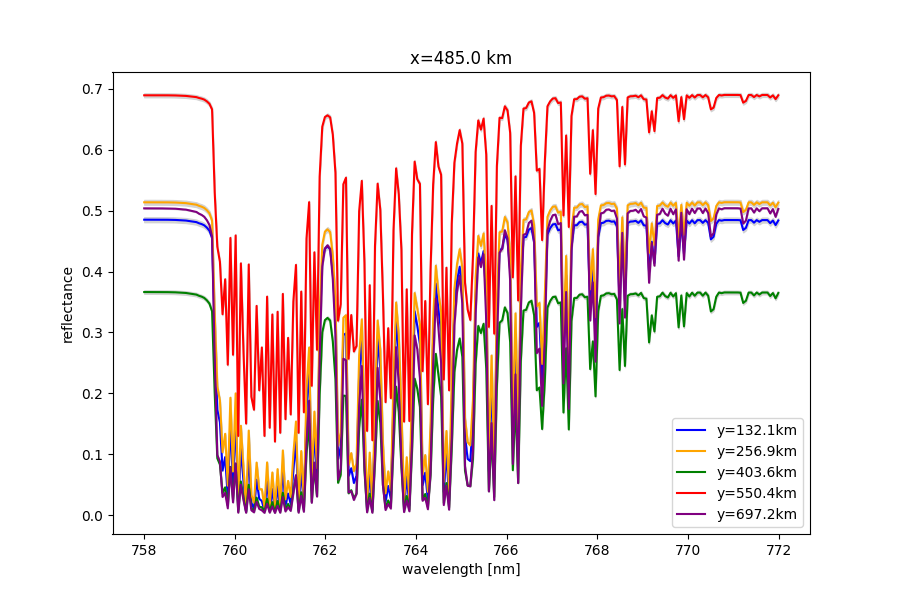

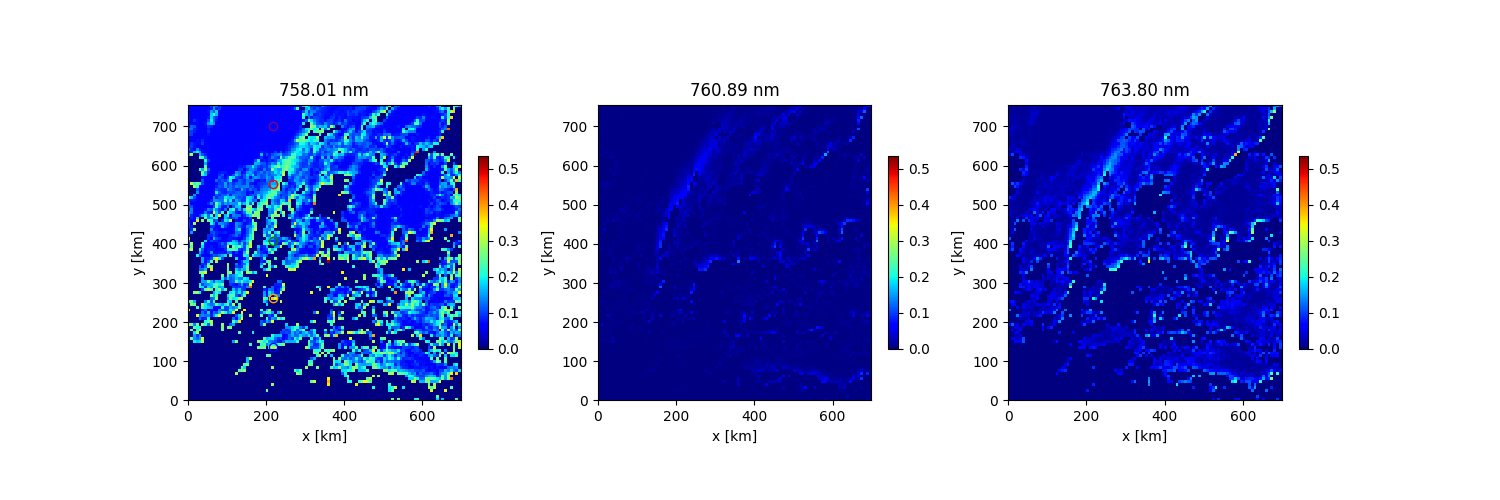

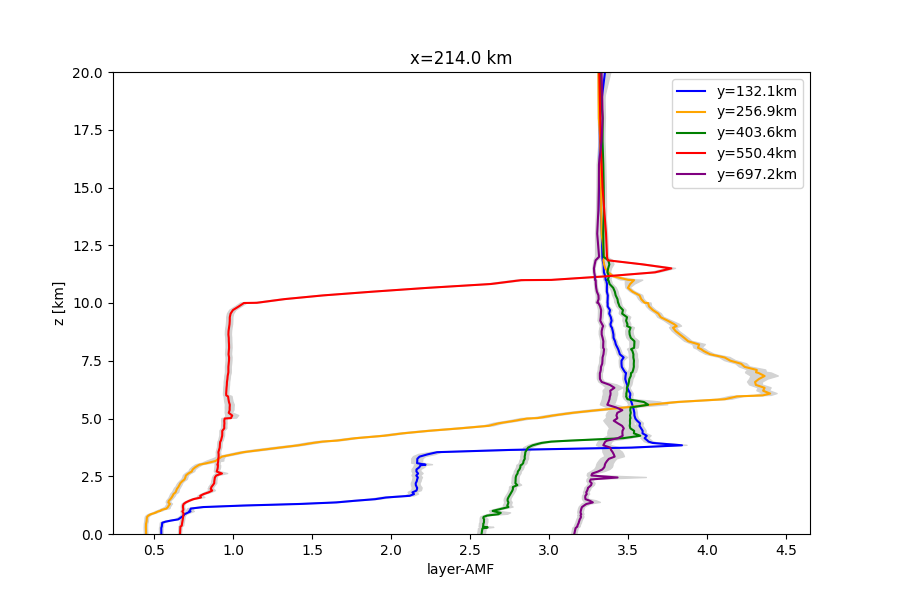

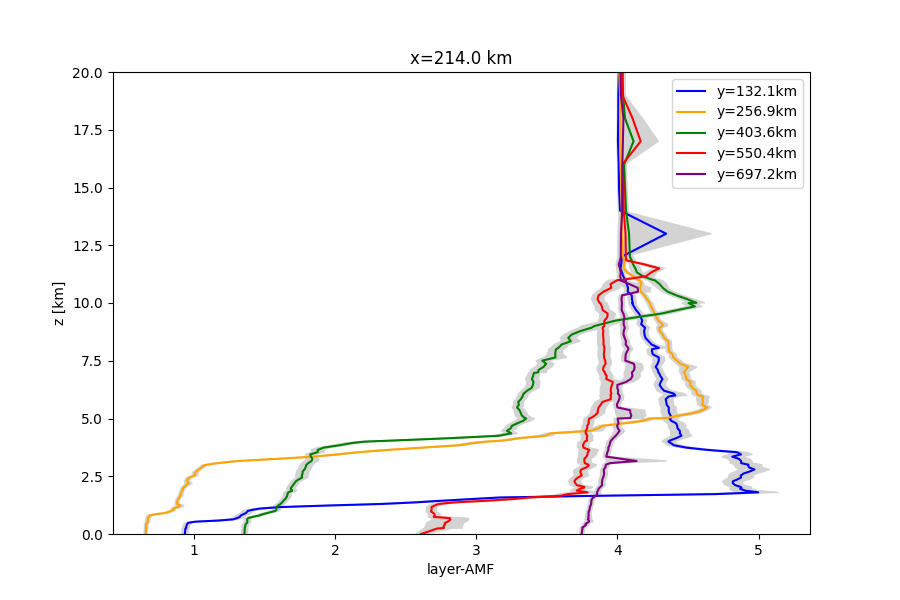

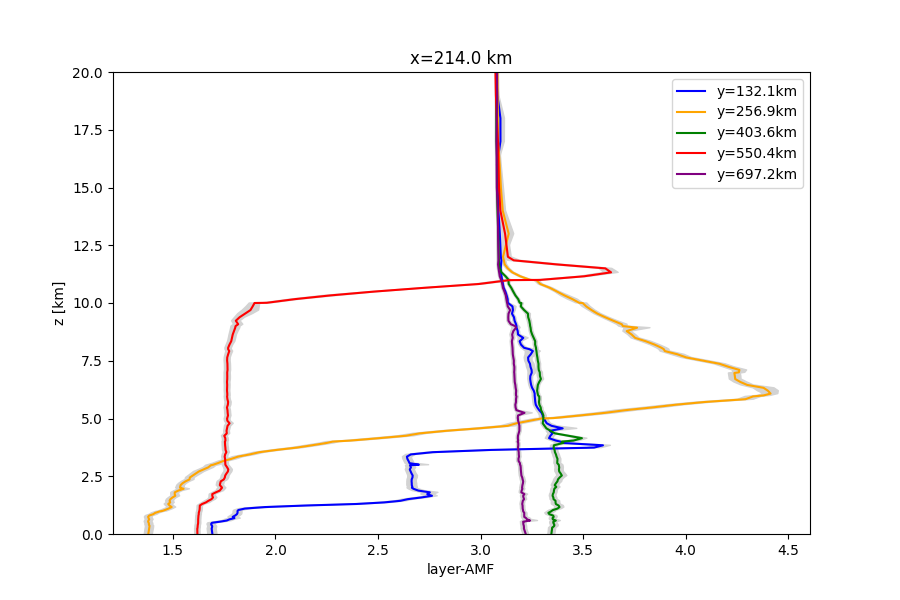

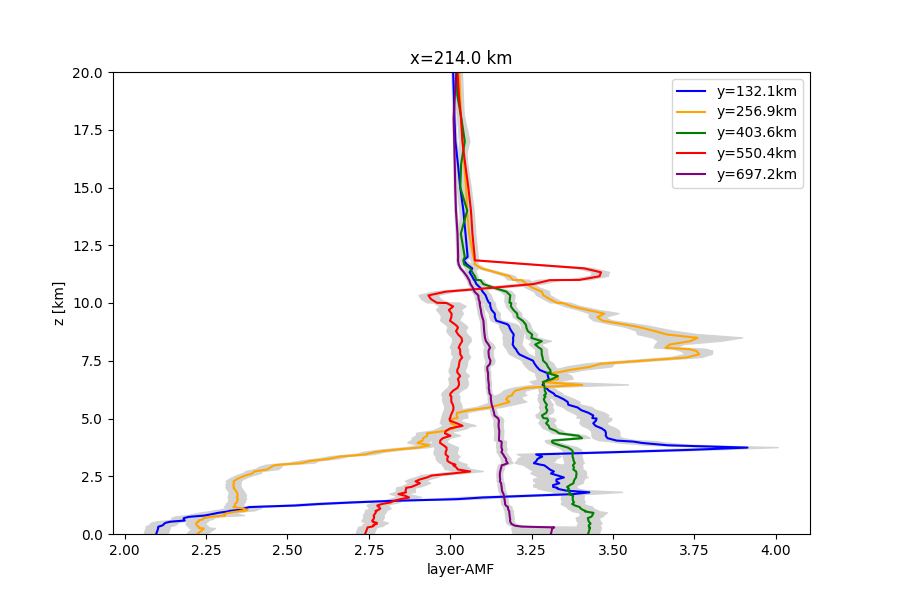

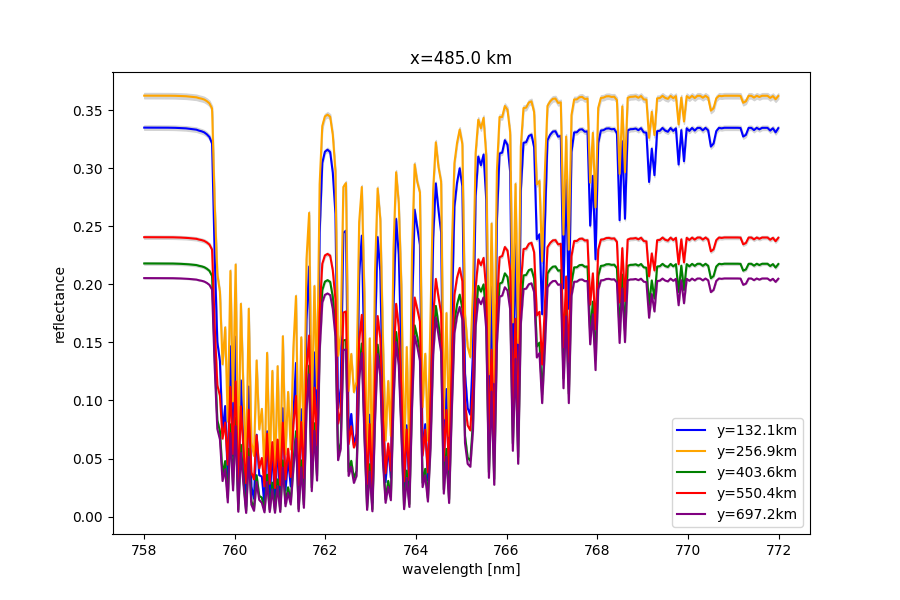

MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 3
Settings: albedo 0.05 sza 20 saa 13 vza 20 vaa 281.7

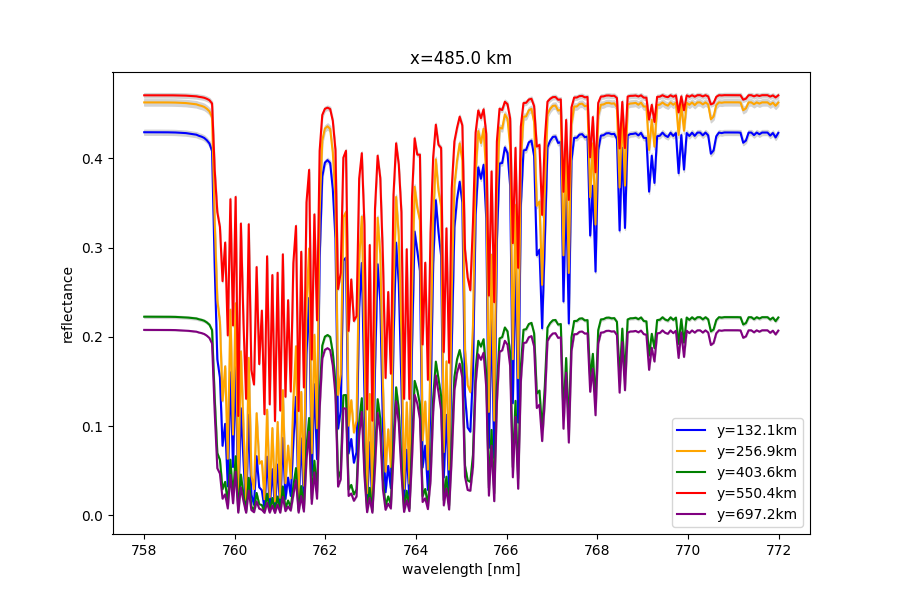

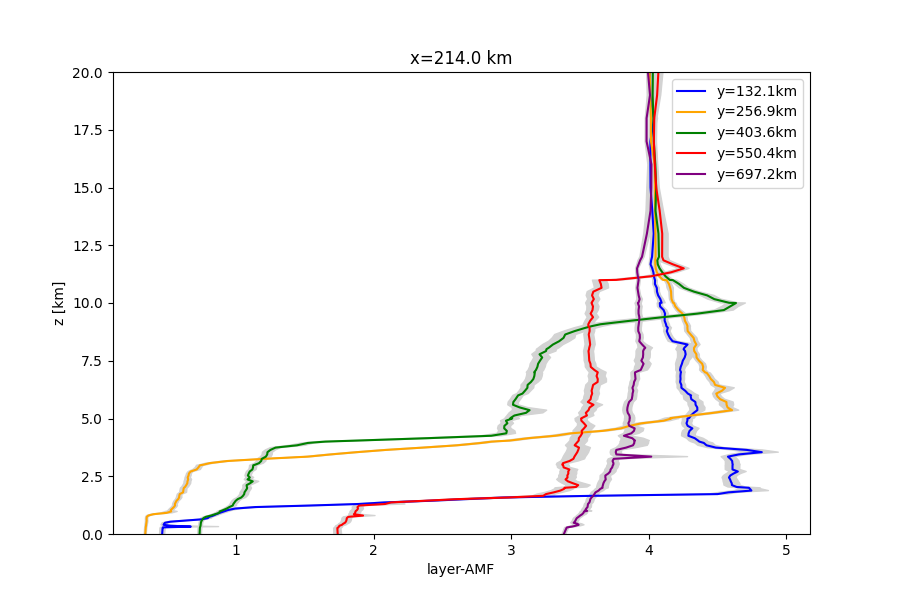

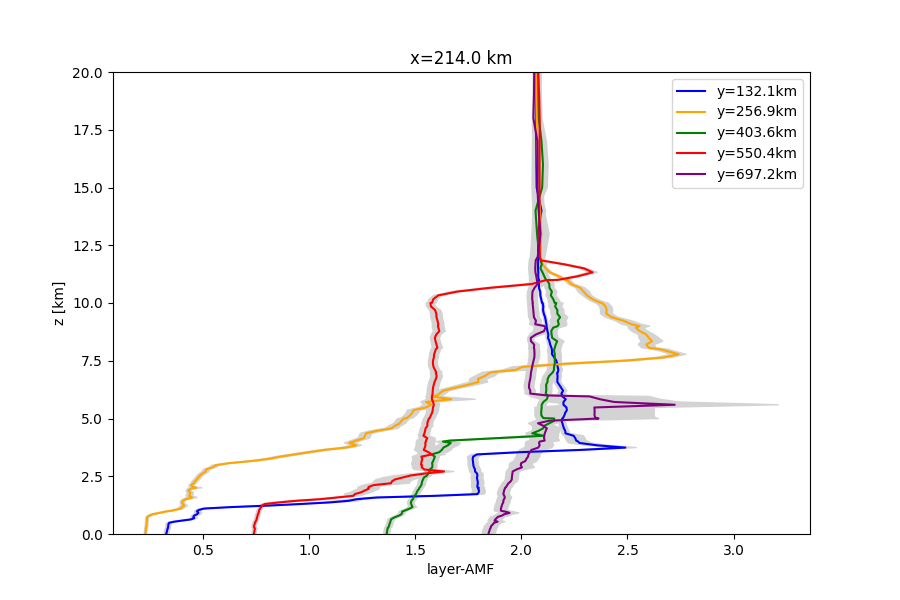

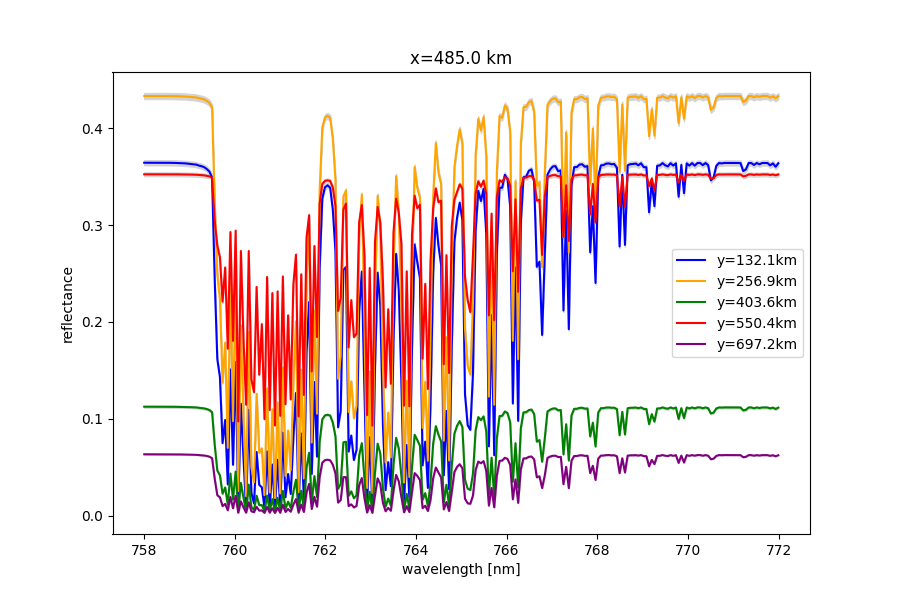

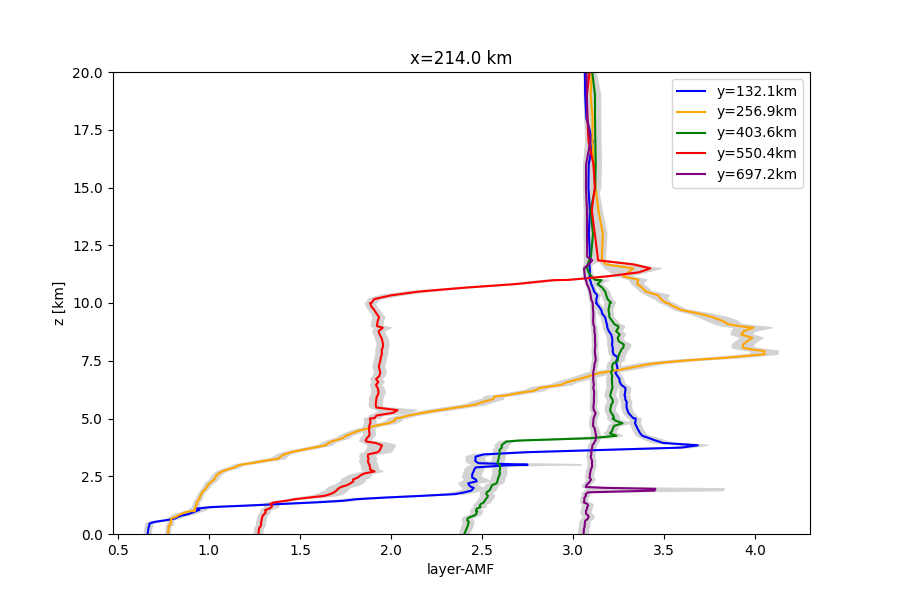

MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 4
Settings: albedo 0.05 sza 20 saa 13 vza 60 vaa 109.5

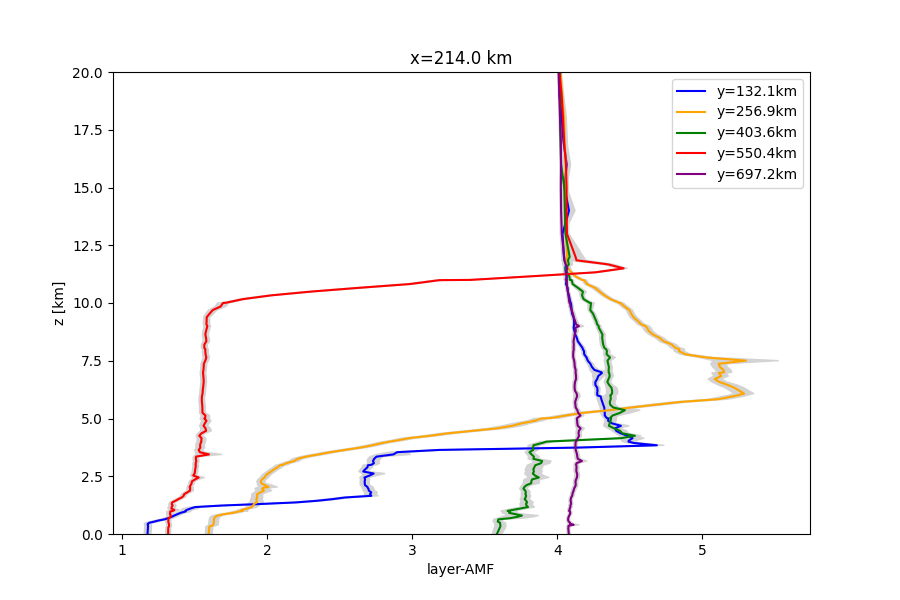

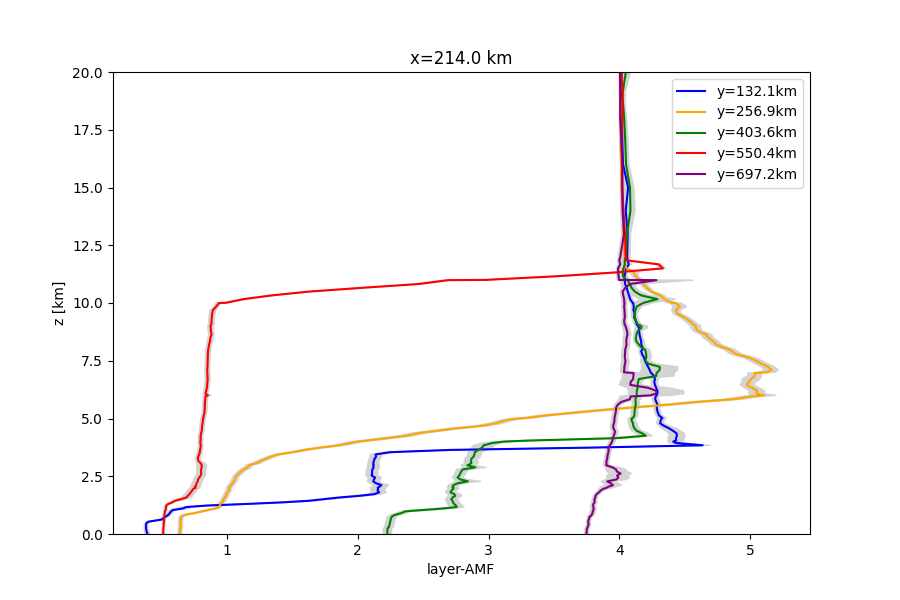

MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 5
Settings: albedo 0.05 sza 20 saa 13 vza 60 vaa 281.7

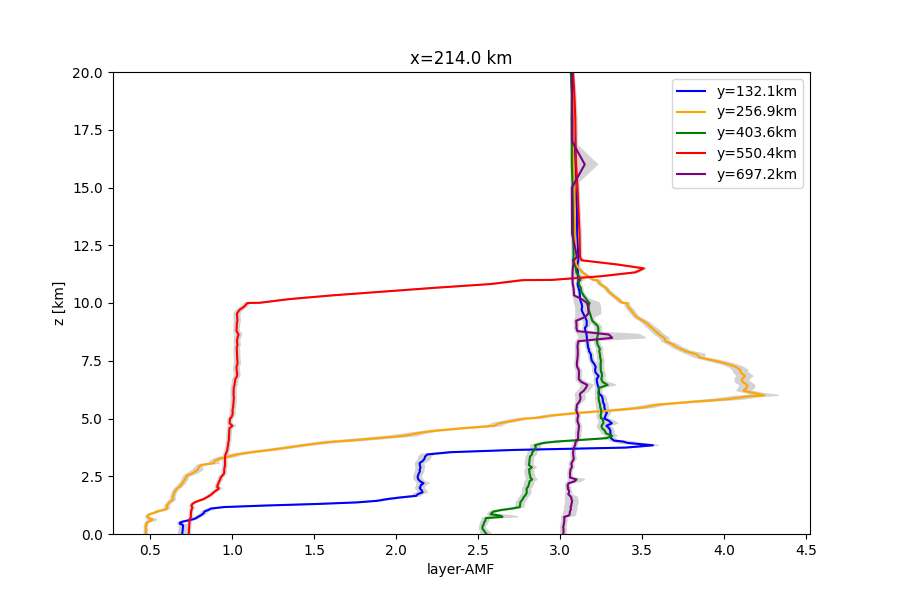

MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 6
Settings: albedo 0.05 sza 20 saa 353 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 7
Settings: albedo 0.05 sza 20 saa 353 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 8
Settings: albedo 0.05 sza 20 saa 353 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 9
Settings: albedo 0.05 sza 20 saa 353 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 10
Settings: albedo 0.05 sza 20 saa 353 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 11
Settings: albedo 0.05 sza 20 saa 353 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 12
Settings: albedo 0.05 sza 40 saa 13 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 13
Settings: albedo 0.05 sza 40 saa 13 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 14
Settings: albedo 0.05 sza 40 saa 13 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 15
Settings: albedo 0.05 sza 40 saa 13 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 16
Settings: albedo 0.05 sza 40 saa 13 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 17
Settings: albedo 0.05 sza 40 saa 13 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 18
Settings: albedo 0.05 sza 40 saa 353 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 19
Settings: albedo 0.05 sza 40 saa 353 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 20
Settings: albedo 0.05 sza 40 saa 353 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 21
Settings: albedo 0.05 sza 40 saa 353 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 22
Settings: albedo 0.05 sza 40 saa 353 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 23
Settings: albedo 0.05 sza 40 saa 353 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 24
Settings: albedo 0.05 sza 60 saa 13 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 25
Settings: albedo 0.05 sza 60 saa 13 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 26
Settings: albedo 0.05 sza 60 saa 13 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 27
Settings: albedo 0.05 sza 60 saa 13 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 28
Settings: albedo 0.05 sza 60 saa 13 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 29
Settings: albedo 0.05 sza 60 saa 13 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 30
Settings: albedo 0.05 sza 60 saa 353 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 31
Settings: albedo 0.05 sza 60 saa 353 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 32
Settings: albedo 0.05 sza 60 saa 353 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 33
Settings: albedo 0.05 sza 60 saa 353 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 34
Settings: albedo 0.05 sza 60 saa 353 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 35
Settings: albedo 0.05 sza 60 saa 353 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 36
Settings: albedo 0.10 sza 20 saa 13 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 37
Settings: albedo 0.10 sza 20 saa 13 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 38
Settings: albedo 0.10 sza 20 saa 13 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 39
Settings: albedo 0.10 sza 20 saa 13 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 40
Settings: albedo 0.10 sza 20 saa 13 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 41
Settings: albedo 0.10 sza 20 saa 13 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 42
Settings: albedo 0.10 sza 20 saa 353 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 43
Settings: albedo 0.10 sza 20 saa 353 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 44
Settings: albedo 0.10 sza 20 saa 353 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 45
Settings: albedo 0.10 sza 20 saa 353 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 46
Settings: albedo 0.10 sza 20 saa 353 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 47
Settings: albedo 0.10 sza 20 saa 353 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 48
Settings: albedo 0.10 sza 40 saa 13 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 49
Settings: albedo 0.10 sza 40 saa 13 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 50
Settings: albedo 0.10 sza 40 saa 13 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 51
Settings: albedo 0.10 sza 40 saa 13 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 52
Settings: albedo 0.10 sza 40 saa 13 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 53
Settings: albedo 0.10 sza 40 saa 13 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 54
Settings: albedo 0.10 sza 40 saa 353 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 55
Settings: albedo 0.10 sza 40 saa 353 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 56
Settings: albedo 0.10 sza 40 saa 353 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 57
Settings: albedo 0.10 sza 40 saa 353 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 58
Settings: albedo 0.10 sza 40 saa 353 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 59
Settings: albedo 0.10 sza 40 saa 353 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 60
Settings: albedo 0.10 sza 60 saa 13 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 61
Settings: albedo 0.10 sza 60 saa 13 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 62
Settings: albedo 0.10 sza 60 saa 13 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 63
Settings: albedo 0.10 sza 60 saa 13 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 64
Settings: albedo 0.10 sza 60 saa 13 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 65
Settings: albedo 0.10 sza 60 saa 13 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 66
Settings: albedo 0.10 sza 60 saa 353 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 67
Settings: albedo 0.10 sza 60 saa 353 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 68
Settings: albedo 0.10 sza 60 saa 353 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 69
Settings: albedo 0.10 sza 60 saa 353 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 70
Settings: albedo 0.10 sza 60 saa 353 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 71
Settings: albedo 0.10 sza 60 saa 353 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 72
Settings: albedo 0.50 sza 20 saa 13 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 73
Settings: albedo 0.50 sza 20 saa 13 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 74
Settings: albedo 0.50 sza 20 saa 13 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 75
Settings: albedo 0.50 sza 20 saa 13 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 76
Settings: albedo 0.50 sza 20 saa 13 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 77
Settings: albedo 0.50 sza 20 saa 13 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 78
Settings: albedo 0.50 sza 20 saa 353 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 79
Settings: albedo 0.50 sza 20 saa 353 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 80
Settings: albedo 0.50 sza 20 saa 353 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 81
Settings: albedo 0.50 sza 20 saa 353 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 82
Settings: albedo 0.50 sza 20 saa 353 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 83
Settings: albedo 0.50 sza 20 saa 353 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 84
Settings: albedo 0.50 sza 40 saa 13 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 85
Settings: albedo 0.50 sza 40 saa 13 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 86
Settings: albedo 0.50 sza 40 saa 13 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 87
Settings: albedo 0.50 sza 40 saa 13 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 88
Settings: albedo 0.50 sza 40 saa 13 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 89
Settings: albedo 0.50 sza 40 saa 13 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 90
Settings: albedo 0.50 sza 40 saa 353 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 91
Settings: albedo 0.50 sza 40 saa 353 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 92
Settings: albedo 0.50 sza 40 saa 353 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 93
Settings: albedo 0.50 sza 40 saa 353 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 94
Settings: albedo 0.50 sza 40 saa 353 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 95
Settings: albedo 0.50 sza 40 saa 353 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 96
Settings: albedo 0.50 sza 60 saa 13 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 97
Settings: albedo 0.50 sza 60 saa 13 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 98
Settings: albedo 0.50 sza 60 saa 13 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 99
Settings: albedo 0.50 sza 60 saa 13 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 100
Settings: albedo 0.50 sza 60 saa 13 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 101
Settings: albedo 0.50 sza 60 saa 13 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 102
Settings: albedo 0.50 sza 60 saa 353 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 103
Settings: albedo 0.50 sza 60 saa 353 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 104
Settings: albedo 0.50 sza 60 saa 353 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 105
Settings: albedo 0.50 sza 60 saa 353 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 106
Settings: albedo 0.50 sza 60 saa 353 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 107
Settings: albedo 0.50 sza 60 saa 353 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 108
Settings: albedo 0.20 sza 20 saa 13 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 109
Settings: albedo 0.20 sza 20 saa 13 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 110
Settings: albedo 0.20 sza 20 saa 13 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 111
Settings: albedo 0.20 sza 20 saa 13 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 112
Settings: albedo 0.20 sza 20 saa 13 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 113
Settings: albedo 0.20 sza 20 saa 13 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 114
Settings: albedo 0.20 sza 20 saa 353 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 115
Settings: albedo 0.20 sza 20 saa 353 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 116
Settings: albedo 0.20 sza 20 saa 353 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 117
Settings: albedo 0.20 sza 20 saa 353 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 118
Settings: albedo 0.20 sza 20 saa 353 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 119
Settings: albedo 0.20 sza 20 saa 353 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 120
Settings: albedo 0.20 sza 40 saa 13 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 121
Settings: albedo 0.20 sza 40 saa 13 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 122
Settings: albedo 0.20 sza 40 saa 13 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 123
Settings: albedo 0.20 sza 40 saa 13 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 124
Settings: albedo 0.20 sza 40 saa 13 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 125
Settings: albedo 0.20 sza 40 saa 13 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 126
Settings: albedo 0.20 sza 40 saa 353 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 127
Settings: albedo 0.20 sza 40 saa 353 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 128
Settings: albedo 0.20 sza 40 saa 353 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 129
Settings: albedo 0.20 sza 40 saa 353 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 130
Settings: albedo 0.20 sza 40 saa 353 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 131
Settings: albedo 0.20 sza 40 saa 353 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 132
Settings: albedo 0.20 sza 60 saa 13 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 133
Settings: albedo 0.20 sza 60 saa 13 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 134
Settings: albedo 0.20 sza 60 saa 13 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 135
Settings: albedo 0.20 sza 60 saa 13 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 136
Settings: albedo 0.20 sza 60 saa 13 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 137
Settings: albedo 0.20 sza 60 saa 13 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 138
Settings: albedo 0.20 sza 60 saa 353 vza 0 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 139
Settings: albedo 0.20 sza 60 saa 353 vza 0 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 140
Settings: albedo 0.20 sza 60 saa 353 vza 20 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 141
Settings: albedo 0.20 sza 60 saa 353 vza 20 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 142
Settings: albedo 0.20 sza 60 saa 353 vza 60 vaa 109.5
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
Results for case 143
Settings: albedo 0.20 sza 60 saa 353 vza 60 vaa 281.7
MYSTIC results (band averaged reflectance and box-AMFs at 758 nm)
