Vertical vorticity at selected pressure levels

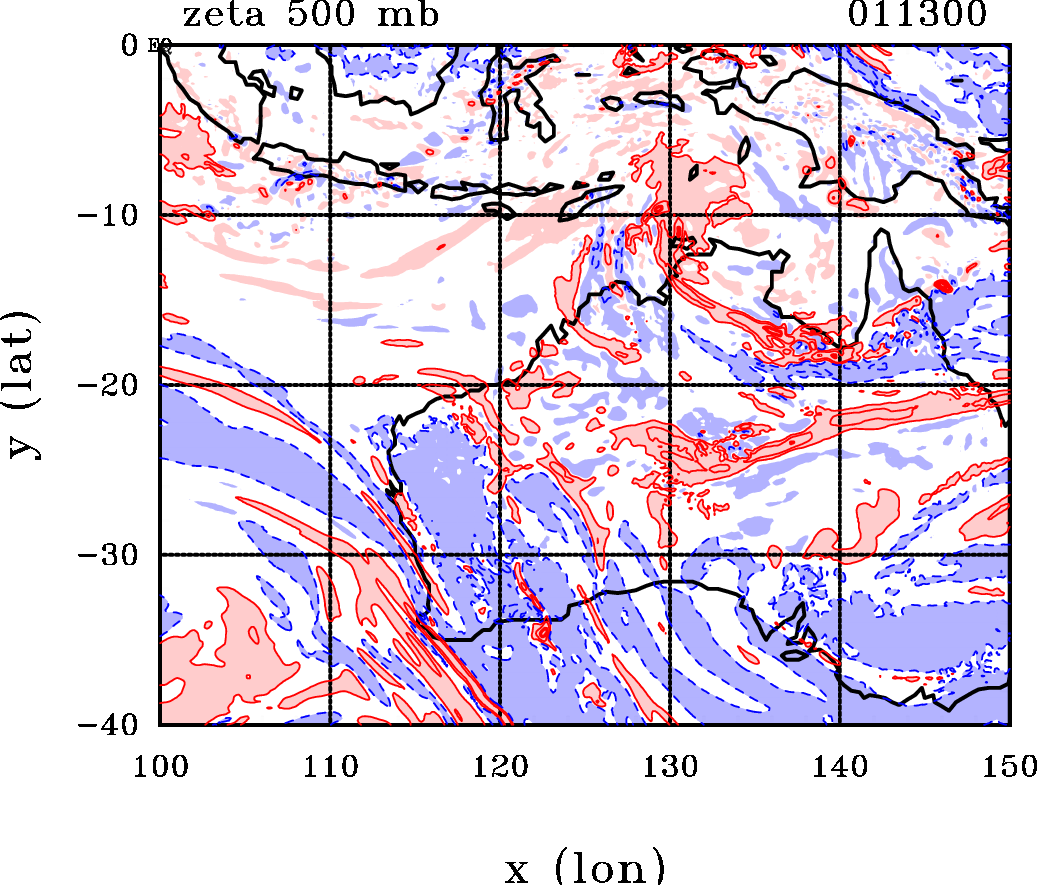

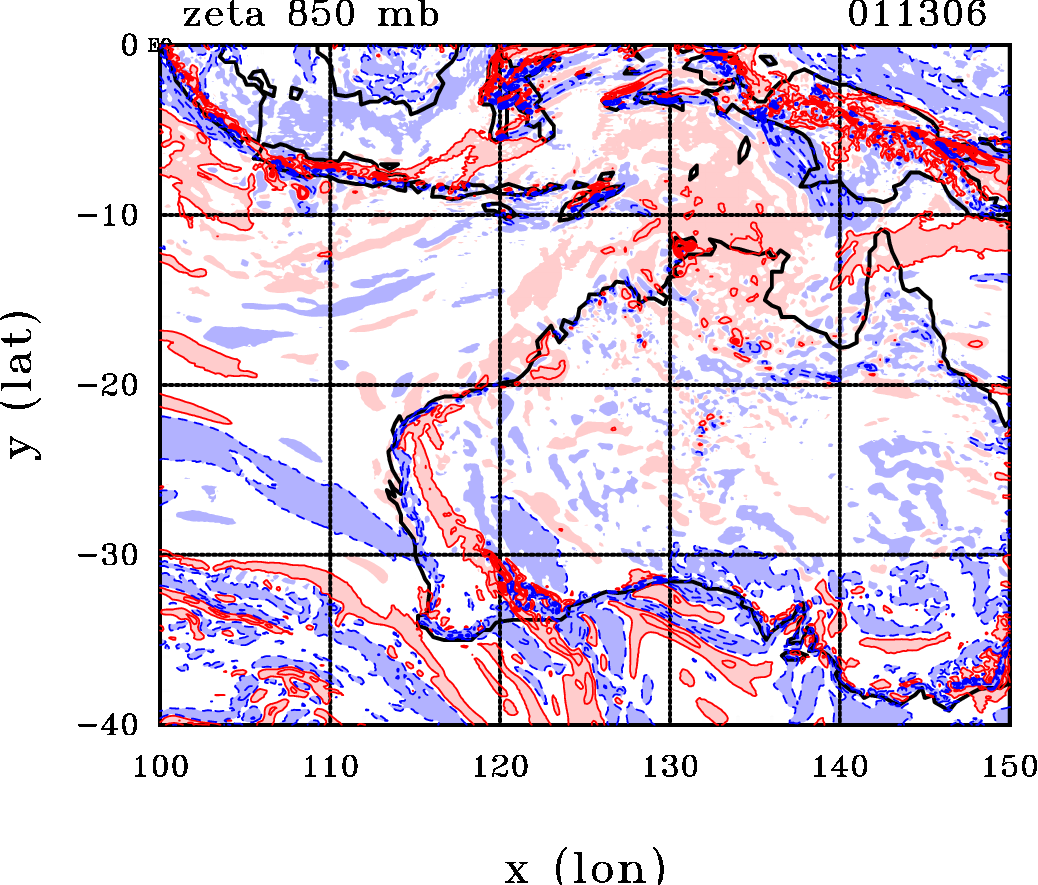

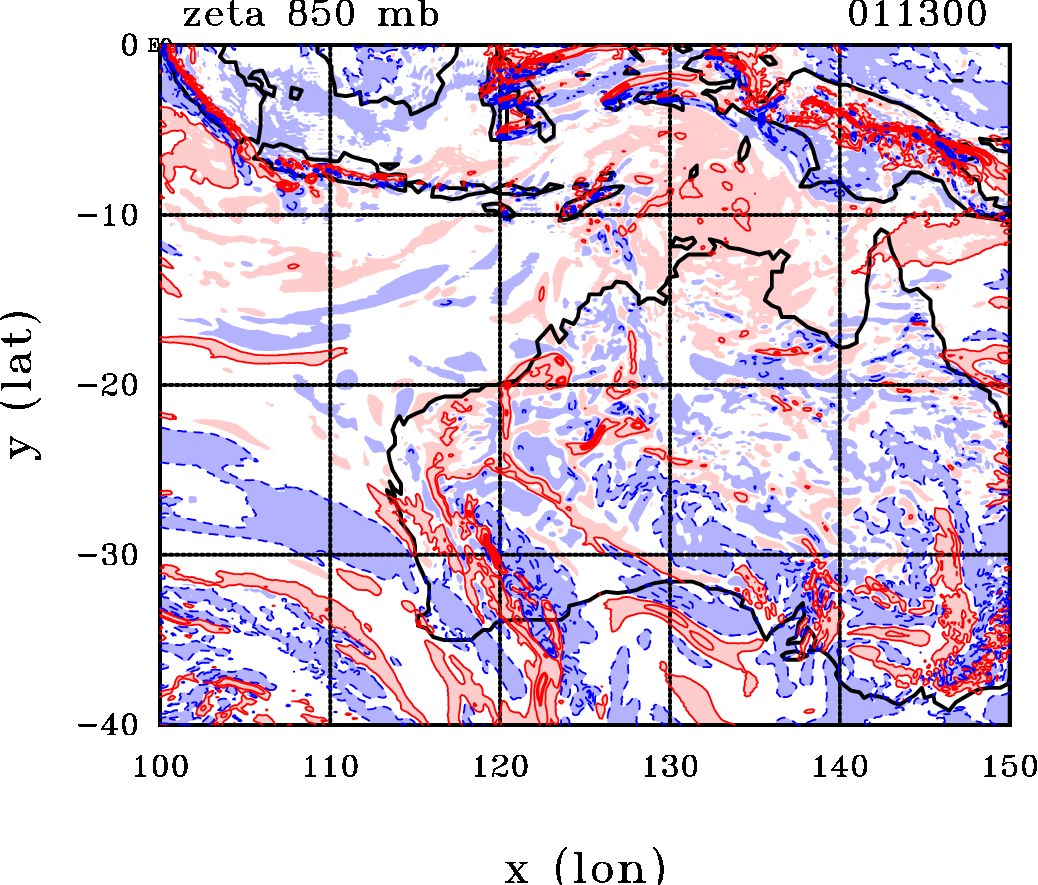

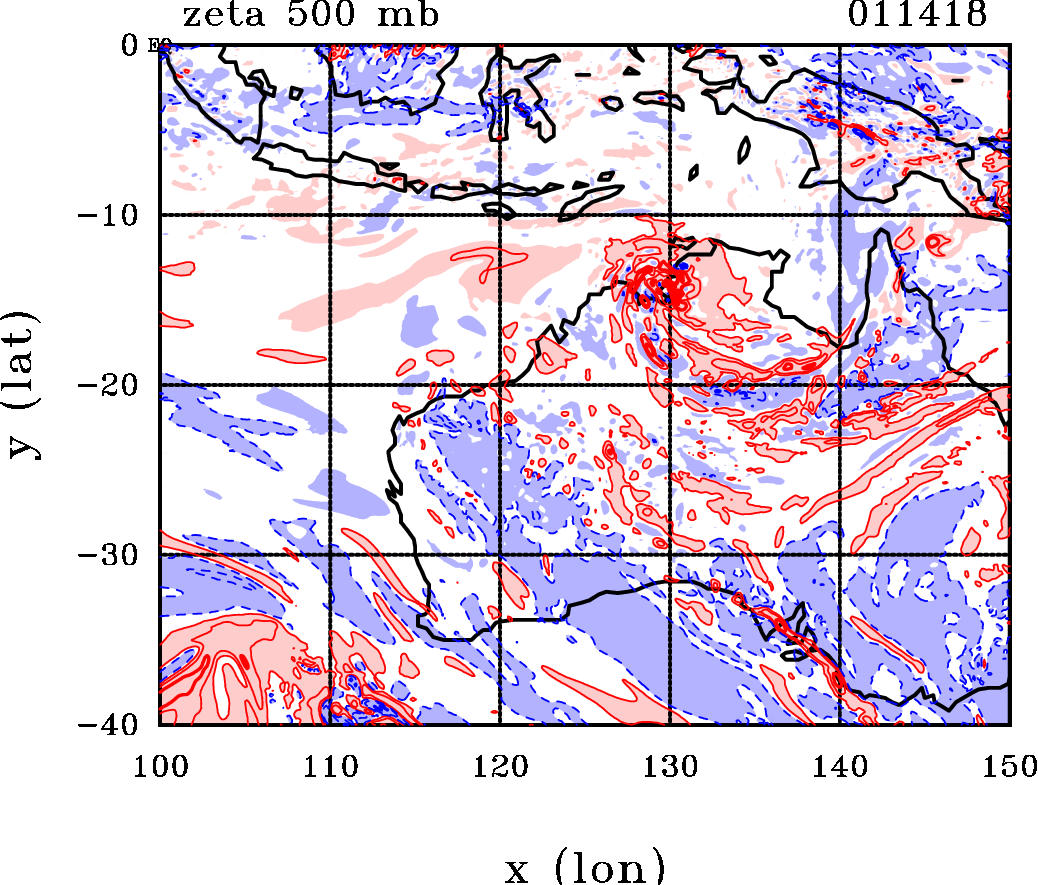

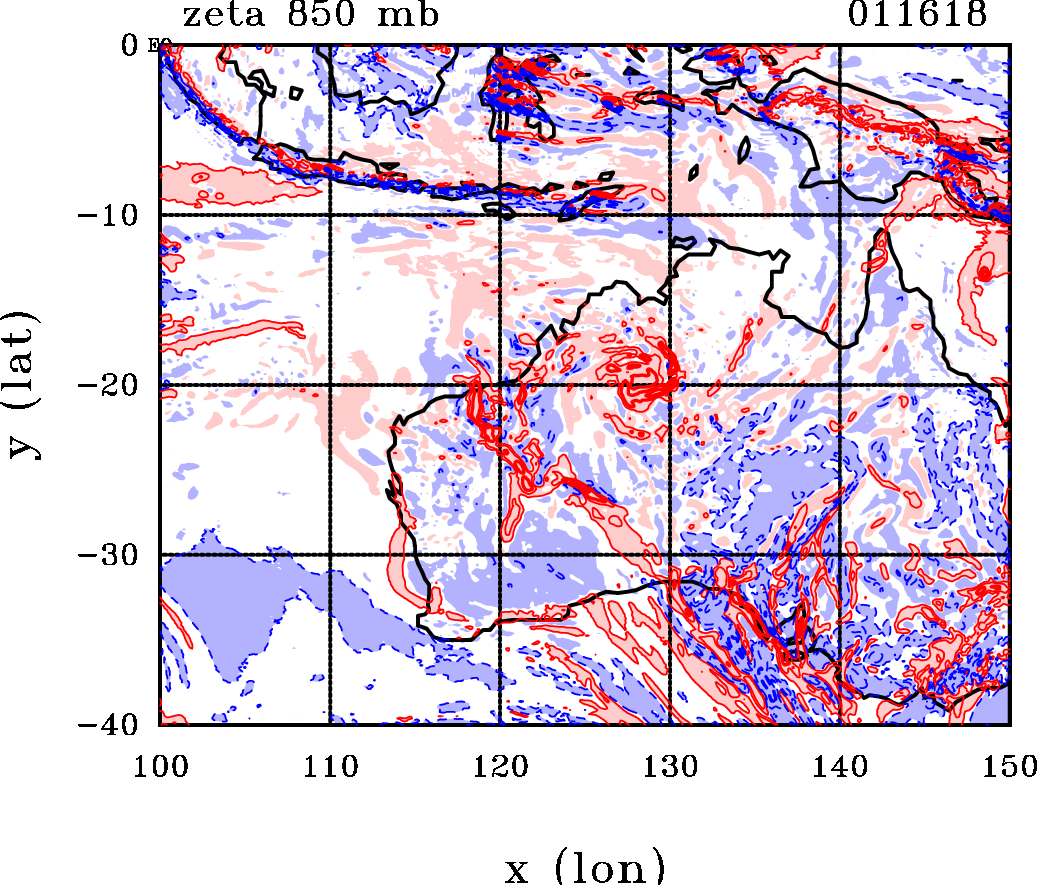

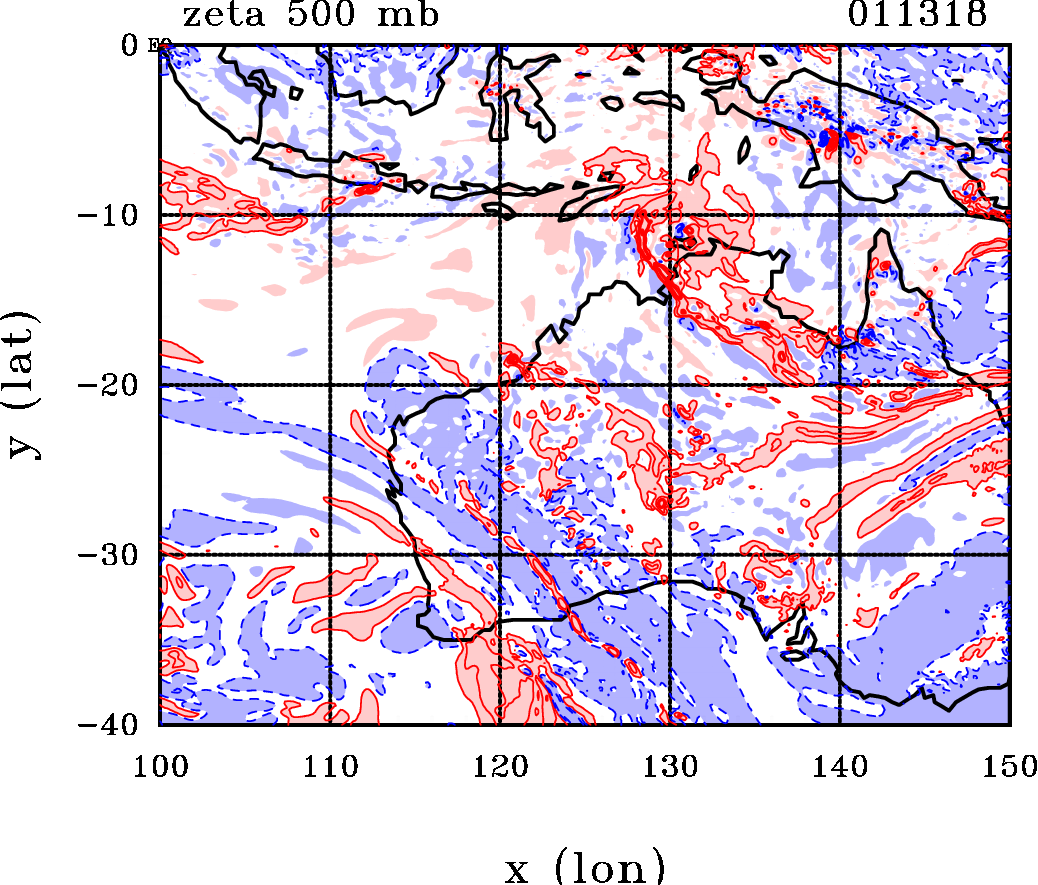

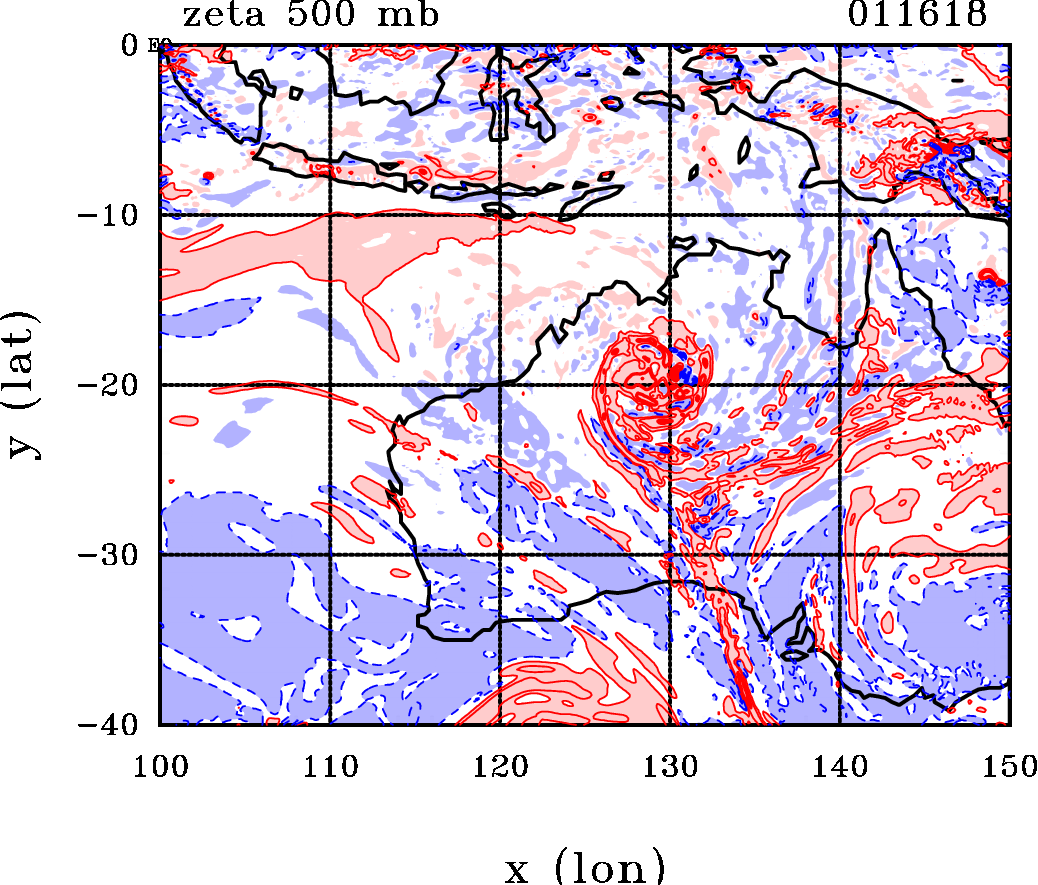

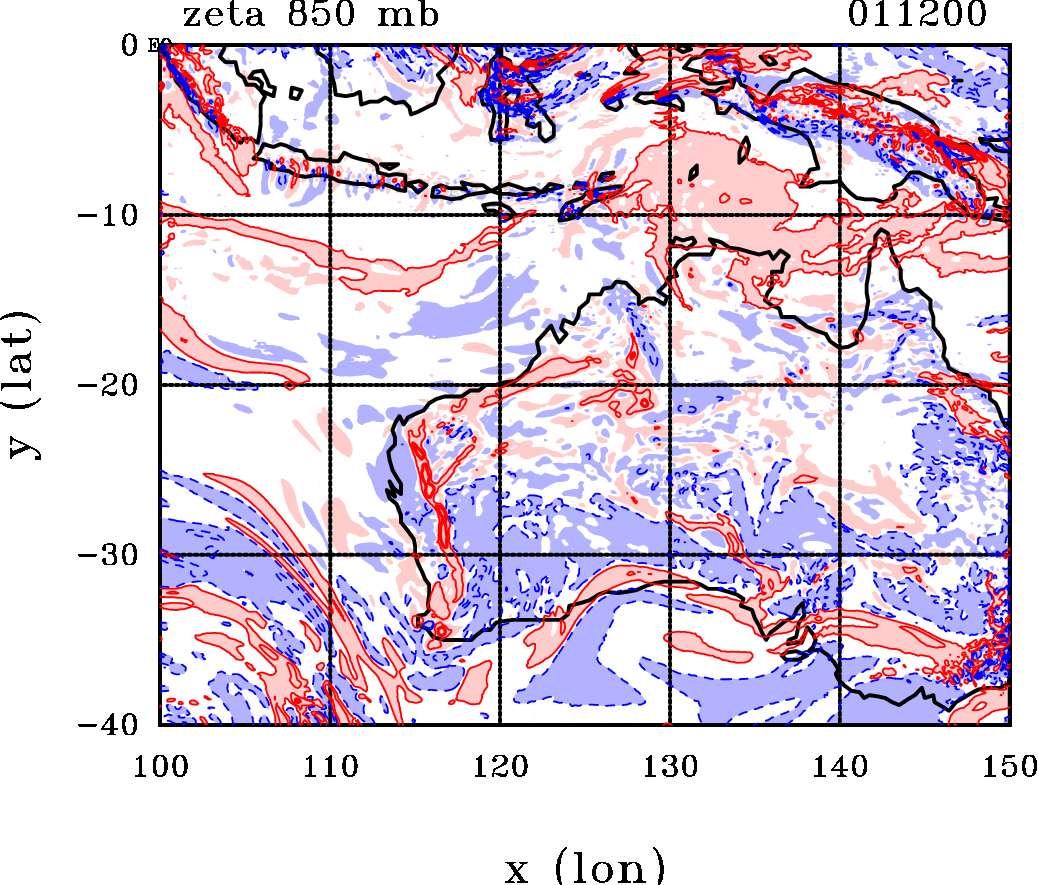

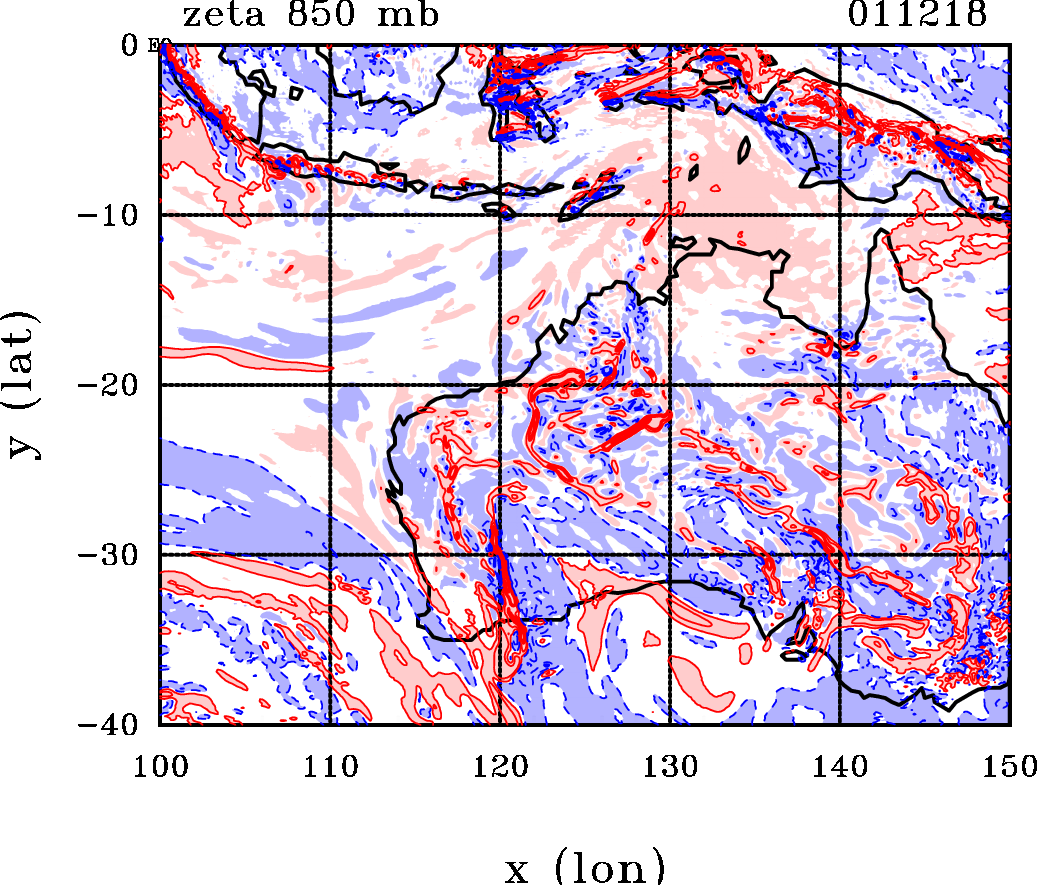

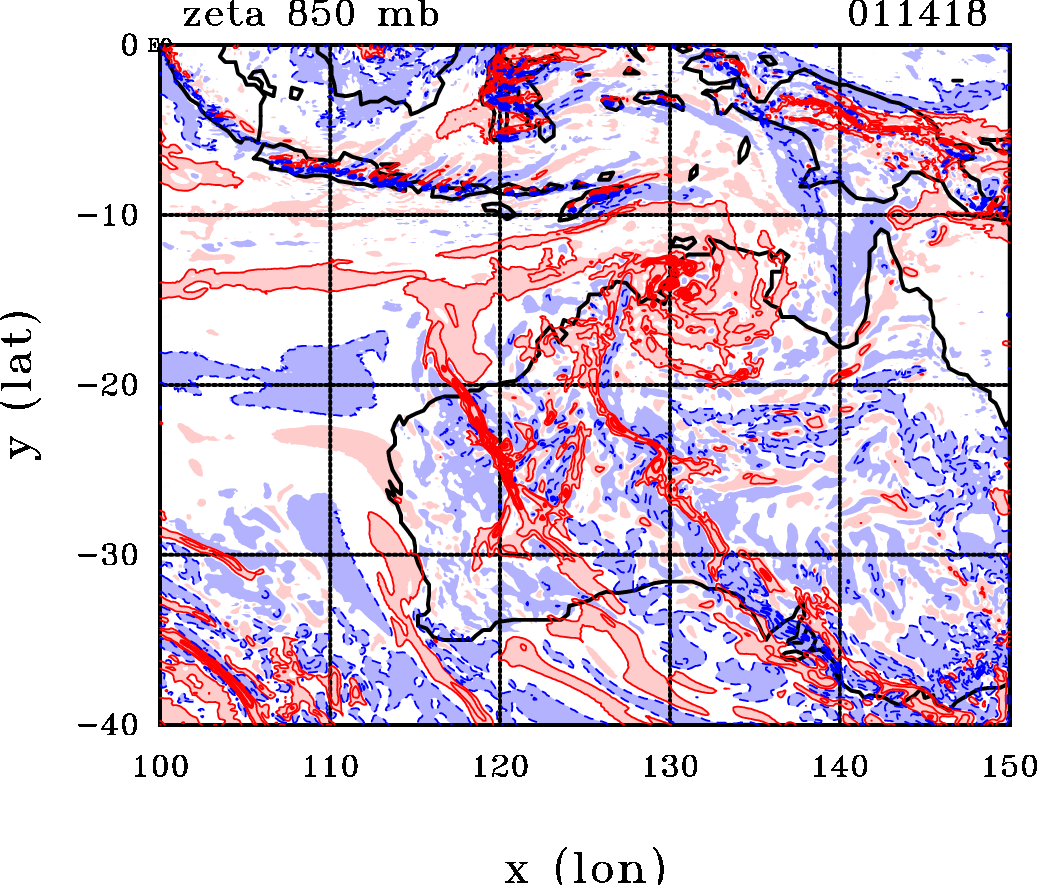

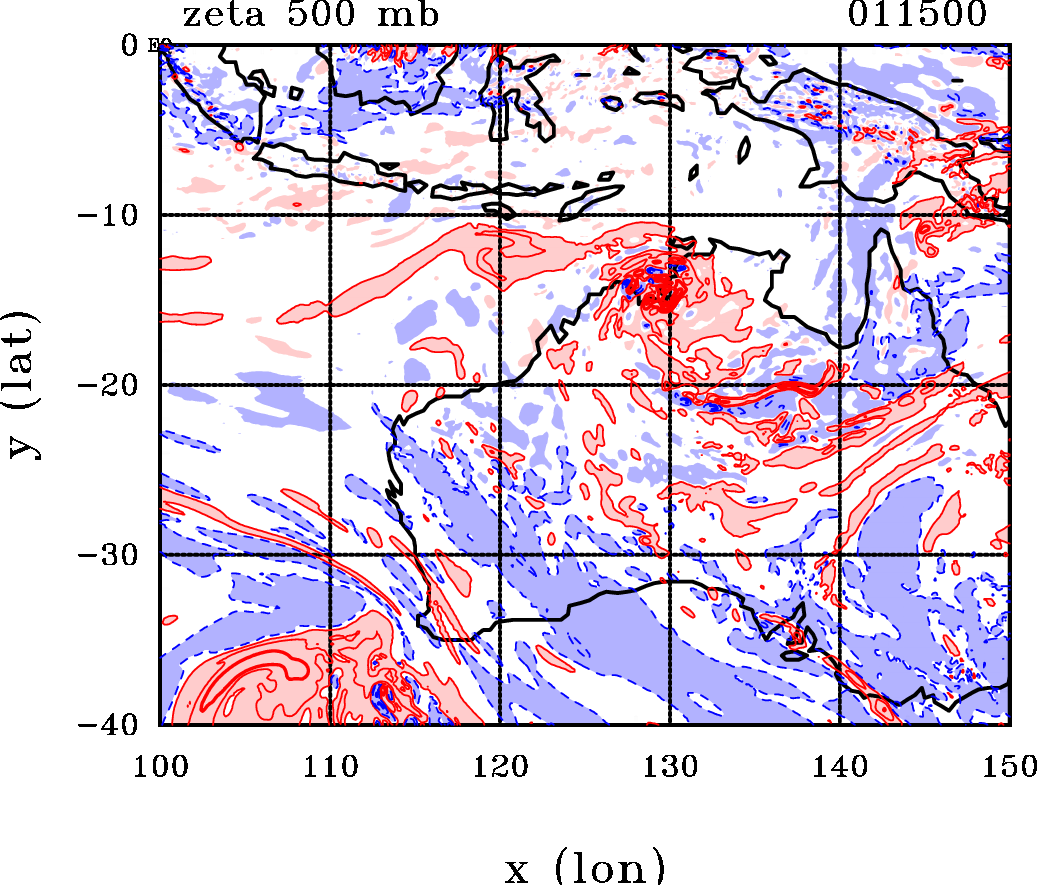

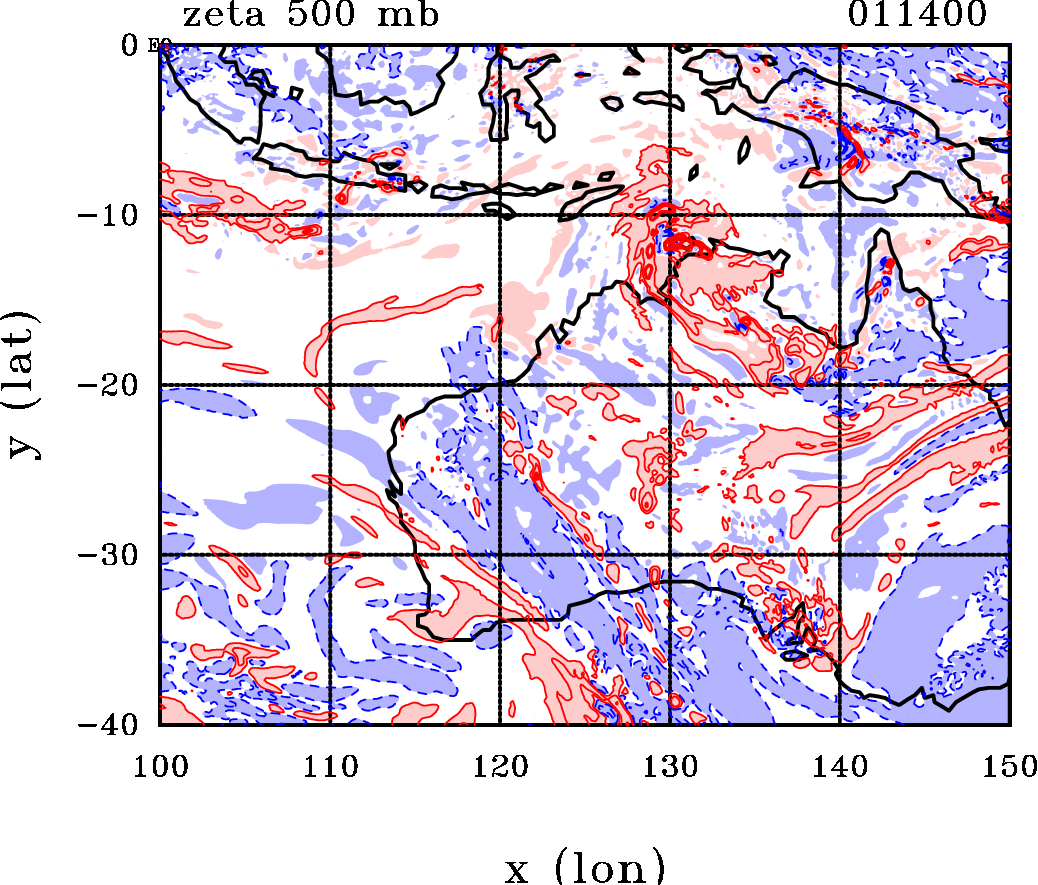

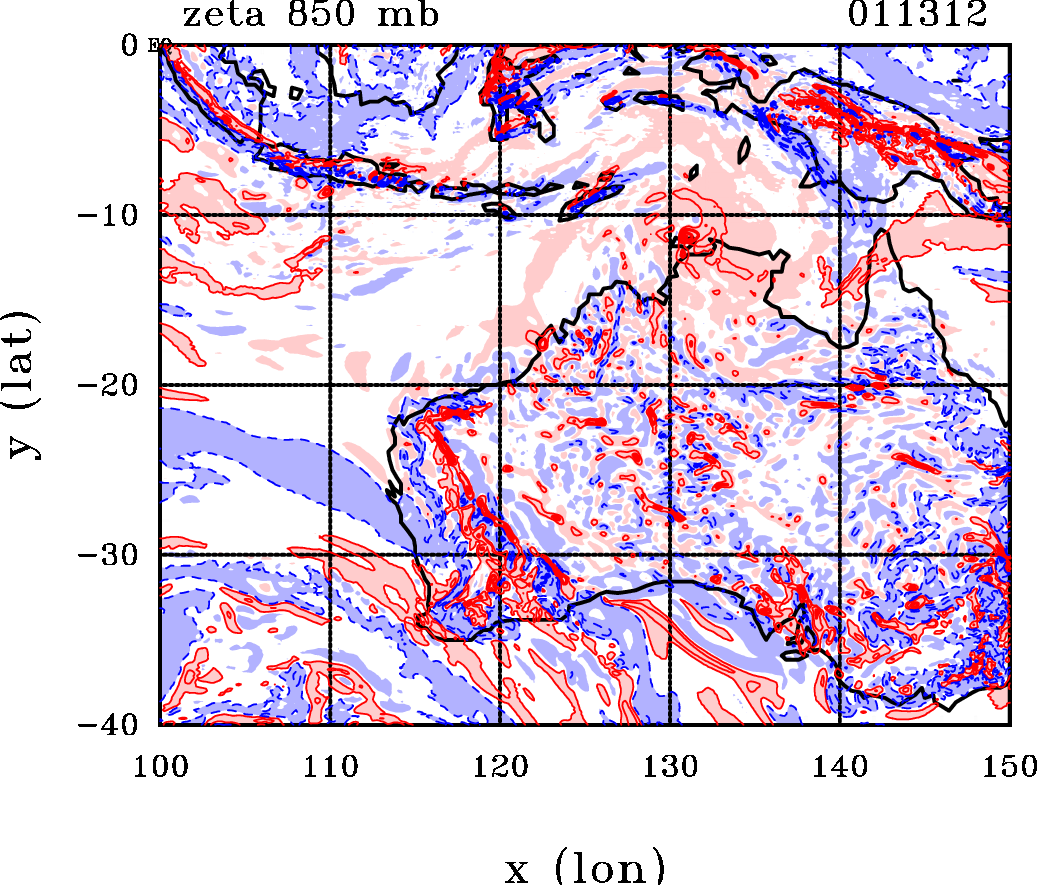

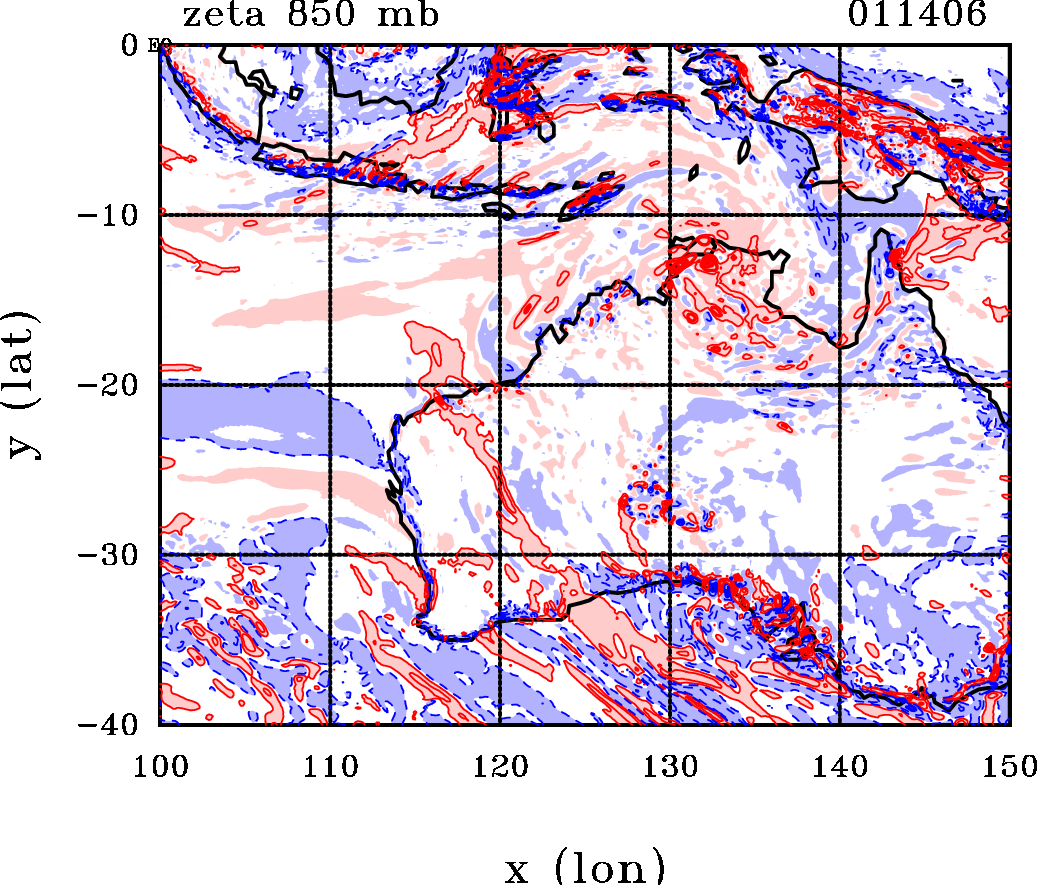

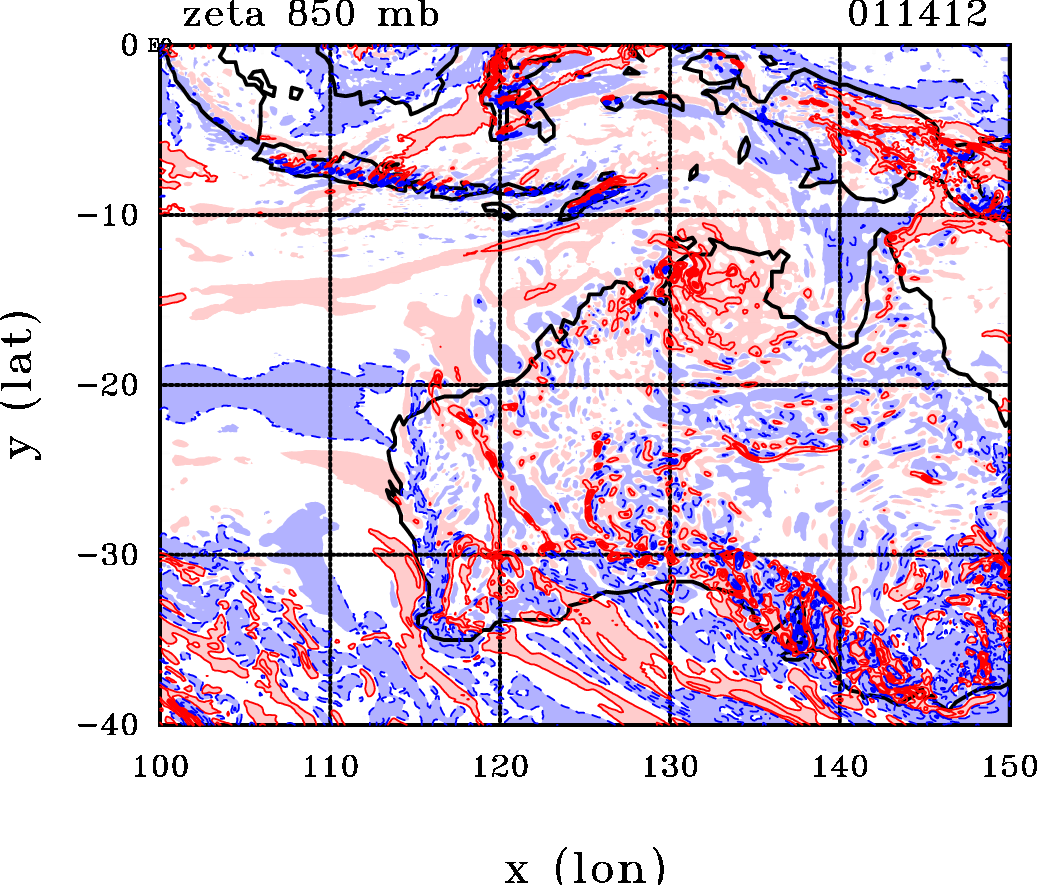

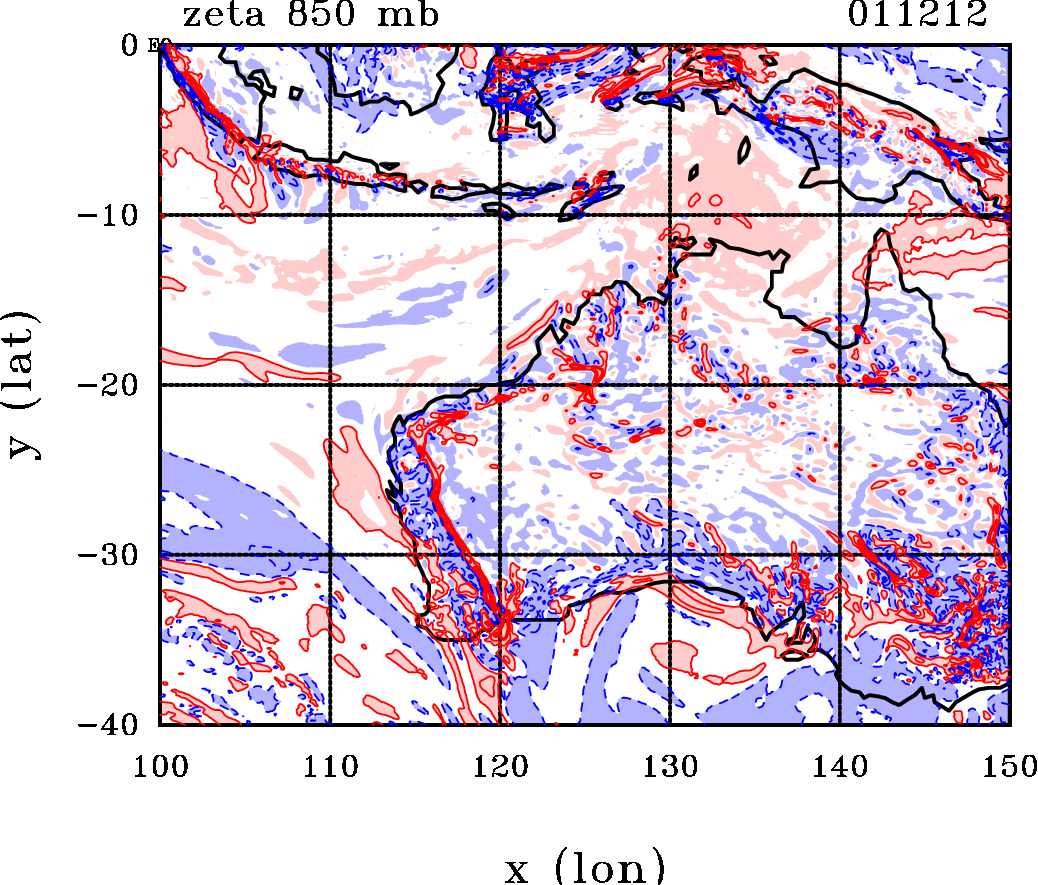

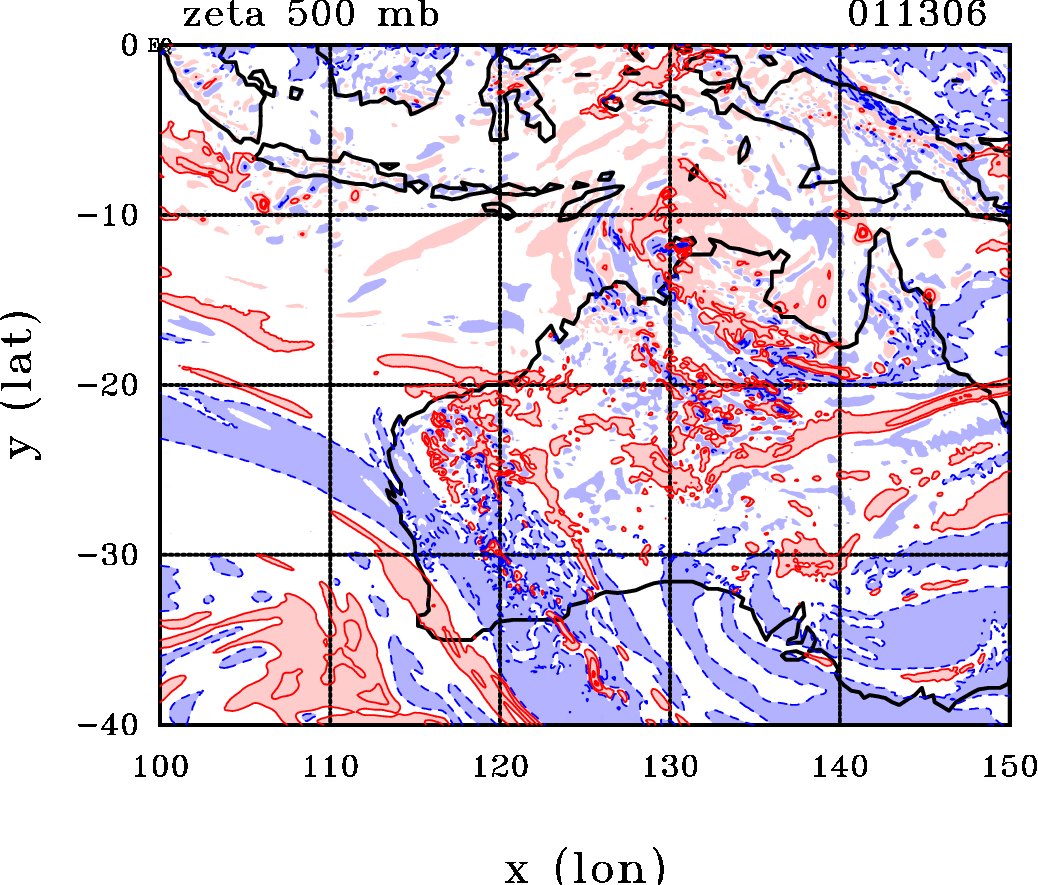

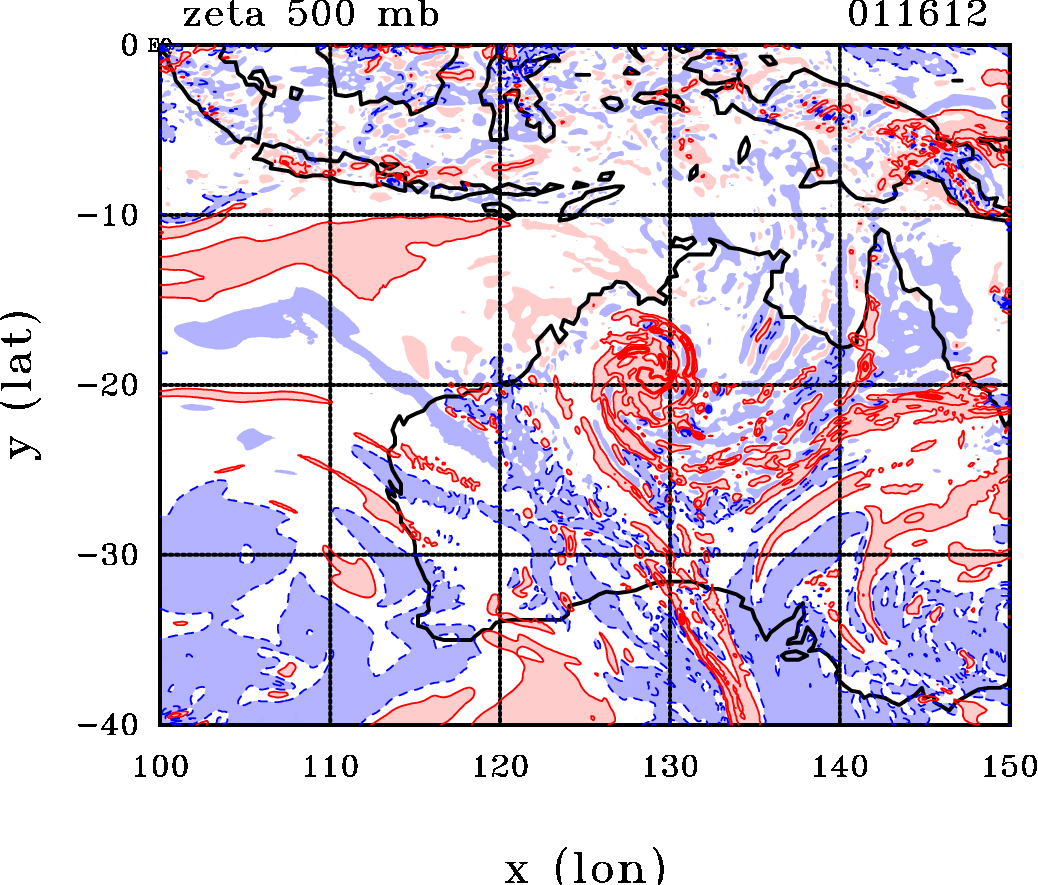

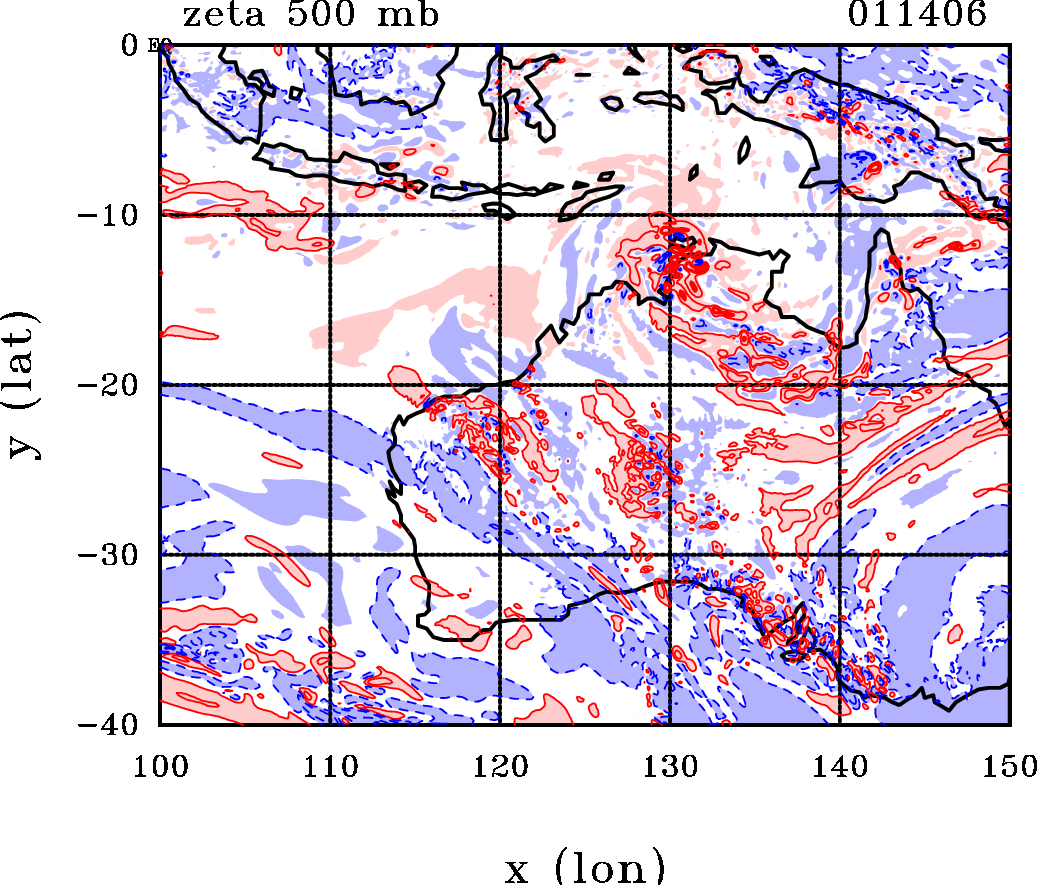

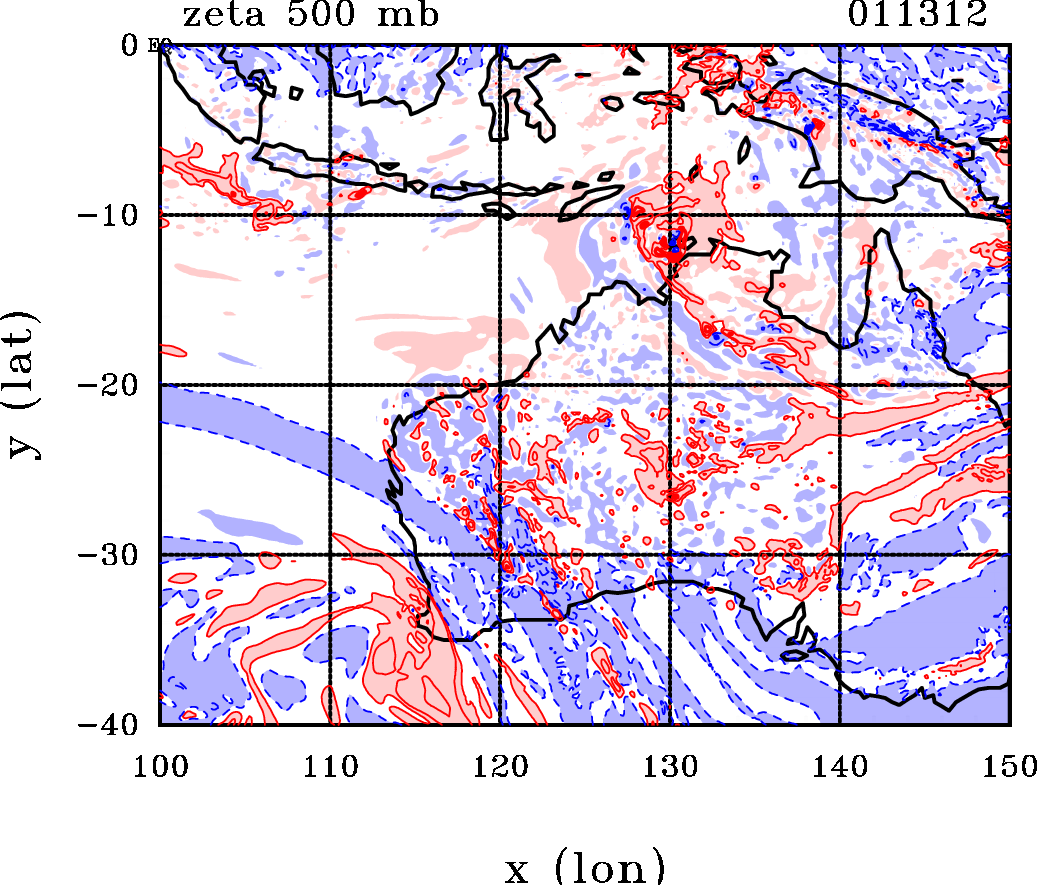

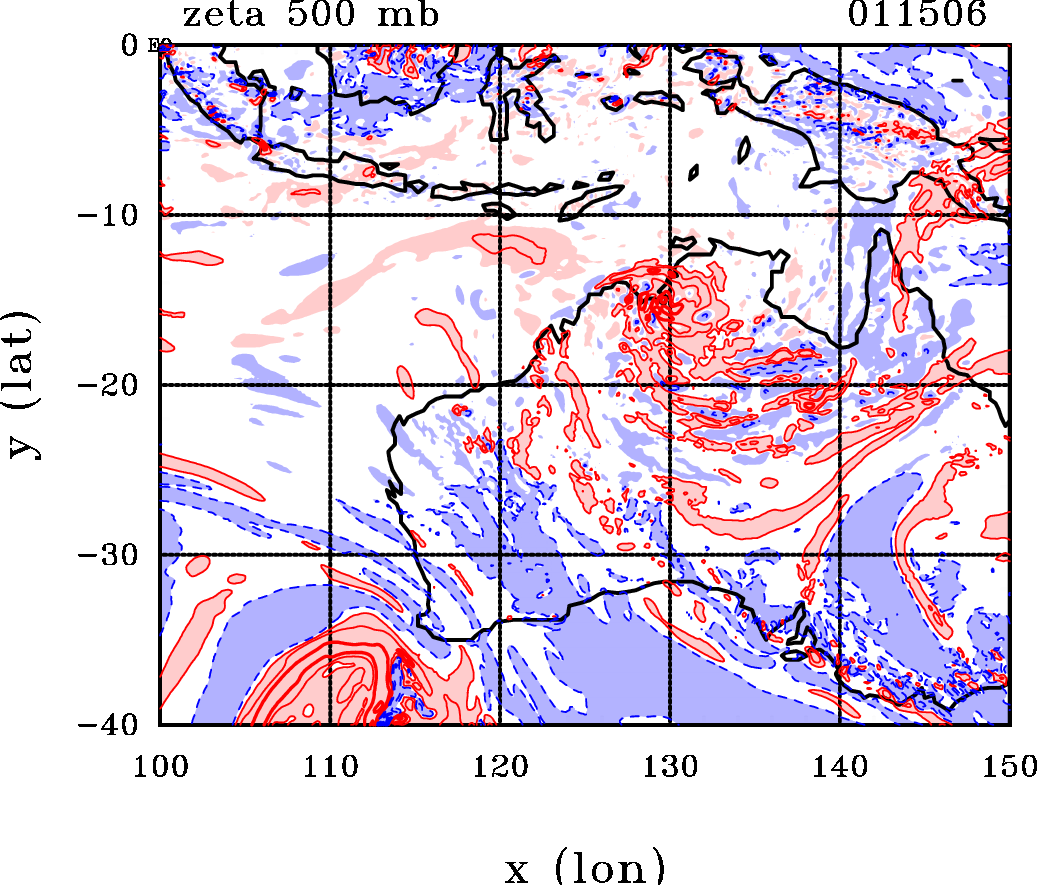

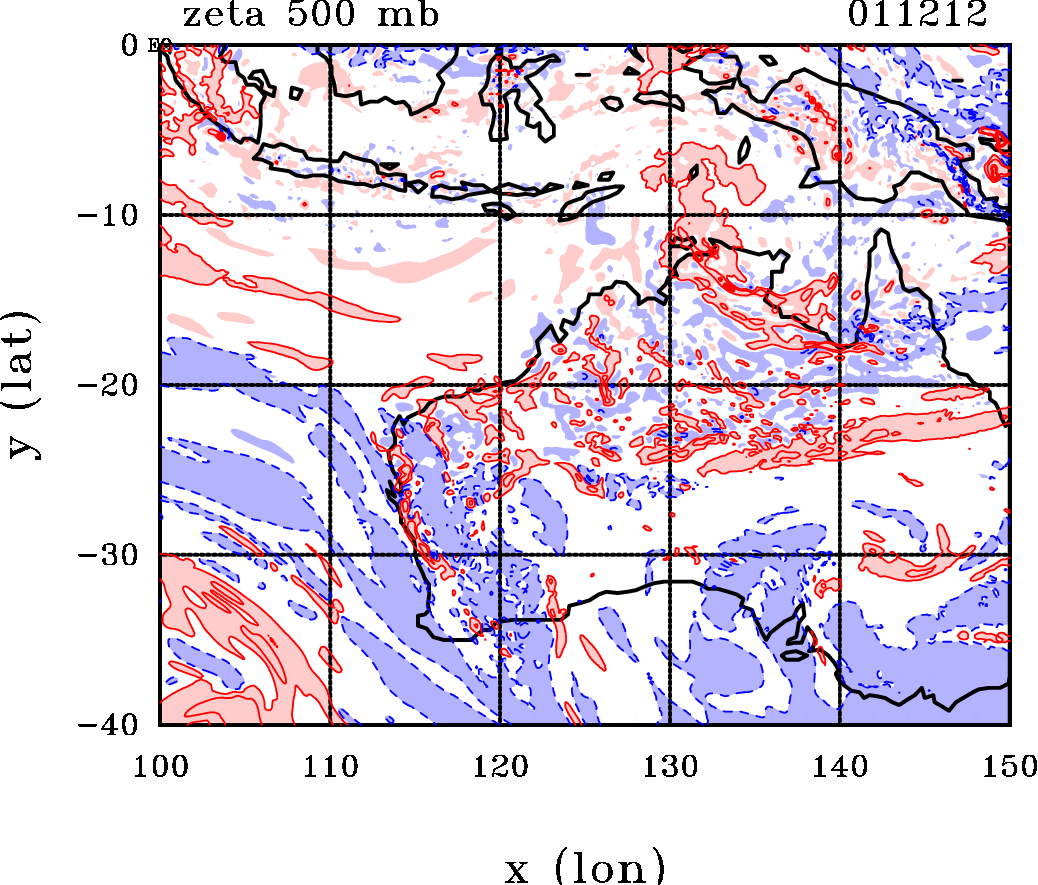

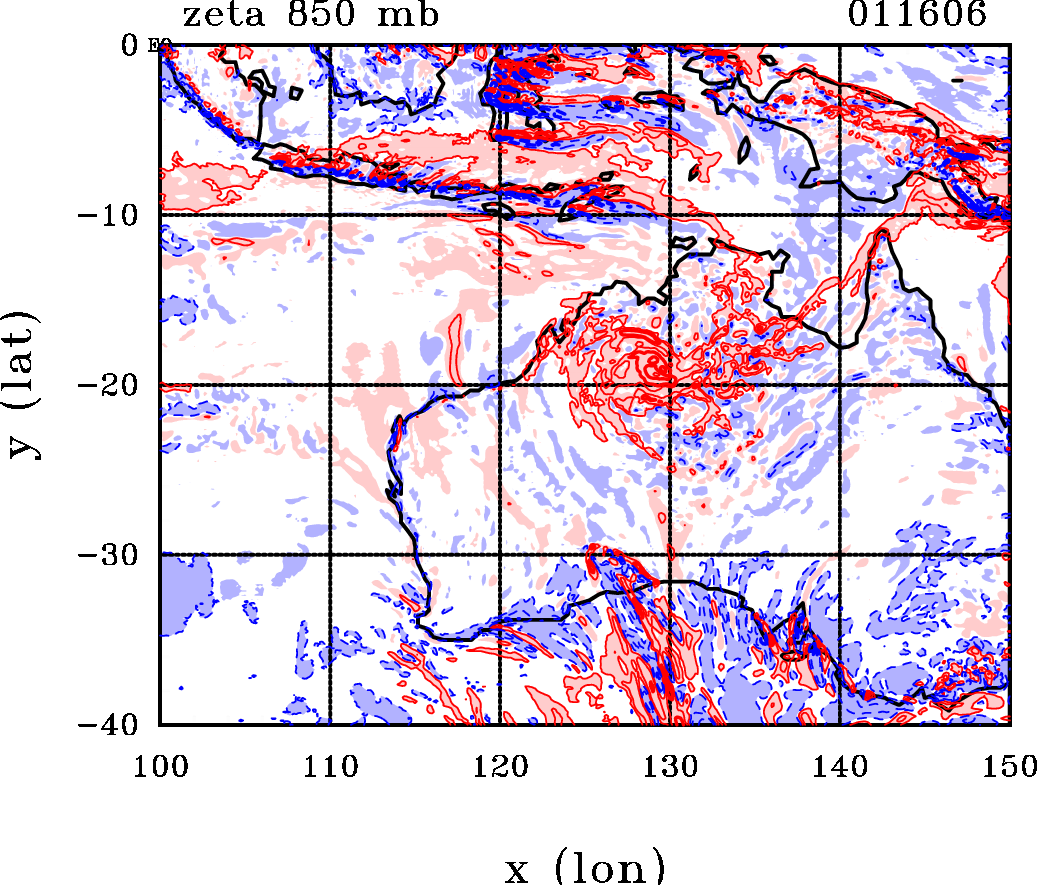

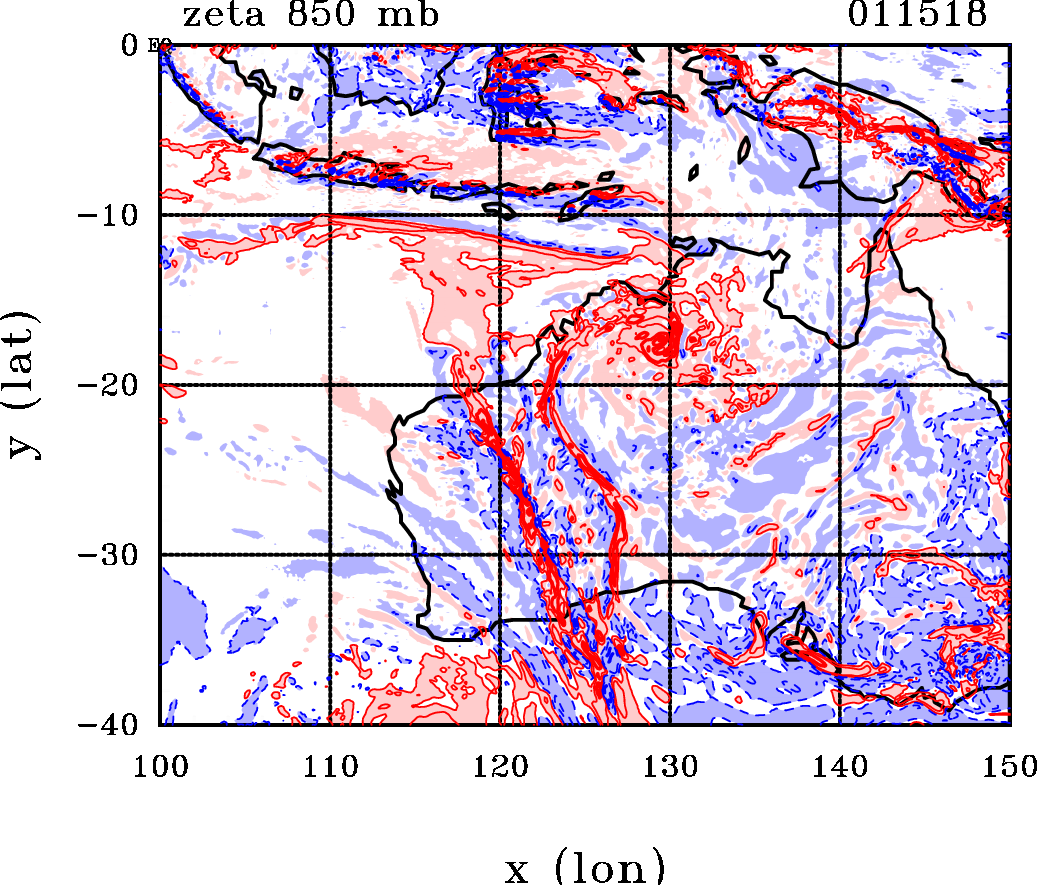

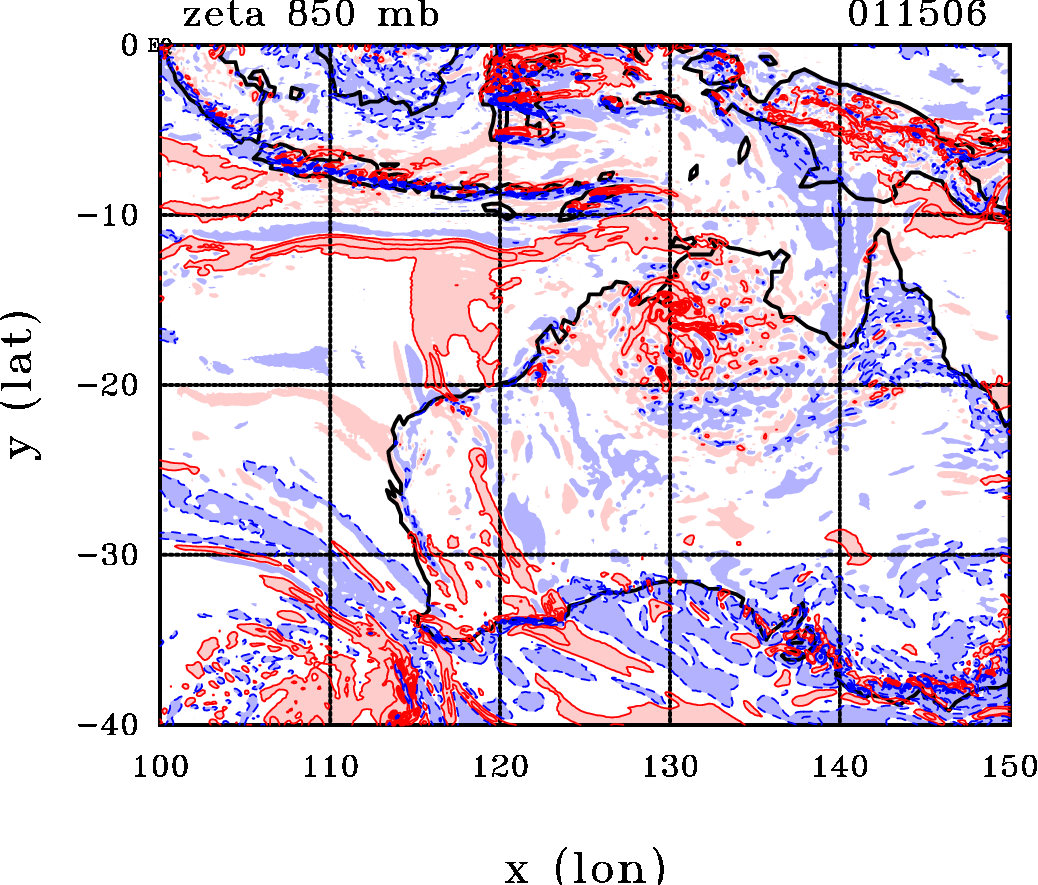

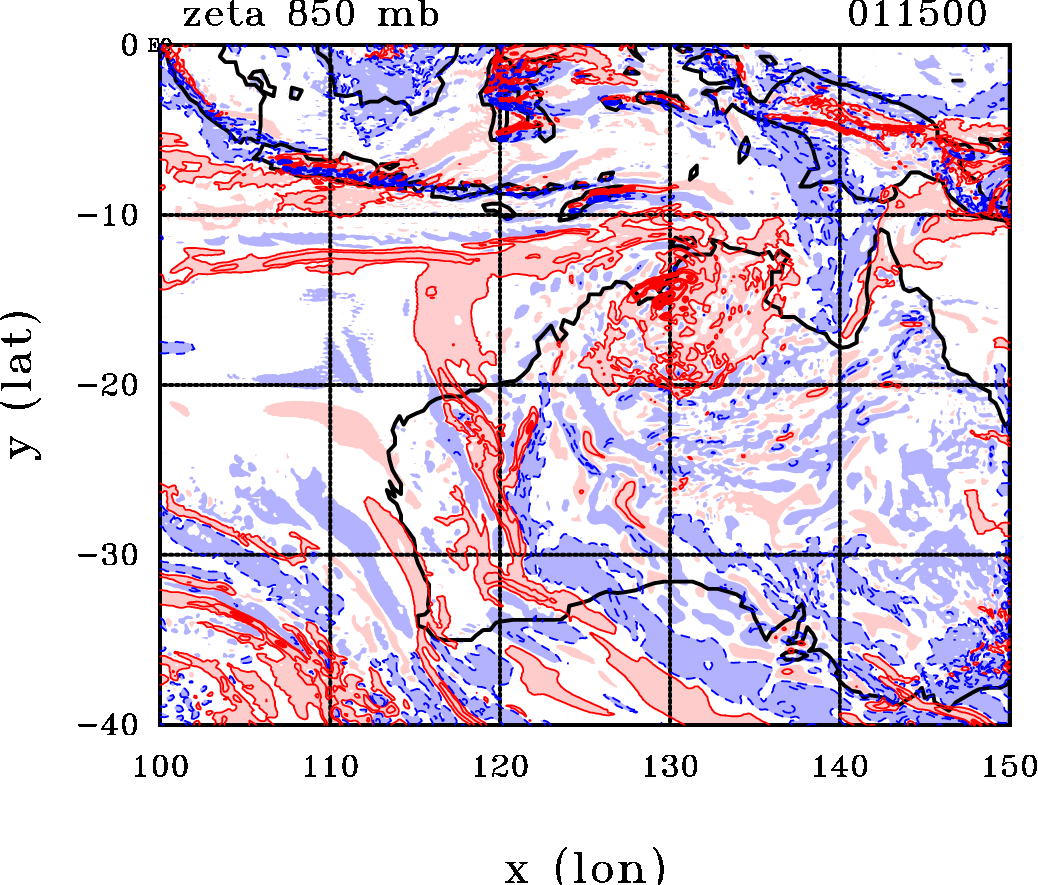

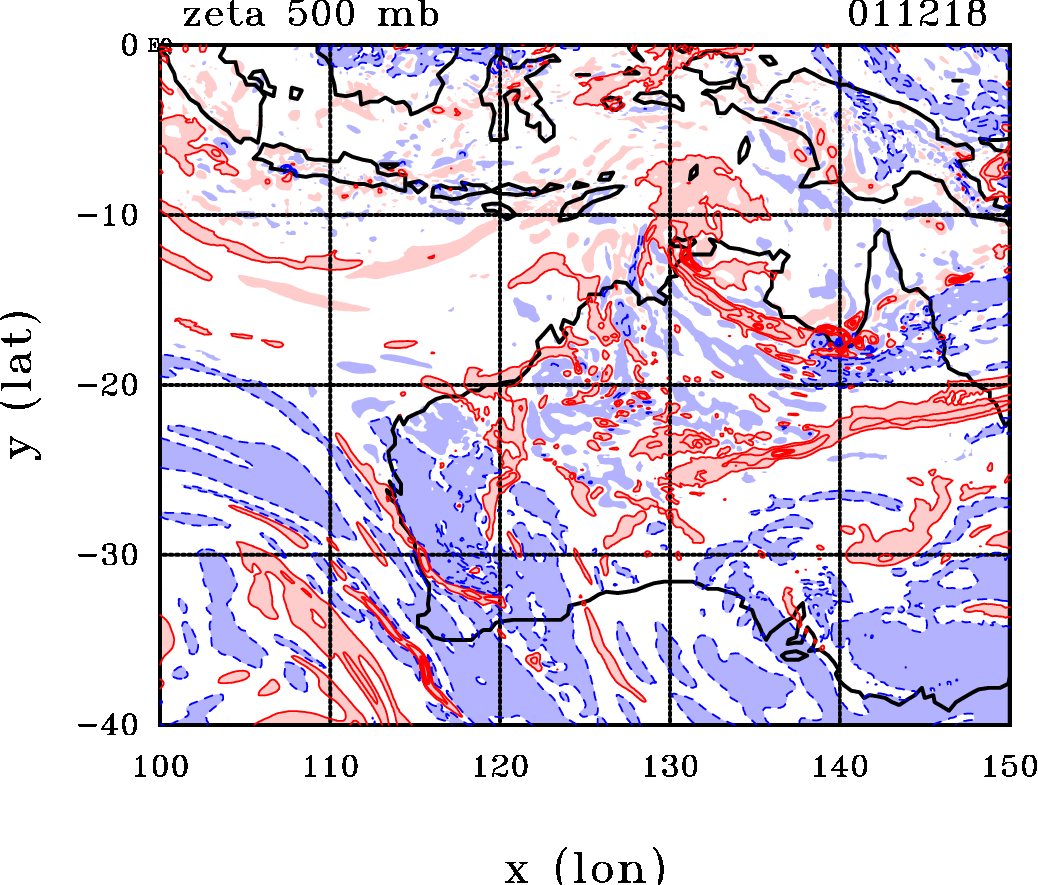

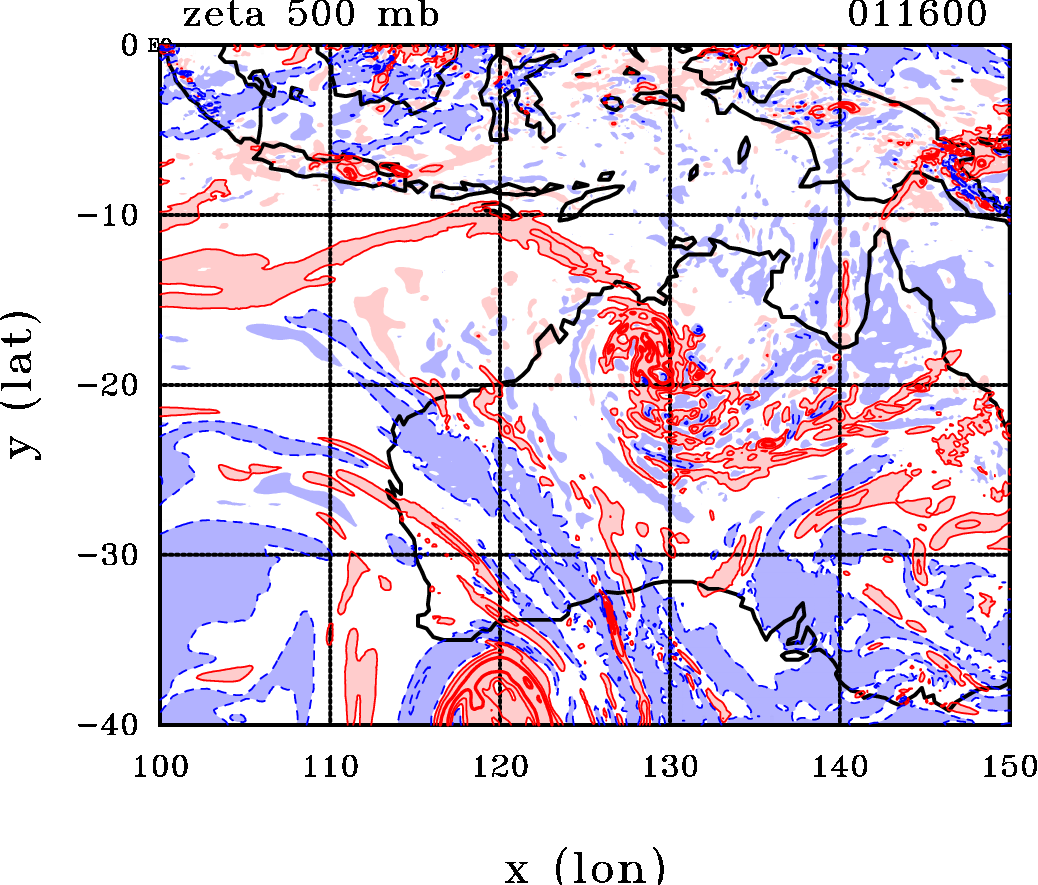

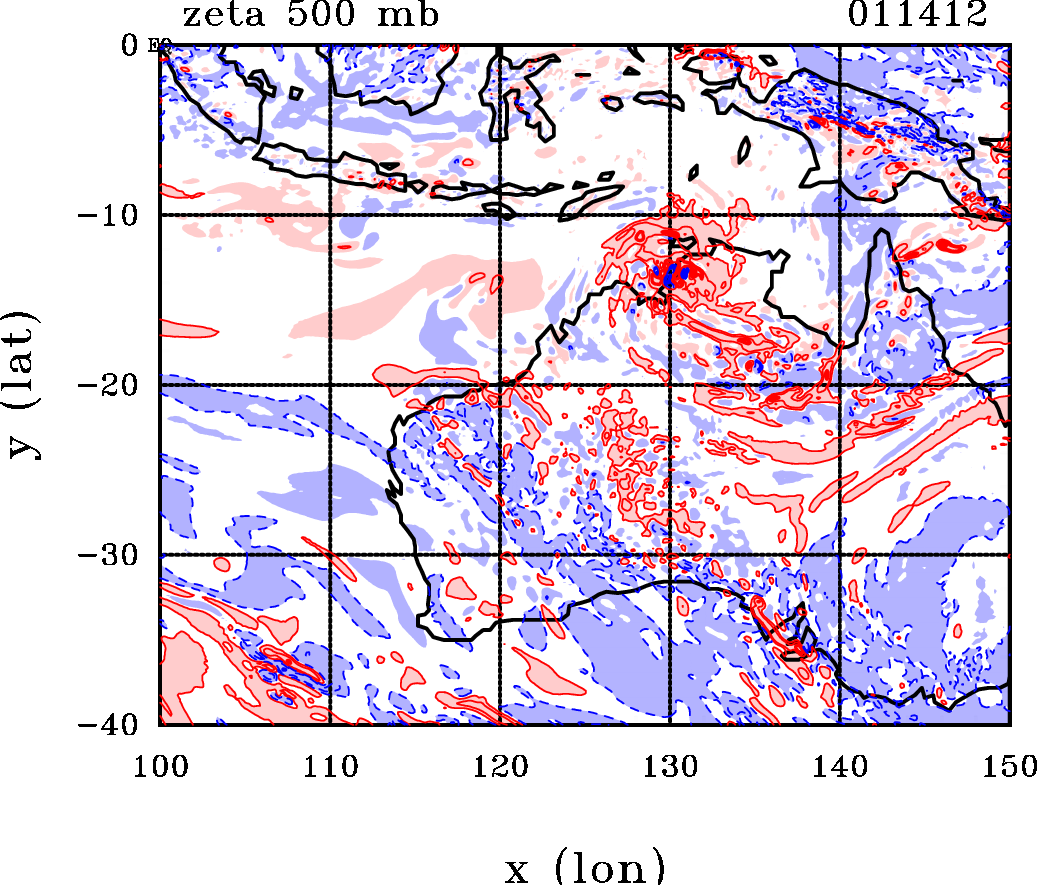

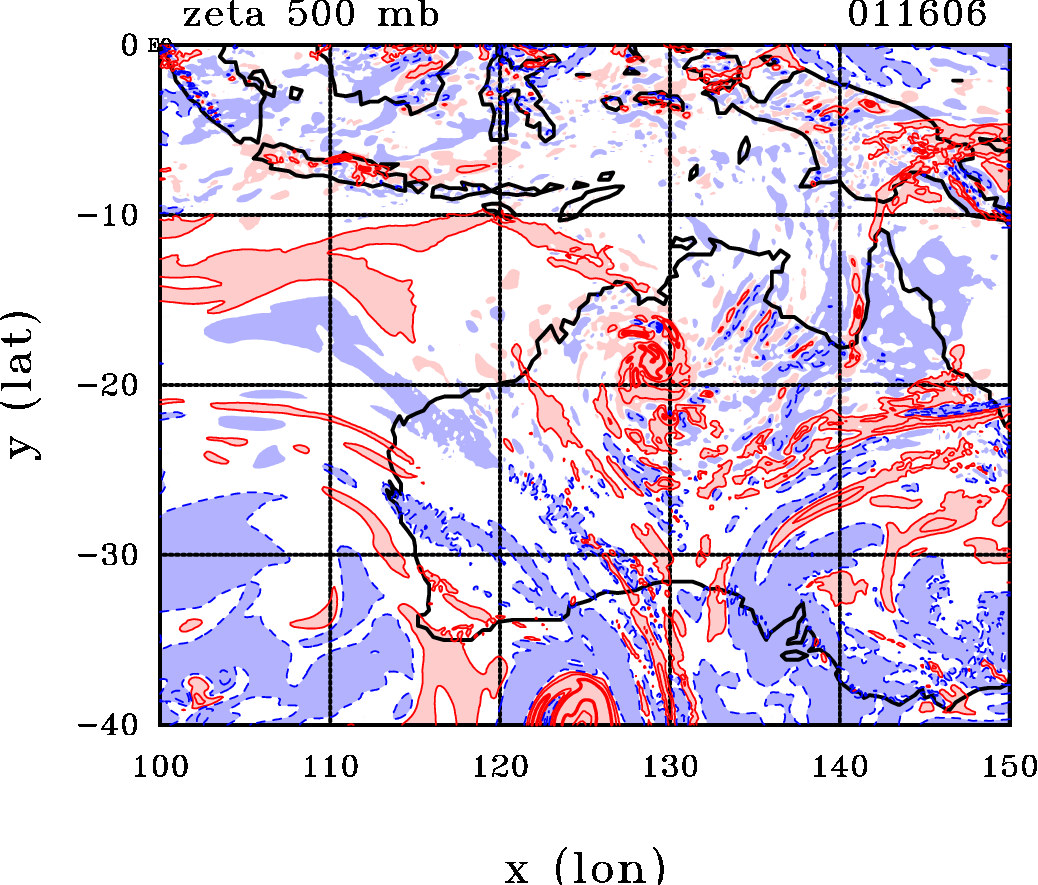

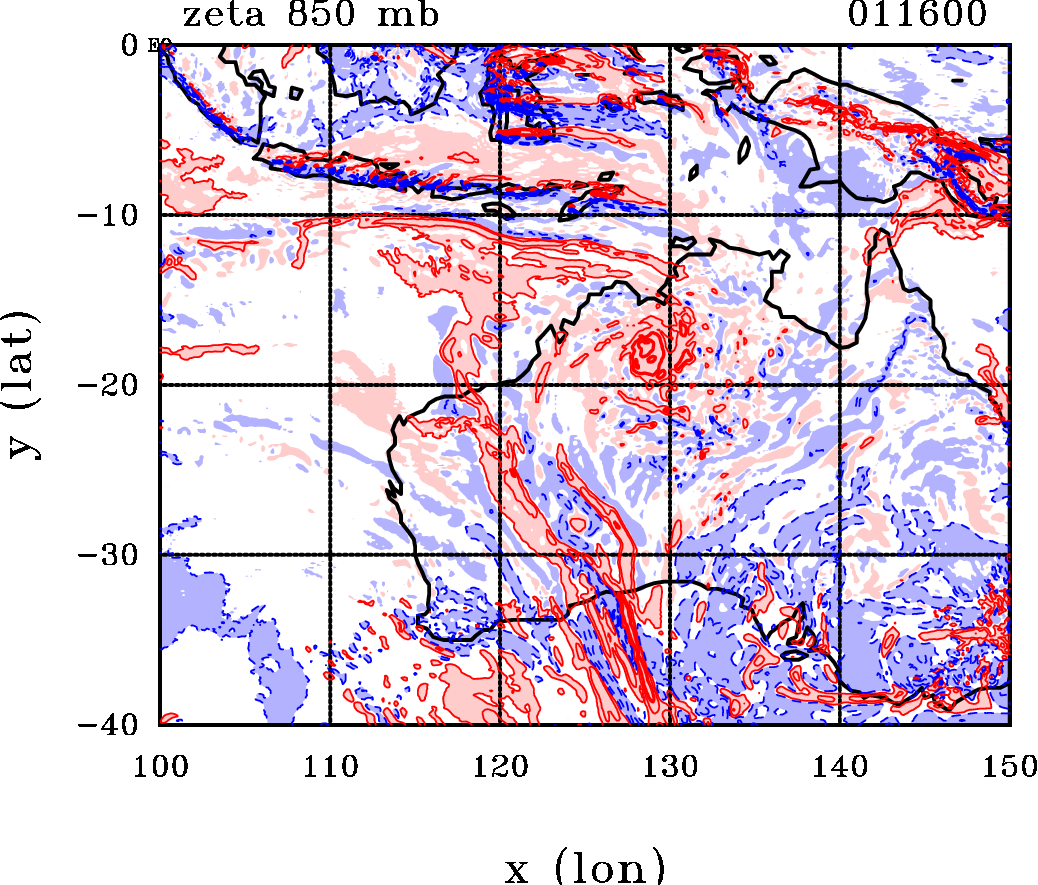

The following plots show contours of vertical vorticity during the genesis and mature stage of the disturbances. Contour levels are: thick contours 10^-4 s^-1 s^-1; thin contours 2*10^-5 s^-1; Negative contours blue/dashed. Regions of cyclonic > 2*10^-5 s^-1 are shaded pink; regions of anticyclonic vorticity < -2*10^-5 s^-1 shaded light blue.

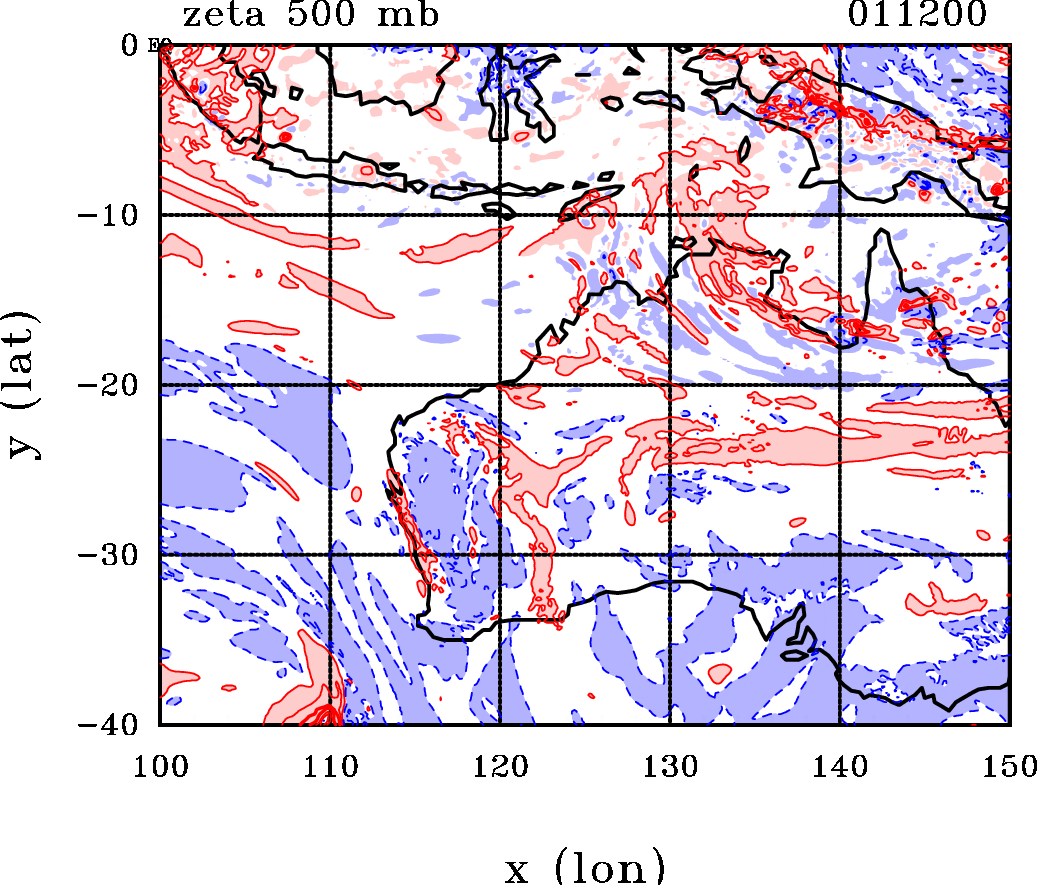

12 Jan 00Z	12 Jan 00Z

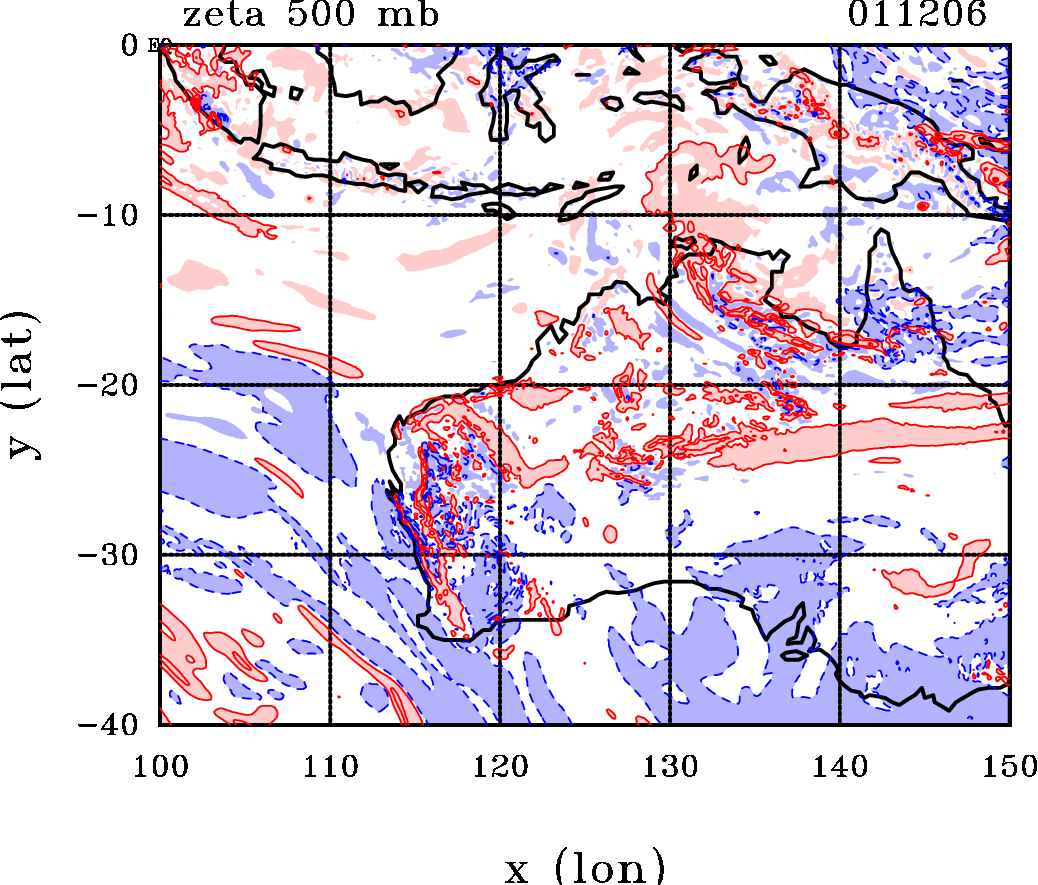

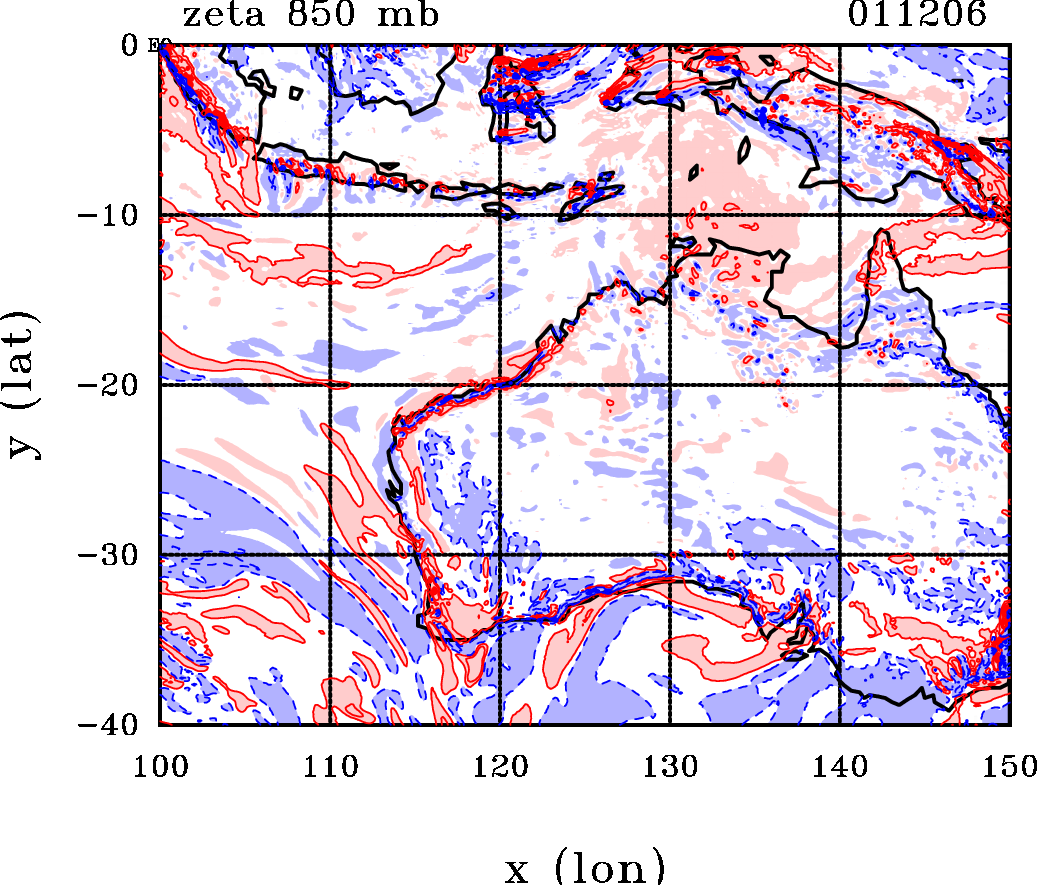

12 Jan 06Z	12 Jan 06Z
12 Jan 12Z	12 Jan 12Z
12 Jan 18Z	12 Jan 18Z
13 Jan 00Z	13 Jan 00Z
13 Jan 06Z	13 Jan 06Z
13 Jan 12Z	13 Jan 12Z

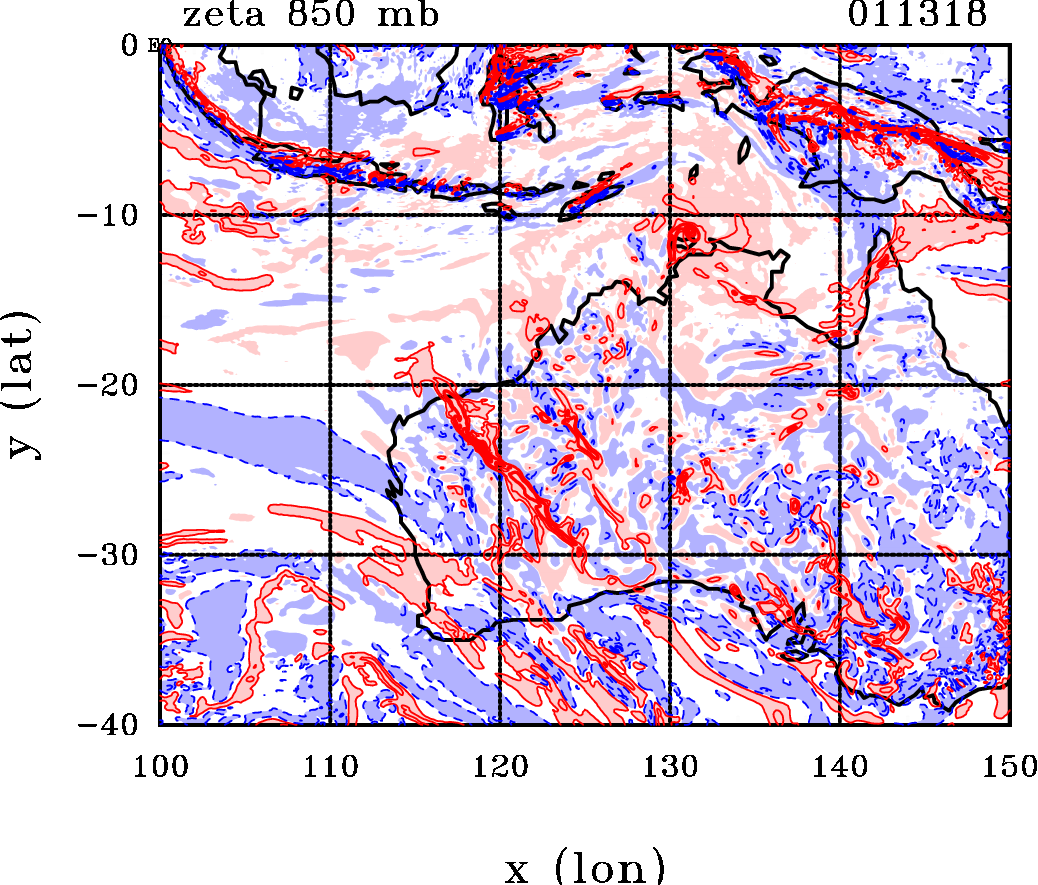

13 Jan 18Z	13 Jan 18Z

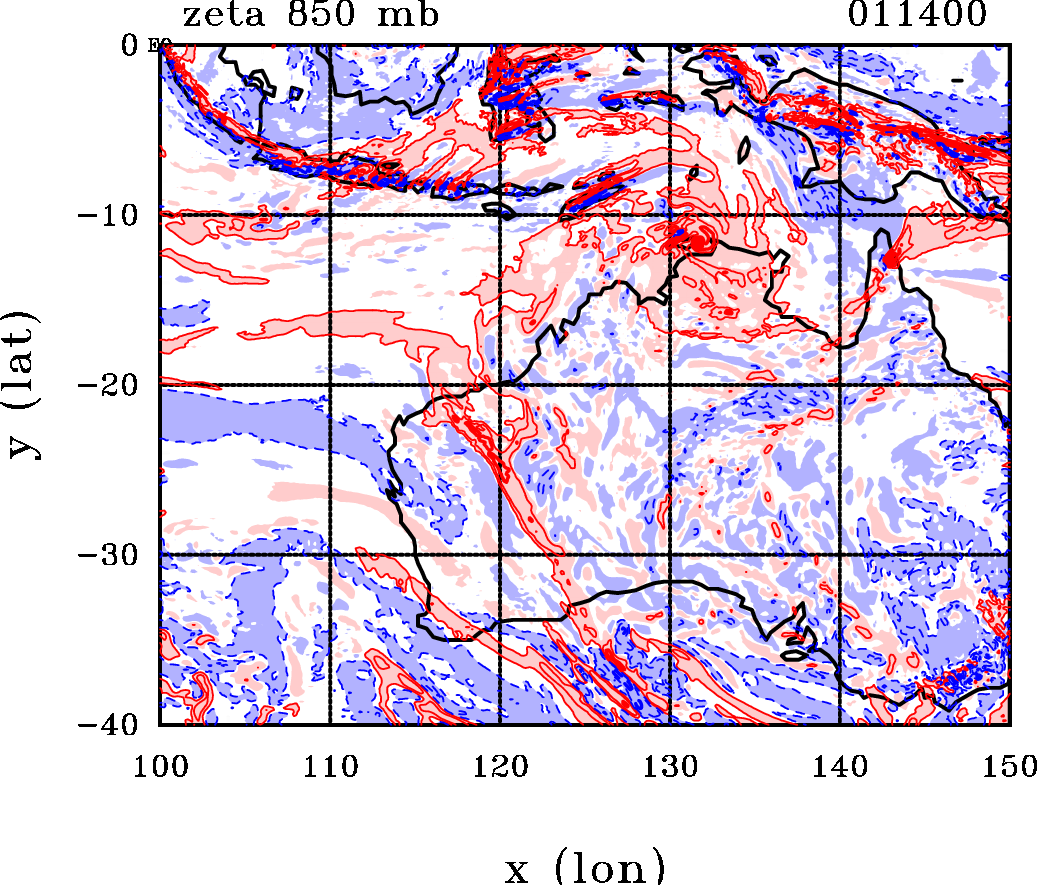

14 Jan 00Z	14 Jan 00Z
14 Jan 06Z	14 Jan 06Z
14 Jan 12Z	14 Jan 12Z
14 Jan 18Z	14 Jan 18Z
15 Jan 00Z	15 Jan 00Z
15 Jan 06Z	15 Jan 06Z

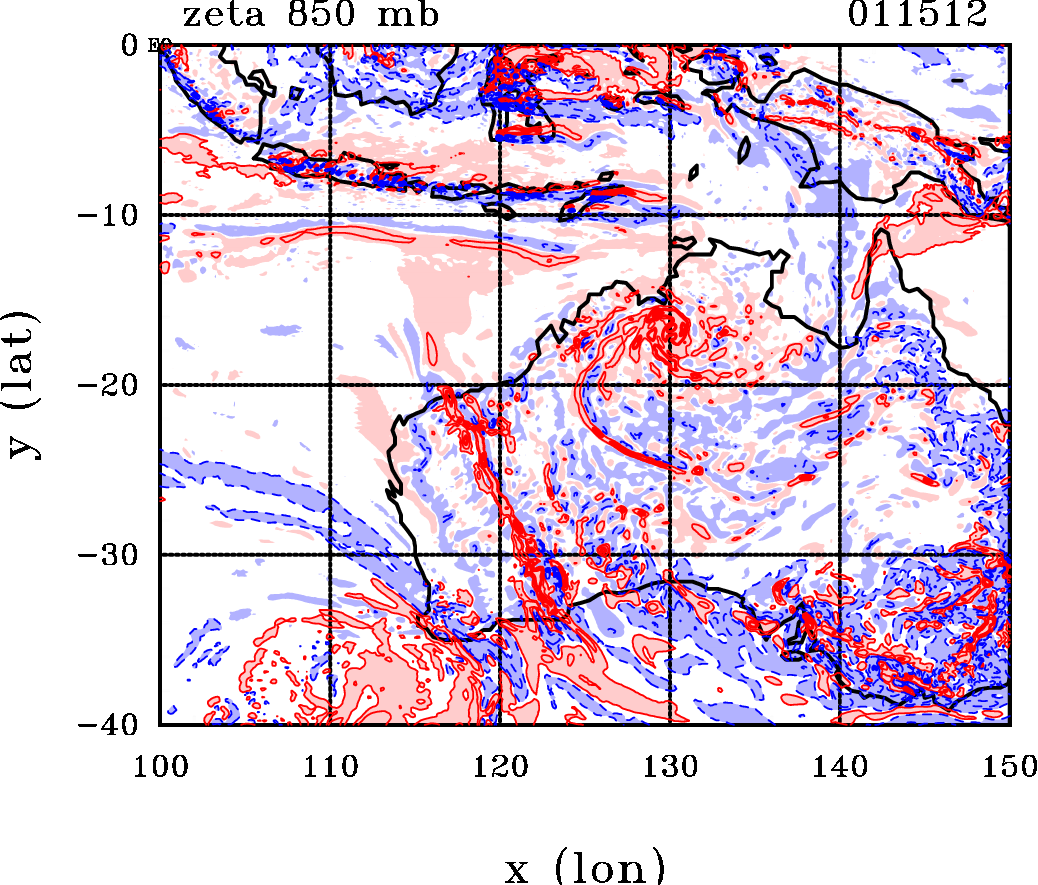

15 Jan 12Z	15 Jan 12Z

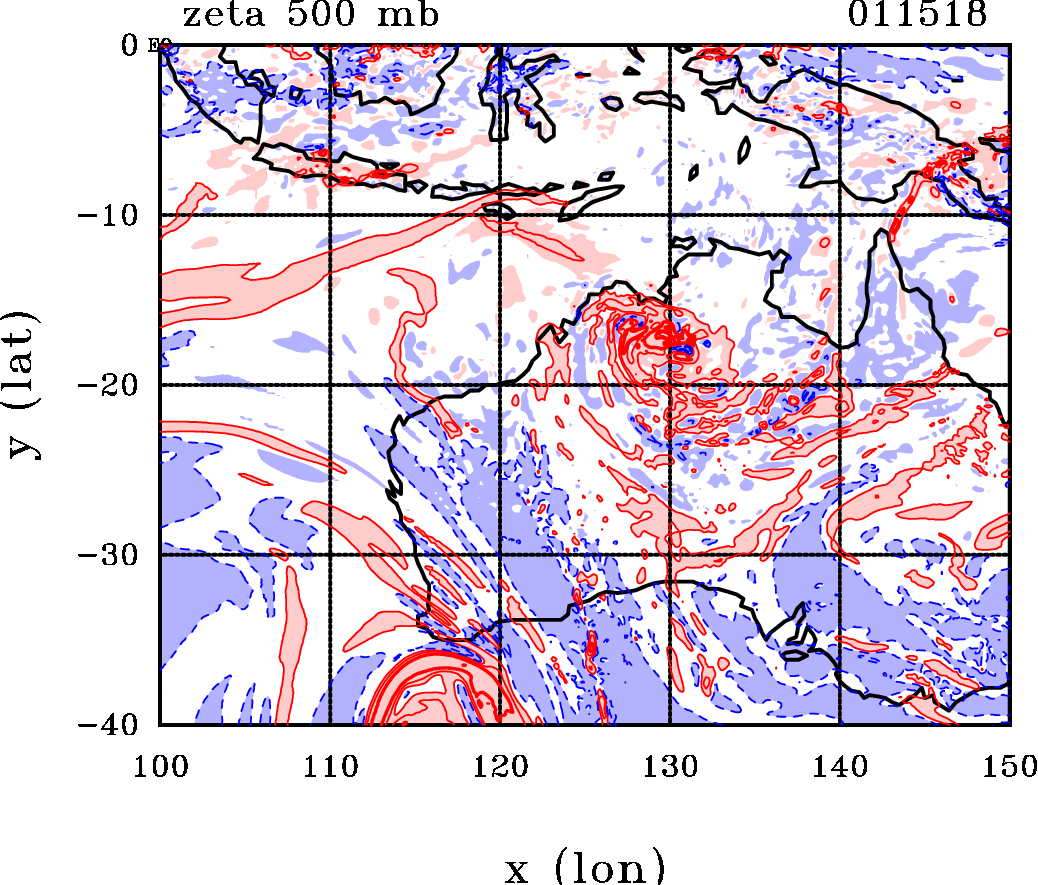

15 Jan 18Z	15 Jan 18Z
16 Jan 00Z	16 Jan 00Z
16 Jan 06Z	16 Jan 06Z

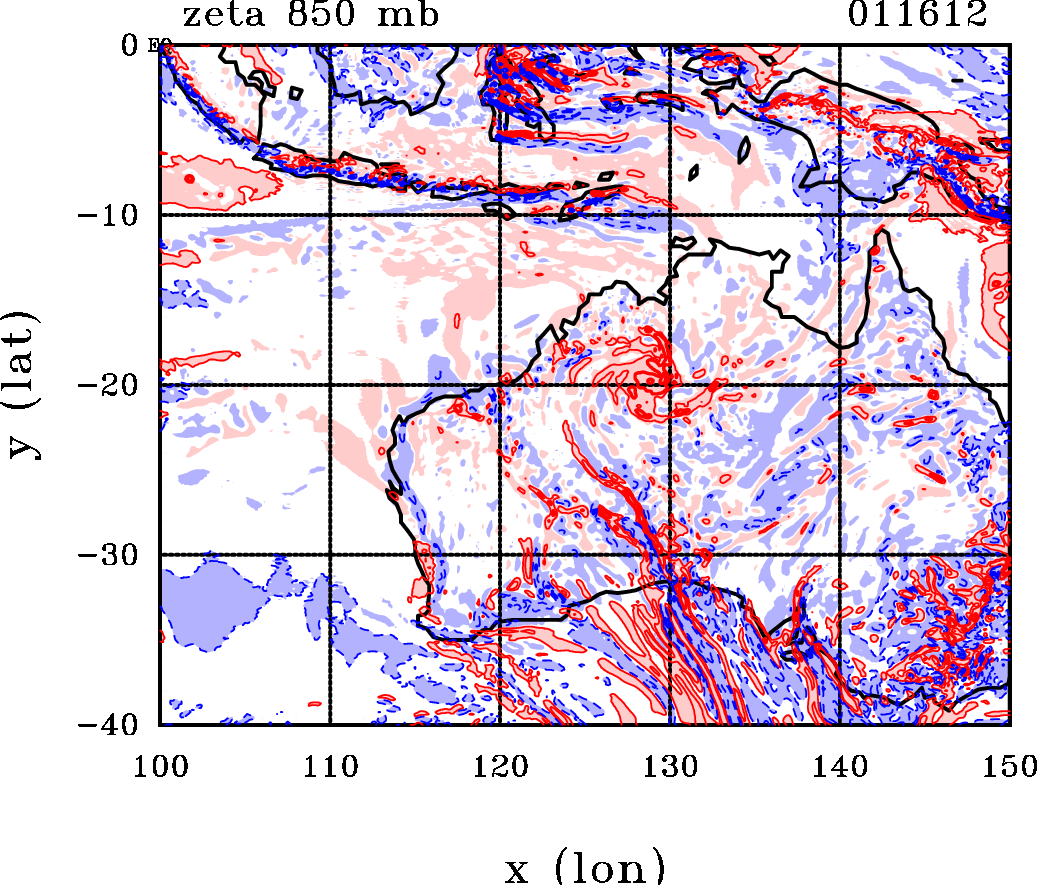

16 Jan 12Z	16 Jan 12Z
16 Jan 18Z	16 Jan 18Z
